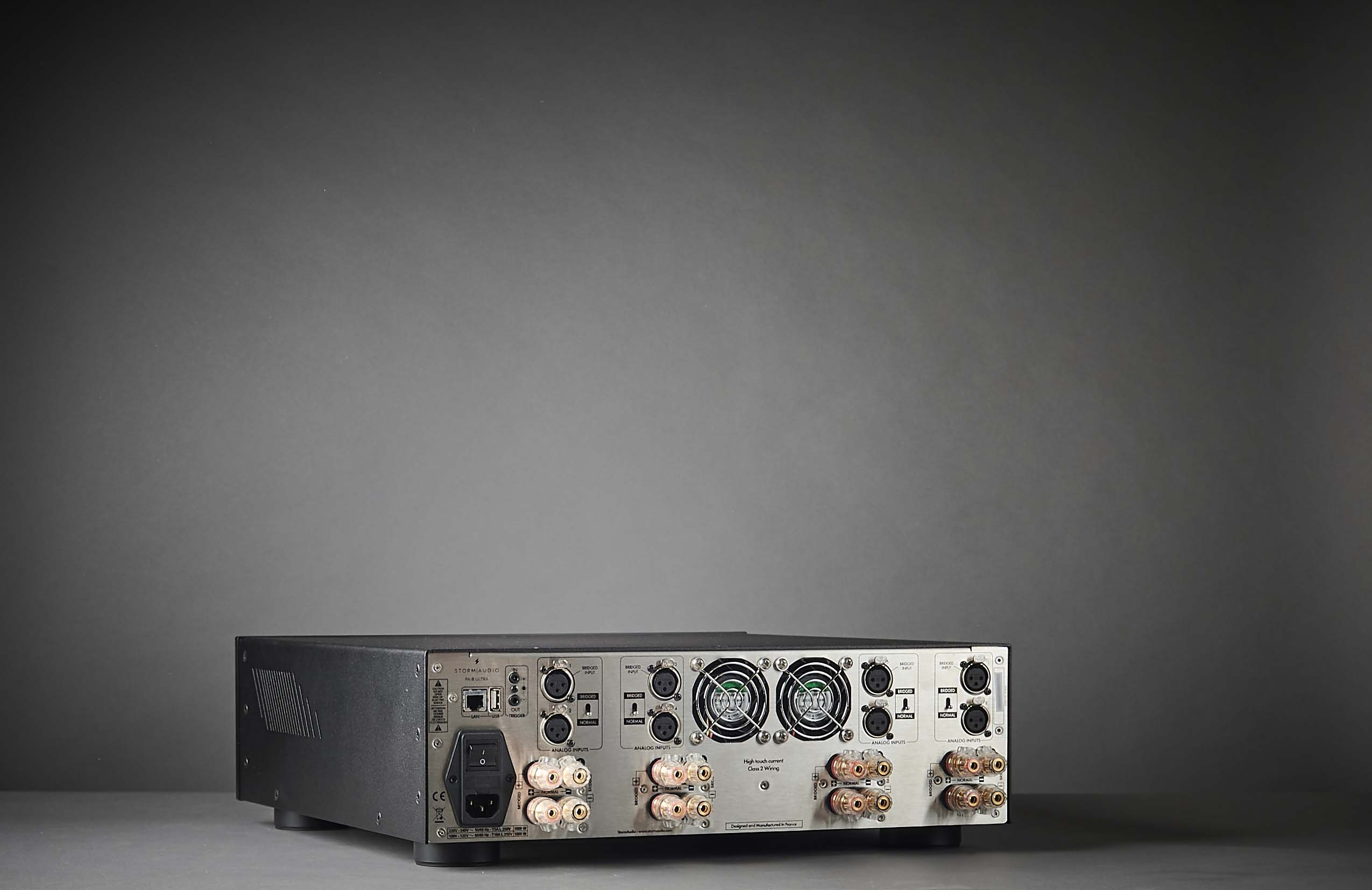

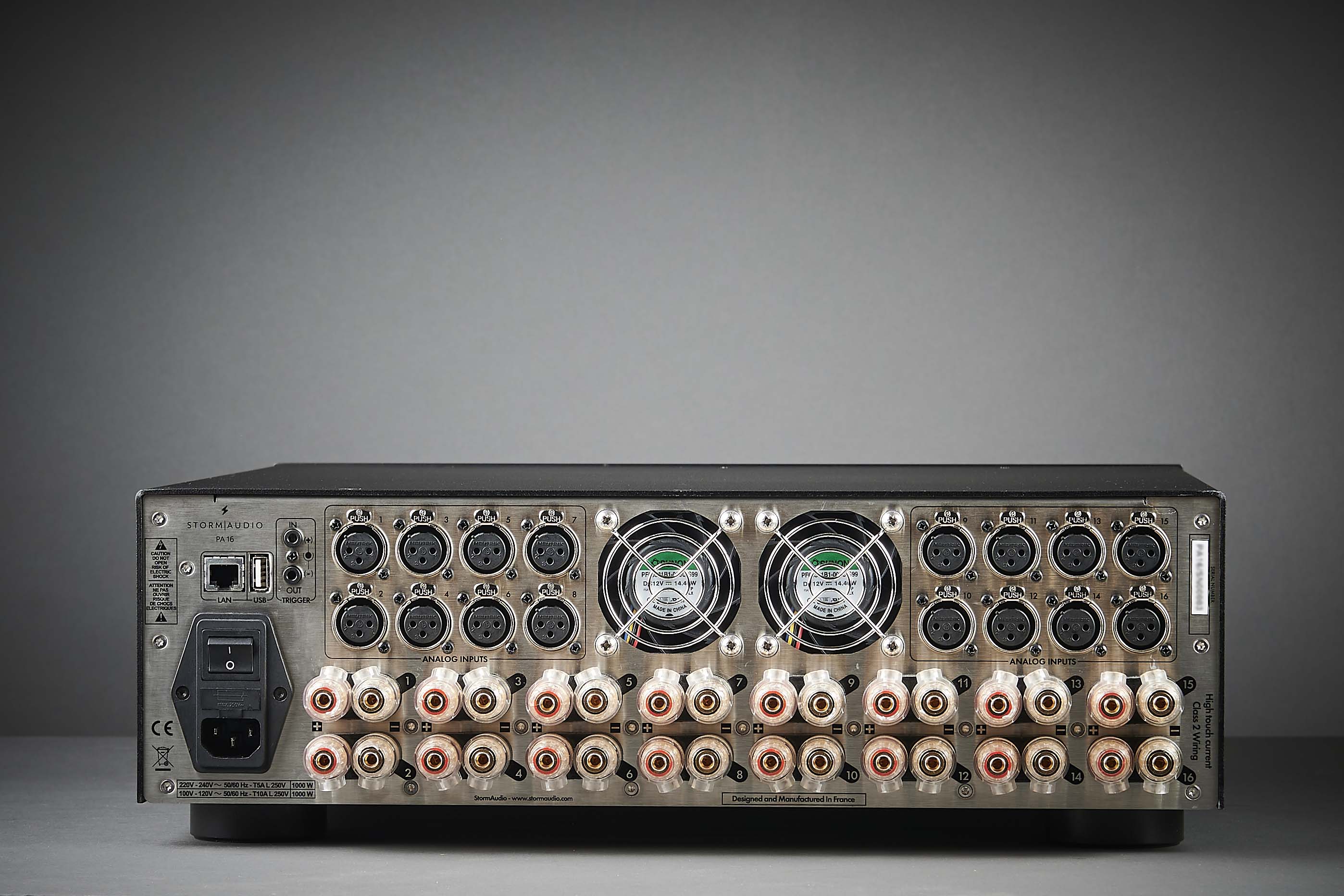

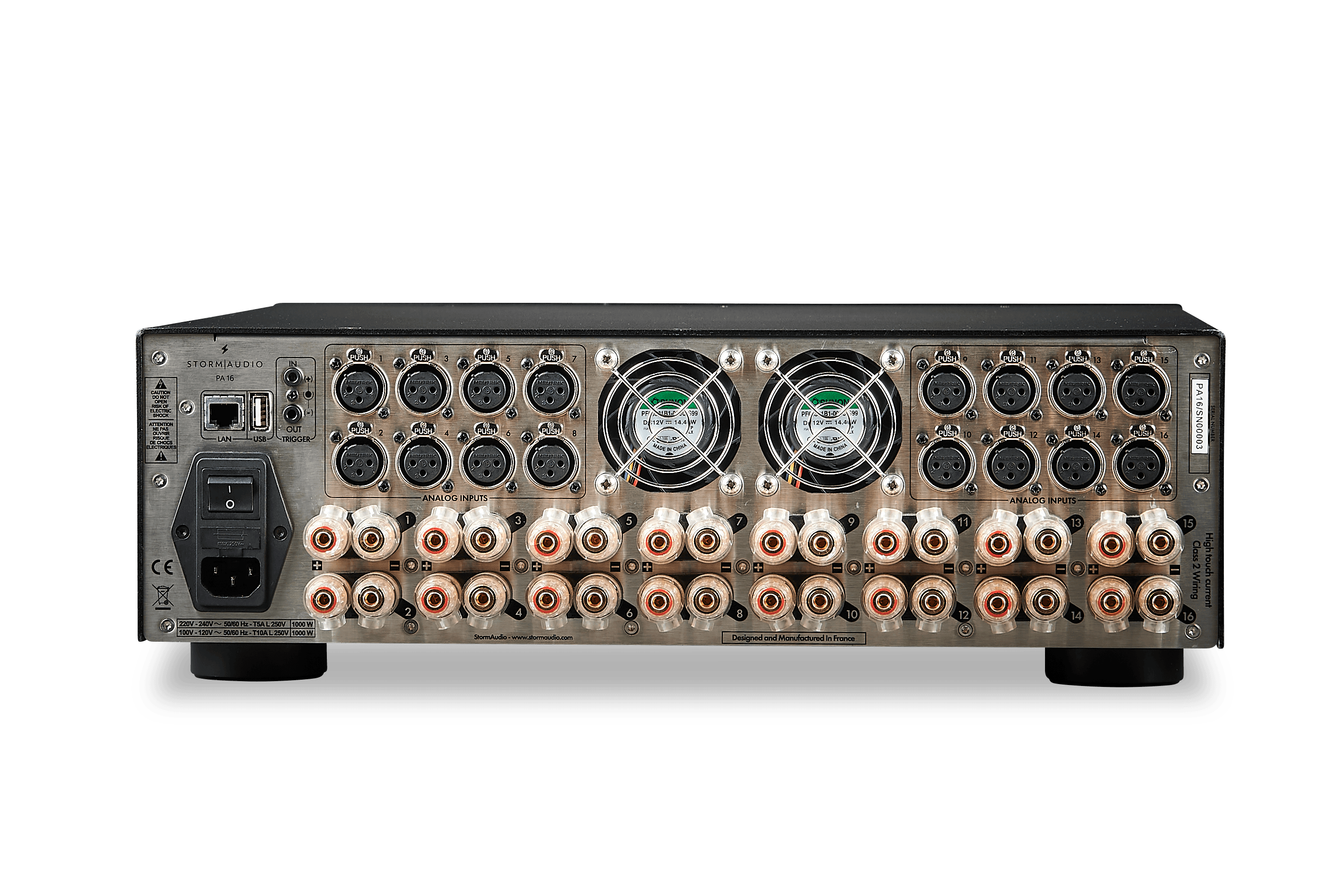

StormAudio PA 16 amplifier back panel with many inputs and fans.

STORM AUDIO

PA 16 MK3

16-CHANNEL POWER AMPLIFIER

Audio

Cinema

Get Price

Description

Real Power for Real Immersive Systems. The PA 16 MK3 is a 16-channel high-power Class D amplifier that delivers authority and balance without strain — sixteen channels of clean output that keep blockbuster action scenes controlled while preserving every subtle detail in the mix.

Like its 8-channel sibling, it pairs UMAC Class D modules with four UREC power supplies for up to 3 kW of headroom on tap. Each channel delivers 200 W into 8 ohms or 225 W into 4 ohms across all sixteen channels driven, with bridged BTL operation pushing up to 800 W per channel for LCRs or subwoofers.

THD+N stays below 0.005% at 1 W, signal-to-noise hits 115 dB, and the frequency response runs 10 Hz – 50 kHz. Sixteen balanced XLR inputs, Ethernet for remote monitoring and 12 V triggers make it a drop-in match for StormAudio's ISP/ISR platforms — all in a standard 19-inch 3U chassis with electronically controlled, near-silent ventilation.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Channels	16 (SE), or up to 4 BTL + 8 SE
Amplifier Class	UMAC Class D (with Pascal Audio)
Power Supplies	4 x UREC, up to 3 kW total
Power Output (SE, 8 ohm)	200 W per channel, all channels driven (20 Hz–20 kHz, 0.1% THD)
Power Output (SE, 4 ohm)	225 W per channel
Power Output (BTL)	Up to 800 W per channel
THD+N	< 0.005% @ 1 W
Signal-to-Noise Ratio	~115 dB (P-rated)
Frequency Response	10 Hz – 50 kHz (-3 dB CEM)
Inputs	16 x XLR balanced
Load Impedance	4–8 ohm
Control / Connectivity	Ethernet (StormMonitoring), USB service, 12 V trigger in/out
Cooling	Electronic ventilation, thermal sensors, < ~30 dB under load
Form Factor	3U, 19-inch rack
Dimensions (W x H x D)	435 x 150 x 490 mm
Weight	~21 kg
