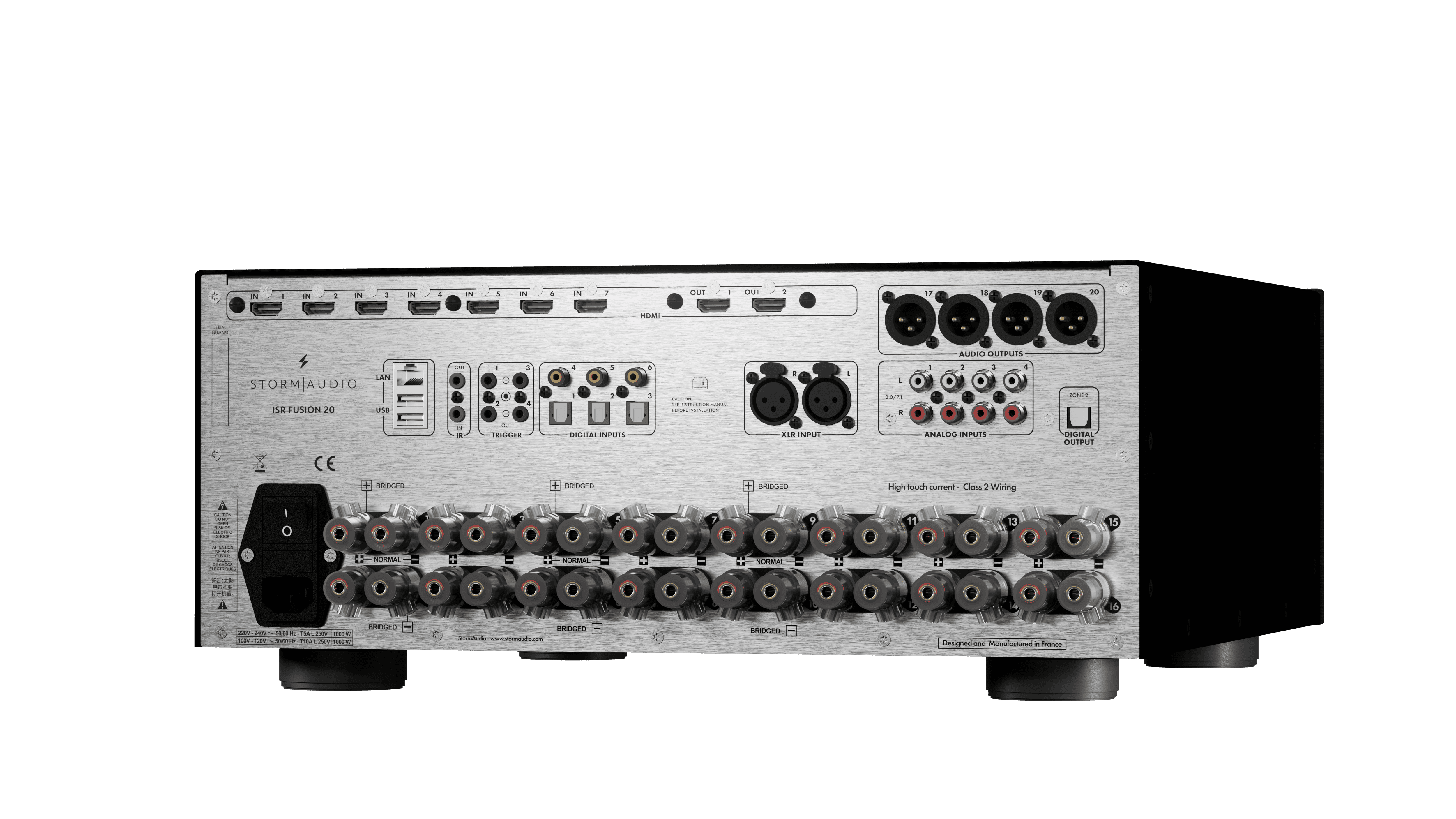

StormAudio ISR Fusion 20 back panel connections

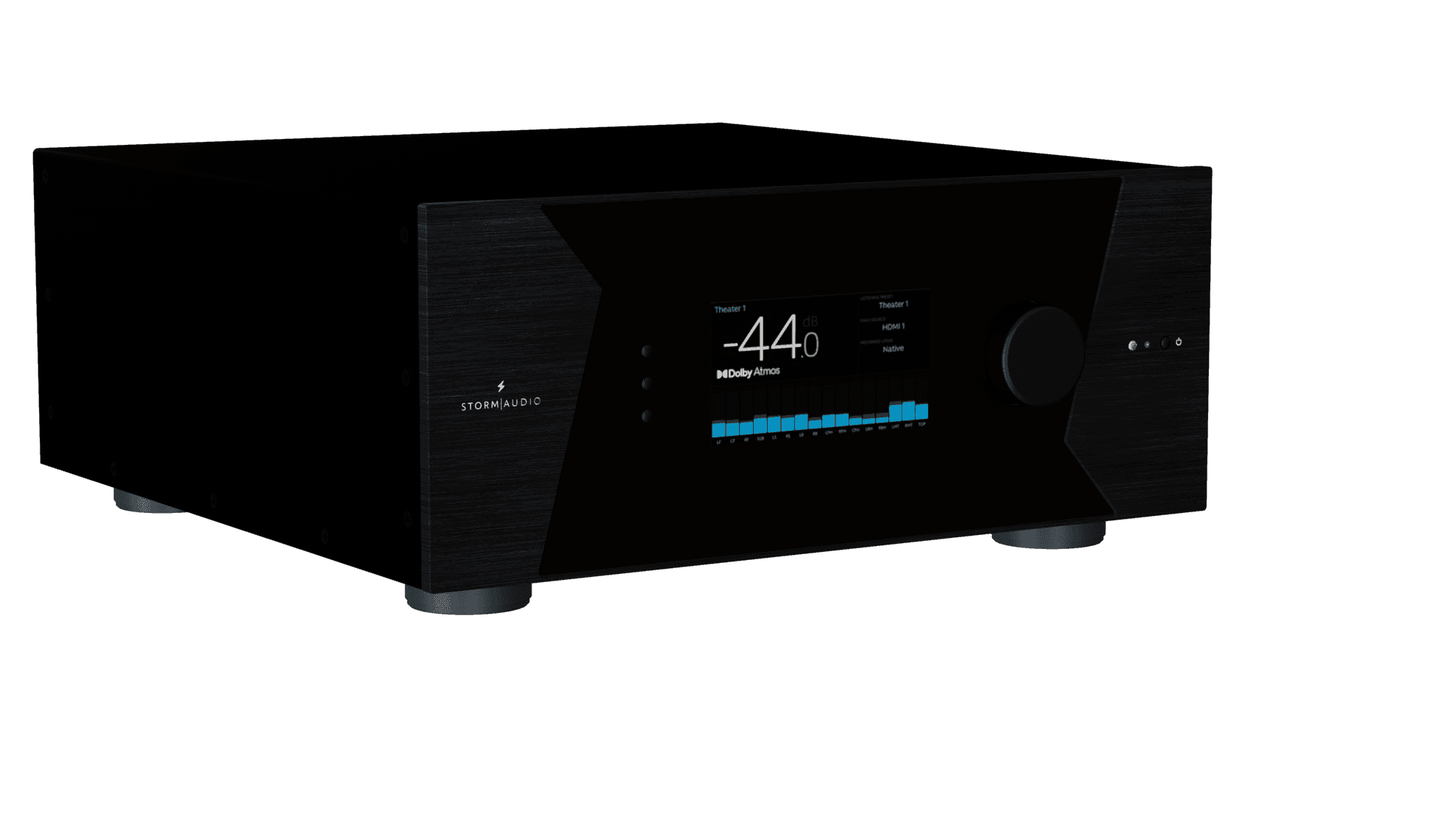

Black StormAudio AV processor with display screen

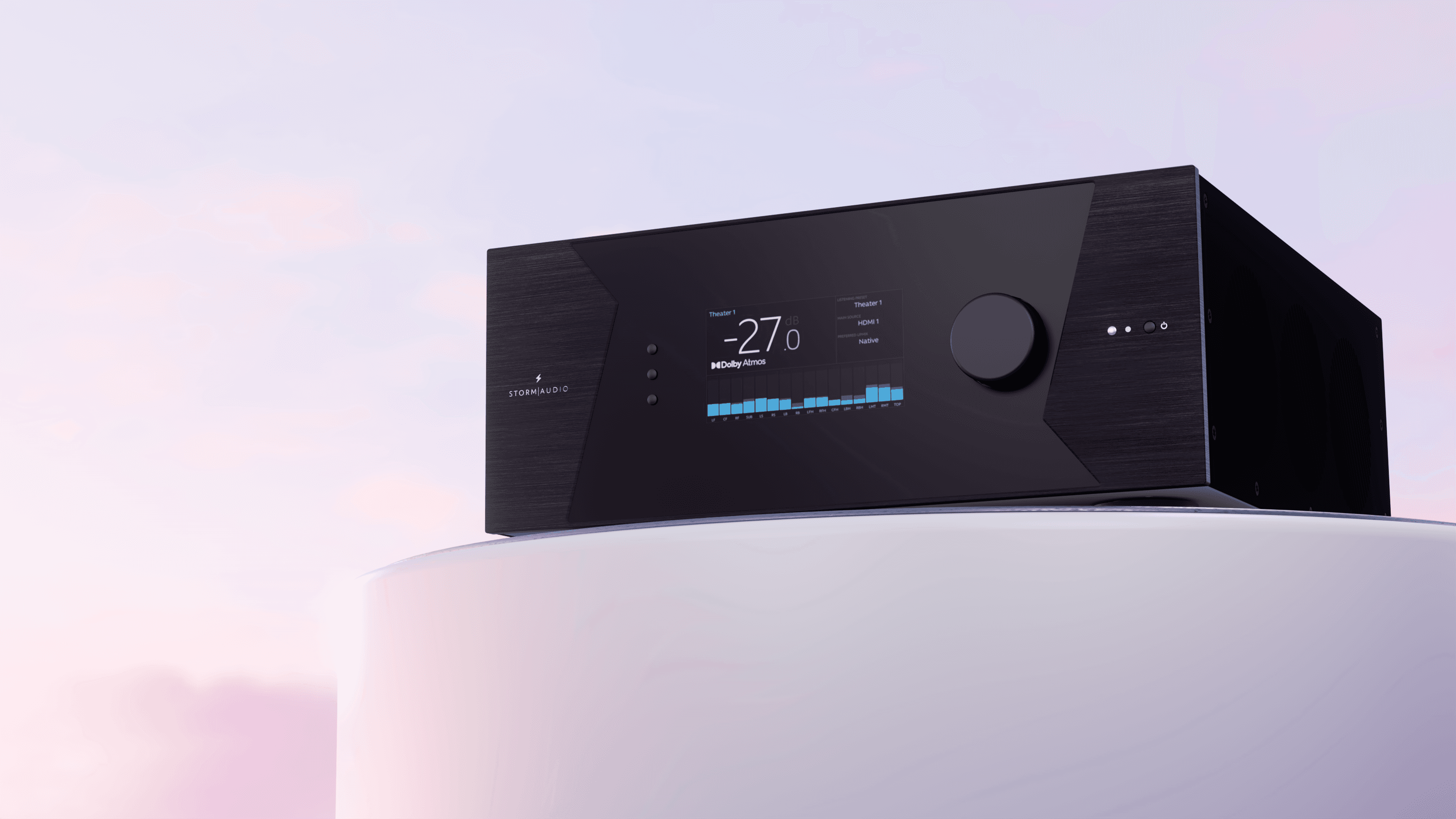

StormAudio AVR with displayed volume level and audio spectrum analysis.

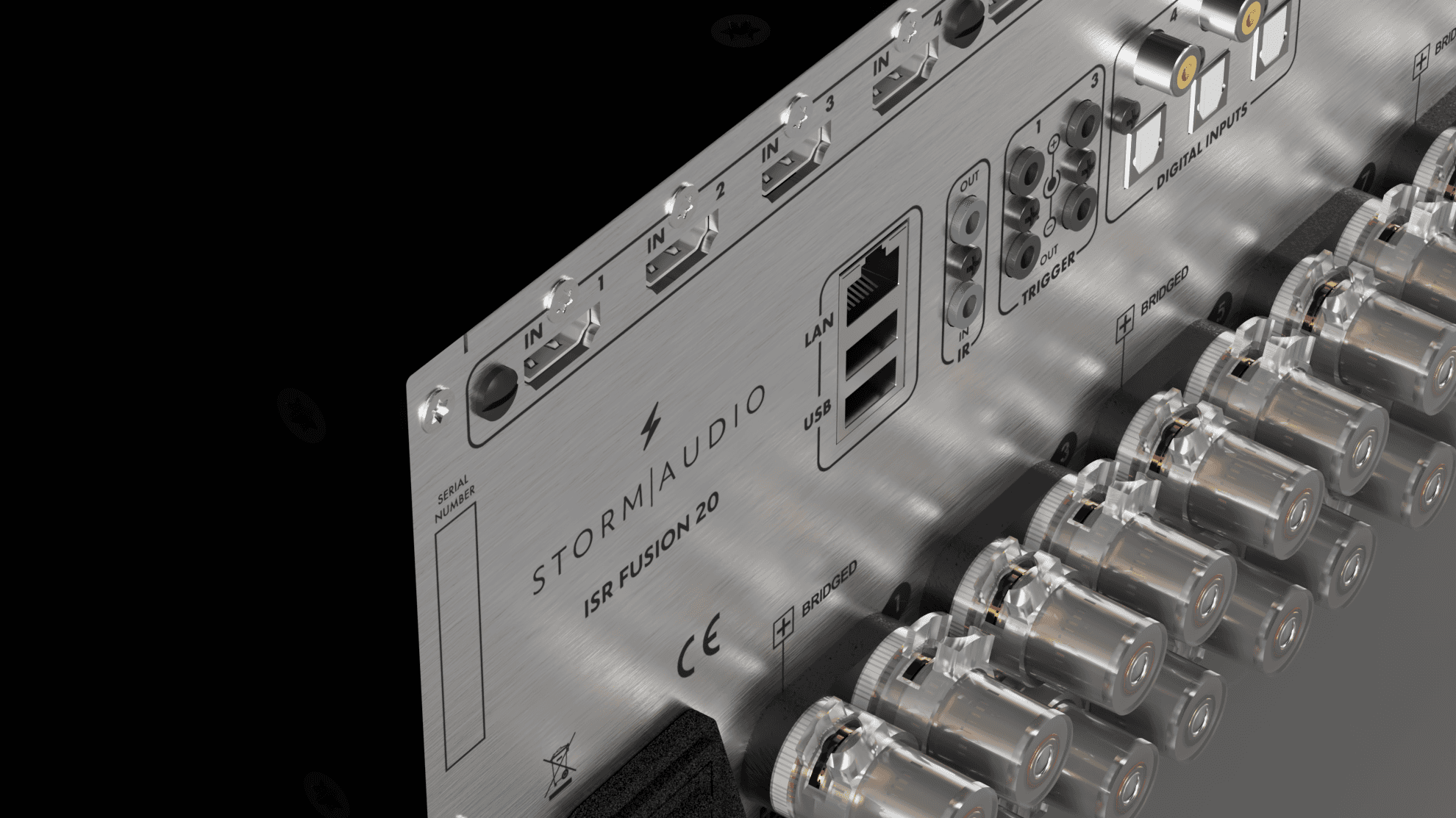

Aluminum rear panel of Stormaudio ISR Fusion 20 with ports.

STORM AUDIO

ISR Fusion 20

20-CHANNEL IMMERSIVE SOUND RECEIVER

Cinema

Audio

Get Price

Description

The ISR Fusion 20 is the first 20-channel immersive sound receiver on the market, integrating StormAudio's reference processing platform with 16 channels of the latest ICEpower Edge amplification developed in Denmark. It pairs the DSP horsepower to decode up to 11.1.8 immersive layouts with the muscle to drive a full Atmos array out of a single chassis.

Designed for serious home cinemas where space, simplicity and performance must coexist, the Fusion 20 supports Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, with HDMI 2.1a / HDCP 2.3 inputs handling 8K and 4K120 plus HDR10+, HLG and Dolby Vision.

The most advanced implementation of Dirac Live Active Room Treatment ensures accurate calibration, while up to 20 PEQs per channel, four-way active crossovers and unlimited subwoofer support give integrators full control over even the most ambitious systems.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Total Channels	20 (16 amplified + 4 pre-out)
Amplification	ICEpower Edge Class D
Power Output (SE, 8 ohm)	150 W per channel
Power Output (BTL, 8 ohm)	500 W per channel
Channel Modes	16ch SE, or up to 10ch SE + 3ch BTL
Continuous / Peak Power	2000 W continuous / 2500 W peak
Supported Codecs	Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
Max Immersive Layout	11.1.8
HDMI	7 in / 2 out (HDMI 2.1a / HDCP 2.3)
Video Pass-Through	8K, 4K120, HDR10+, HLG, Dolby Vision
Room Correction	Dirac Live + DLBC + DLBM + DLART
PEQ	Up to 20 per channel
Crossovers	Up to four-way active
Subwoofer Support	Unlimited
Control	Web UI, iOS/Android app, IR, home-automation drivers
