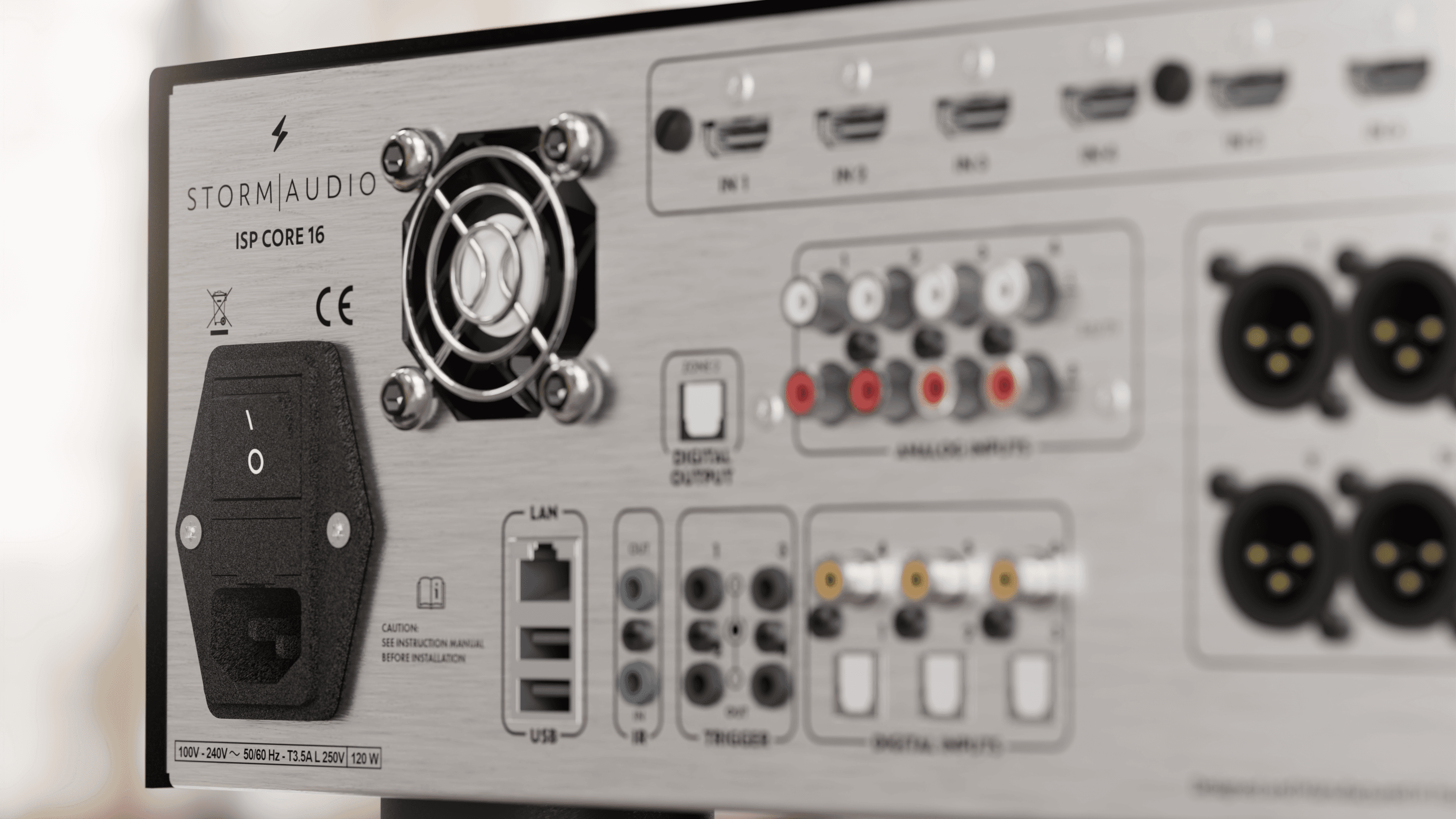

StormAudio ISP Core 16 rear panel with ports and fan

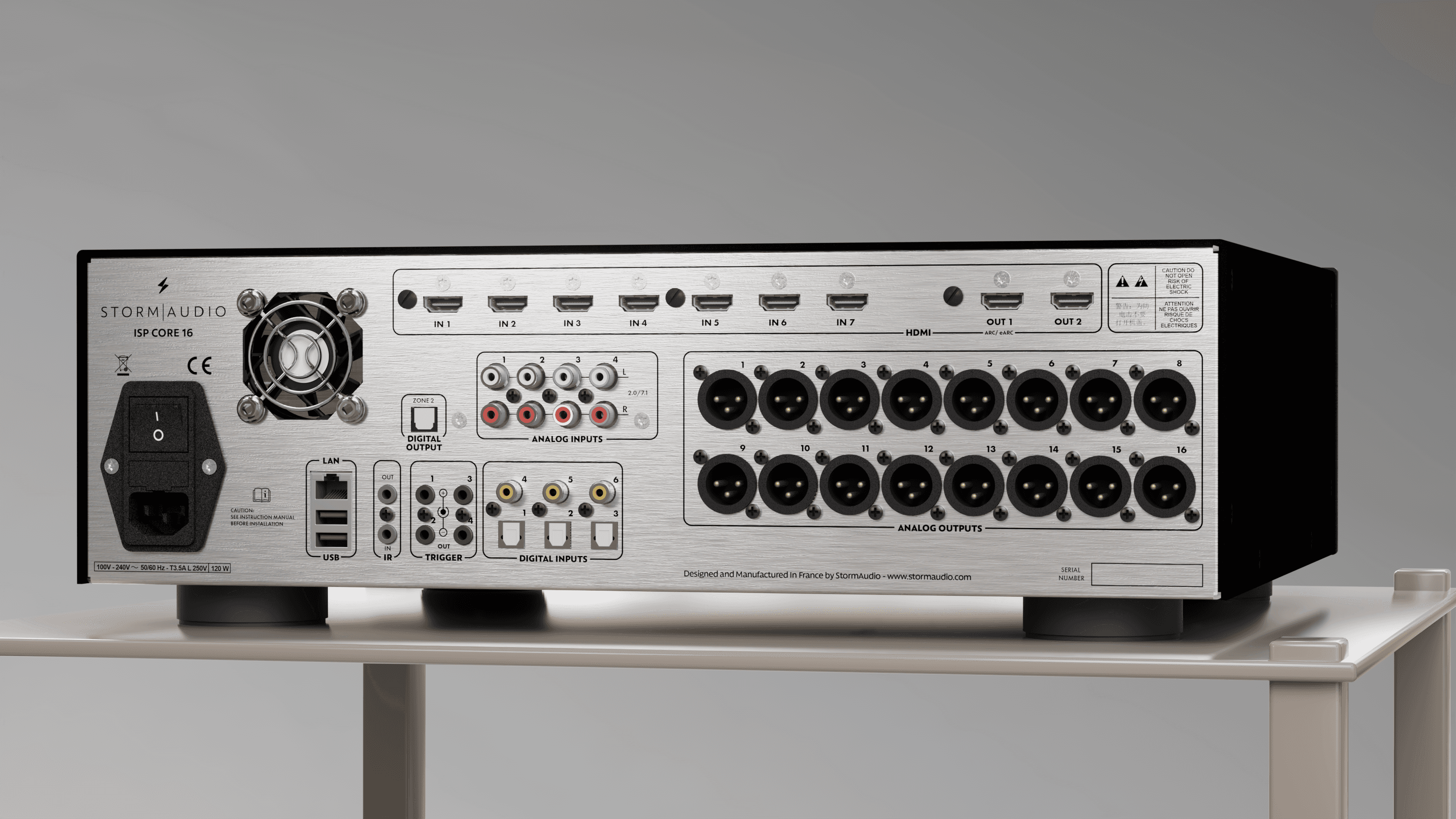

StormAudio ISP CORE 16 rear panel with many inputs/outputs.

STORM AUDIO

ISP Core 16

16-CHANNEL IMMERSIVE SOUND PROCESSOR

Cinema

Audio

Get Price

Description

The ISP Core 16 is StormAudio's gateway into reference-grade immersive processing — a French-engineered 16-channel preamp/processor that brings the same Dirac Live calibration toolkit and bass-management philosophy as the flagship Elite into a more streamlined chassis. It decodes and upmixes Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, with legacy codec support up to 192 kHz.

Seven HDMI inputs and two HDMI outputs with eARC handle 4K UHD with HDR10, Dolby Vision and HLG (HDMI 2.0b / HDCP 2.2 stock, with an HDMI 2.1 upgrade board available for 8K and 48 Gbps).

Dirac Live, Dirac Live Bass Control and Dirac Live Active Room Treatment ship as standard, with up to 20 PEQs per channel, four-way active crossovers and unlimited subwoofers — giving custom installers a complete platform for sophisticated cinema layouts.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Processing Channels	Up to 18 (16 outputs)
Supported Codecs	Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
Legacy Codecs	Up to 192 kHz
HDMI Inputs	7
HDMI Outputs	2 (with eARC)
HDMI Version	2.0b / HDCP 2.2 / 18 Gbps (2.1 upgrade board: 48 Gbps, 8K, VRR, ALLM, QFT, QMS)
HDR Support	HDR10, Dolby Vision, HLG
Room Correction	Dirac Live + DLBC + DLART
PEQ	Up to 20 per channel
Active Crossovers	Up to four-way
Subwoofer Support	Unlimited
Analog Outputs	16ch XLR
Analog Inputs	4x RCA (7.1 or stereo); 1x XLR stereo
Digital Inputs	3x coax S/PDIF, 3x optical Toslink
Digital Output	1x optical Toslink (Zone 2 stereo downmix)
Display	5-inch full-color front panel
Control	Web UI, IR remote, iOS/Android app; Roon Ready
Form Factor	3U
Dimensions	402.2 x 442 x 132.7 mm (ears +4 cm, feet +2 cm)
Weight	9 kg
