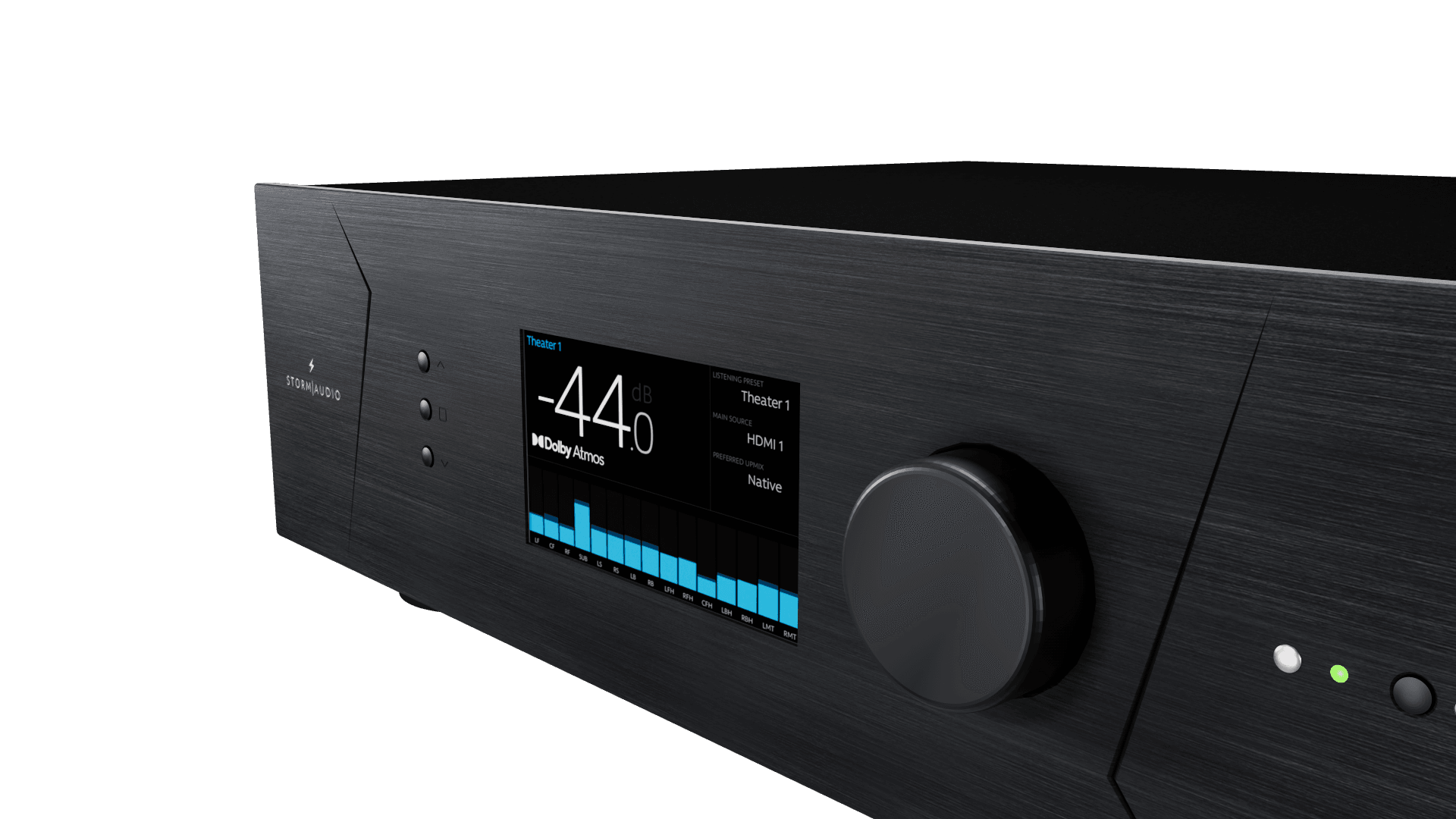

StormAudio receiver display showing -44.0 dB Dolby Atmos

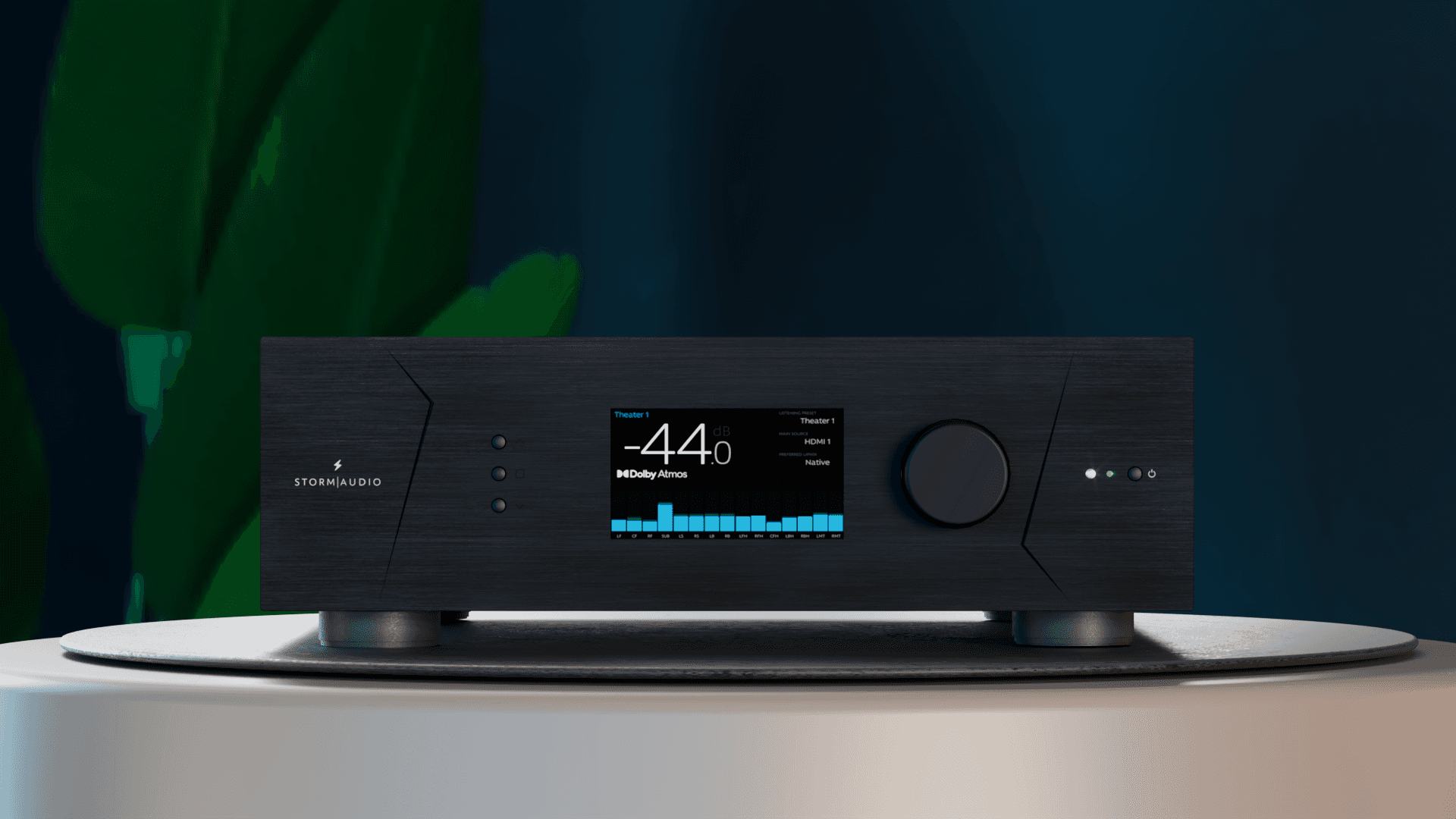

StormAudio AV processor with Dolby Atmos display

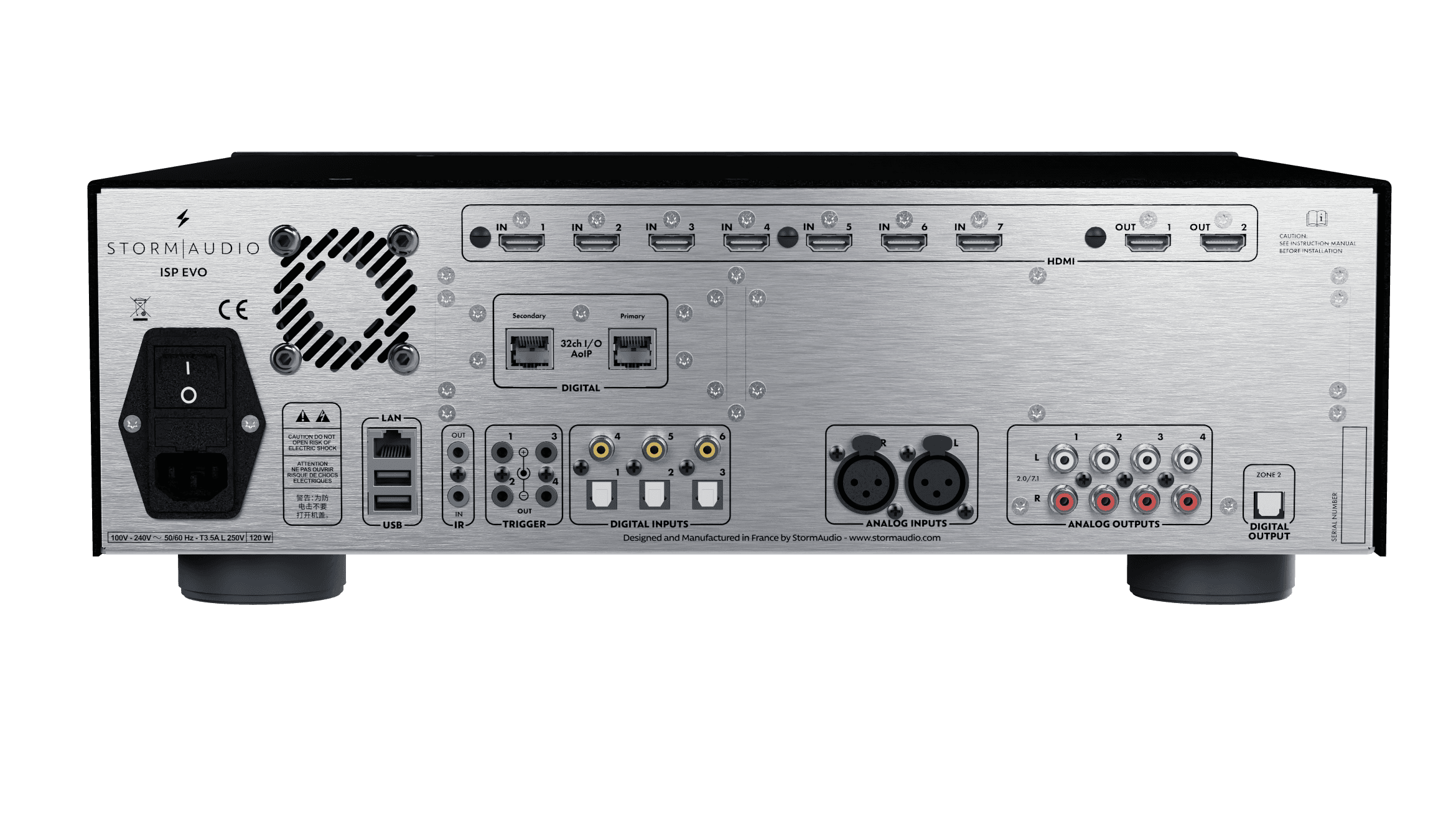

Rear panel of Storm Audio ISP EVO with ports

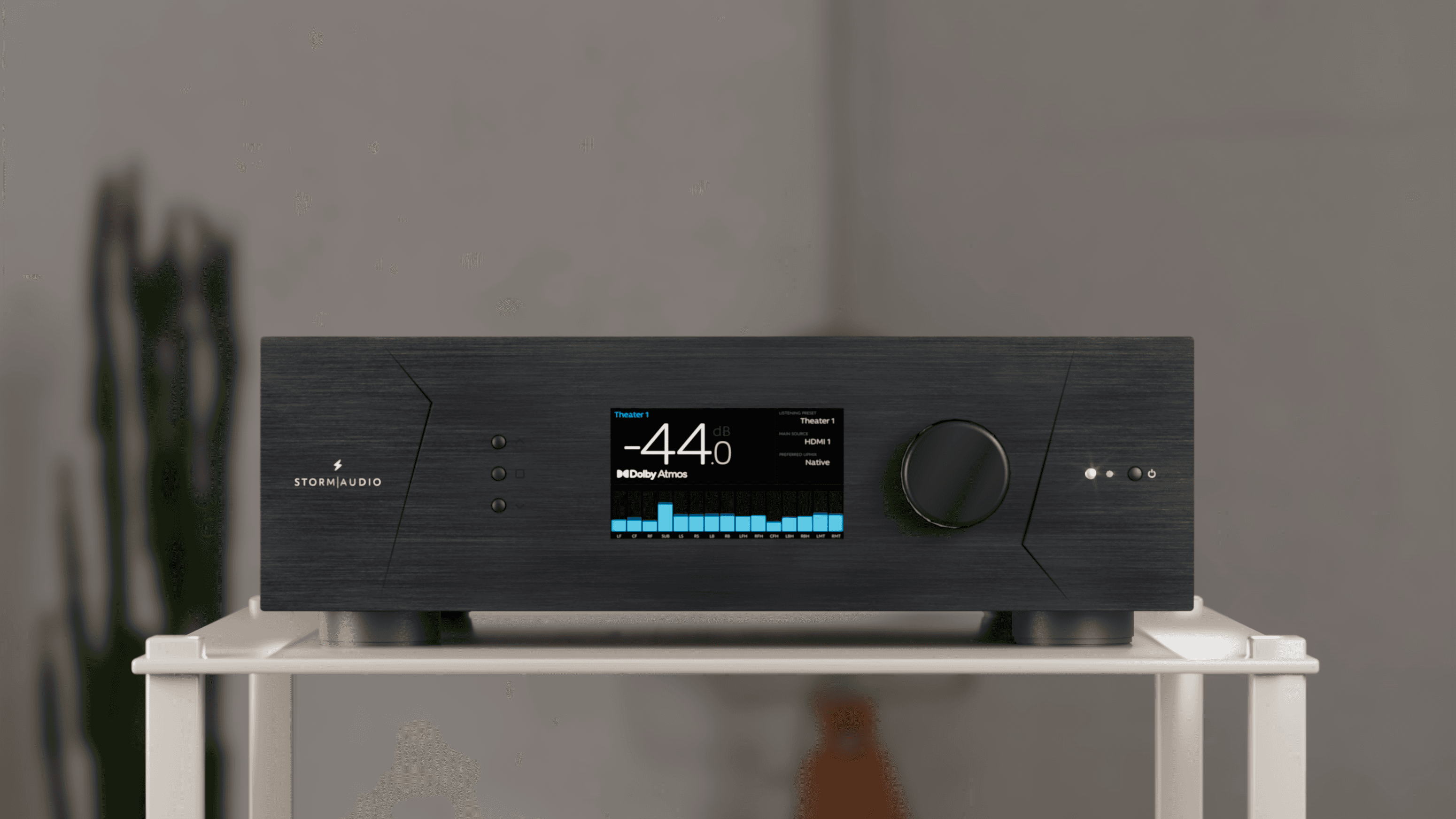

StormAudio AV processor display showing volume and Dolby Atmos.

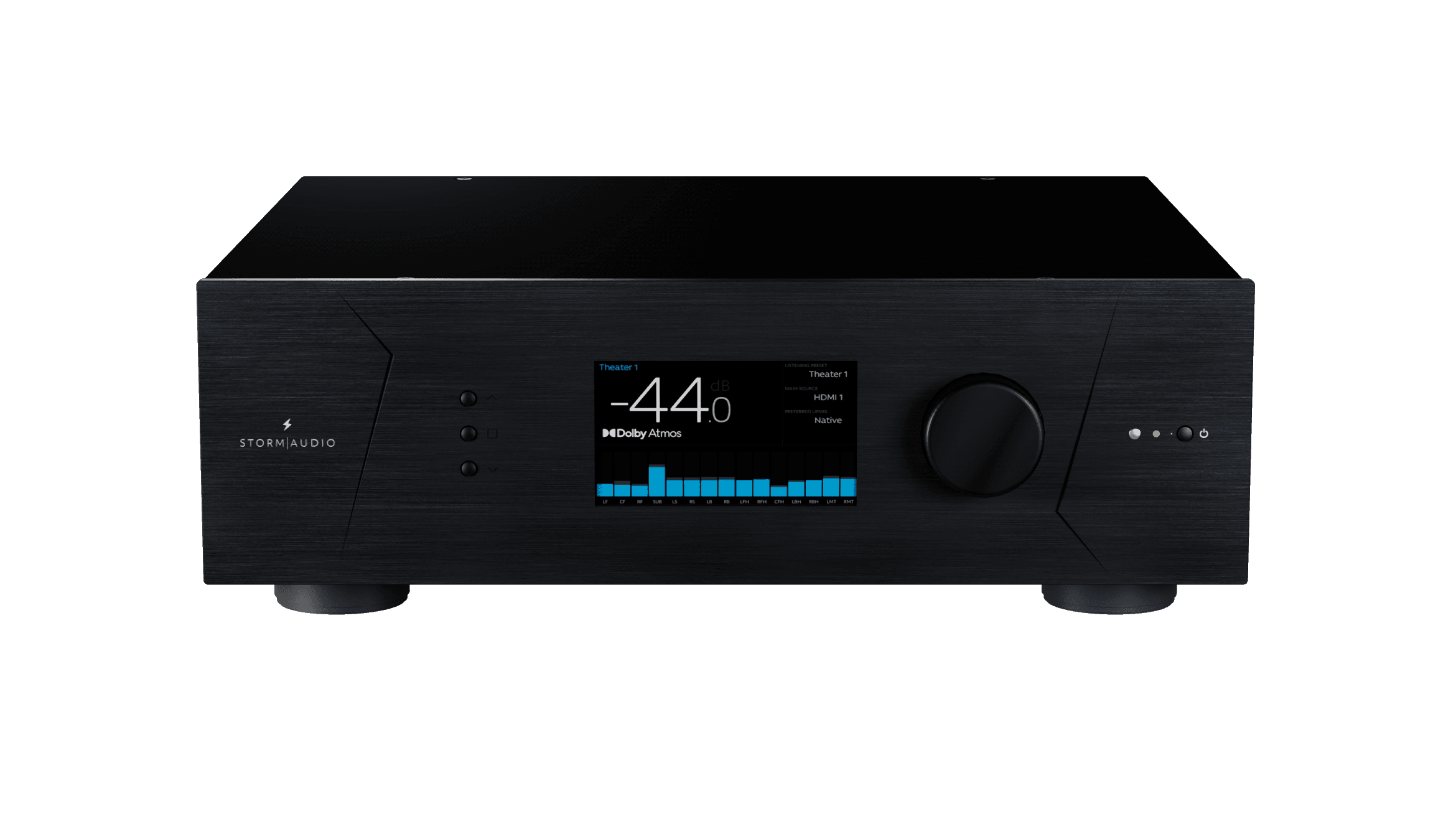

StormAudio AV processor with display and volume knob

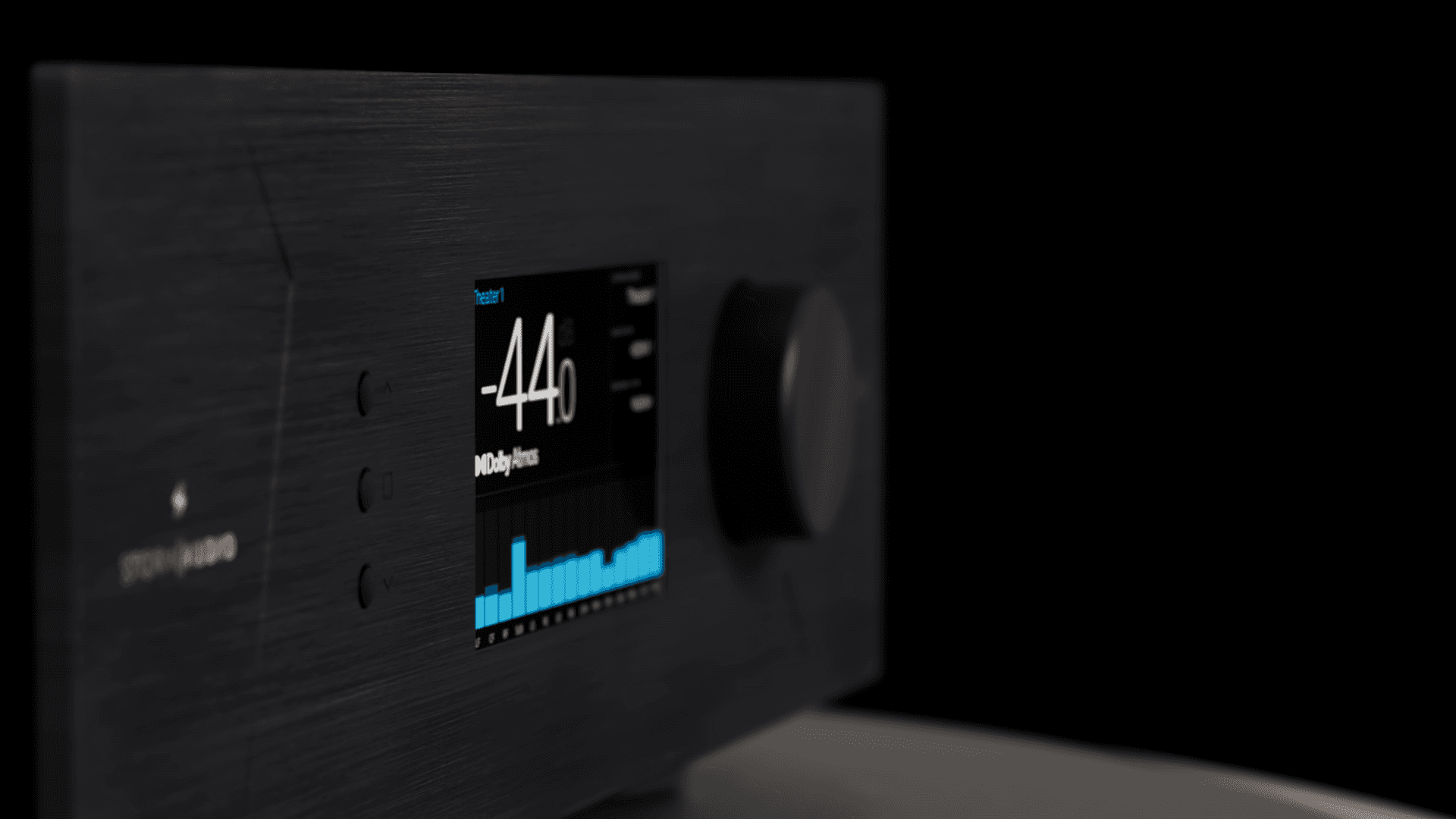

Black media receiver with digital display and knob

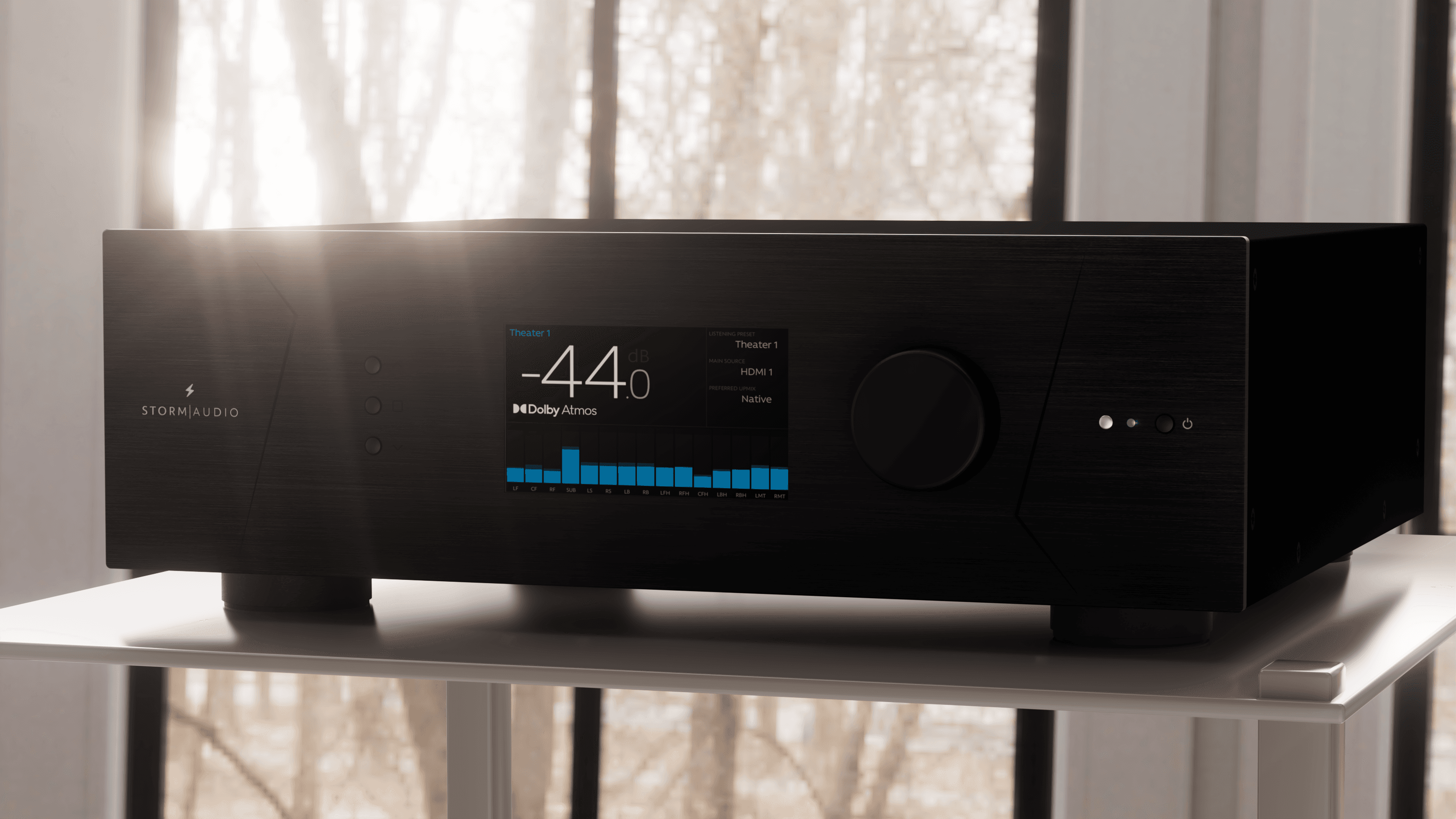

StormAudio AV receiver display showing volume -44dB, Dolby Atmos, and sound level bars.
StormAudio AV processor with display and volume knob
Rear panel of Storm Audio ISP EVO with ports
StormAudio AV processor with Dolby Atmos display
StormAudio AV receiver display showing volume -44dB, Dolby Atmos, and sound level bars.
StormAudio receiver display showing -44.0 dB Dolby Atmos
Black media receiver with digital display and knob
StormAudio AV processor display showing volume and Dolby Atmos.

ISP Evo

FULLY DIGITAL IMMERSIVE SOUND PROCESSOR

Cinema

Audio

Description

The ISP Evo is the first purely digital immersive sound processor on the home cinema market. Built on a fully digital signal path with AES/EBU and AoIP (AES67/Dante) interfaces, it is the only processor capable of interfacing directly with Digital Cinema Processors playing DCP content and delivering up to 32 channels in digital format over the network.

Up to 32 channels of decoding and upmixing handle every major immersive format — Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced, MPEG-H and Sony 360 Reality Audio — with up to 32 channels of post-processing. HDMI 2.1 with HDCP 2.3 supports 8K/40 Gbps, HDR10+, Dolby Vision and HLG pass-through across all seven inputs and two eARC outputs.

Dirac Live Room Correction, Dirac Live Bass Control and Dirac Live Active Room Treatment all ship as standard, paired with StormAudio's Expert Bass Management for full-range reference performance in the most demanding installations.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Decoding & Upmixing

Up to 32 channels

Post-Processing

Up to 32 channels

Supported Codecs

Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced, MPEG-H, Sony 360RA

HDMI Inputs

7 (HDMI 2.1 / HDCP 2.3 / 40 Gbps)

HDMI Outputs

2 (ARC/eARC matrix)

Video Pass-Through

8K, 4K UHD, HDR10+, Dolby Vision, HLG

Room Correction

Dirac Live + Dirac Live Bass Control + Dirac Live Active Room Treatment

Digital Outputs

Up to 32ch AES/EBU; up to 32ch AoIP (AES67/Dante)

Digital Inputs

Up to 16ch AES/EBU; up to 32ch AoIP

Analog Inputs

4x RCA (7.1 or stereo); 1x XLR stereo

S/PDIF Inputs

3x optical Toslink, 3x coaxial

Bass Management

StormAudio Expert Bass Management

Dimensions (with ears)

420 x 479 x 155 mm (16.53 x 18.86 x 5.91 in)

Weight

8.3 kg (17.6 lbs)
