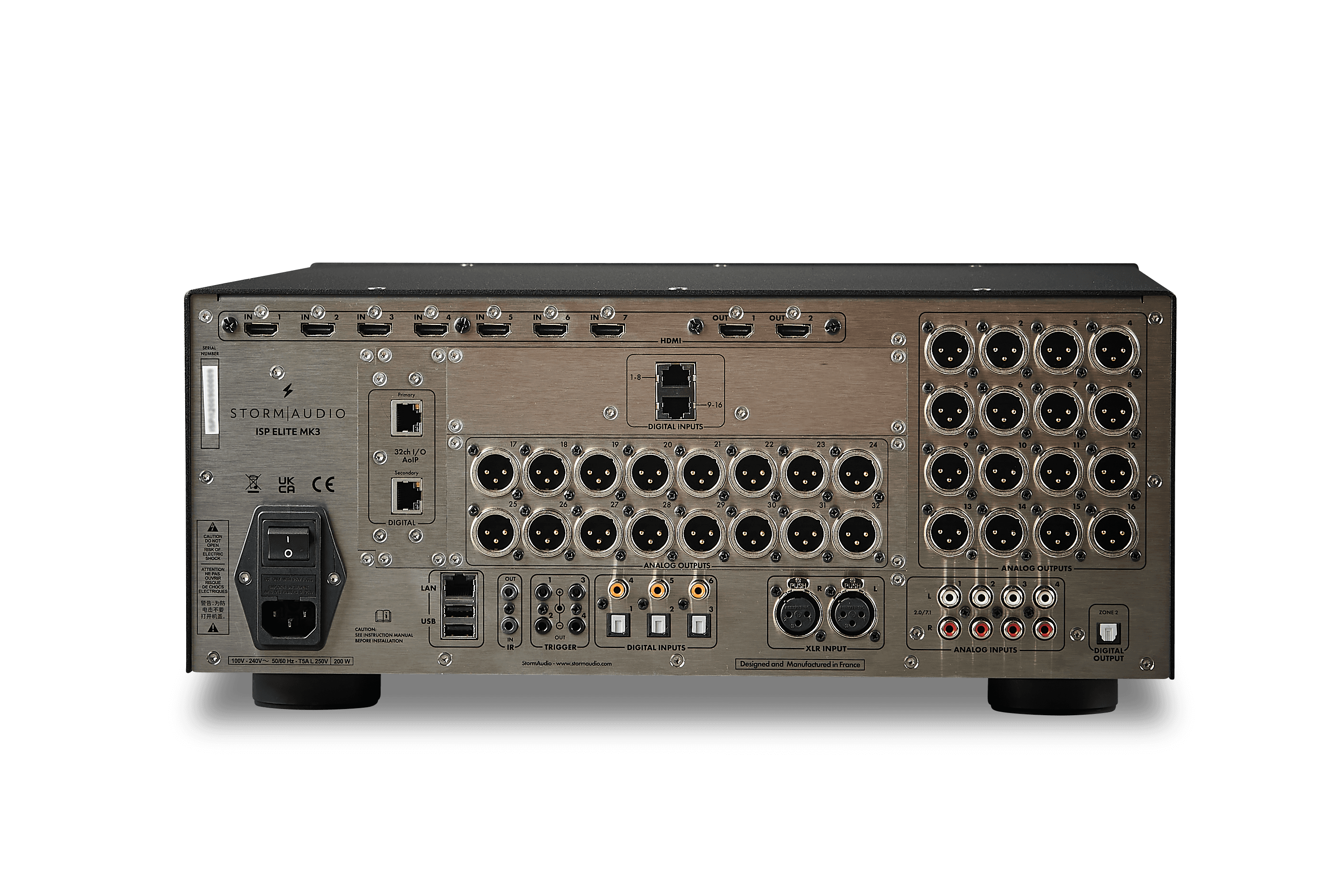

StormAudio ISP ELITE MK3 rear panel with many I/O ports

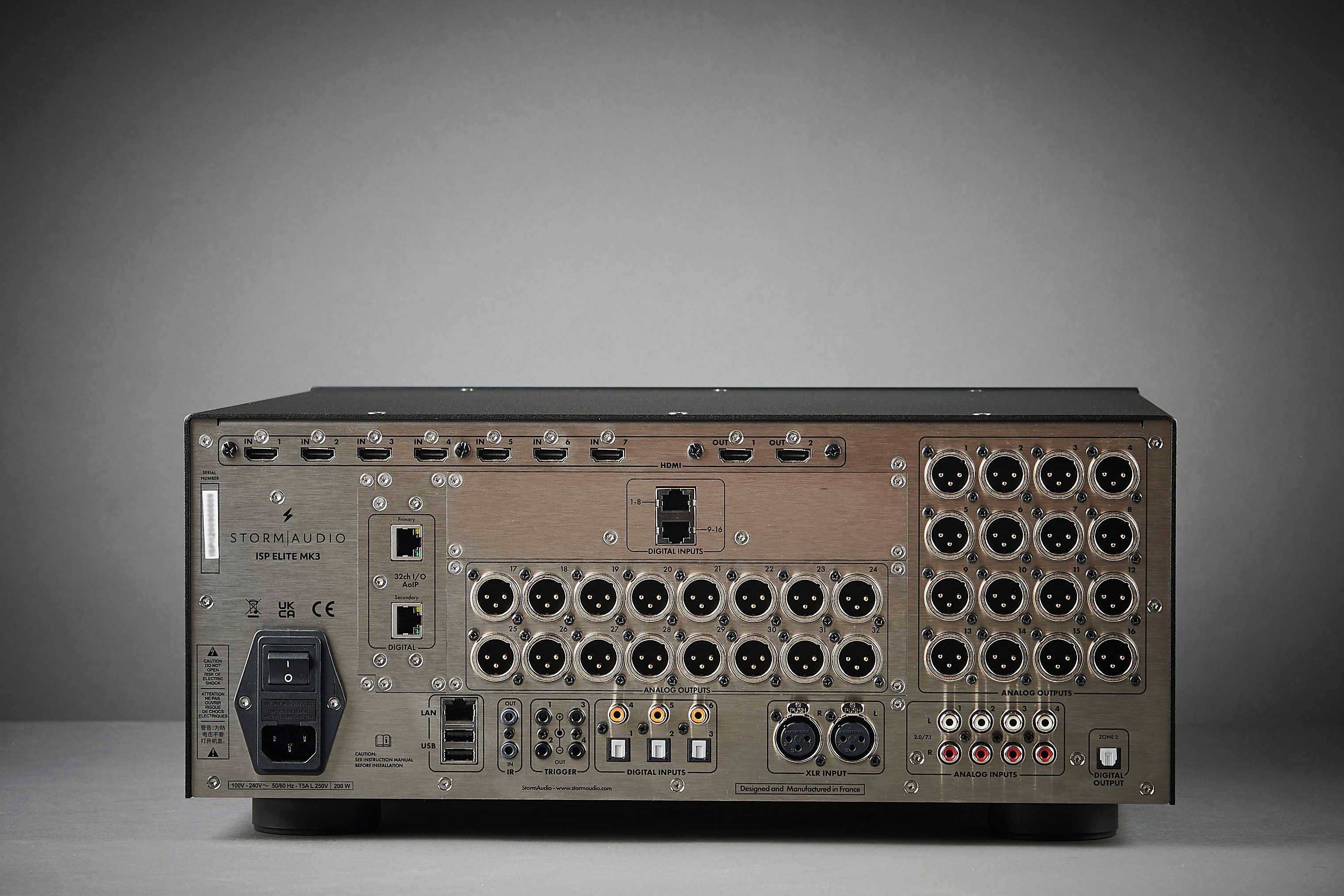

StormAudio ISP Elite MK3 rear panel with numerous inputs/outputs.

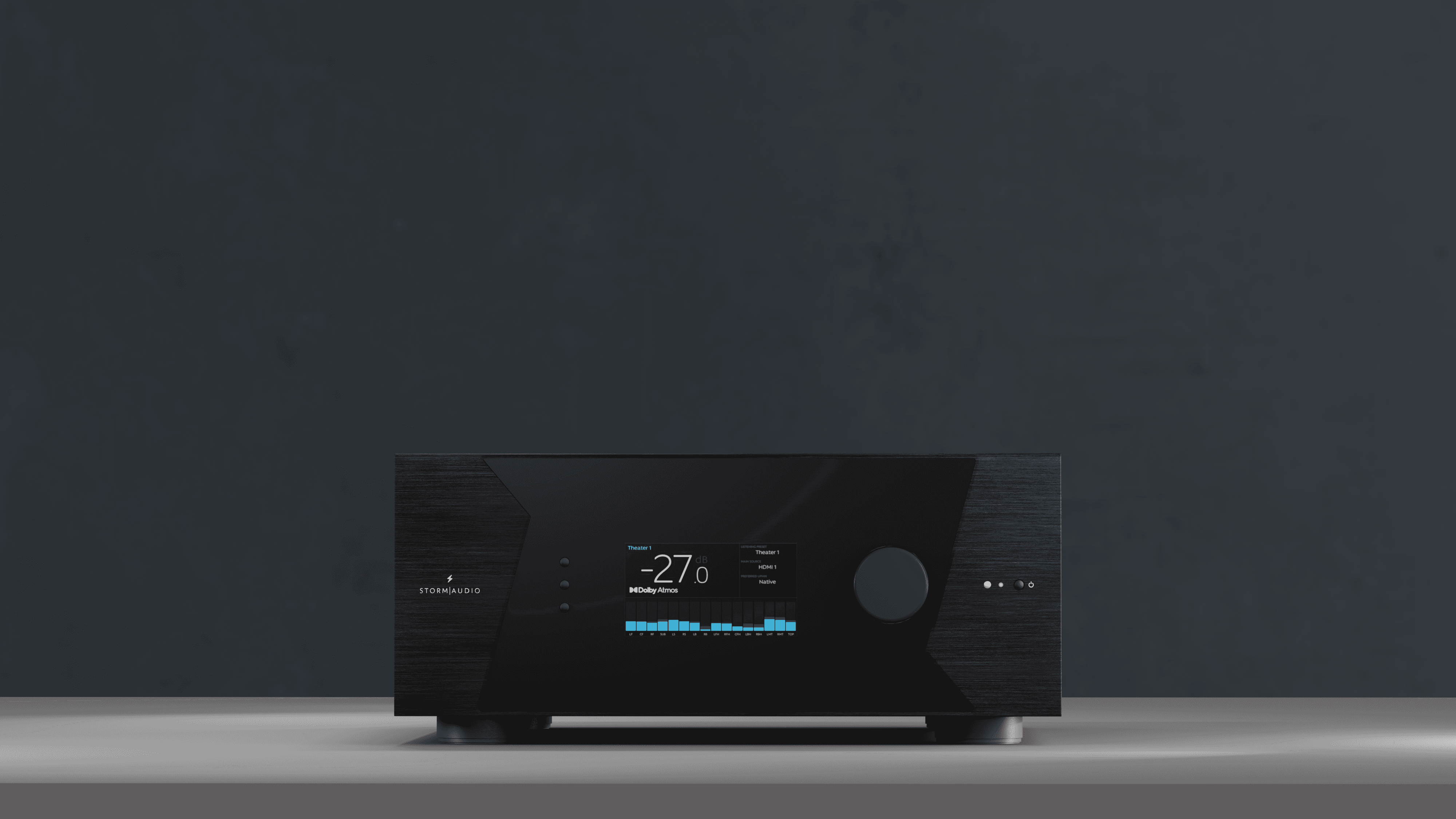

StormAudio AV processor with Dolby Atmos display.

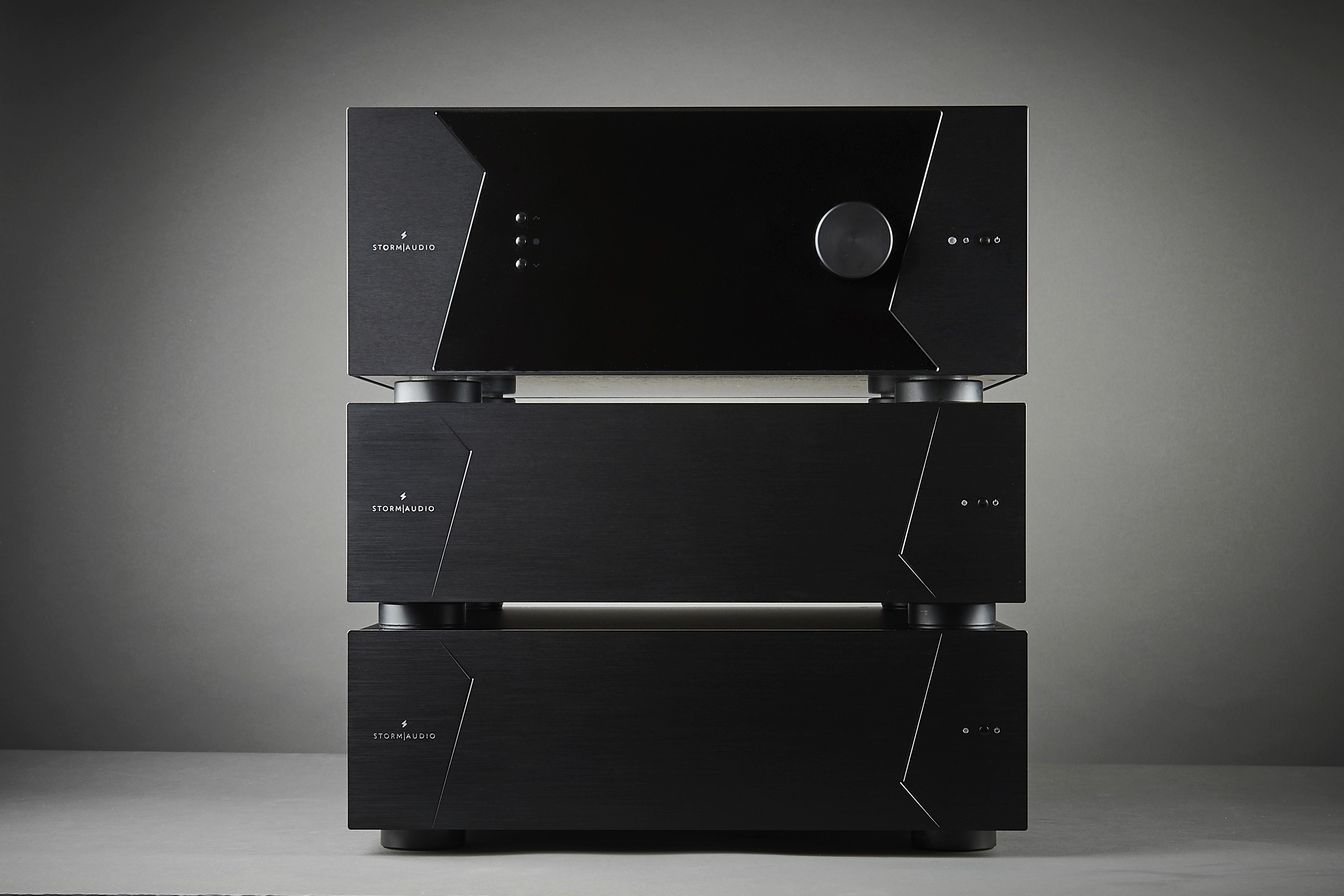

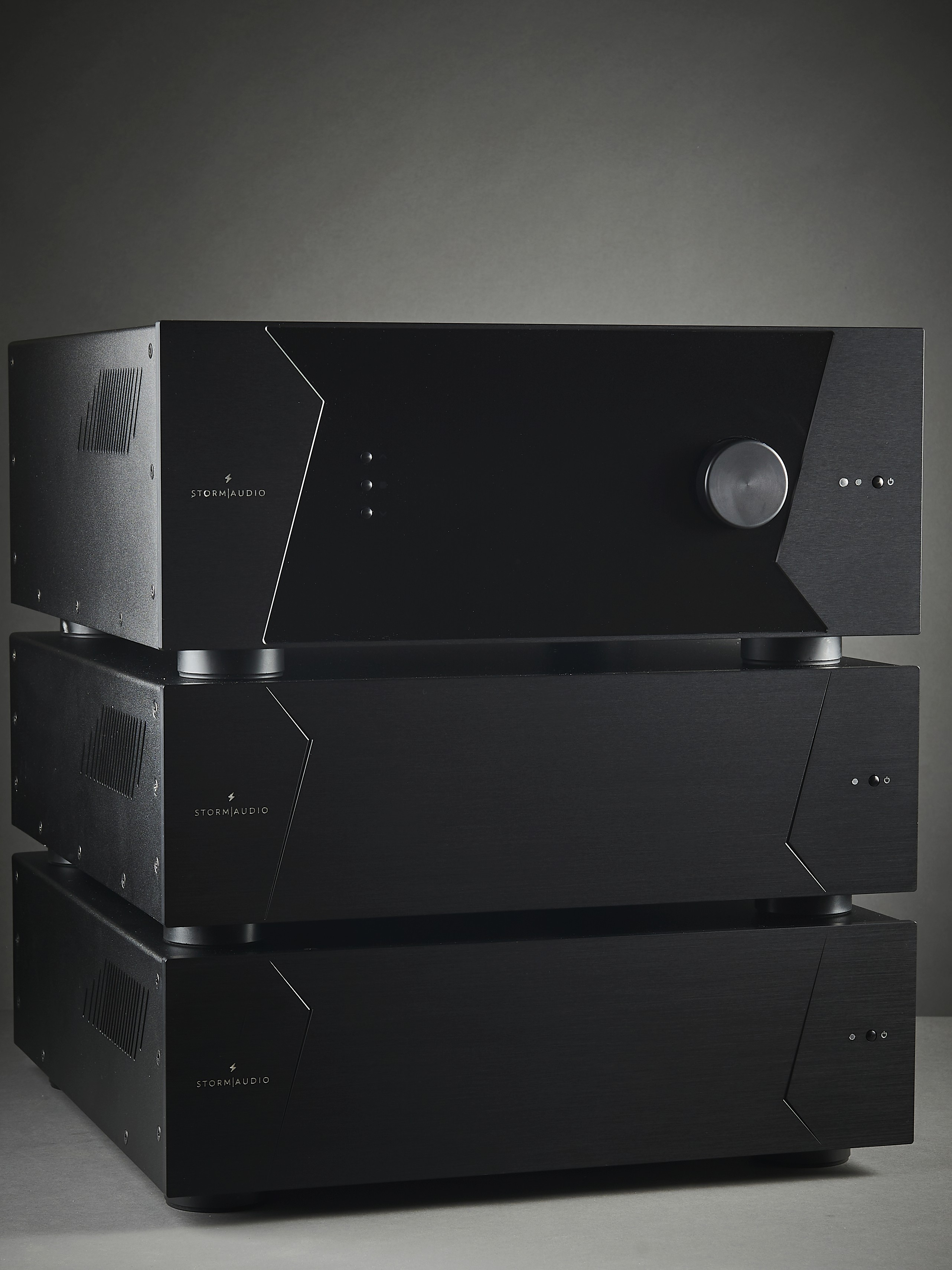

Three black audio amplifiers stacked vertically

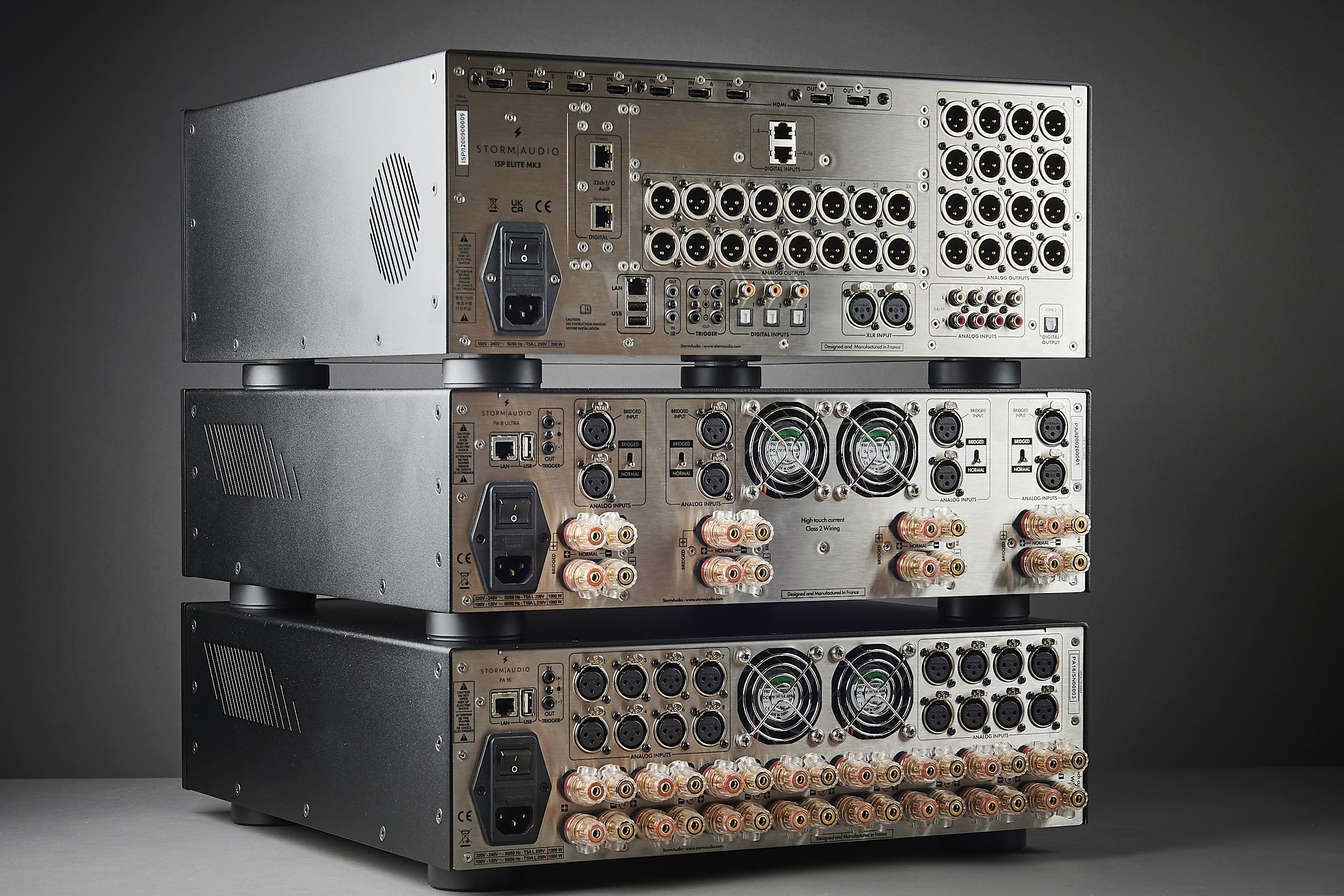

Stack of three AV receivers with many ports

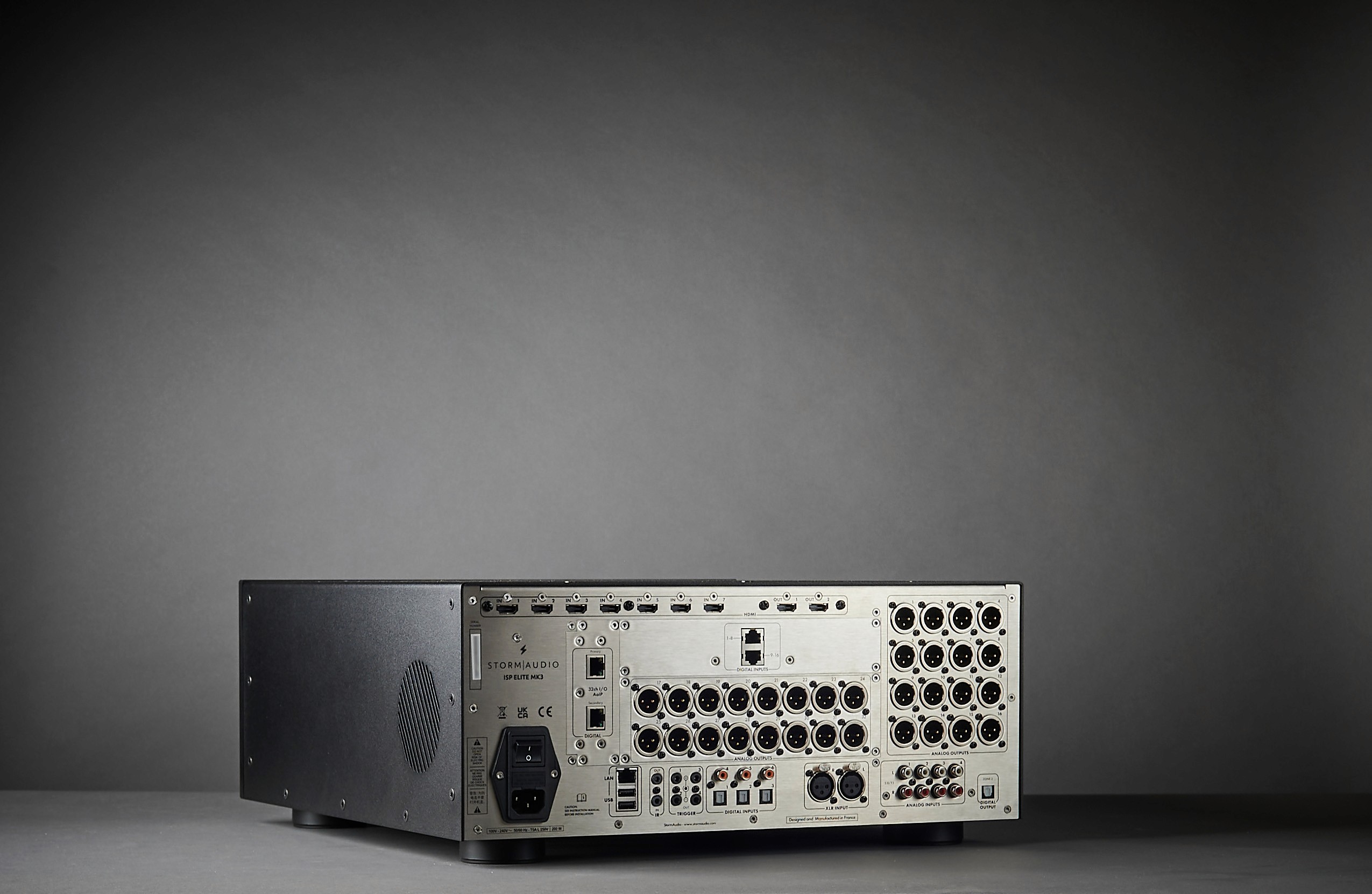

StormAudio ISP Elite MK3 rear panel with ports

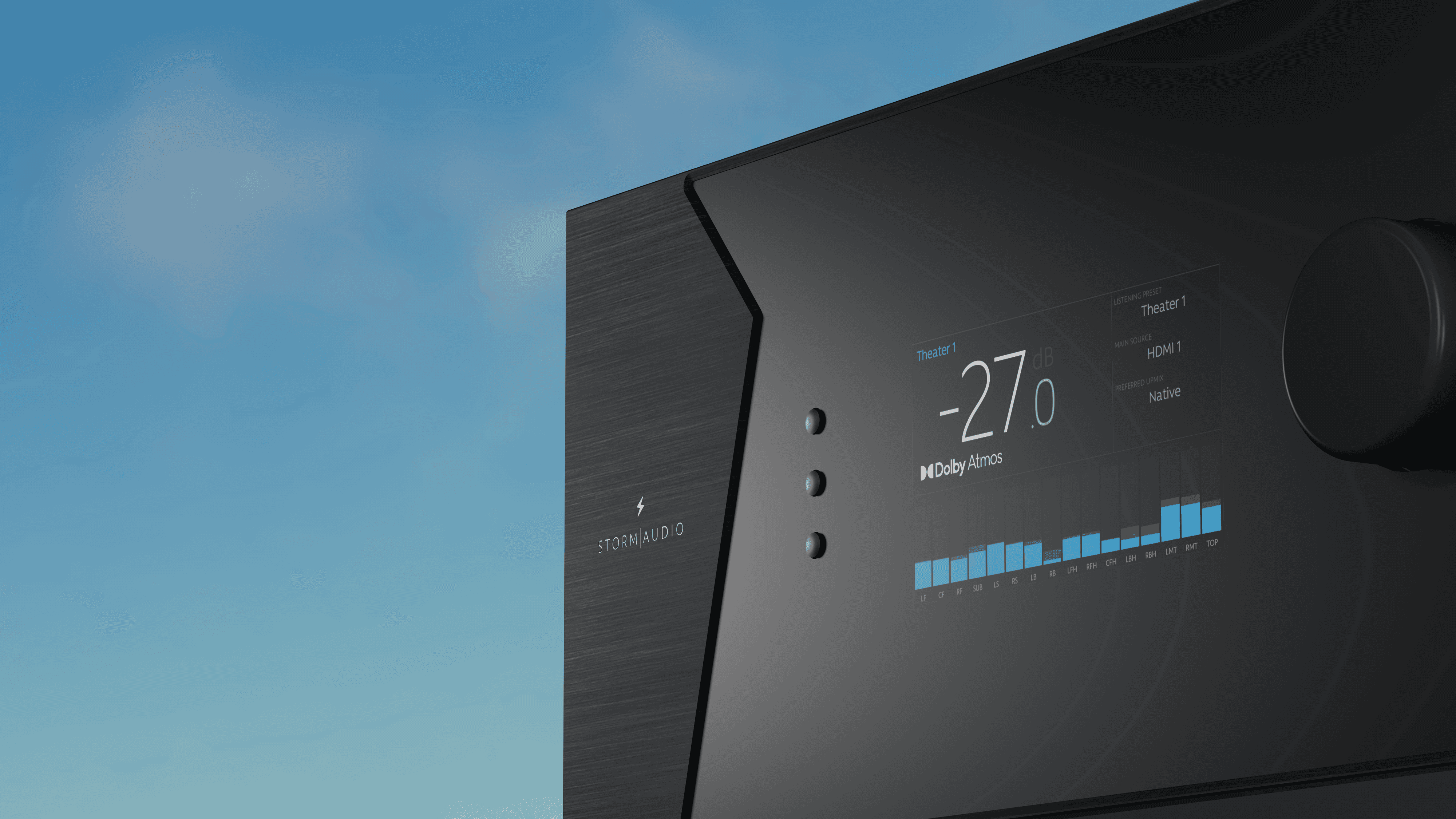

StormAudio receiver front panel with Dolby Atmos display

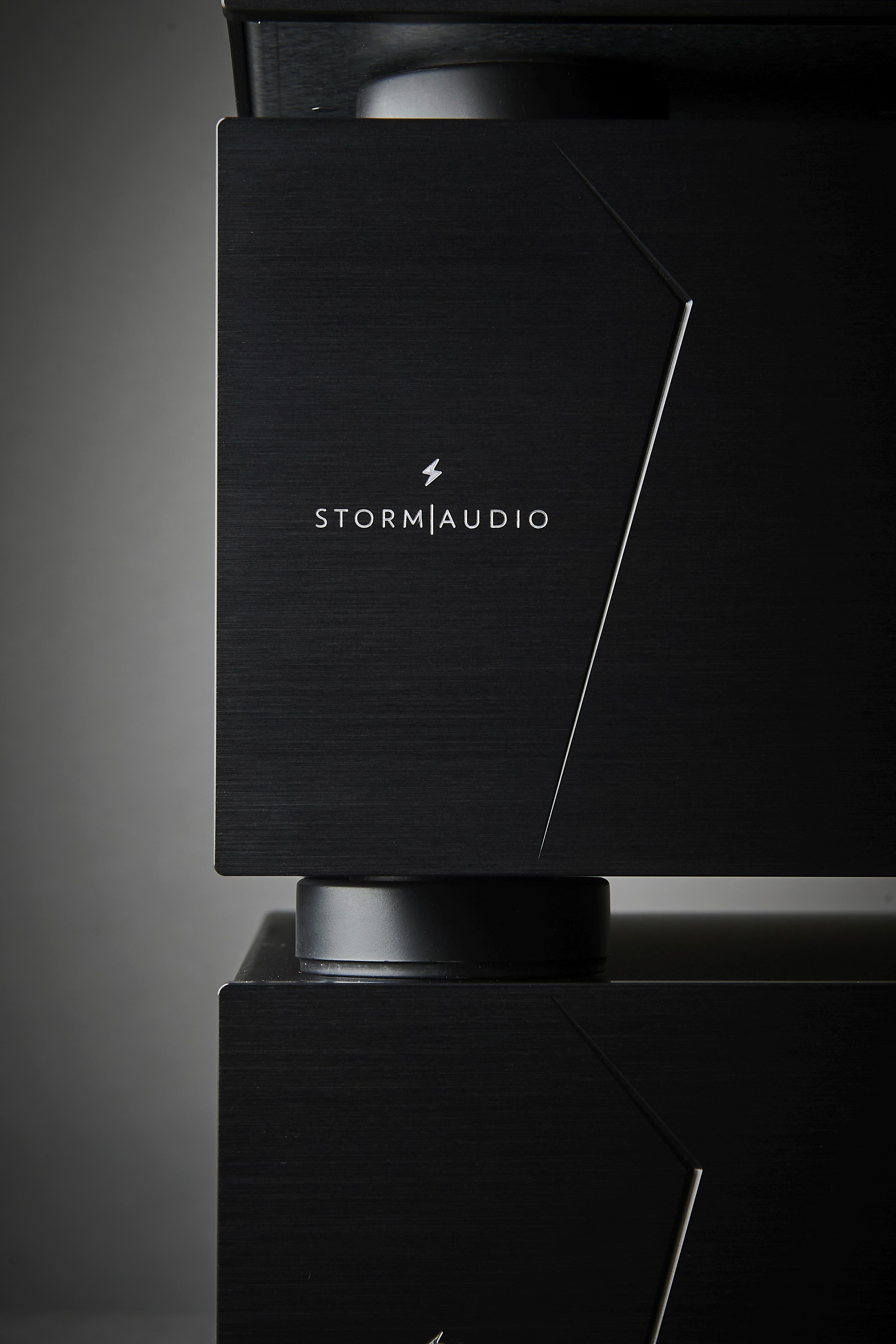

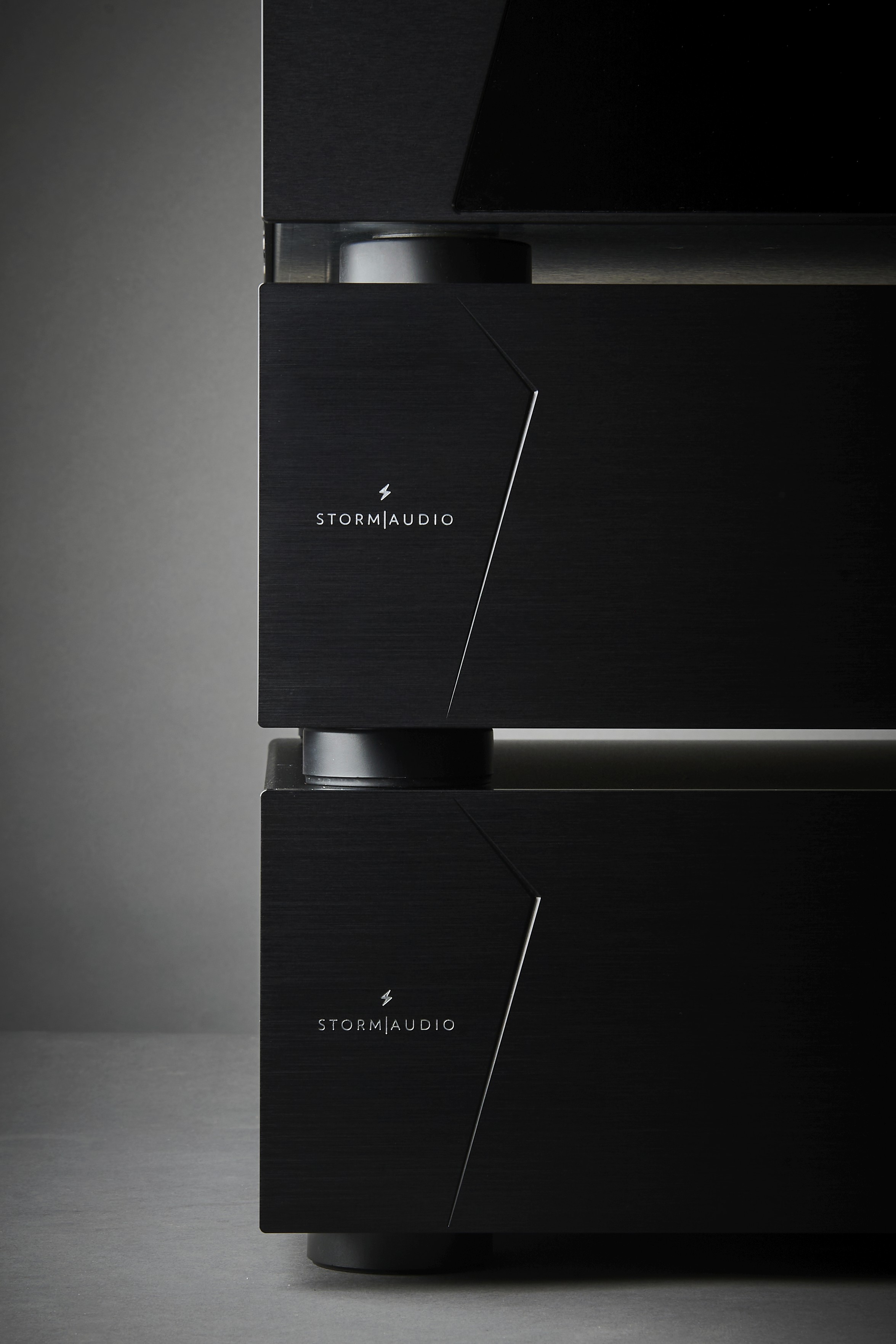

Black Storm Audio stack with brushed metal finish.

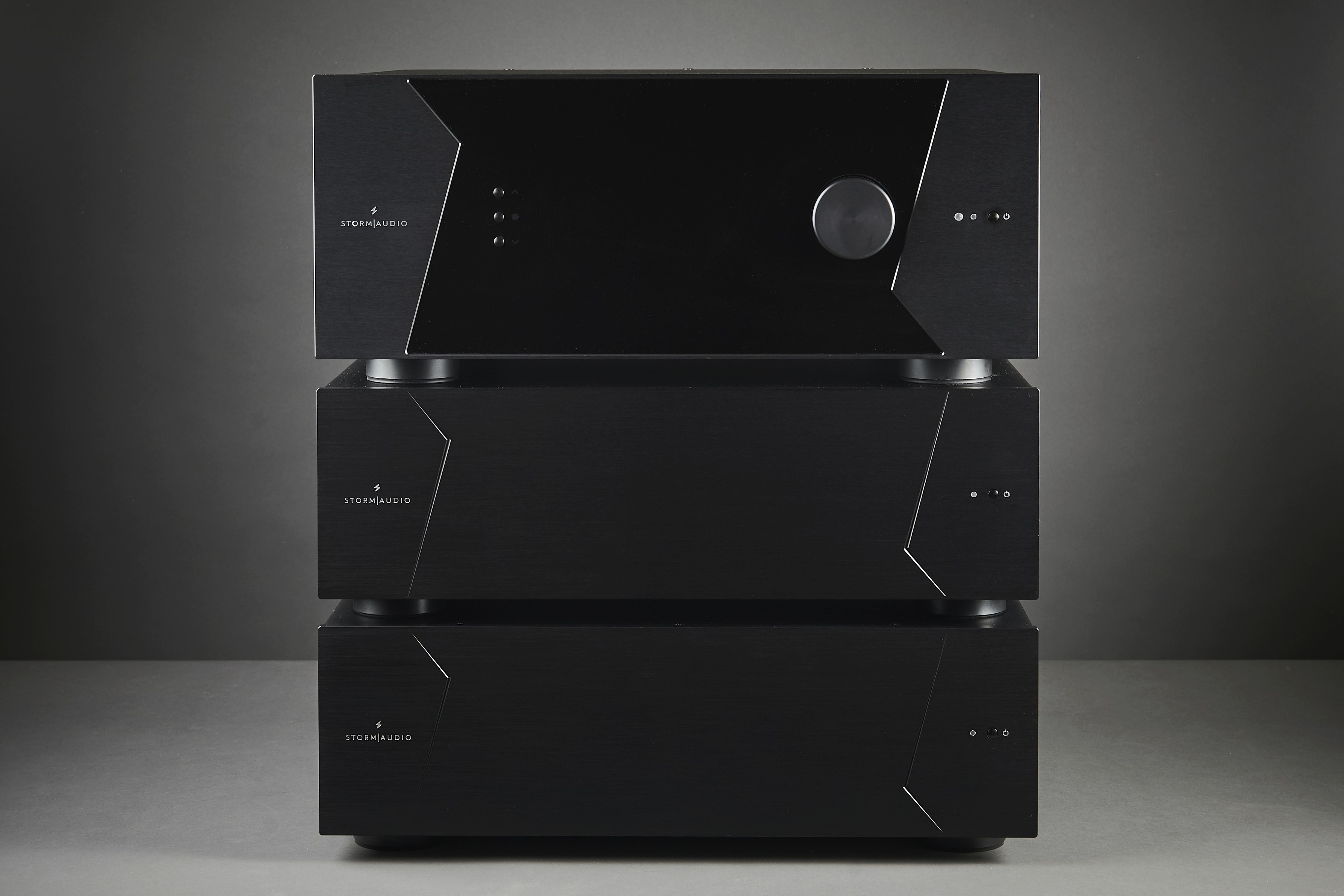

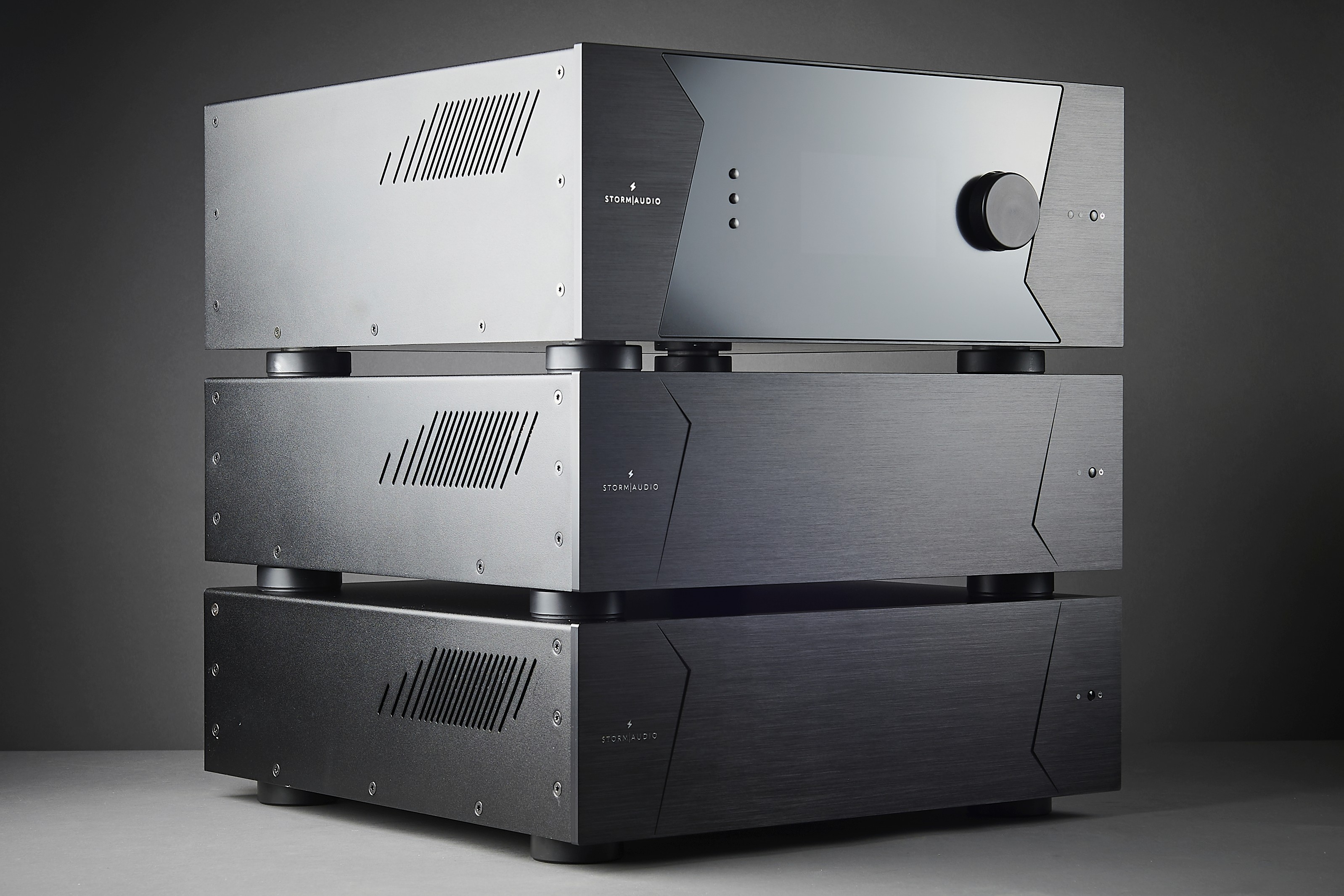

Three stacked StormAudio amplifiers on a dark background.

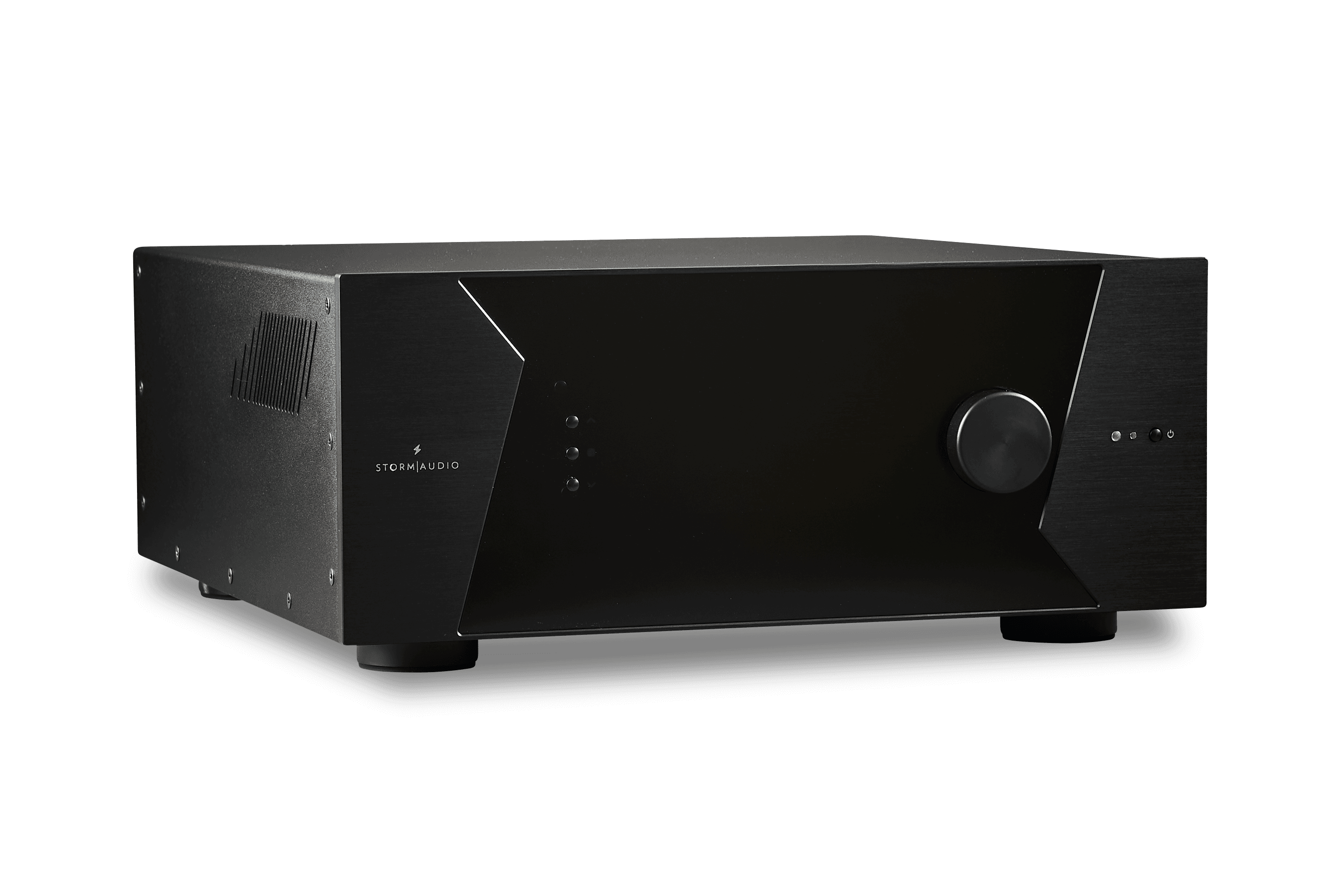

Black Stormaudio processor with volume knob and LEDs

StormAudio receiver with screen display showing volume -27.0 dB

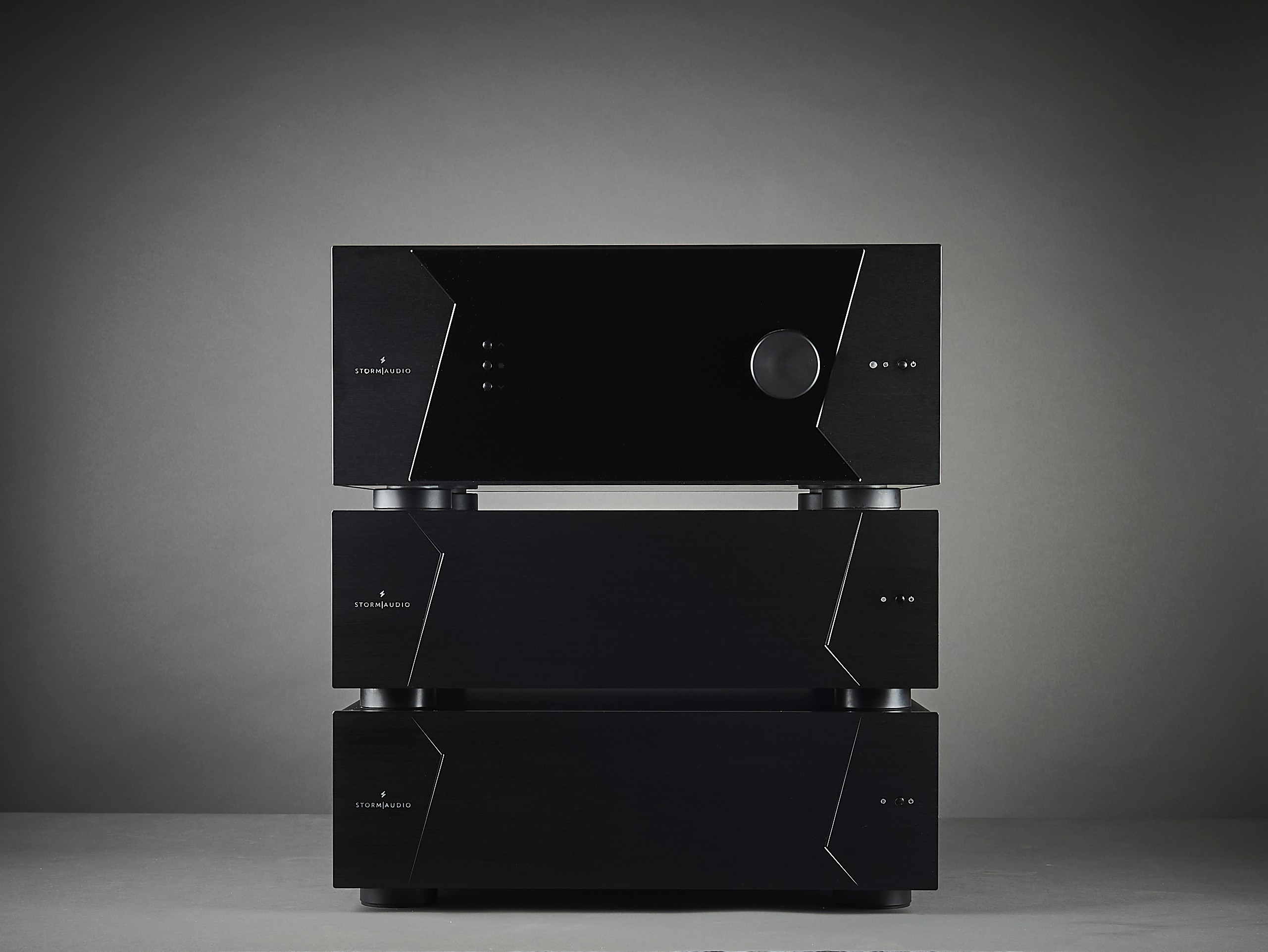

Black audio amplifiers stacked on a gray surface.

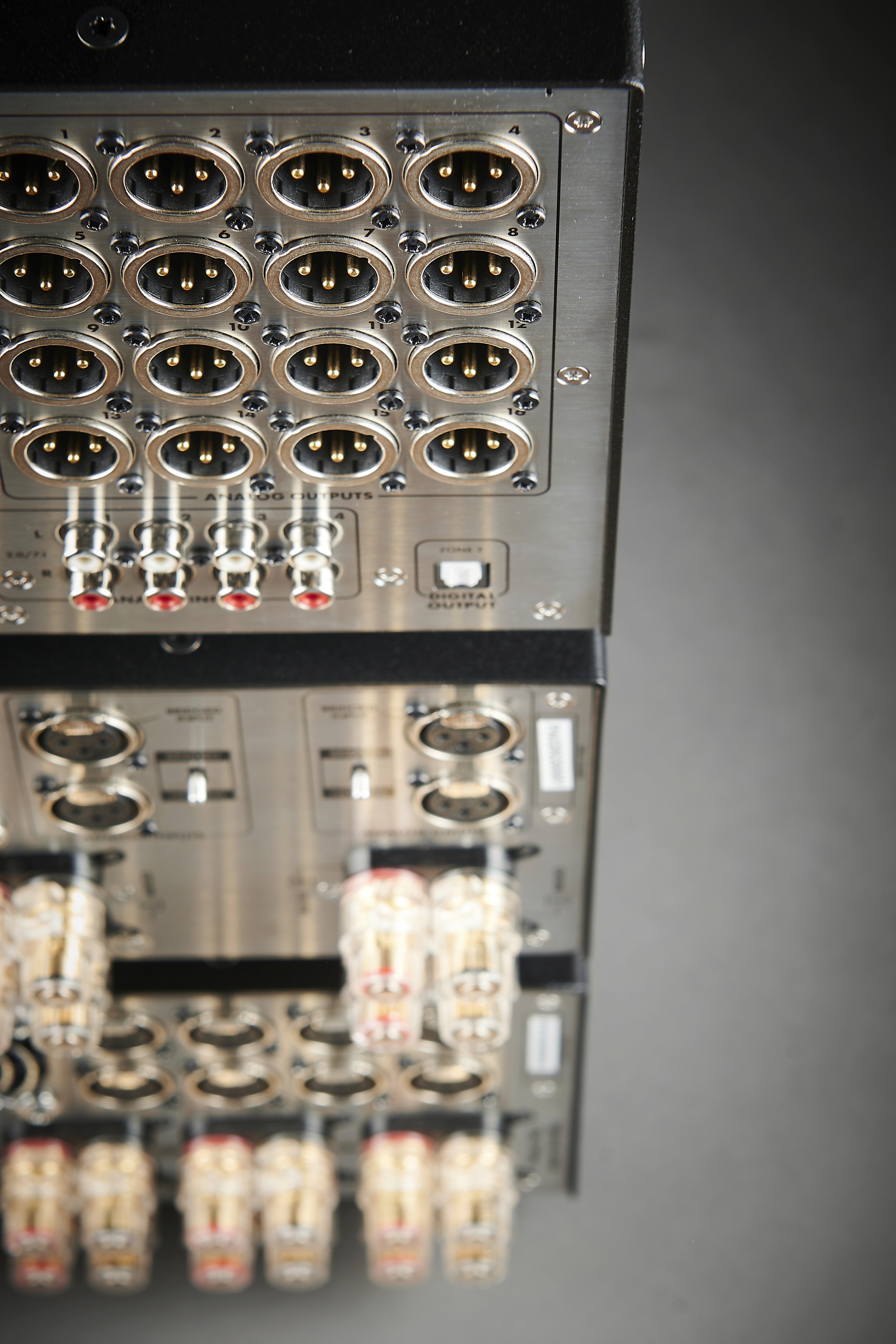

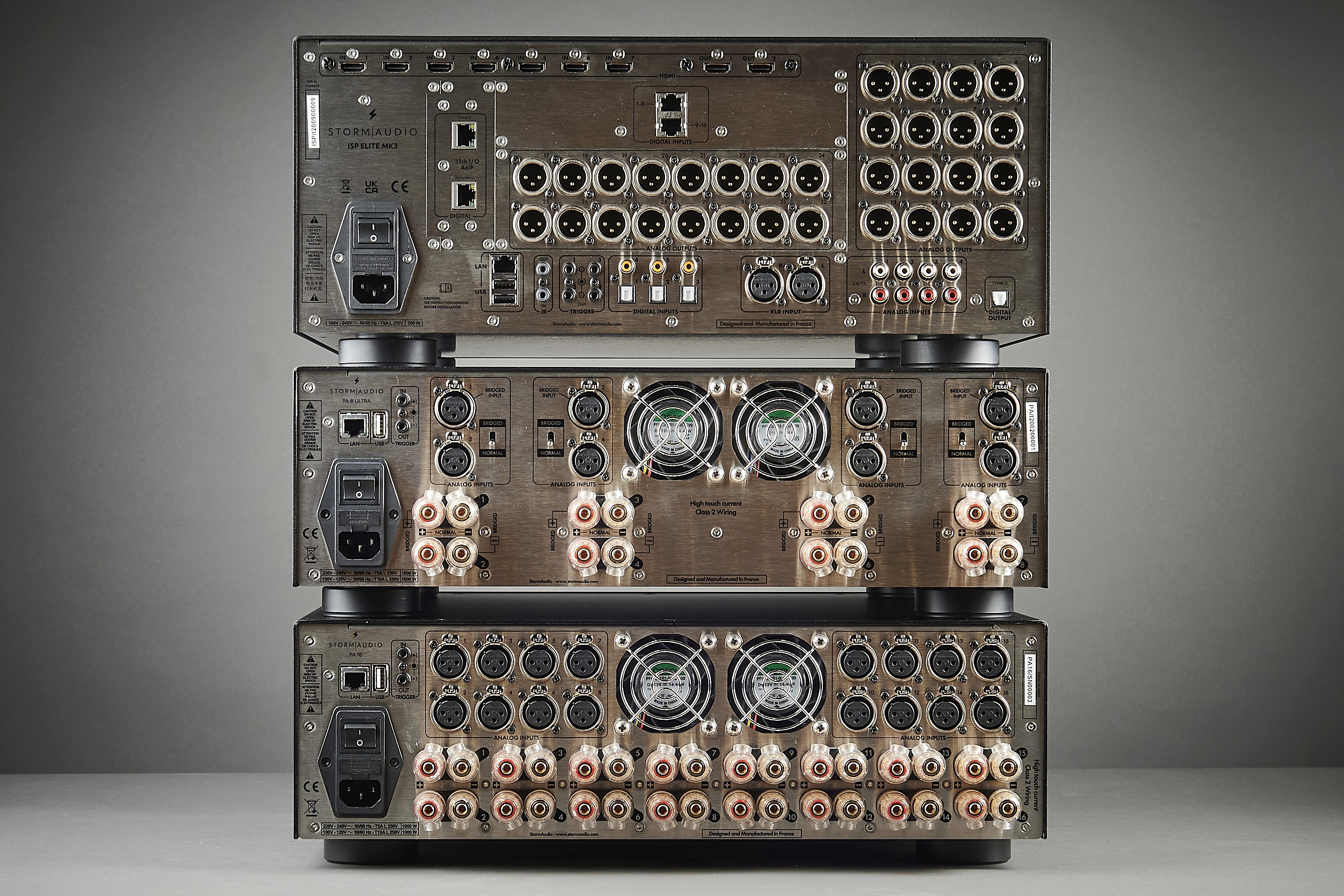

Audio equipment rear panels with numerous XLR and speaker outputs.

STORM AUDIO

ISP Elite MK3

REFERENCE IMMERSIVE SOUND PROCESSOR

Cinema

Audio

Get Price

Description

The ISP Elite MK3 is StormAudio's reference immersive sound processor — a modular, future-proof platform that took 'Best New Home Cinema Sound Processor of 2022' and continues to set the bar. Engineered around a software-defined hardware strategy, every major subsystem (HDMI, audio outputs, processing) is upgradeable, so the chassis you install today keeps pace with format and connectivity changes for years.

Up to 24 channels of decoding and upmixing — and up to 32 channels of post-processing — handle Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced. Seven HDMI inputs with HDMI 2.1a / HDCP 2.3 support 8K at 40 Gbps and full HDR10+, Dolby Vision and HLG pass-through.

The full Dirac Live suite — Live, Bass Control, Bass Management and Active Room Treatment (DLART) — comes standard, with model variants delivering 16, 24 or 32 analog XLR channels, or 32 digital AES/EBU or AoIP (AES67/Dante) outputs for the most ambitious installations.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Variants	Elite 16/24/32 Analog MK3; Elite 32 Digital AES MK3; Elite 32 Digital AoIP MK3
Decoding & Upmixing	Up to 24 channels
Post-Processing	Up to 32 channels
Supported Codecs	Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced Ready, legacy up to 192 kHz
HDMI	7 in / 2 out (ARC/eARC)
HDMI Version	2.1a / HDCP 2.3 (upgradable board)
Video Pass-Through	8K, 4K UHD, HDR10+, Dolby Vision, HLG
Room Correction	Dirac Live + DLBC + DLBM + DLART
Analog Outputs	16ch / 24ch / 32ch XLR (by model)
Digital Outputs	Optional 32ch AES/EBU; 32ch AoIP AES67/Ravenna; Dante compatible
Analog Inputs	4x RCA (7.1 or stereo); 1x XLR stereo
Digital Inputs	3x optical Toslink, 3x coaxial S/PDIF
Bass Management	Standard + Expert modes
Multi-Sub / Multi-Way	Yes
Multi-Theater / Multi-Room	Yes
Control	Web UI, IR remote, iOS/Android apps, control-system drivers
Dimensions	465.8 x 442 x 176 mm (ears +4 cm, feet +2 cm)
Weight	11 kg
