Subwoofer

BASSBOSS

VS21-MK3

SINGLE 21" Subwoofer The "Rum Punch" - so sweet, so deadly. This baby packs a wallop and it feels so good!

Audio

Get Price

Take a Big Hit

You do a wide variety of shows and genres with your subs. You need to meet the demand for hard-hitting live kicks and the rolling bass of an 808. You need the perfect blend of performance and versatility. Precise low-end reproduction with a massive punch and plenty of heft.

Give It A Punch

The VS21-MK3 is a rum punch of sweet, deep, punchy bass. With horn-loaded and vented design get the best of both worlds for dance floor mastery.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

True Specifications

At BASSBOSS, with the MK3 line we have stopped using “Peak” and “RMS” power ratings for our amplifiers because those numbers alone are not an accurate representation of the real-world performance you can expect from our powered loudspeaker systems.

‍Peak Watts:

Essentially a theoretical maximum that the amplifiers could output for an instantaneous moment under ideal conditions with no load.
However, this peak power is not sustainable and has little practical relevance for how the loudspeakers will actually perform.

‍RMS (root mean square) Watts:

A measure of continuous power output, but even this figure doesn’t account for the true efficiency of how that power is converted into acoustic output by the transducers and overall speaker design.
The number of watts a loudspeaker “uses” is constantly fluctuating based on the impedance curve, frequency response, and heat generated in the voice coils.
Simply looking at how many watts an amplifier can produce on a test bench doesn’t translate to its real-world sound output capability.

‍What matters most is the complete integrated loudspeaker system and how efficiently it can convert the amplifier’s power into acoustic output while maintaining flat frequency response and headroom. Two loudspeakers with the same wattage ratings could have vastly different real-world sound pressure levels and clarity.

For these reasons, we believe wattage ratings alone are not a reliable metric. Listening tests and measurements of the overall system’s output capabilities like maximum SPL and distortion are far more telling than any peak or RMS wattage number viewed in isolation.

Our goal is to provide outstanding performance through intelligent system design, not just big wattage numbers.

Loudspeaker Description

Specification	Details
Loudspeaker type	Single 21″ self-powered 6th-order hybrid subwoofer
Part number	BB-VS21-MK3

Acoustic Performance

Specification	Details
Frequency response / ±3dB	28Hz–100Hz
Maximum sustained output	135dB SPL @ 1m half-space
Max SPL / Peak	138dB SPL @ 1m half-space
Nominal dispersion / H × V	360° × 360°
Cardioid mode	Available with multiple boxes

Amplification & Processing

Specification	Details
Amplification	2500W Class D
Processing	Integrated comprehensive DSP
Sampling rate	96kHz
Presets	8 pushbutton presets
Preset storage	Up to 100 presets
DSP features	High pass filters, low pass filters, phase alignment, equalization and multi-stage limiting

Electrical

Specification	Details
Electrical input connector / Amp	Neutrik powerCON TRUE1 TOP IP65-rated waterproof connectors with pass-through outlet to connect additional loudspeakers
Inlet capacity	Limited to 15A or 1800W @ 120V total
Electrical outlet connector / Amp	Neutrik powerCON TRUE1 female
Outlet capacity	Limited to 10A or 1200W @ 120V
Electrical connector mains	Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 / Edison
Voltage operating range	100–240V AC, 50–60Hz
Power supply	Auto-sensing, auto-switching universal supply
Current draw / 120V	4.6A nominal
Current draw / 240V	2.3A nominal

Signal Connectivity

Specification	Details
Signal input connector	XLR-F
Signal output connector	XLR-M
Signal output type	Direct pass-through only

Enclosure & Transducer

Specification	Details
Enclosure type	Vented, short-horn hybrid
Low frequency transducer	1 × 21″ / 540mm neodymium motor woofer
Voice coil	4.5″ / 115mm

Cabinet Construction & Finish

Specification	Details
Cabinet construction	CNC-machined 18mm Baltic birch plywood
Cabinet reinforcement	Extensive bracing and dado joinery
Pole sockets	4 × 35mm pole sockets
Handles	8 integrated handles
Feet	12 rubber feet
Interlocking foot pockets	8
Flypoints	6 × M10 threaded flypoints
Exterior finish	High-pressure bonded polyurea coating
Finish properties	Rugged, waterproof
Available color	Textured black
Grille	Perforated, powder-coated steel

Dimensions & Weight

Specification	Details
Dimensions / H × W × D	36″ × 24″ × 36″
Dimensions / metric	91.44 × 60.96 × 91.44cm
Height with feet	37.5″ / 95.25cm
Net weight	180 lbs / 82kg
Shipping weight	210 lbs / 104kg

Included Items

Item	Details
Loudspeaker	Included
Power cable	15′ / 5m power cable
Documentation	Manual, warranty card

Optional Accessories

Accessory	Details
Optional cover	Heavy-duty padded nylon transport cover / vertical

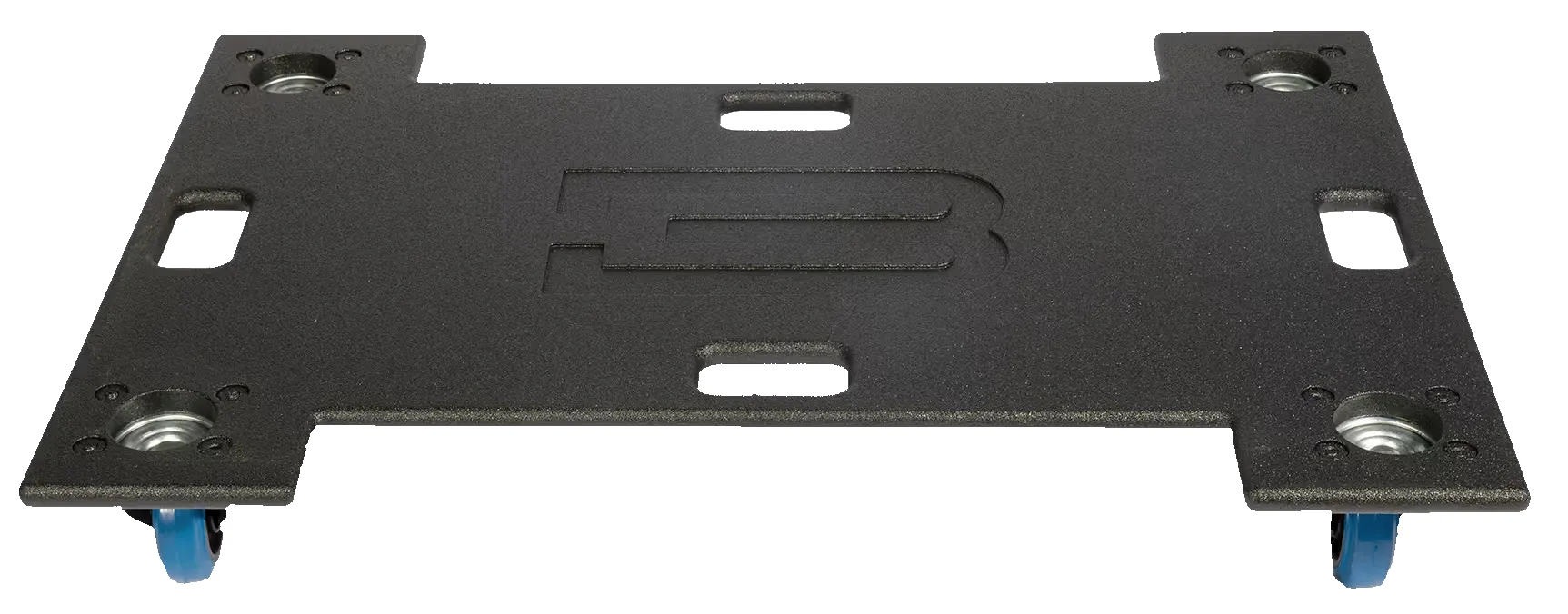

Optional dolly / Version V	Birch plywood flat cart with 4 locking wheels and sockets to accept cabinet feet; transports 1 cabinet

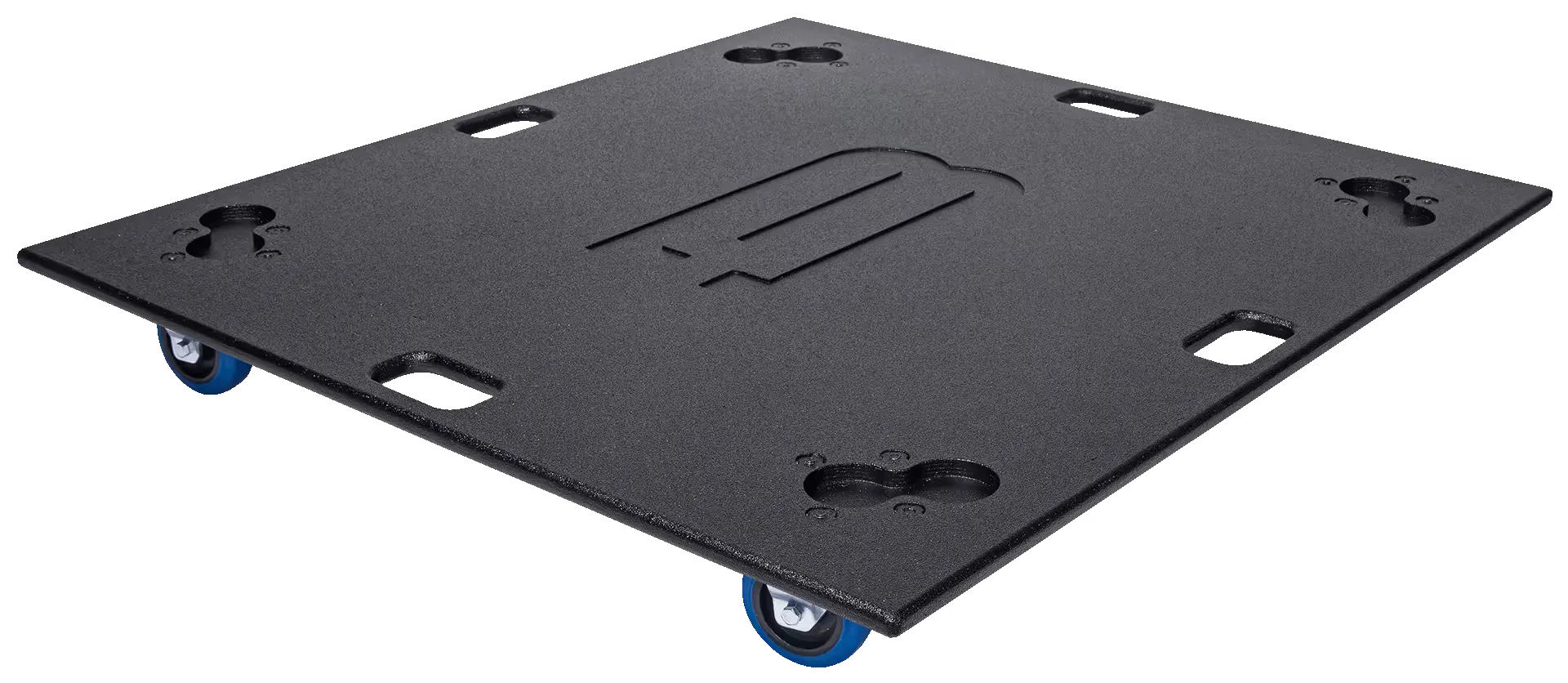

Optional dolly / Version H	Birch plywood flat cart with 4 locking wheels and sockets to accept cabinet feet; transports up to 3 cabinets
Optional hardware	M10 shoulder eye bolts, M10 side-pull anchors
GLL / Ease file	Available from BASSBOSS support
