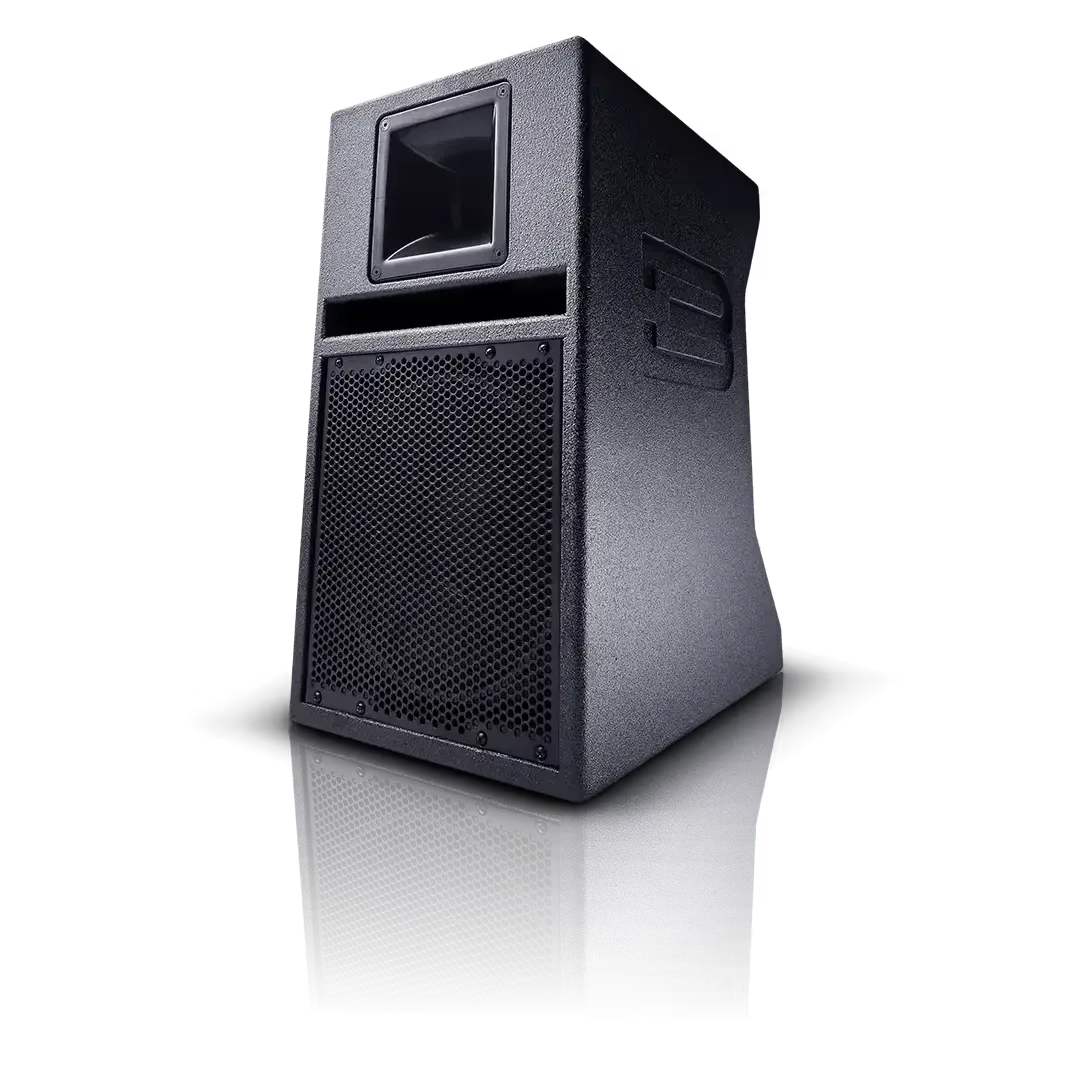

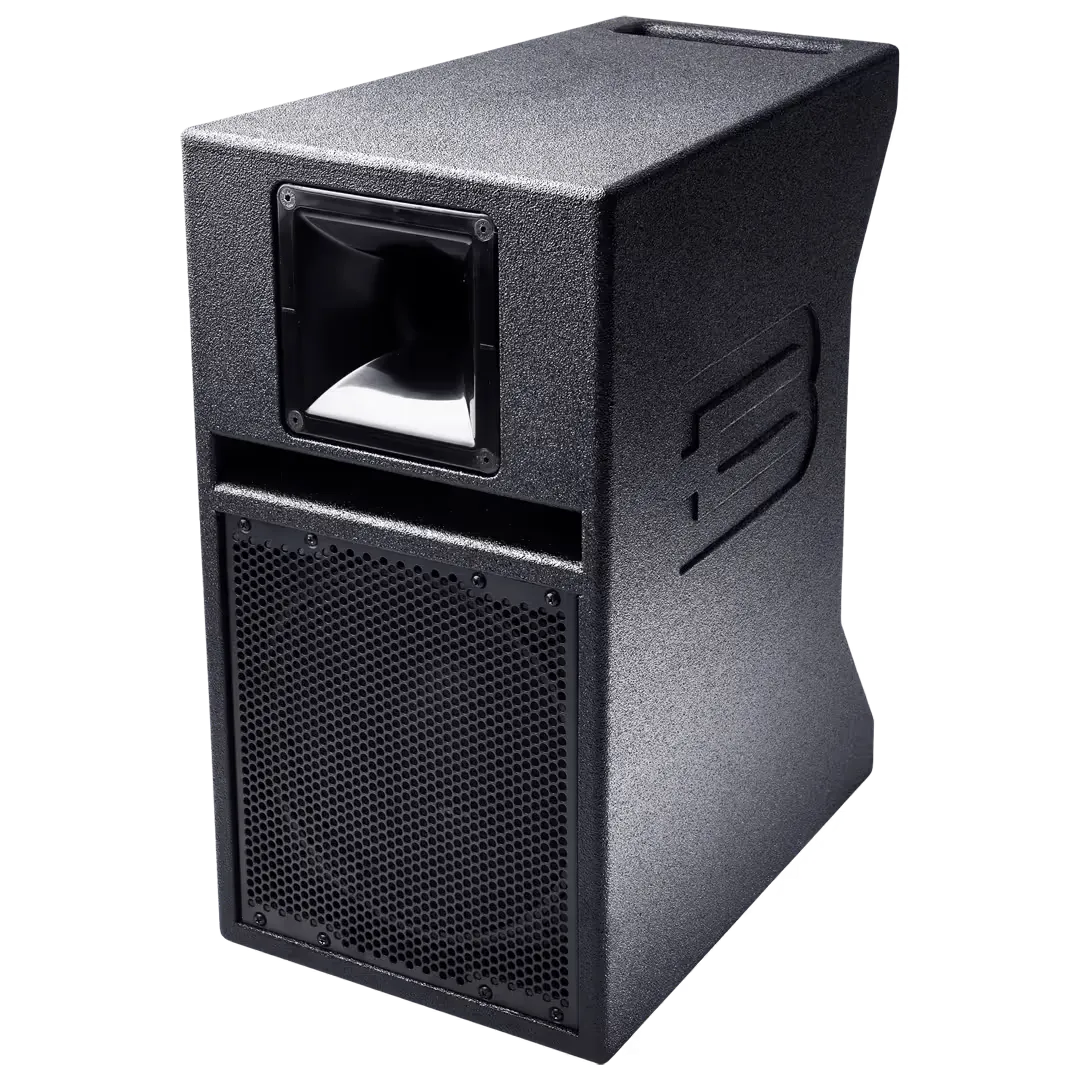

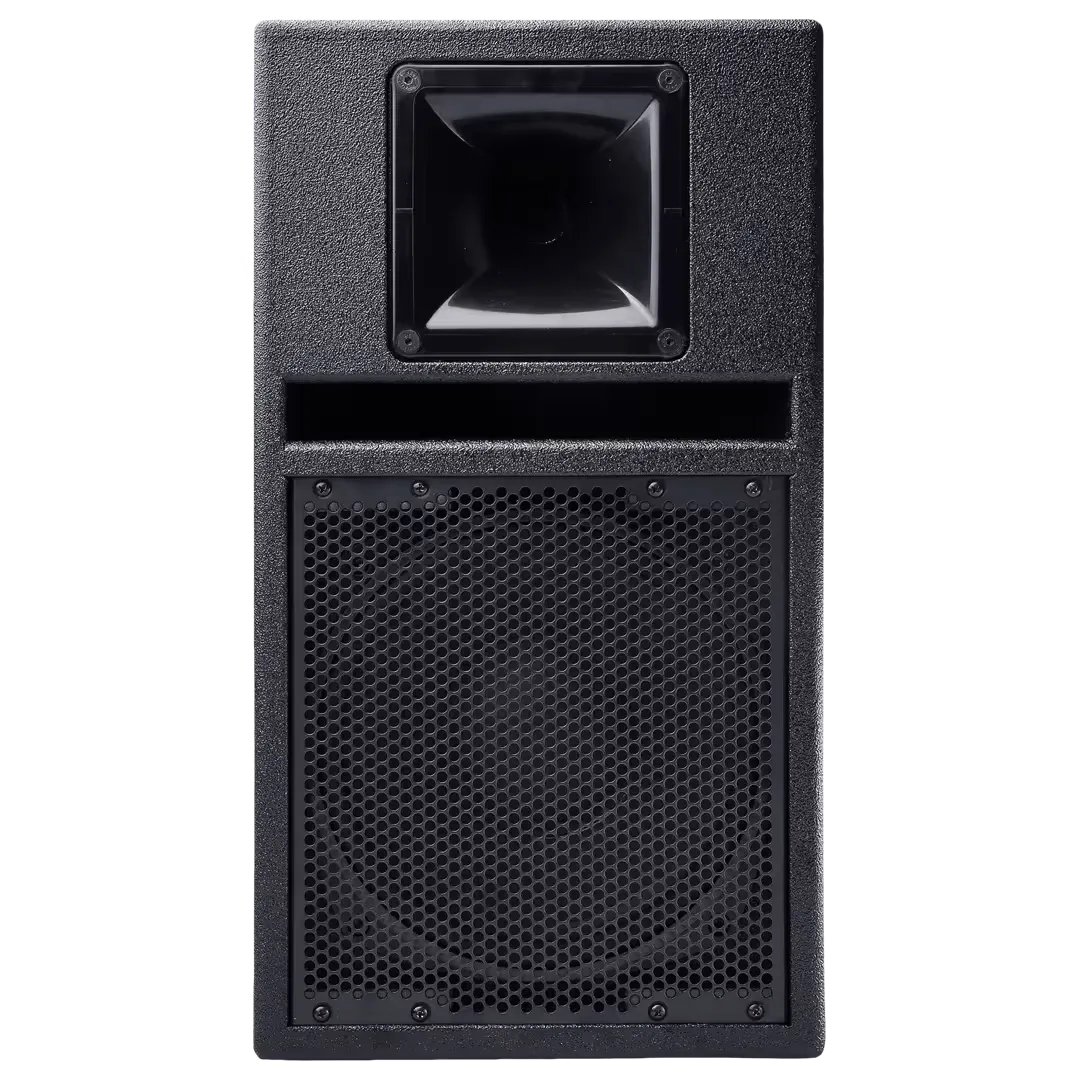

Black loudspeaker with horn and grille

SV9-MK3

Single 9-inch powered full-range loudspeaker

Audio

The SV9-MK3 is a 2-way single-9 self-powered vented direct-radiating full-range loudspeaker small enough to carry in one hand, with a birch plywood enclosure and 96kHz DSP.

  • 2-way single 9-inch full-range top, ultra-portable

  • 1200W asymmetrical Class-D amplifier

  • 96kHz DSP; IP65 connectors; 110-240V global power

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Amplifier

1,200W asymmetrical Class-D (RMS)

LF driver

Custom 9-inch neodymium woofer, 2.5-inch voice coil

HF driver

1.4-inch voice-coil compression driver through a 1-inch throat horn

Frequency response

50Hz - 19,000Hz (±3dB)

Max output

118dB sustained / 121dB peak (1m, full-space)

Coverage

90 x 60 degrees

Weight

26 lb (net)
