Specs
Loudspeaker Description
Specification | Details |
|---|---|

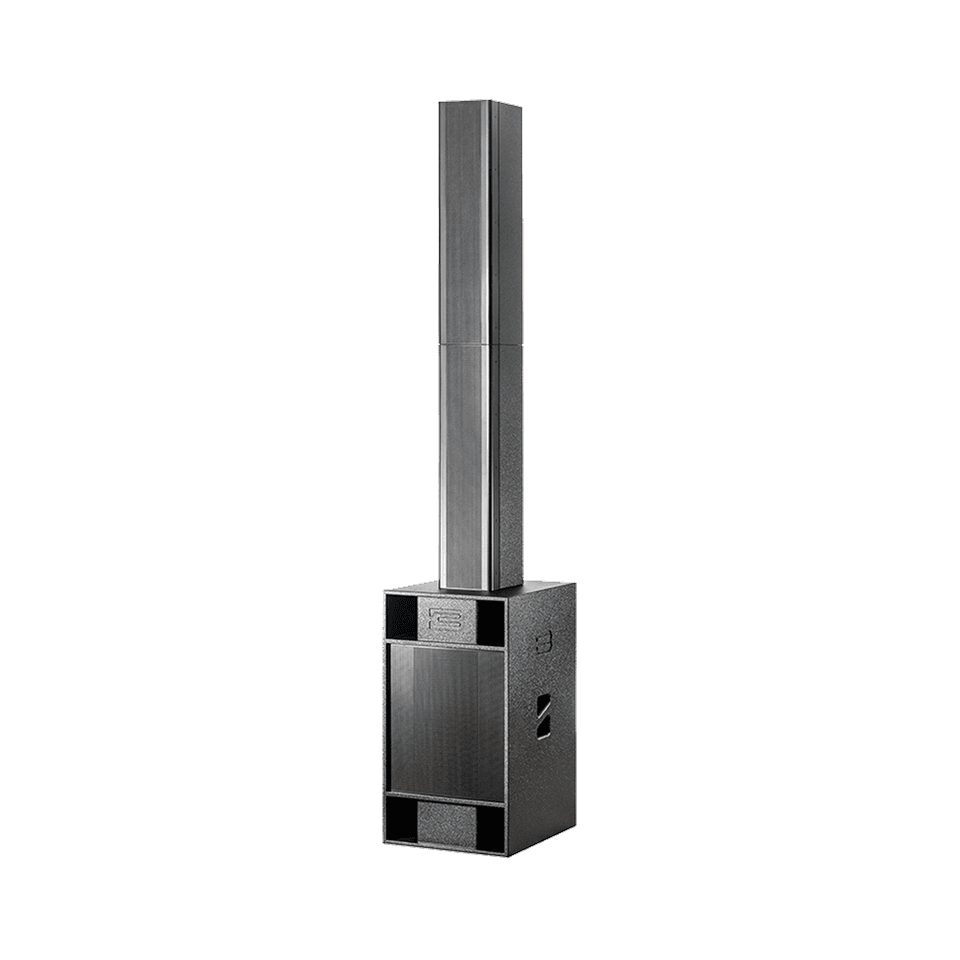

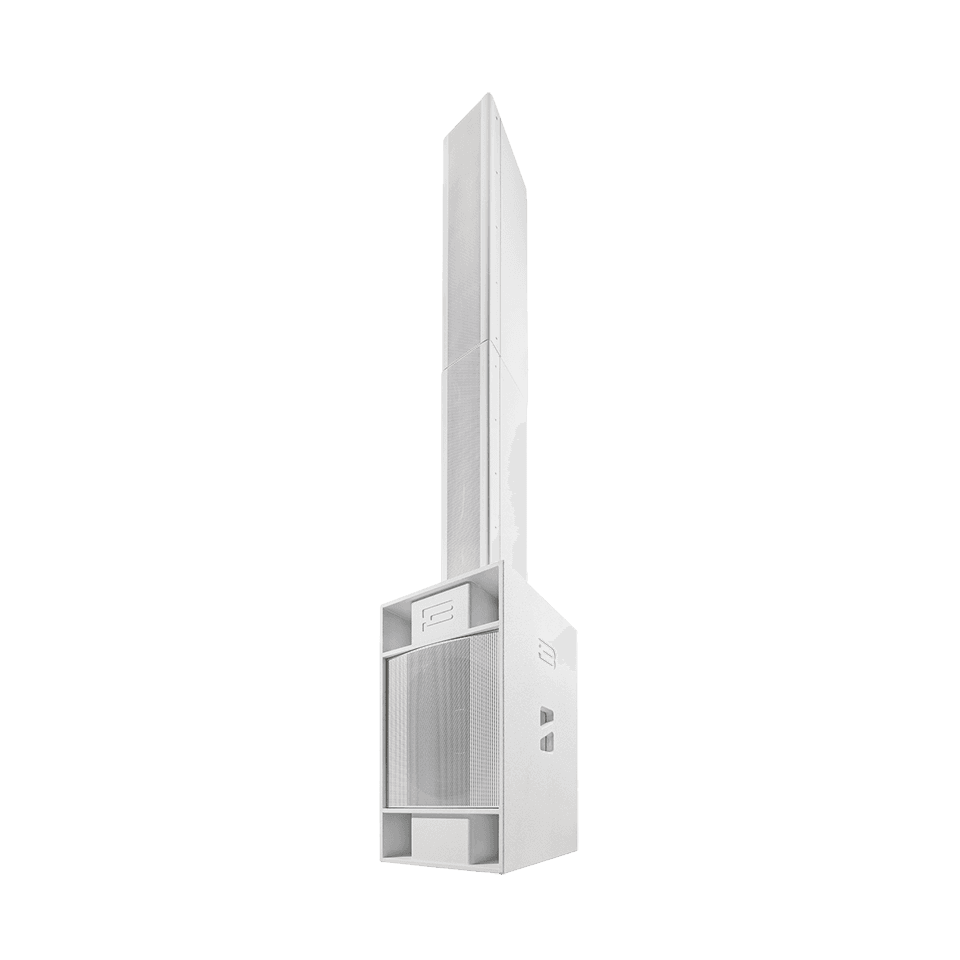

Loudspeaker type | Self-powered, 3-way active full-range loudspeaker column |
Part number | BB-SUBLIM8 |
Acoustic Performance
Specification | Details |
|---|---|
Frequency response / ±3dB | 35Hz – 19,000Hz |
Maximum sustained output | 130dB / half-space |
Max SPL / Peak | 133dB / half-space |
Nominal dispersion / H × V | 120° × 20° |
Amplification & Processing
Specification | Details |
|---|---|
Amplification | 4000W Class D |
LF amplifier power | 2400W |
MF amplifier power | 800W |
HF amplifier power | 800W |
Processing | Integrated comprehensive DSP |
Sampling rate | 96kHz |
Presets | 8 pushbutton presets |
Preset storage | Up to 100 presets |
DSP features | High pass filters, low pass filters, phase alignment, equalization and multi-stage limiting |
Electrical
Specification | Details |
|---|---|
Electrical input connector / Amp | Neutrik powerCON TRUE1 TOP IP65-rated waterproof connectors |
Electrical outlet connector / Amp | Neutrik powerCON TRUE1 female |
Outlet capacity | Limited to 10A or 1200W |
Electrical connector mains | USA 3-pin grounding 120V electrical plug: NEMA 5-15 |
Outside USA connectors | Alternate connectors provided |
Voltage operating range | 100–240V AC, 50–60Hz |
Power supply | Auto-sensing, auto-switching universal supply |
Current draw / 120V | 5.4A @ 120V nominal |
Current draw / 240V | 2.5A @ 240V nominal |
Signal Connectivity
Specification | Details |
|---|---|
Signal input connector | XLR-F |
Signal output connector | XLR-M |
Signal output type | Direct pass-through, unprocessed |
Enclosure & Transducers
Specification | Details |
|---|---|
Enclosure type | 3-way full-range loudspeaker system |
Low frequency enclosure | Vented direct radiator subwoofer cabinet |
Mid-bass enclosure | Vented direct radiator mid-bass cabinet |
High frequency section | Isophasic waveguide-loaded high frequency section |
System structure | Interlocking spacer design |

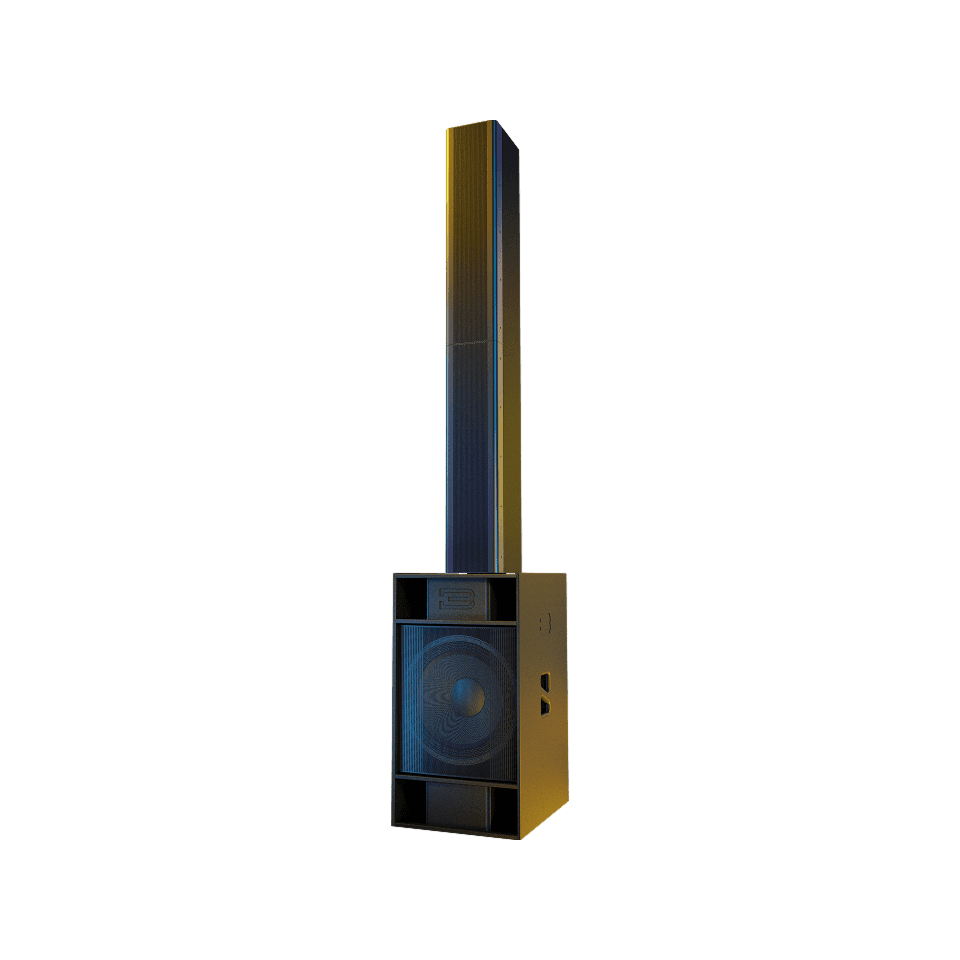

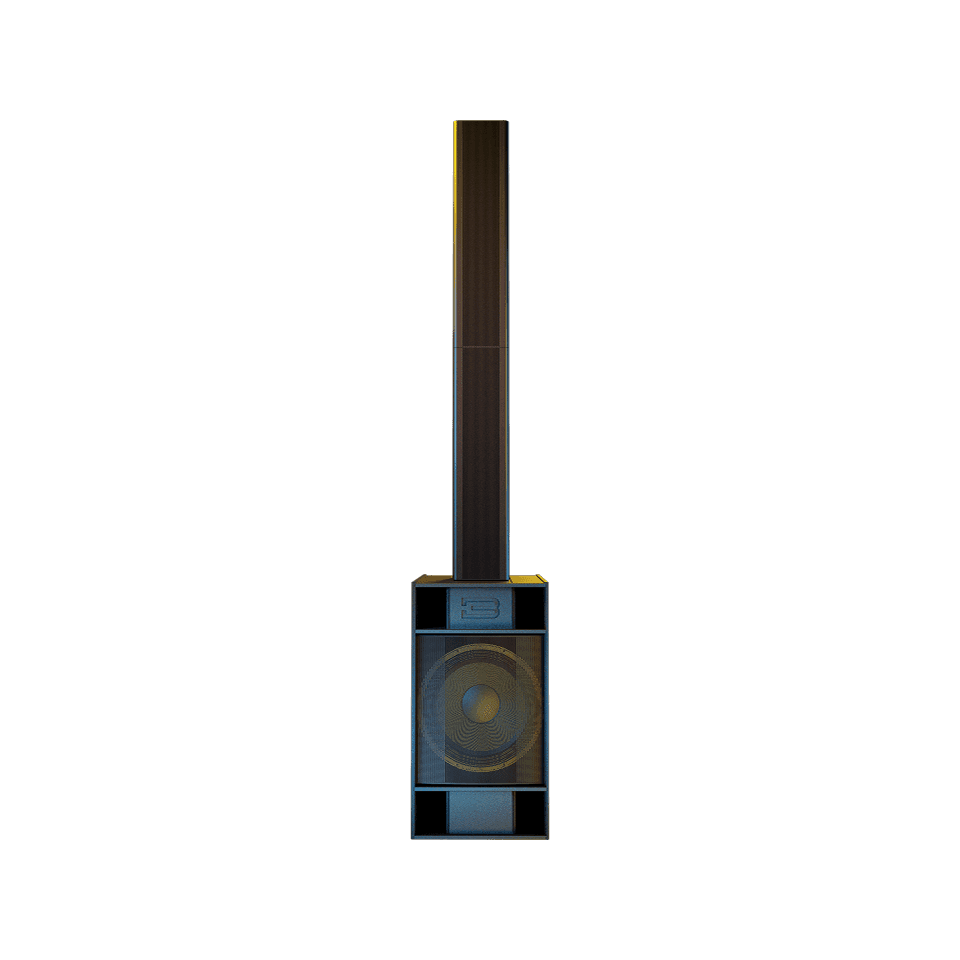

Low frequency transducer | 1 × 18″ / 450mm neodymium motor woofer with 4″ / 100mm voice coil and waterproof cone |
Mid frequency transducers | 2 × 8″ / 210mm neodymium motor woofers with dual 2″ / 51mm voice coils and waterproof cones |
High frequency transducer | 1 × 3″ / 76mm diaphragm compression driver with 1.4″ / 35mm exit mounted to isophasic waveguide |
Cabinet Construction & Finish
Specification | Details |
|---|---|
Cabinet construction | CNC-machined 15mm and 18mm birch plywood |
Cabinet reinforcement | Extensive bracing and dado joinery |

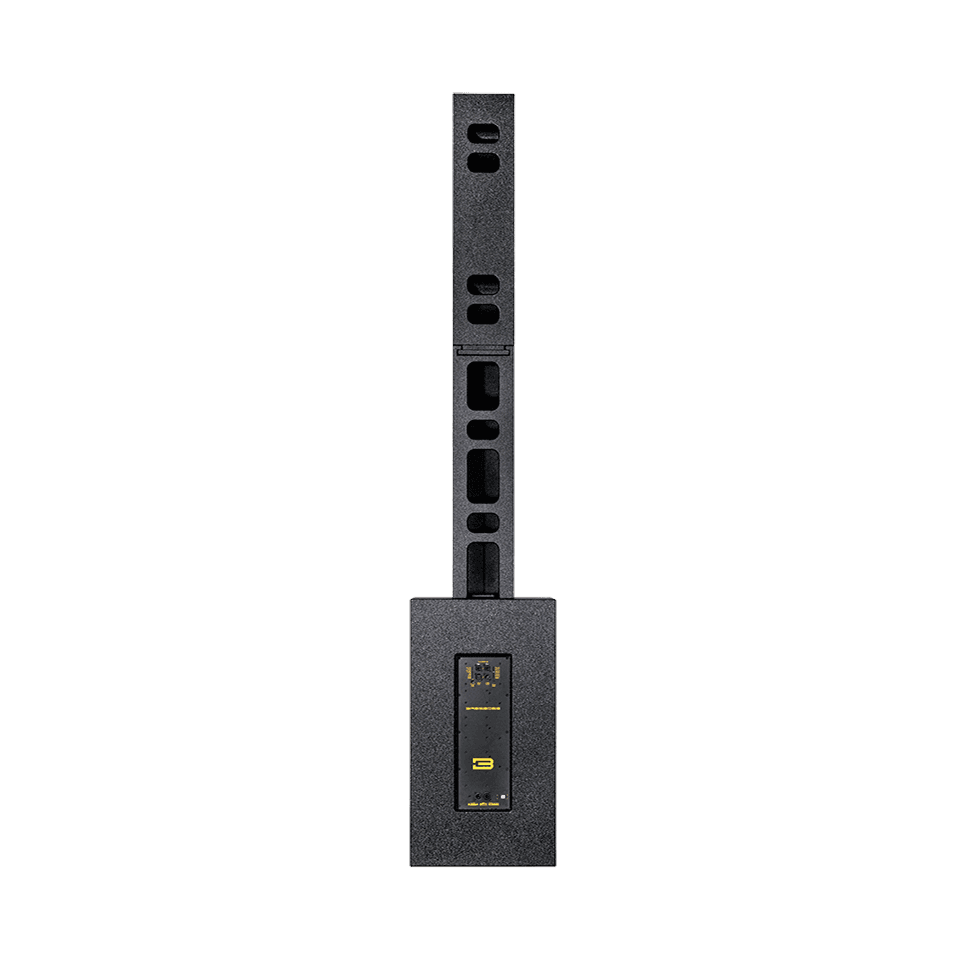

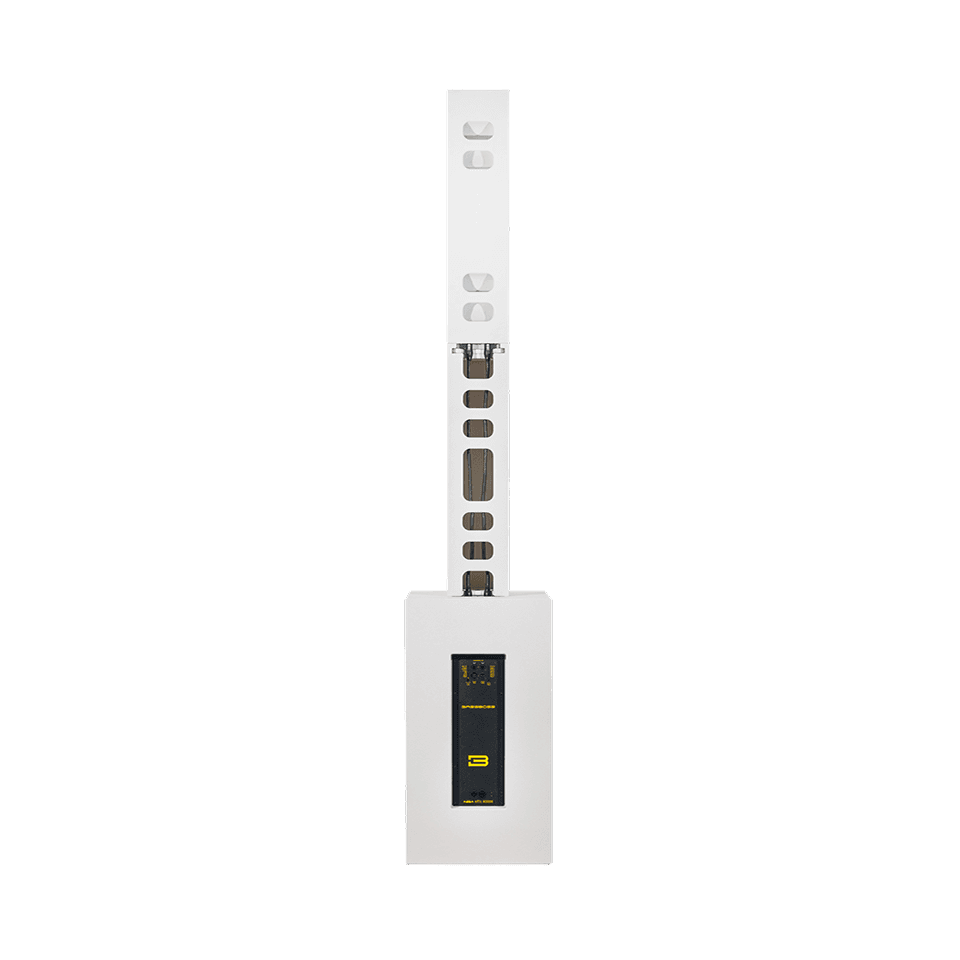

Sections | 3 interlocking sections: sub, spacer and top |
Handles | 6 handles / 2 per section |
Exterior finish | High-pressure bonded polyurea coating |
Finish properties | Rugged, waterproof |
Available colors | Textured black or white |
Grille | Perforated, powder-coated steel with hydrophobic backing |
Dimensions & Weight
Specification | Details |
|---|---|
Transport dimensions / H × W × D | 34″ × 37″ × 25.75″ / 86.36 × 93.98 × 65.41cm |

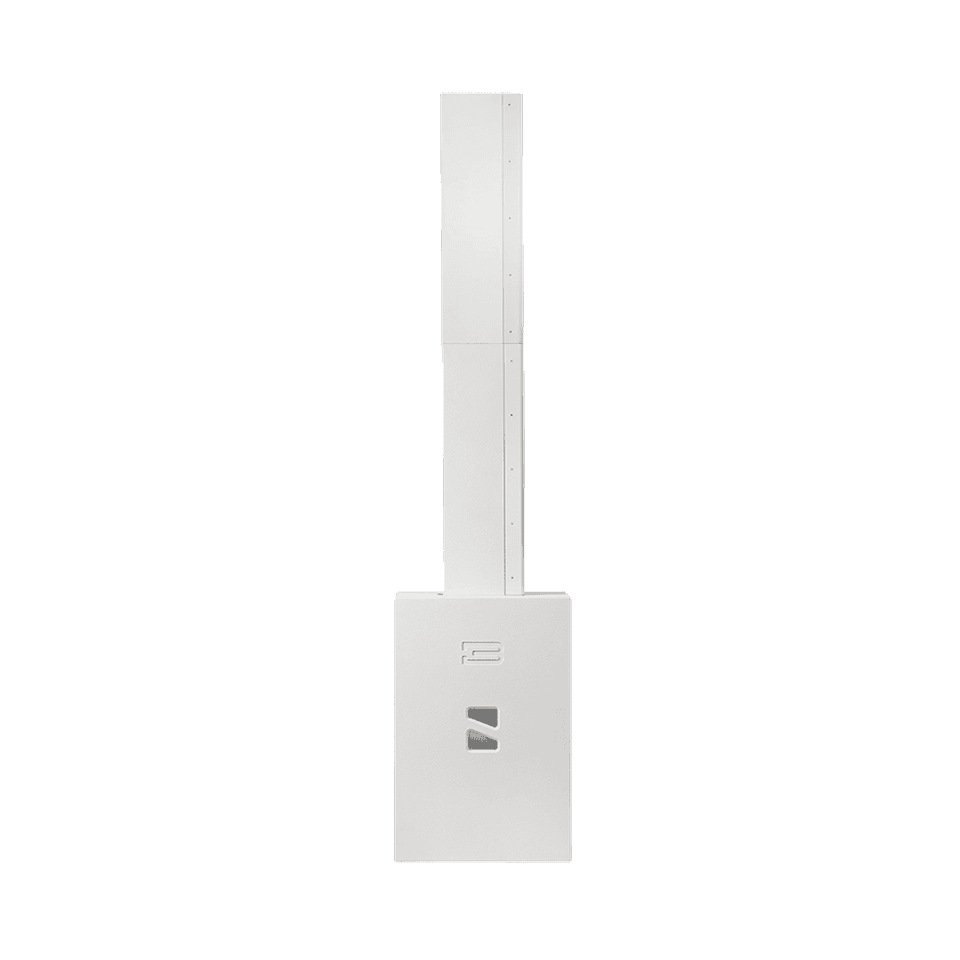

Assembled dimensions / H × W × D | 106″ × 19.75″ × 24″ |
Net weight | 200 lbs / 90.7kg |
Spacer weight | 22 lbs / 10kg |
Top weight | 39 lbs / 17.6kg |
Subwoofer weight | 100 lbs / 45.45kg |
Shipping weight | 230 lbs / 104kg |
Included Items
Item | Details |
|---|---|

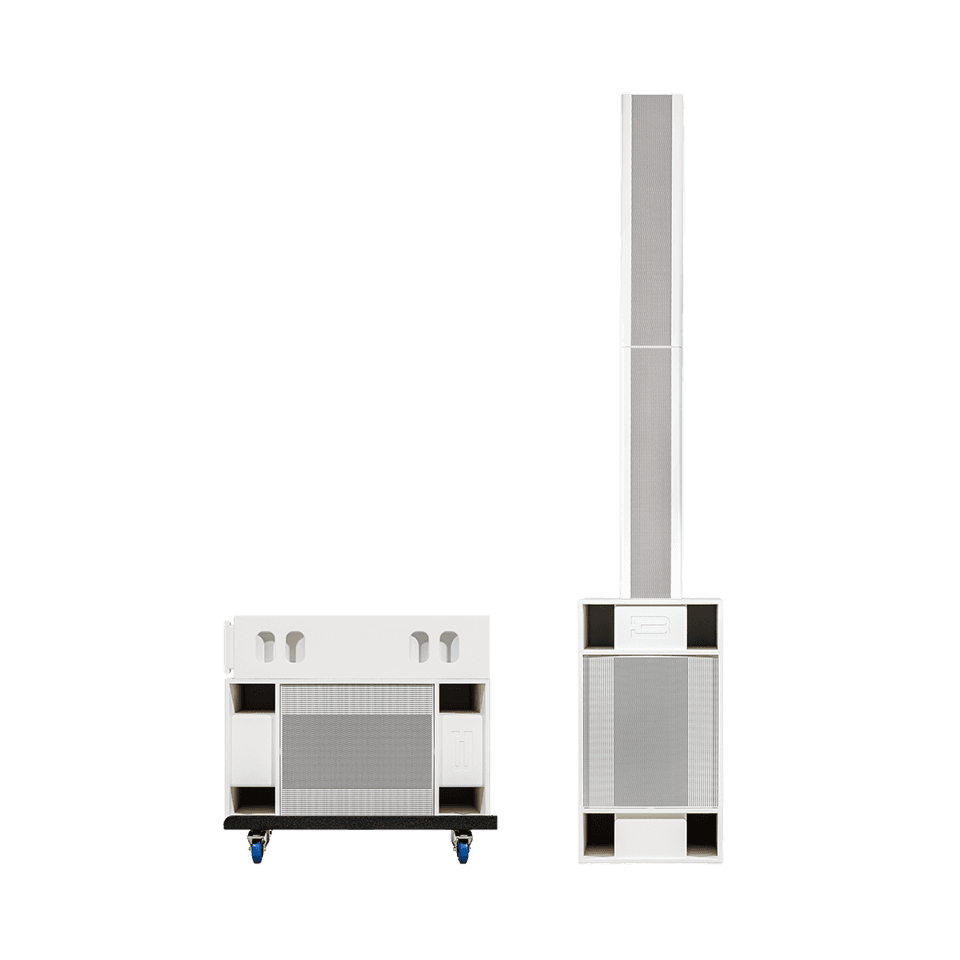

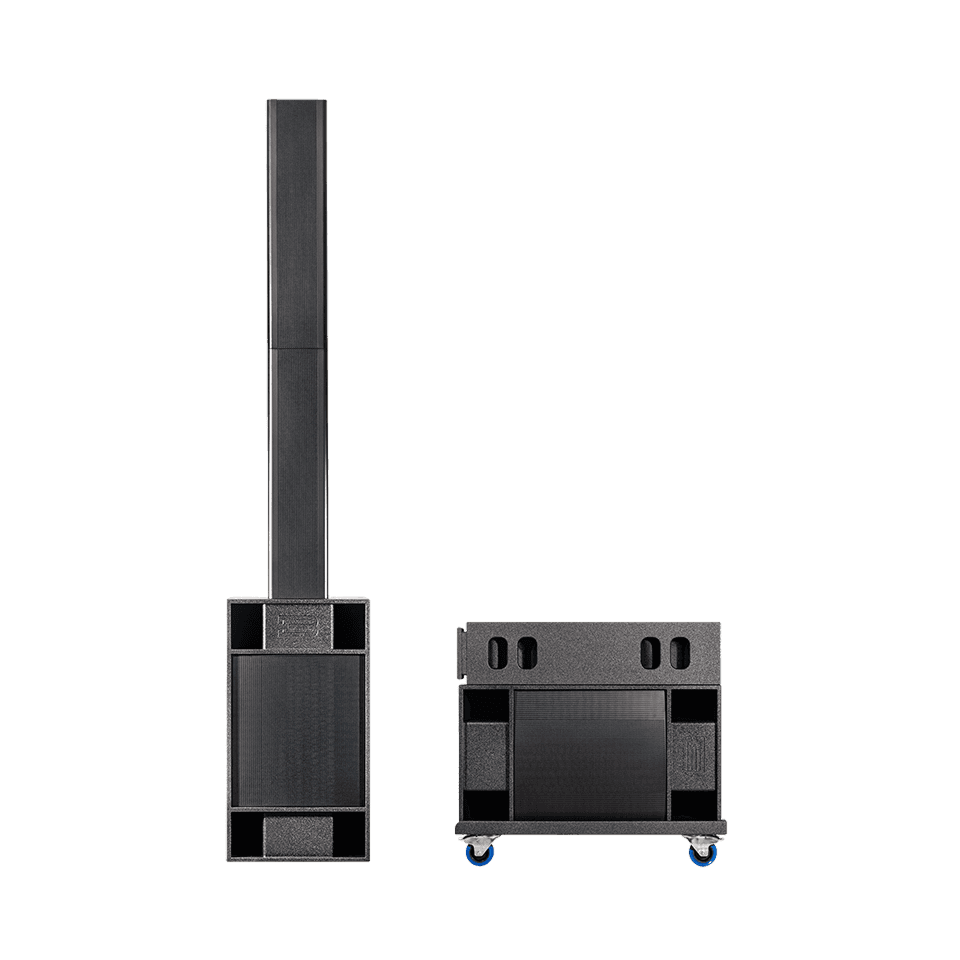

Cabinets | Subwoofer cabinet, mid-high cabinet, spacer cabinet |
Cables | Pass-through speaker interconnect cable, pass-through power cable for lighting |

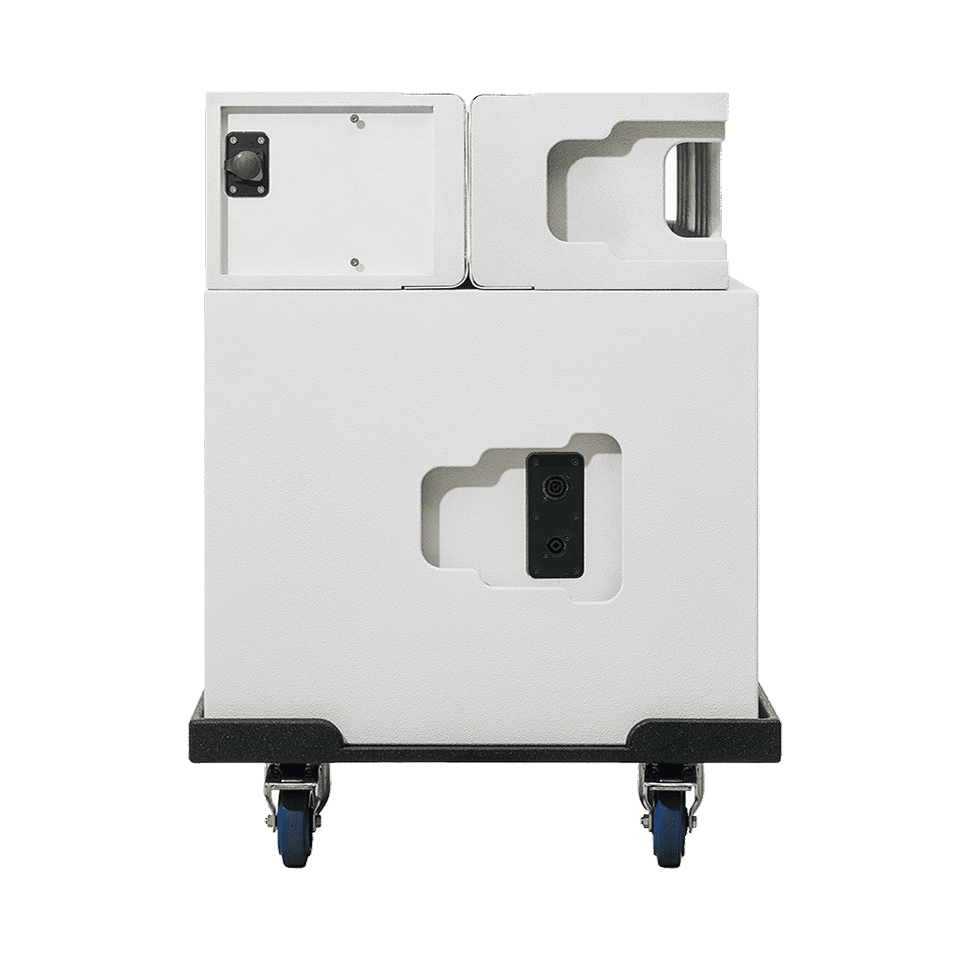

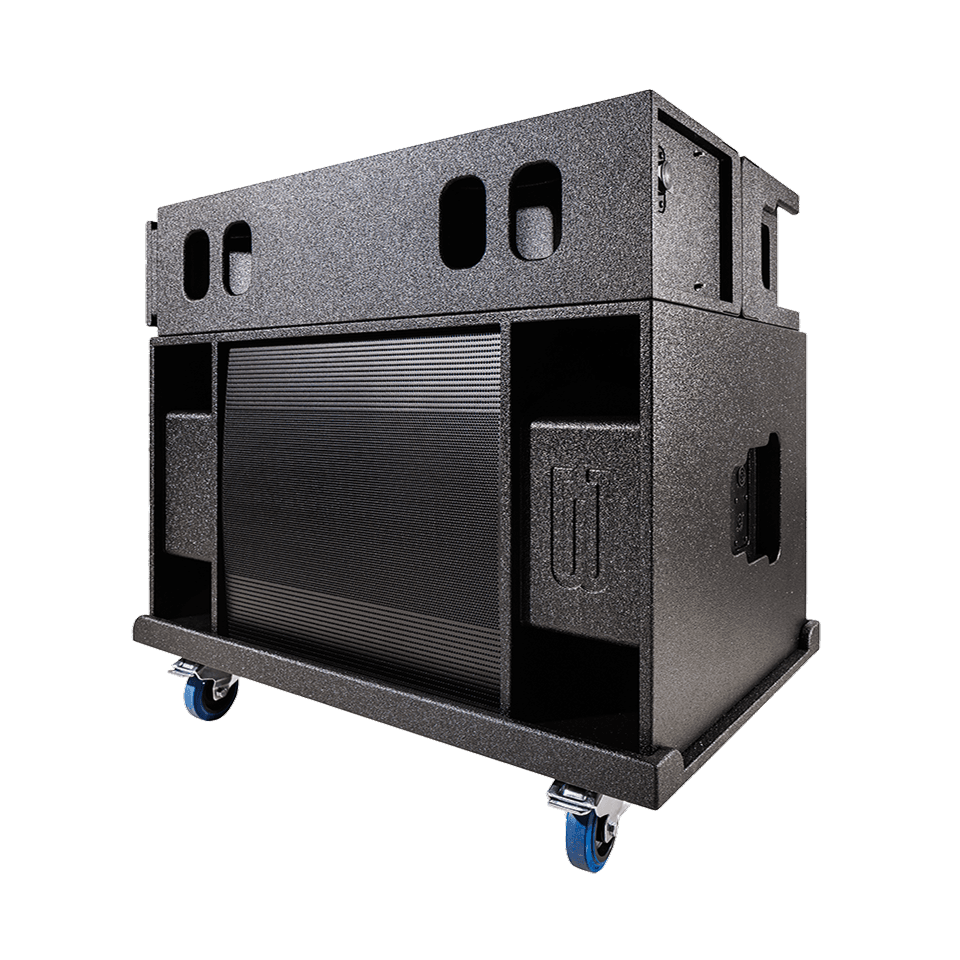

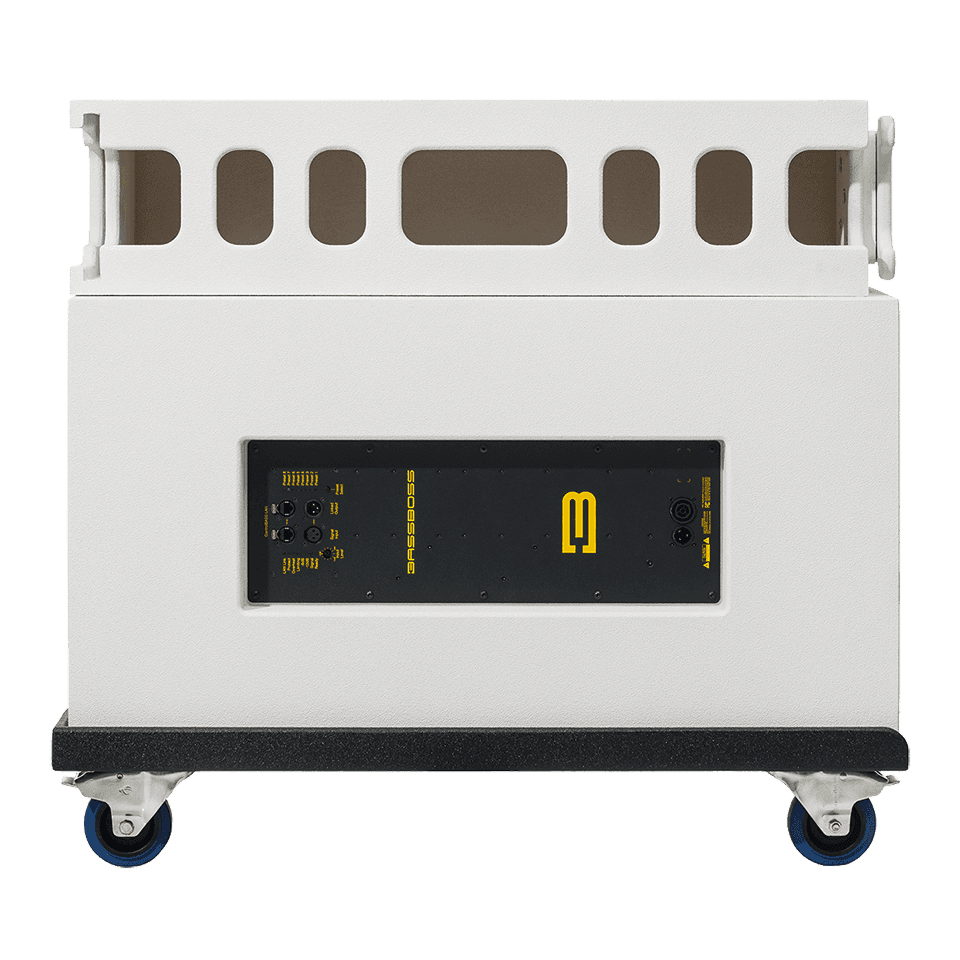

Transport | Transport dolly cart with 4 locking 4″ casters |
Covers | Subwoofer cover, mid-high cover, spacer cover |
Power cable | 15-foot / 5m power cord |
Documentation | Owner’s manual, warranty registration card |
Optional Accessories
Accessory | Details |
|---|---|
Optional covers | Subwoofer cover, mid-high cover, spacer cover included with Sublim8 |
Optional dollies | Transport dolly cart with 4 locking 4″ casters included with Sublim8 |
True Specifications Note
Topic | Details |
|---|---|
Amplifier ratings approach | BASSBOSS MK3 line has stopped using “Peak” and “RMS” power ratings for amplifiers because those figures alone do not accurately represent real-world powered loudspeaker performance |
Peak watts | A theoretical maximum that amplifiers could output for an instantaneous moment under ideal conditions with no load |
Peak watts limitation | Not sustainable and has limited practical relevance to real loudspeaker performance |
RMS watts | A measure of continuous power output |
RMS watts limitation | Does not fully account for how efficiently power is converted into acoustic output by the transducers and speaker design |
Real-world power behavior | Loudspeaker power use constantly fluctuates based on impedance curve, frequency response and heat generated in the voice coils |
Practical takeaway | Amplifier test-bench wattage does not directly translate to real-world sound output capability |
