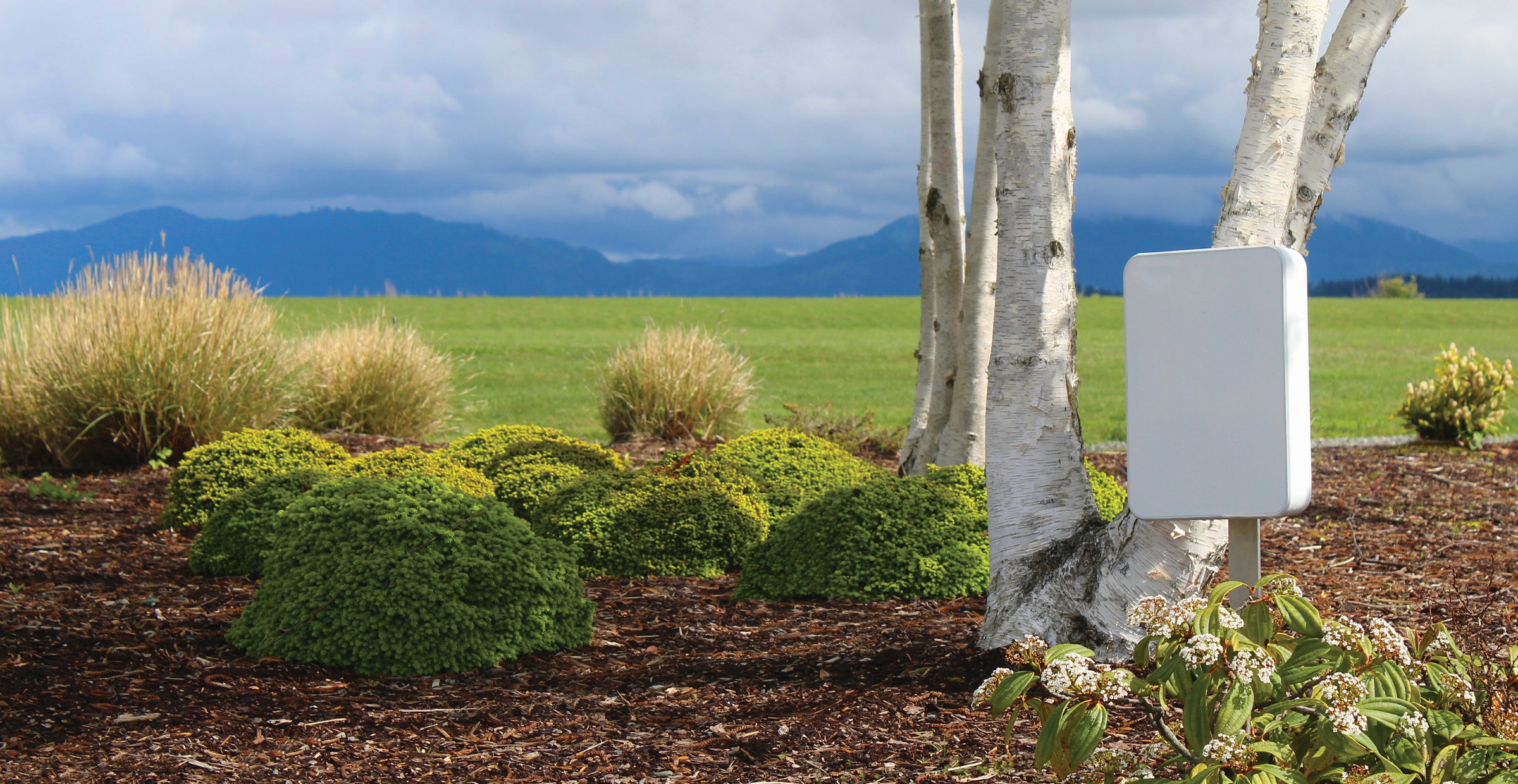

Birch trees in a garden with mountains in the background.

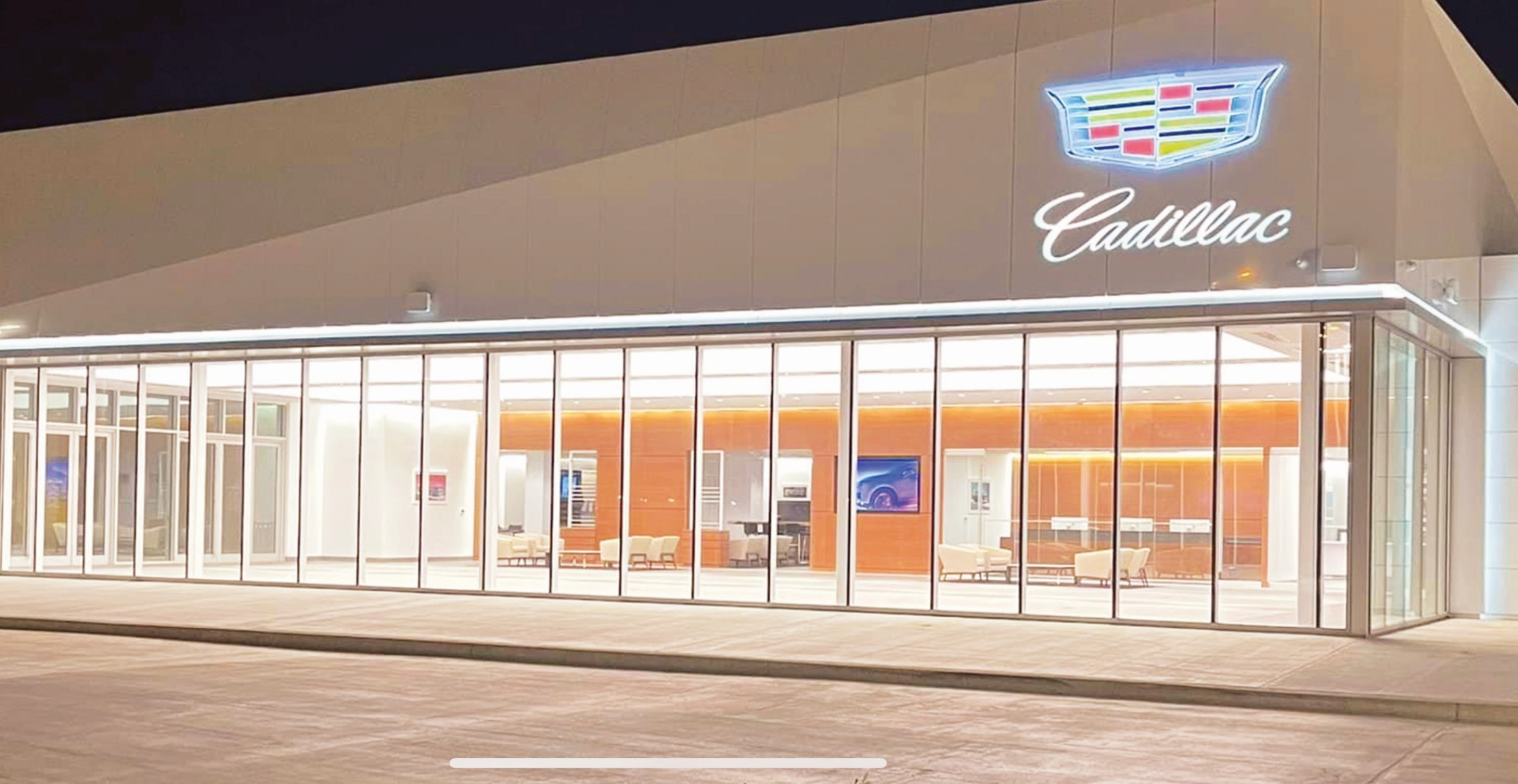

Cadillac dealership with lit emblem and showroom.

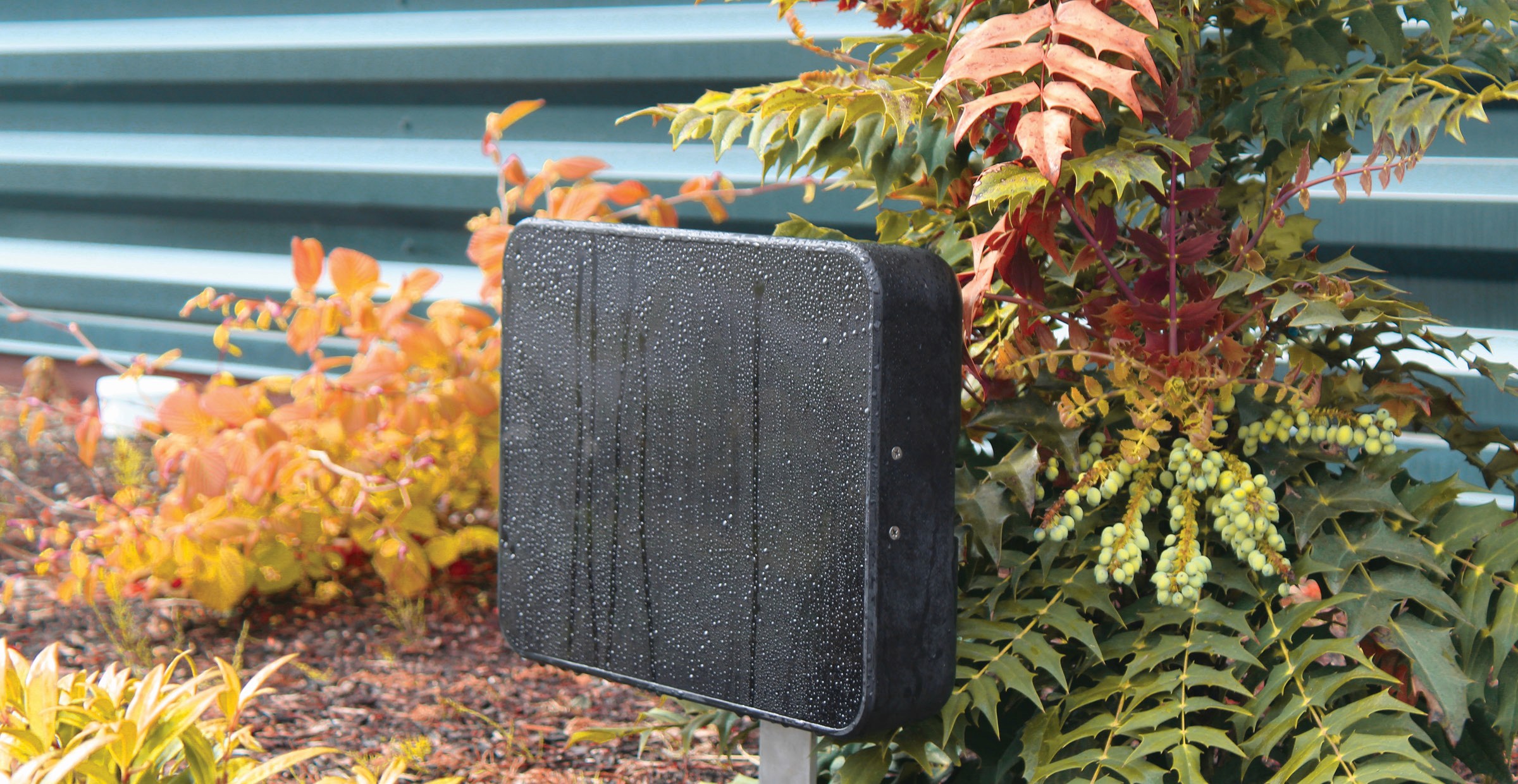

Black, wet, rectangular post with plants.

STEALTH ACOUSTICS

Stingray 83

Environmentally Durable Sound

Audio

Get Price

Full Range, 8″ 3-Way High Performance Speaker

The StingRay83 is Stealth Acoustics’ highest-performing outdoor full-range speaker featuring deep bass and sparkling highs combined with ultra-wide dispersion characteristics.

StingRay83 speakers feature an advanced driver set that incorporates an acoustically coupled, high-power, 8″ cone woofer with directly-coupled high and mid-frequency drivers for frequency extension ranging from 40Hz to 20kHz.

The StingRay83 contains two independent protection circuits (low and high-frequency sections) that automatically reset upon reduction of excessive amplifier power.

Invisible Impervious Speakers

StingRay speakers are known for raising the bar in outdoor audio durability and sound quality, and deliver smooth mid and high-frequency response with a solid, rich bass extension and are ideal for luxury residential, commercial, and marine applications. StingRay speakers combine direct coupled motor technology with an acoustic lever technology driven by a traditional woofer to energize the entire FidelityGlass™ active surface of the speaker panel resulting in crisp highs and impactful bass.

The sleek design and versatile mounting options mean the speakers won’t be an eyesore. To further enhance the aesthetic, Stealth offers custom finishing options so your speakers can Blend In! or Stand Out!

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specifications

	StingRay 6	StingRay 8 & Soffit Kit	StingRay 83 & Soffit Kit	StingRay 430
Type	2-way Full Range	2-way Full Range	3-way Full Range	Subwoofer
Frequency Response	50Hz to 18kHz	45hz to 18khz	40hz to 20khz	20Hz to 160Hz
Power Capacity	120 watts RMS	160 watts RMS	160 watts RMS	400 watts RMS
Recommended Power	60 watts (Min)	80 watts (Min)	80 watts (Min)	100 watts (Min)
Protection	2 independent self-resetting devices (LF and HF)	2 independent self-resetting devices (LF and HF)	3 independent self-resetting devices (LF, MF, and HF)	4 independent self-resetting devices (LF and HF each channel)
Sensitivity	83 dB	83 dB	83 dB	86 dB
System Impedance	8Ω nominal	8Ω nominal	8Ω nominal	8Ω nominal
Polar Dispersion	170 degrees horizontal & vertical	170 degrees horizontal & vertical	170 degrees horizontal & vertical	360 degrees horizontal & vertical
HF Driver	One 1-1/8” (30 mm) neodymium motor	One 1-1/8” (30 mm) neodymium motor	One 1” (25 mm) neodymium motor
MF Driver			One 1-1/8” (30 mm) neodymium motor
LF Driver	One 1″ (25 mm) voice coil, 6.5″ (165 mm) woofer Ceramic 15 oz. (425 gr) magnet	One 1-1/2″ (38 mm) voice coil, 8″ (203 mm) woofer Ceramic 20 oz. (567 gr) magnet	One 1-1/2″ (38 mm) voice coil, 8″ (203 mm) woofer Ceramic 20 oz. (567 gr) magnet	Eight 1-1/2″ (38 mm) voice coil, 8″ (203 mm) woofer Ceramic 20 oz. (567 gr) magnet
Crossover	Passive 2-way	Passive 2-way	Passive 3-way	Requires amplifier with low pass filter. 50Hz with 18 dB slope recommended

	StingRay 6	StingRay 8	StingRay 83	StingRay 430
Width	14-7/8” (378 mm)	20-7/8” (530 mm)	20-7/8” (530 mm)	17-1/4” (438 mm)
Height	10-7/8” (276 mm)	14-3/4” (374 mm)	14-3/4” (374 mm)	31” (787 mm)
Depth	3-13/16” (97 mm)	3-7/8” (98 mm)	3-7/8” (98 mm)	17-1/4” (438 mm)
Weight	12 lbs. (6 kg) – each	15 lbs. (7 kg) each	15 lbs. (7 kg) each	76 lbs. (35 kg) each
