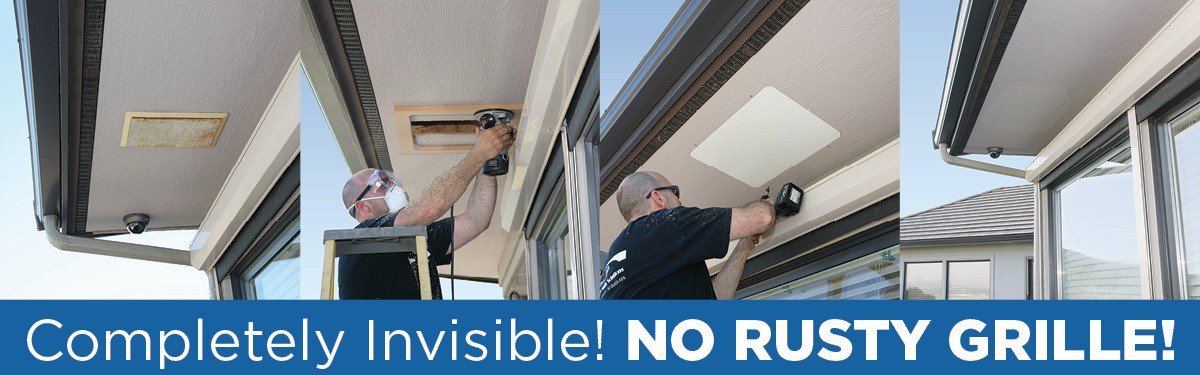

Men installing ceiling vents, text "Completely Invisible! NO RUSTY GRILLE!"
Modern white houses with balconies and glass railings
StingRay Environmentally Durable Sound logo
Modern white houses with balconies and glass railings
Men installing ceiling vents, text "Completely Invisible! NO RUSTY GRILLE!"
Modern house with glass walls and lush landscaping

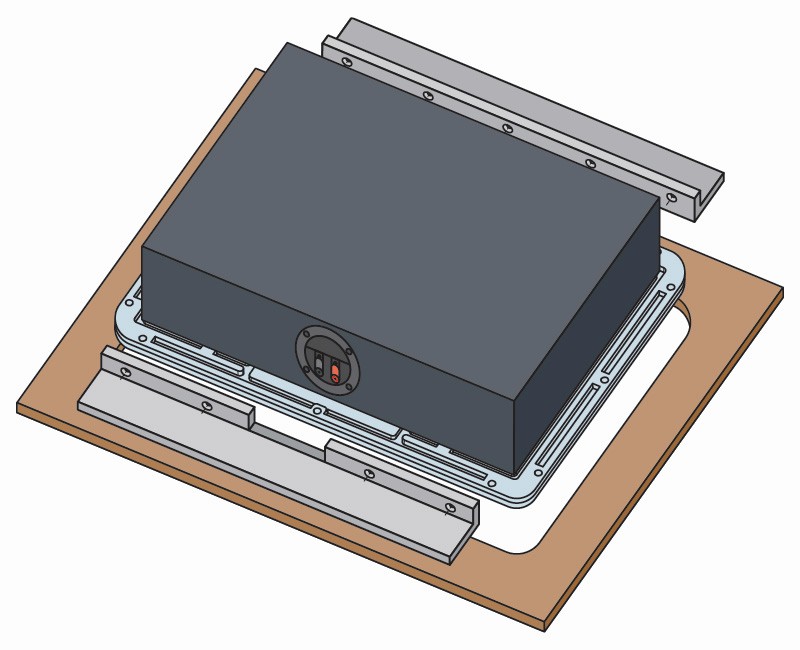

Subwoofer assembly in frame with slide rails

Stingray Soffit Speaker Kit

Environmentally Durable Sound

Audio

Stingray Soffit Speaker Kit

The Stingray Soffit Speaker Kit lets installers swap ugly conventional speakers for the high-performance Stingray 8 or Stingray 83 in a clean, flush-mounted soffit application. Each kit ships with an integrated back box, dedicated mounting hardware and a router template so the cutout is precise the first time, producing a permanent fixture that survives the elements without compromising aesthetics.

  • Choice of Stingray 8 (2-way, 45 Hz - 18 kHz) or Stingray 83 (3-way, 40 Hz - 20 kHz) drivers

  • 160 watts RMS, 83 dB sensitivity, 8 ohm nominal impedance

  • 170 degrees horizontal and vertical dispersion

  • FidelityGlass front face accepts paint or vinyl wrap to match the soffit

  • IP-68 rated for rain, snow, sleet, hail, sun and dust

Stealth's direct-coupled motor and acoustic-lever technology energize the FidelityGlass radiating surface for crisp highs and impactful bass once installed flush under any eave or overhang.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

StingRay 8-SK

StingRay 83-SK

Type

2-way Full Range

3-way Full Range

Frequency Response

45Hz to 18kHz

40Hz to 20kHz

Power Capacity

160 watts RMS

160 watts RMS

Recommended Power

80 watts (Min)

80 watts (Min)

Sensitivity

83 dB

83 dB

System Impedance

8Ω nominal

8Ω nominal

Polar Dispersion

170° horizontal & vertical

170° horizontal & vertical

Width

20-7/8" (530 mm)

17-1/4" (438 mm)

Height

14-3/4" (374 mm)

14-3/4" (374 mm)

Depth

3-7/8" (98 mm)

3-7/8" (98 mm)

Weight

15 lbs. (7 kg) each

15 lbs. (7 kg) each
