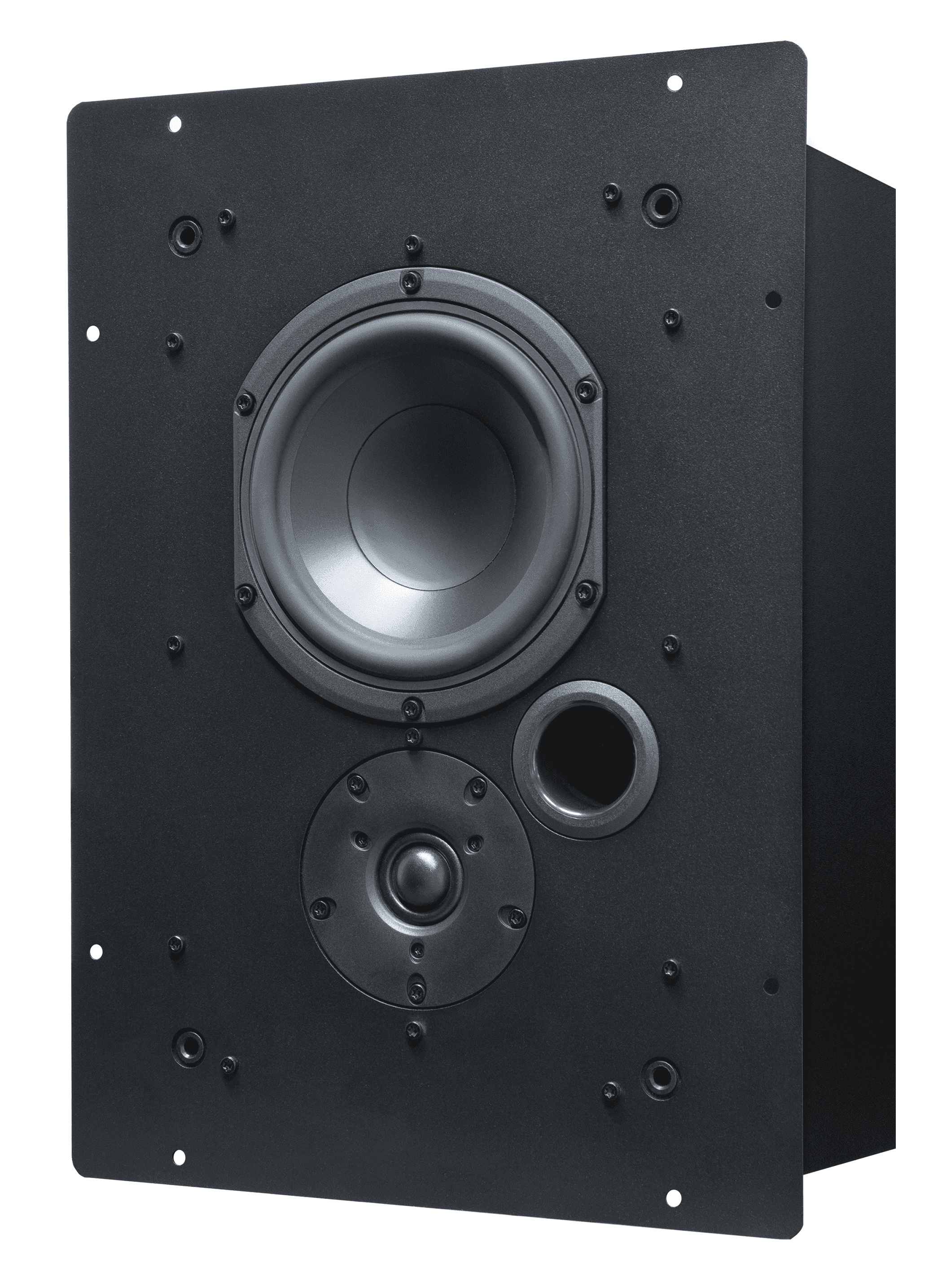

Black speaker with woofer, tweeter, and port

KRIX

Phonix In-Wall

Compact in-wall surround for 5.1, 7.1 and immersive cinema

Cinema

Audio

Get Price

Surround effects you feel, not see.

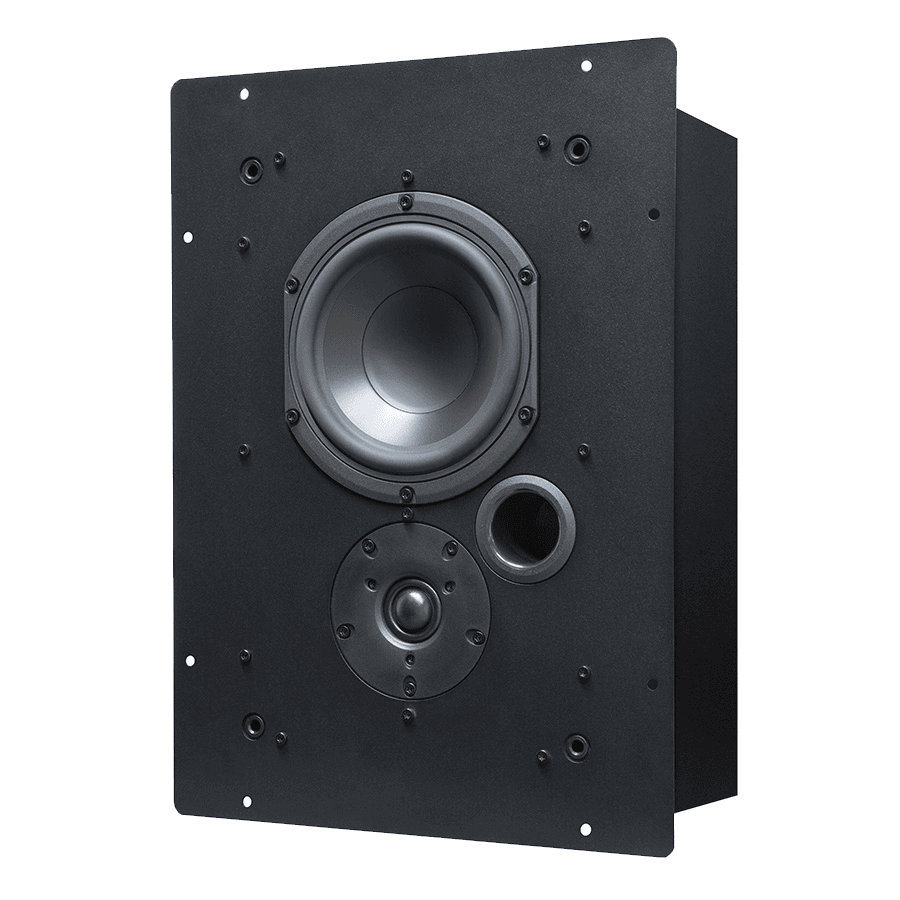

The Phonix In-Wall is designed to put you inside the action as a side, rear or ceiling effect speaker in 5.1, 7.1 and Dolby Atmos systems. It conceals neatly into studwork or cabinetry with a 1.6mm faceplate and optional black cloth grille.

165mm laminated polypropylene bass driver with 33mm voice coil for low distortion at SPL
26mm ferro-fluid-cooled doped fabric dome tweeter for smooth, non-fatiguing highs
45Hz low-frequency extension and 50-150W RMS handling for demanding soundtracks

Finishes range from Cinema Black through Studio colours and wood veneers, so the Phonix In-Wall blends seamlessly into any dedicated cinema build.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Frequency range	45Hz-20kHz (-10dB)
Power handling	50-150W RMS
Sensitivity	88dB @ 2.83V / 1m
Impedance	8 Ohms
Configuration	2-way, bass reflex, front vented
LF driver	165mm laminated polypropylene, 33mm voice coil
HF driver	26mm doped fabric dome, ferro-fluid cooled
Crossover	1.8kHz
Cut-out	393mm H x 265mm W
Cabinet	388mm H x 260mm W x 120mm D
Weight	7kg each
