Speaker

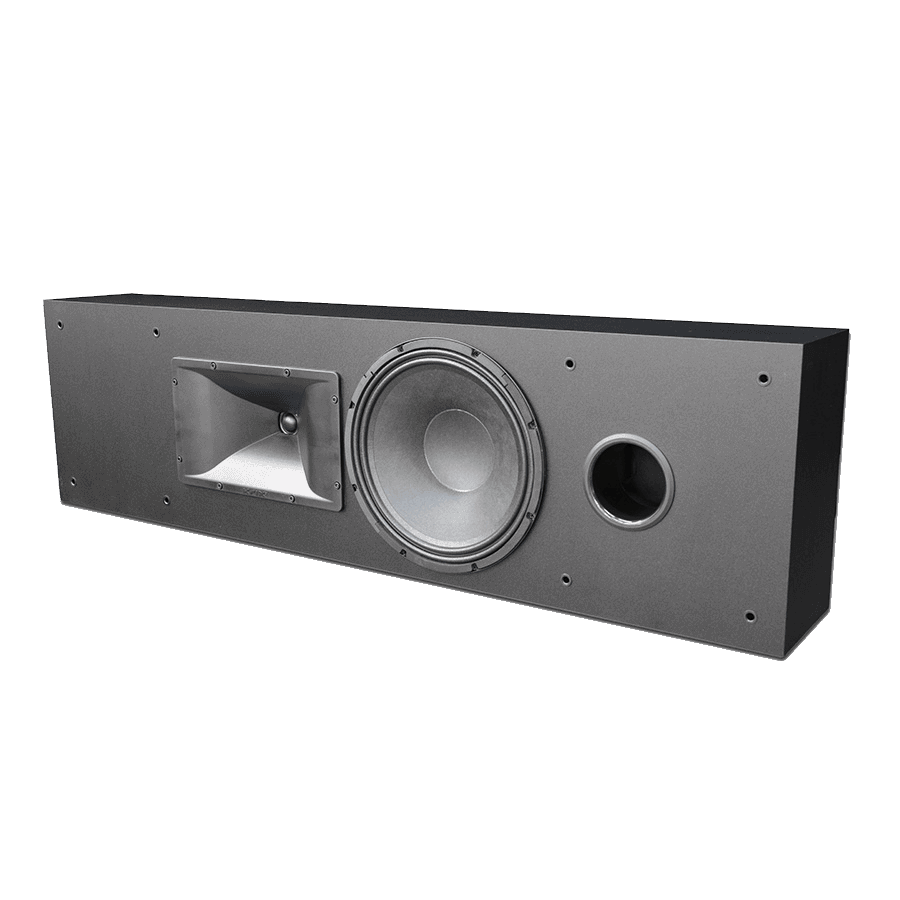

Black speaker with a horn tweeter, woofer, and port.

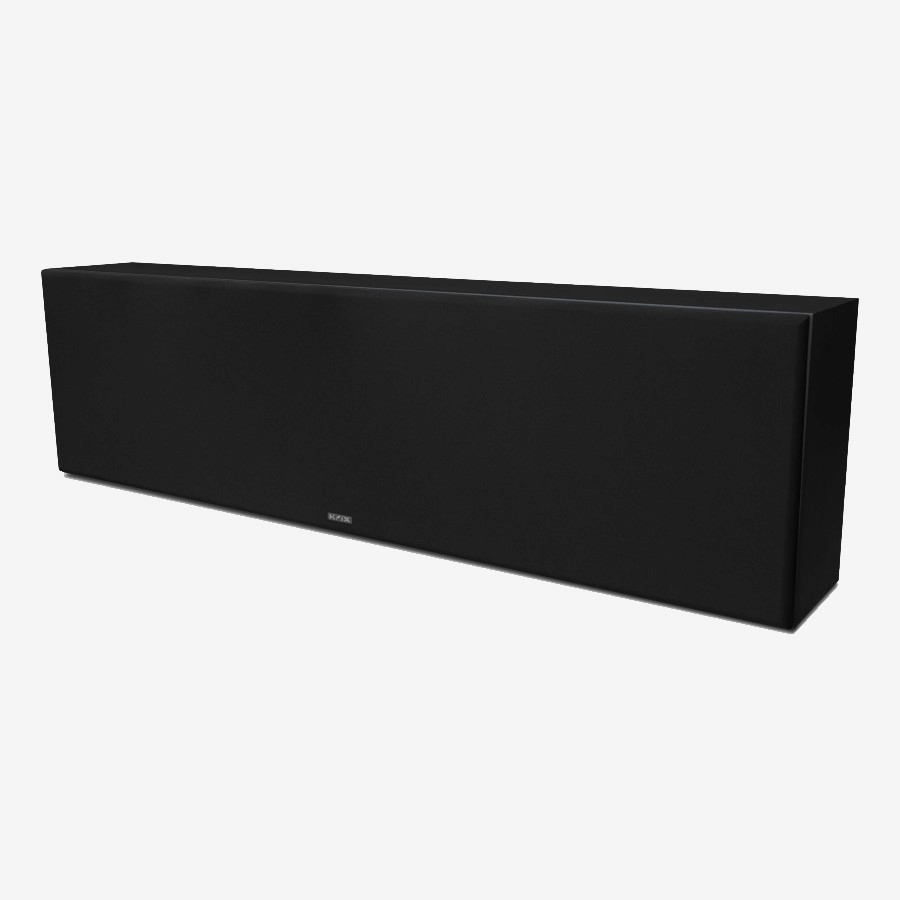

Black soundbar with logo detail
Black soundbar with logo detail

MEGAPHONIX CENTRE

ON-WALL SPEAKER

Audio

Description

Mounted below your screen, the Megaphonix Centre delivers high quality dialogue and effects for your ultimate movie experience.

The Megaphonix Centre speaker is designed specifically for use in dedicated home cinemas, using high power handling and high sensitivity drivers. Ideal for those with non-acoustically transparent screens, this slimline speaker can be mounted inconspicuously beneath the screen or inside custom joinery.

The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband.  The paper cone and surround of the bass driver have been developed to provide the smoothest possible response.

The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire bandwidth. The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.

The Megaphonix Centre enclosure is braced and critically damped to improve bass extension. It also comes with a black material grille and rear key hook mounts for easy installation.

For those looking for space saving solutions, the Megaphonix Centre is the on wall member of a five-speaker family, allowing you to combine it with main or surround speakers for a connected, clear and smooth sound experience.

For the ultimate cinema experience at home, play it through Krix.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Frequency Range

40Hz-20kHz in-room response

Power Handling

50-250W RMS recommended

Sensitivity

95dB @ 2.83V, 1 metre

Impedance

8 Ohms

Configuration

2-way

Enclosure

Bass reflex, front vented

Low Frequency Driver

255mm paper cone, 50mm voice coil, ventilated magnet, copper shorting ring

High Frequency Driver

26mm doped fabric dome, ferro fluid cooled, 90x40 waveguide

Crossover Point

1.8kHz

Input Terminals

Nickel-plated spring, accepts up to 10AWG cable

Dimensions

285mm H x 1035mm W x 164mm D

Weight

15kg
