Subwoofer

Black subwoofer with dual bass ports and KAIX logo.

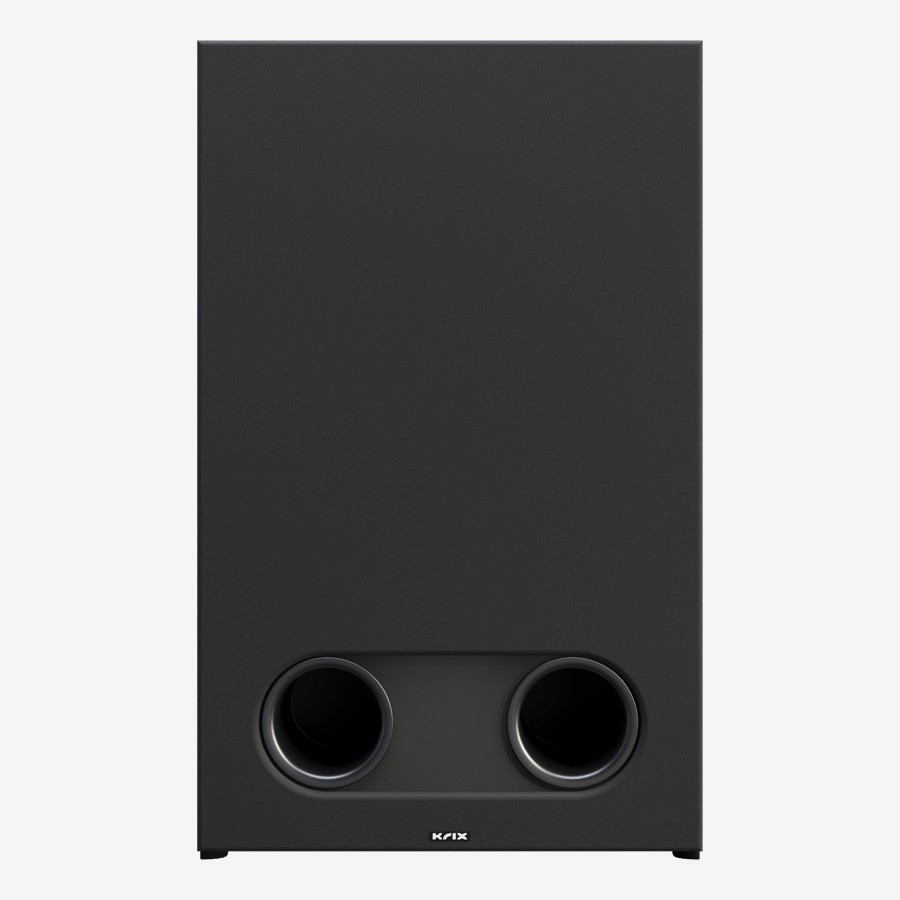

Black subwoofer with dual circular vents
Black subwoofer with dual circular vents

CYCLONIX 18

SUBWOOFER

Audio

Description

Hear every on-screen rumble or explosion with the Cyclonix 18, as it recreates the lowest possible audible frequencies for the ultimate cinema experience at home.

For those who prefer a subwoofer with no built-in amplifier, the Cyclonix 18 provides a passive subwoofer experience, using a high excursion bass driver mounted in a high quality MDF enclosure. The proprietary Krix ‘X’ brace system is used to eliminate panel resonances.

The giant 455mm bass driver features a 100mm voice coil, powerful vented magnetic circuit and double spider assembly. The optimum cooling system provides fast heat exchange and reduced thermal power compression.

The dual front-vented enclosure is tuned to achieve maximum output, resulting in an incredibly efficient subwoofer for high drive level applications, while the unit’s proprietary Krix rubber feet provide improved acoustic isolation on hard and soft floor surfaces.

A separate power amplifier is required for this subwoofer and can be connected to the LFE output of any AV processor or receiver.

For the ultimate cinema experience at home, play it through Krix.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Frequency Range

25Hz-200Hz in-room response

Amplifier Power

200-1400W RMS recommended

High Pass Filter

20Hz, 24dB/Octave Butterworth

Limiter

1000W (8 Ohms)

Inputs

High current spring terminals (5mm hole, up to 10AWG)

Enclosure

Bass reflex, front vented

Impedance

8 Ohms

Driver

Single 455mm (18") paper cone

Voice Coil

100mm (4") edge-wound copper

Sensitivity

100dB SPL (2.83V/1m)

Dimensions

1215mm H x 750mm W x 310mm D

Weight

64kg
