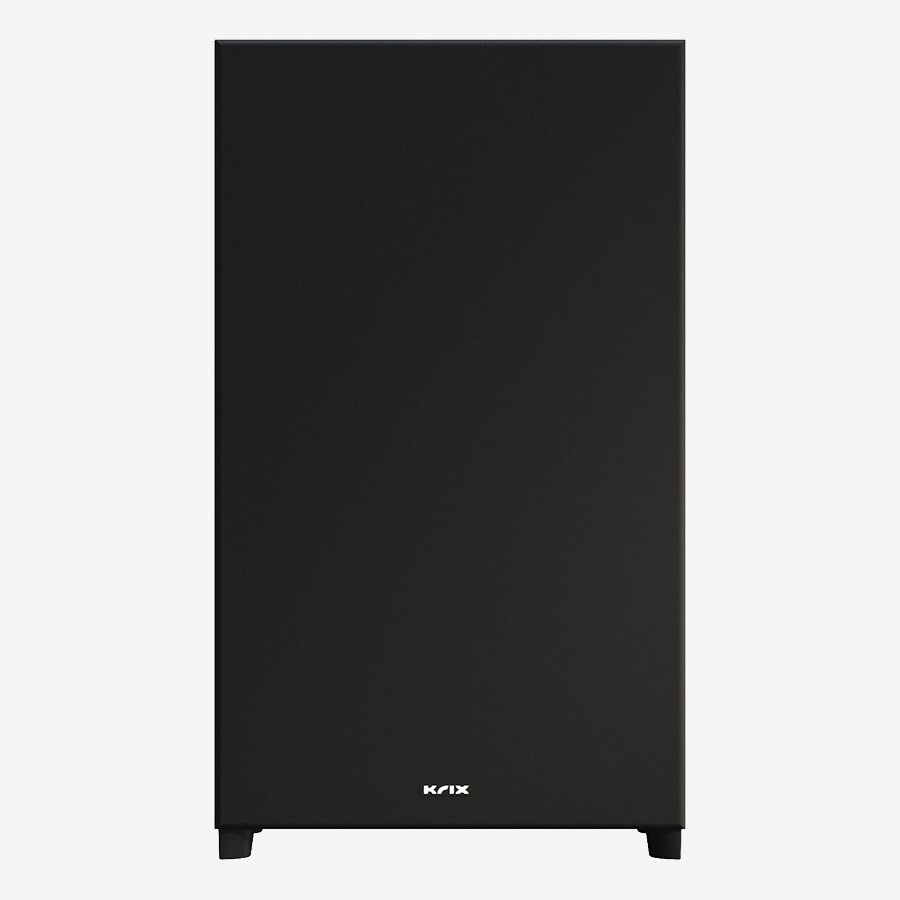

KRIX speaker cabinet
KRIX speaker cabinet

CYCLONIX 12

SUBWOOFER

Audio

Description

This low-profile, passive subwoofer has been designed to deliver outstanding low frequency performance as a supporting subwoofer for an MX-10, or as a standalone subwoofer in a Series SX system.

The Cyclonix range of subwoofers are designed for edge-of-your-seat bass performance in dedicated home cinema rooms.

Their shallow depth allows them to be placed inconspicuously against a side or back wall as supporting subwoofers to a Series MX system. They can also be used as the main subwoofers in a dedicated home cinema system – either behind an acoustically transparent screen or elsewhere in the room.

The Cyclonix 12 has taken its design cues from the subwoofer modules in the MX-10 system, foregoing the acoustic absorbent material on the front baffle and instead offering an optional black cloth grille.

The 305mm bass driver features a 50mm voice coil with ventilated magnet system. The dual down-firing vents are tuned to achieve maximum output, while the proprietary Krix rubber feet provide improved acoustic isolation on hard and soft floor surfaces.

A separate power amplifier is required for this subwoofer and can be connected to the LFE output of any AV processor or receiver.

For the ultimate cinema experience at home, play it through Krix.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Frequency Range

25Hz-200Hz in-room response

Amplifier Power

200-500W RMS recommended

High Pass Filter

30Hz, 24dB/Octave Butterworth

Limiter

500W (4 Ohms)

Inputs

High current spring terminals (5mm hole, up to 10AWG)

Enclosure

Bass reflex, dual down-firing vents

Impedance

4 Ohms

Driver

305mm (12") paper cone

Voice Coil

50mm long throw

Sensitivity

92dB SPL (2.83V/1m)

Dimensions

940mm H x 540mm W x 190mm D (210mm with grille)

Weight

26kg
