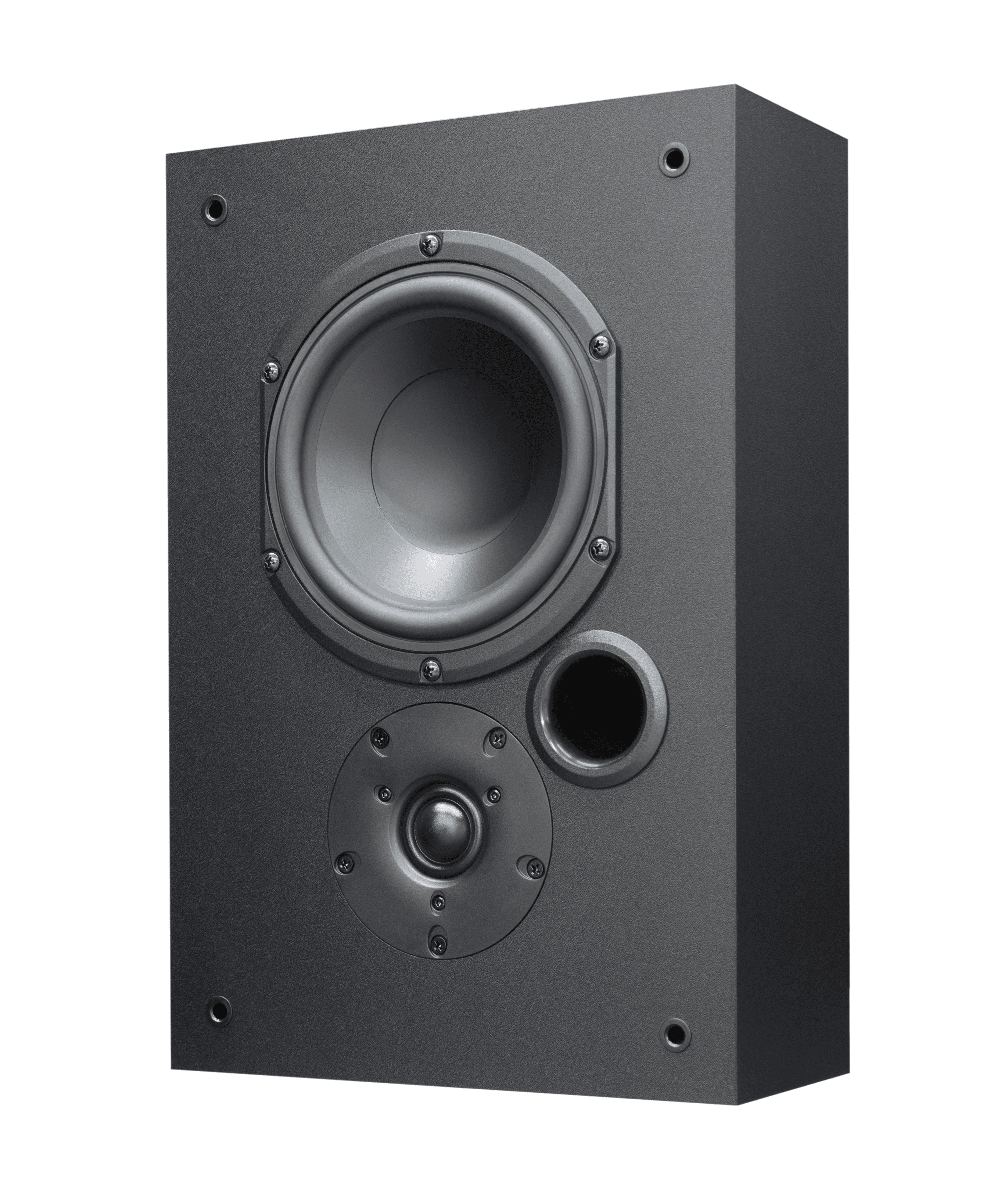

Black speaker with tweeter and port.
Black speaker with tweeter and port.

KRIX

/

Phonix Flat

Phonix Flat

Slim-profile on-wall surround for 5.1, 7.1 and Atmos cinemas

Cinema

Audio

Just 132mm deep, all the surround you need.

The Phonix Flat is a slim, flat-baffle home cinema surround speaker that puts you in the middle of the action. It works as a side, rear or ceiling effect speaker in 5.1, 7.1 and Dolby Atmos configurations and slips onto walls or ceilings with a low-profile bracket.

  • Only 132mm deep for unobtrusive installation

  • 165mm laminated polypropylene bass driver and 26mm doped fabric tweeter

  • 45Hz extension with 50-150W RMS handling for impactful soundtracks

Critically-damped cabinet and professional-grade crossover deliver smooth, non-fatiguing performance through long viewing sessions.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

Frequency range

45Hz-20kHz (in-room)

Power handling

50-150W RMS

Sensitivity

88dB @ 2.83V / 1m

Impedance

8 Ohms

Configuration

2-way, bass reflex

LF driver

165mm laminated polypropylene

HF driver

26mm doped fabric dome

Crossover

1.8kHz

Dimensions

388mm H x 260mm W x 132mm D

Weight

6kg each
