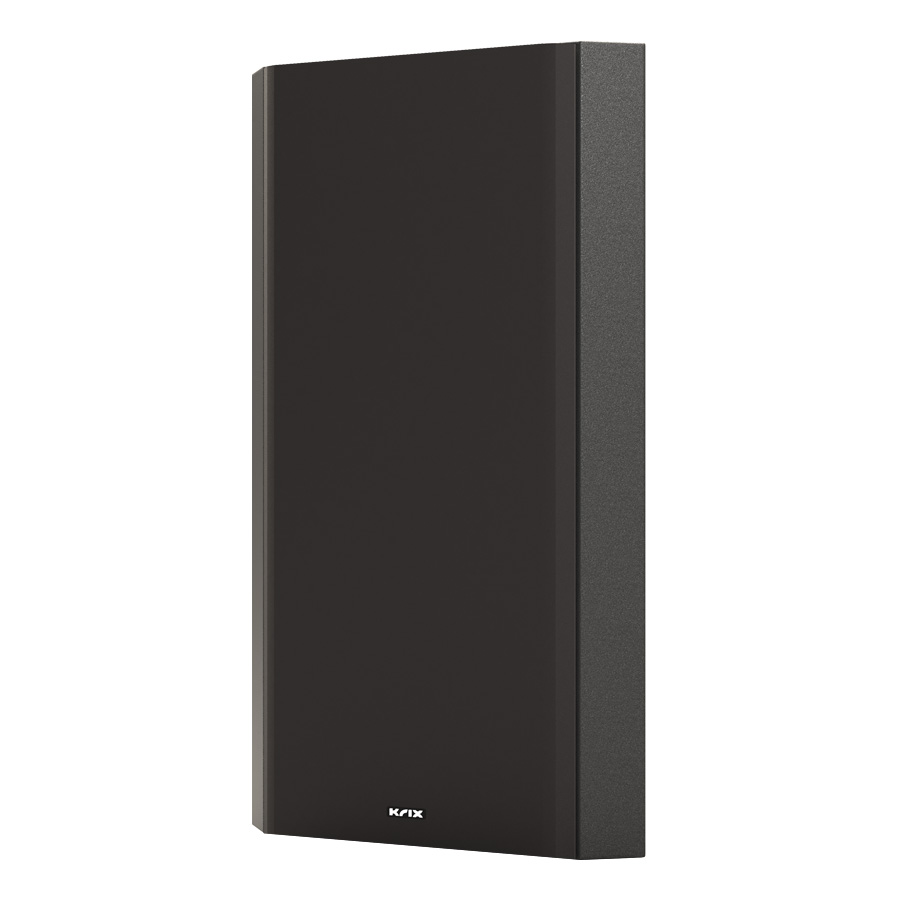

KRIFIX black speaker on white background

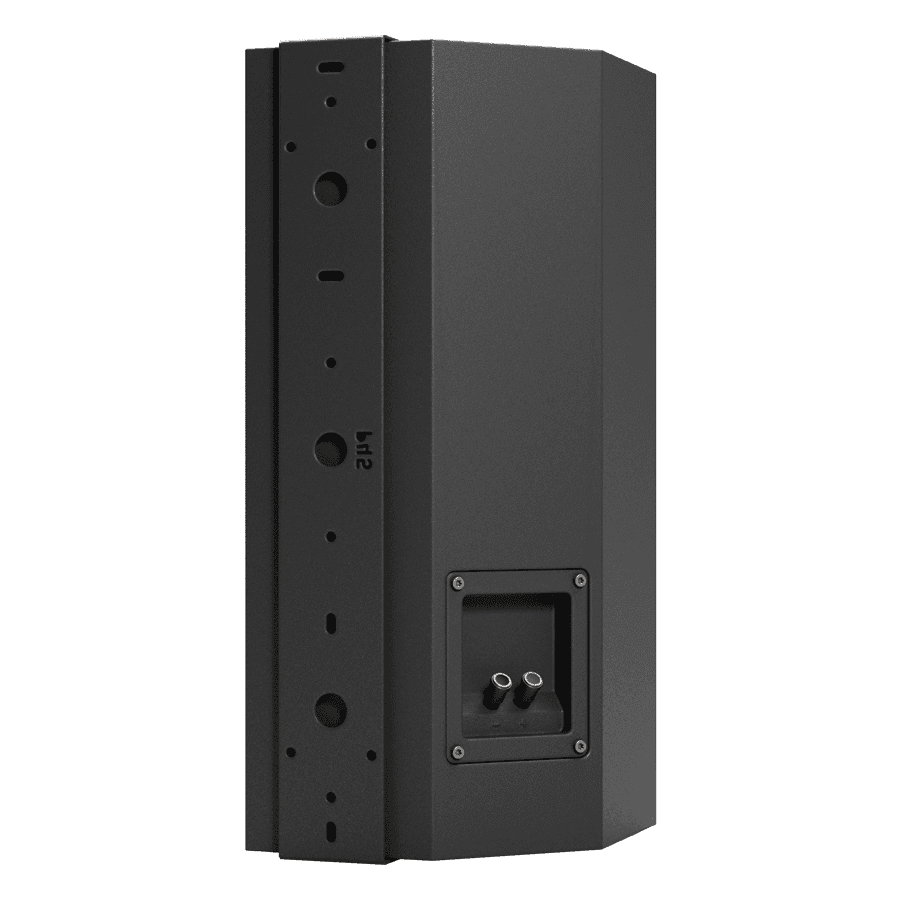

Black speaker with mounting holes and binding posts

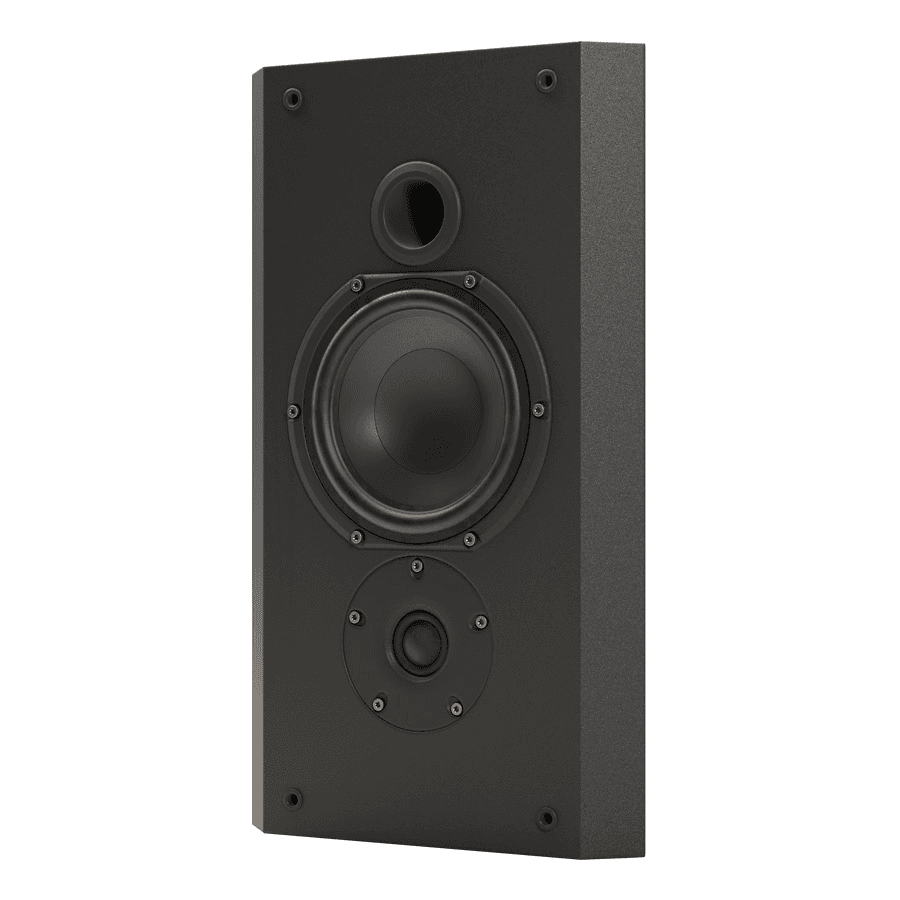

Black speaker with tweeter and woofer

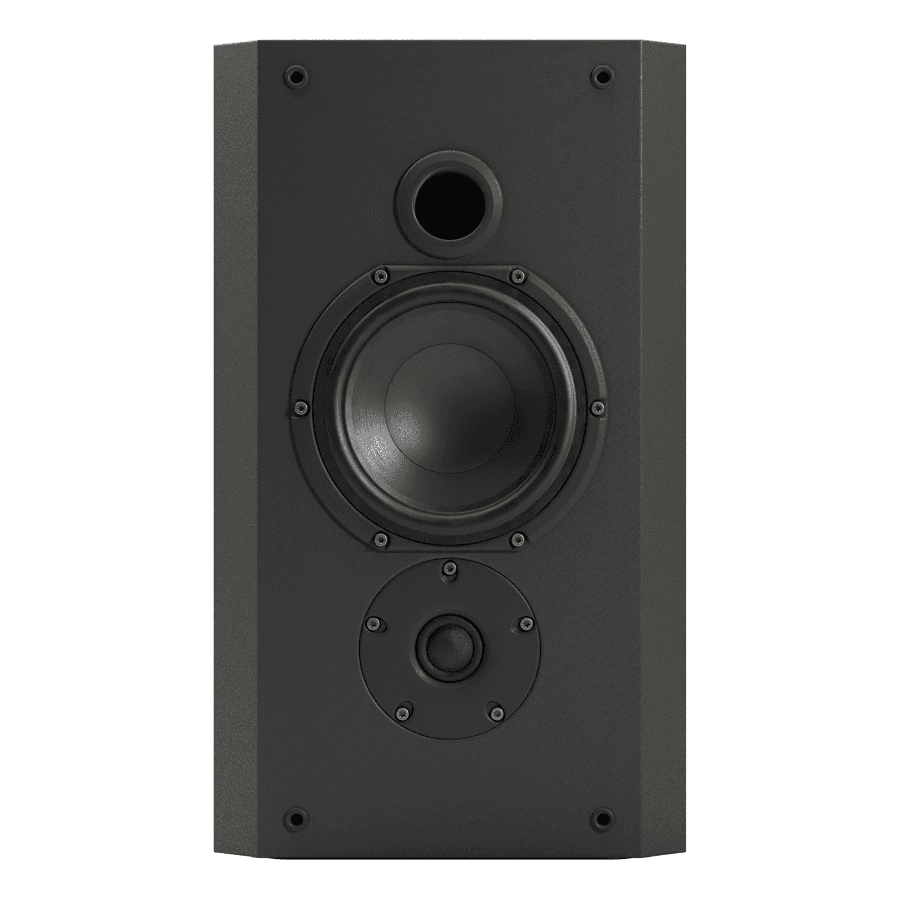

Black two-way speaker with woofer and tweeter
KRIFIX black speaker on white background
Black speaker with tweeter and woofer
Black speaker with mounting holes and binding posts
Black two-way speaker with woofer and tweeter

KRIX

/

Phonix 45

Phonix 45

On-wall cinema speaker with adjustable 45deg angled baffle

Cinema

Audio

Aim the sound, lose the EQ.

The Phonix 45 is a versatile on-wall and ceiling-mountable surround speaker designed for dedicated cinemas. Its adjustable angled baffle lets installers point output directly at the listening position, optimising high-frequency response without heavy equalisation.

  • Shallow 124mm depth fits walls, ceilings and corners

  • 50-150W RMS handling with 45Hz low-frequency extension

  • 165mm polypropylene bass driver and ferro-fluid-cooled 26mm doped fabric tweeter

Supplied with a fully adjustable bracket and black cloth grille, the Phonix 45 is Australian-made and at home in any immersive cinema layout.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

Frequency range

45Hz-20kHz (in-room)

Power handling

50-150W RMS

Sensitivity

88dB @ 2.83V / 1m

Impedance

8 Ohms

Configuration

2-way, bass reflex

LF driver

165mm polypropylene, 33mm voice coil

HF driver

26mm doped fabric dome, ferro-fluid cooled

Crossover

1.8kHz

Dimensions

470mm H x 276mm W x 124mm D

Weight

6kg each
