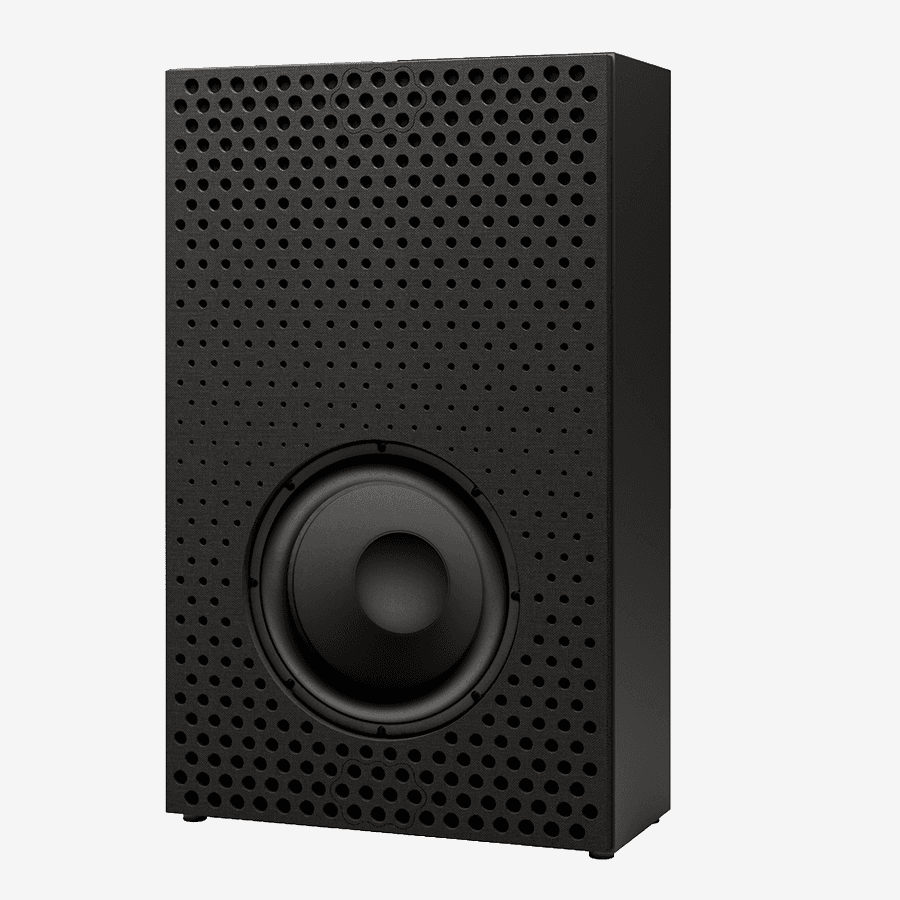

Black speaker with perforated grille and visible woofer.
Black speaker with a perforated front panel
Black speaker with a perforated front panel

KRIX

/

MXi-118

MXi-118

18-inch infra-bass module for MX-30 and MX-40 cinema systems

Cinema

Audio

Hear and feel the lowest octave.

The MXi-118 is a dedicated infra-bass module designed to integrate with existing MX-30 and MX-40 systems, taking low-frequency power and extension into true infrasonic territory for impact you can both hear and feel.

  • Single 460mm (18") treated paper cone with 100mm voice coil for high excursion

  • 10Hz-200Hz (with DSP), 15Hz at -3dB, 13Hz at -6dB

  • Reversible cabinet with dual terminals to suit any room layout

Module height and slim-line depth match the MX-30 and MX-40 LCR cabinets, so units can be deployed front, rear or distributed for tactile, even bass throughout the seating area.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

Frequency range

10Hz-200Hz (with DSP); 15Hz @ -3dB, 13Hz @ -6dB

Power handling

1500-3000W RMS

Sensitivity

100dB @ 2.83V / 1m (half space)

Impedance

4 Ohms

LF driver

460mm (18") treated paper cone, 100mm voice coil

Dimensions

1220mm H x 750mm W x 335mm D

Weight

55kg each
