MX-5

MODULAR SYSTEM

Audio

Description

For the movie lover with a small to medium size room, the MX-5 provides big sound in a small package, allowing versatility of installation without taking up valuable space. Boasting the Krix waveguide and large mid-bass driver, movie soundtracks will be delivered with the articulation and impact you’ve always wanted.

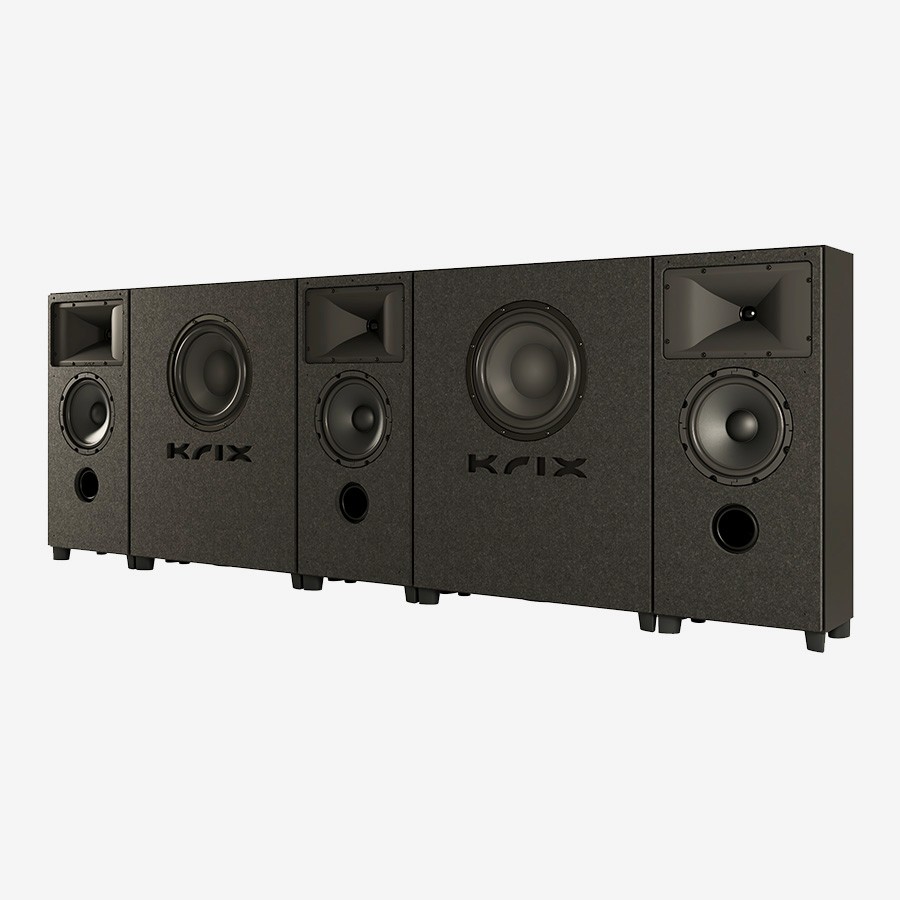

The MX-5 features five compact modules, allowing easy installation behind an acoustically transparent screen in a wall cavity, on a shelf or cabinetry, or below a projector screen. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.

The main speakers feature a 205mm mid-bass driver which has a 38mm voice coil wound on a high-powered aluminium former. The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide for optimum dispersion over the entire working bandwidth.

The subwoofer units feature 275mm (11”) drivers with 50mm edge-wound copper voice coil, dual spider assembly, and vented magnet assembly.

For the ultimate cinema experience at home, play it through Krix.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

System Type

5-module behind-screen modular system (3x LCR + 2x subwoofer)

LCR Frequency Range

40Hz-20kHz in-room response

LCR Power Handling

100-300W RMS recommended

LCR Sensitivity

92dB @ 2.83V, 1 metre

LCR Impedance

8 Ohms

LCR Configuration

2-way bass reflex, front vented

LCR Drivers

205mm paper cone with 38mm voice coil, 26mm doped fabric dome with 90x40 waveguide

LCR Dimensions

700mm H x 315mm W x 190mm D

LCR Weight

12kg each

Subwoofer Frequency Range

30Hz-200Hz in-room response

Subwoofer Power Handling

200-350W RMS recommended

Subwoofer Sensitivity

90dB @ 2.83V, 1 metre

Subwoofer Impedance

4 Ohms

Subwoofer Driver

275mm doped paper cone, 50mm edge-wound copper voice coil

Subwoofer Dimensions

700mm H x 540mm W x 190mm D

Subwoofer Weight

19kg each
