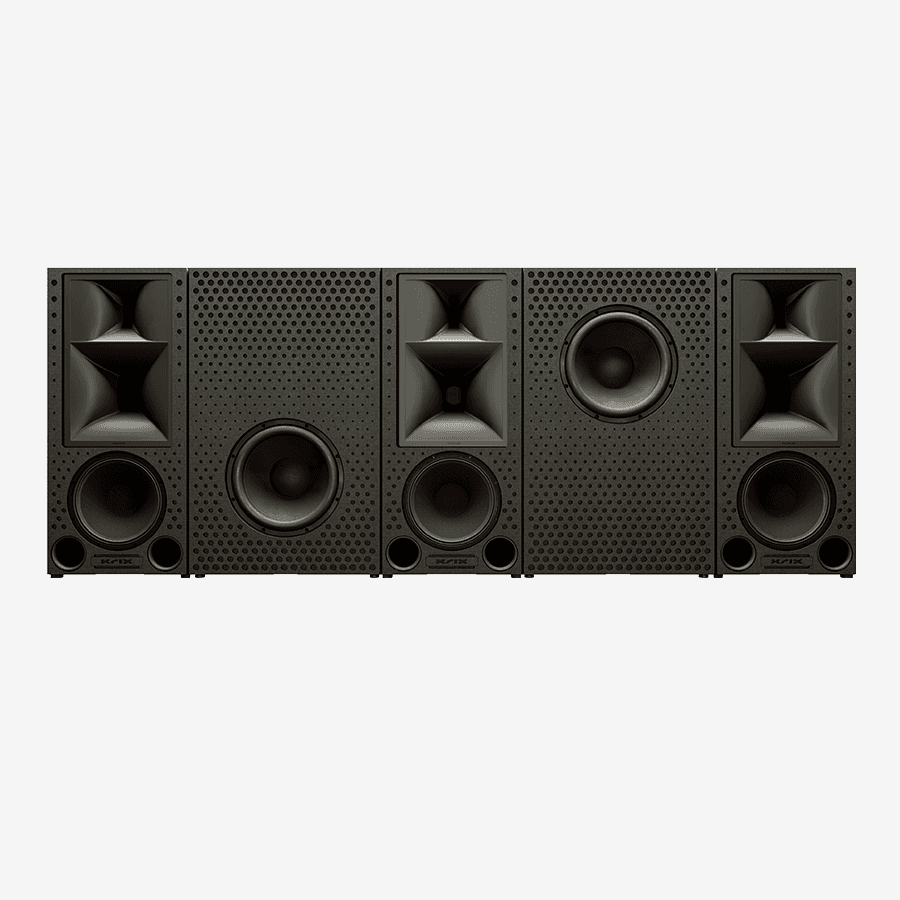

Five black speaker cabinets arranged in a row.
Five black speaker cabinets arranged in a row.

KRIX

/

MX-40i

MX-40i

Reference 3-way modular LCR with infra-bass for premium cinemas

Cinema

Audio

Reference cinema, evolved.

The MX-40i is the flagship modular system in Krix's dedicated cinema range, pairing the acclaimed MX-40 3-way bi-amped LCR modules with new infrasonic subwoofer modules for medium to large theatres. Engineered for acoustically transparent screens, it delivers astonishing dynamic range with precision across the whole seating area.

  • 3-way bi-amped LCR modules with patented 90 deg x 40 deg dual horn array

  • 18-inch DSP-controlled subwoofer modules extending to 13Hz (-6dB)

  • Five slim, matched modules for clean cavity installation

Best suited to rooms 5-14m deep with 135" (16:9) or larger screens, and DSP-amplified subwoofer channels.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

LCR frequency range

38Hz-16kHz (in-room)

LCR configuration

3-way bi-amp, 400Hz active crossover

LCR LF power handling

100-700W RMS

LCR HF power handling

100-400W RMS

LCR LF sensitivity

98dB @ 2.83V / 1m

LCR HF sensitivity

101dB @ 2.83V / 1m

LCR LF driver

380mm paper cone, 75mm voice coil

LCR mid/HF driver

152mm mid + 35mm compression on dual 90 deg x 40 deg horn

LCR dimensions

1220mm H x 550mm W x 335mm D

LCR weight

65kg each

Sub frequency range

10Hz-200Hz (with DSP)

Sub power handling

1500-3000W RMS

Sub LF driver

460mm (18") treated paper cone, 100mm voice coil, neodymium

Sub dimensions

1220mm H x 750mm W x 335mm D

Sub weight

55kg each

Recommended room depth

5-14m
