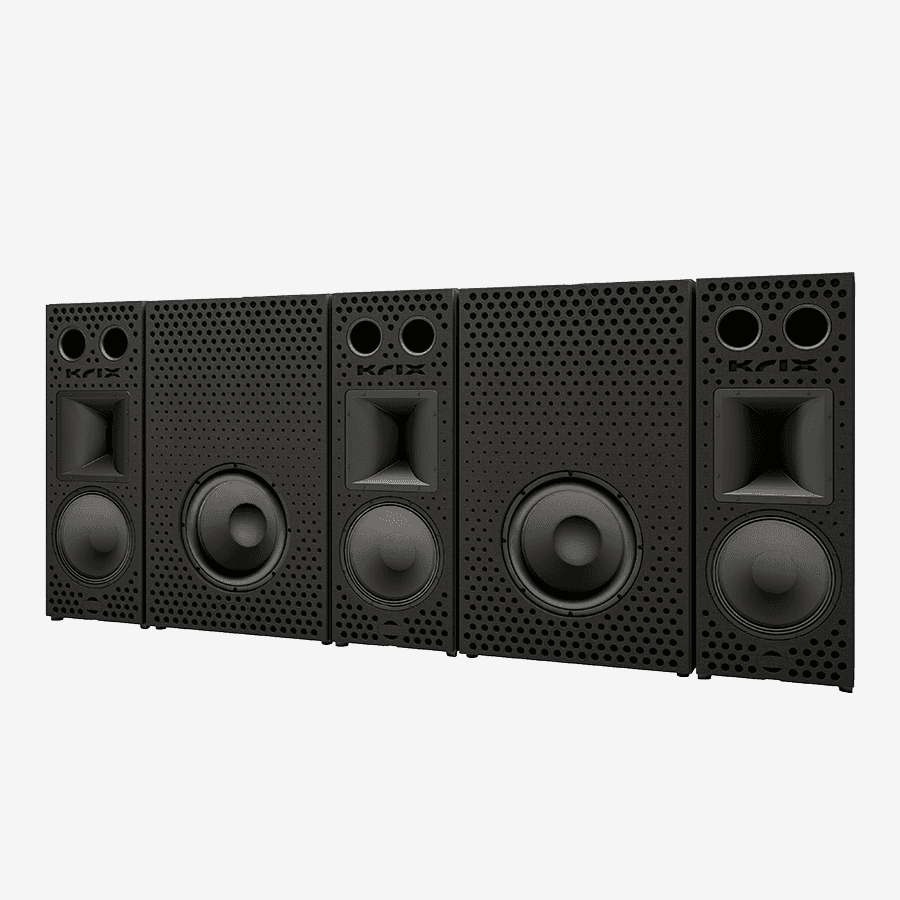

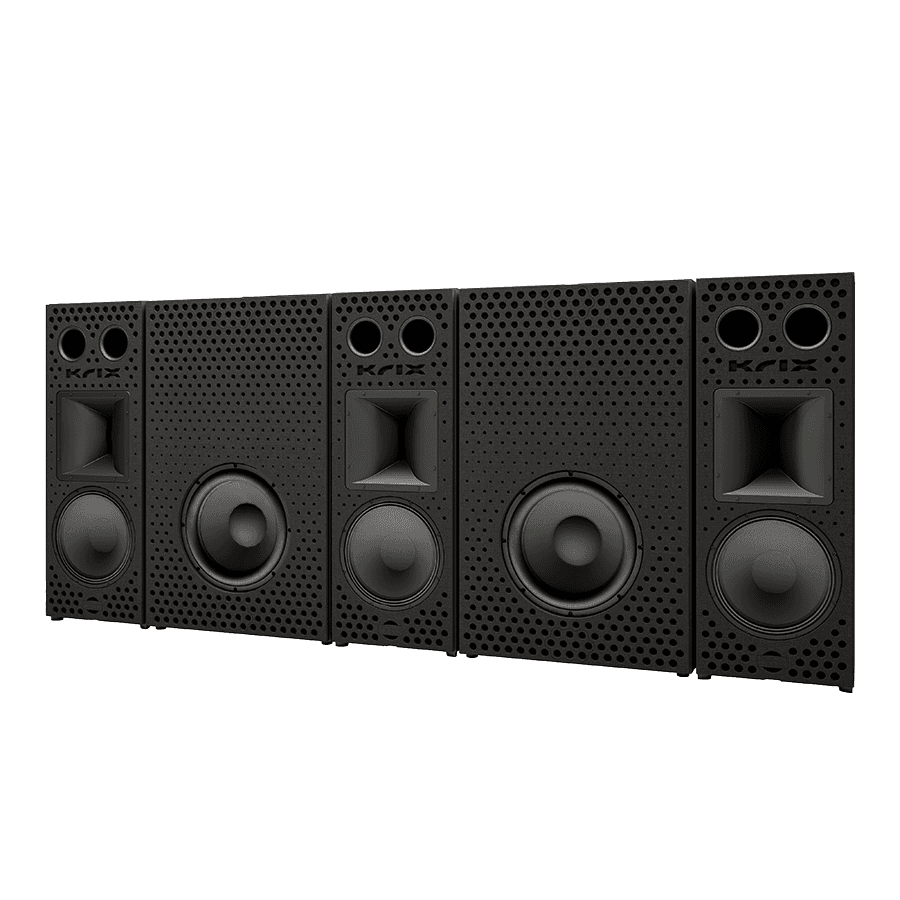

Five black Krix speakers in a row.
Row of black Krix speakers
Row of black Krix speakers

KRIX

/

MX-30i

MX-30i

Modular cinema LCR with infra-bass subwoofers for medium to large rooms

Cinema

Audio

Cinematic accuracy, right into the seat.

The MX-30i builds on Krix's award-winning MX-30 with new high-performance subwoofer modules that take low-frequency reproduction into true infrasonic territory. Designed for medium to large dedicated cinemas with acoustically transparent screens, it delivers movie soundtracks with supreme definition all the way through the picture.

  • 15-inch LCR modules with patented 90 deg x 40 deg horn, 98dB sensitivity and 100-700W RMS handling

  • 18-inch DSP-controlled subwoofer modules extending to 15Hz (-3dB) and 10Hz with DSP

  • Five matched, slim-line modules drop into a single cavity for clean installation

Recommended for rooms 5-14m deep with screens from 135" (16:9) or 130" (21:9).

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

LCR frequency range

38Hz-16kHz (in-room)

LCR power handling

100-700W RMS

LCR sensitivity

98dB @ 2.83V / 1m

LCR LF driver

380mm (15") paper cone, 75mm voice coil

LCR HF driver

35mm compression on 90 deg x 40 deg horn

LCR dimensions

1220mm H x 550mm W x 335mm D

LCR weight

48kg each

Sub frequency range

10Hz-200Hz (with DSP)

Sub power handling

1500-3000W RMS

Sub LF driver

460mm (18") treated paper cone, 100mm voice coil

Sub dimensions

1220mm H x 750mm W x 335mm D

Sub weight

55kg each

Recommended room depth

5-14m
