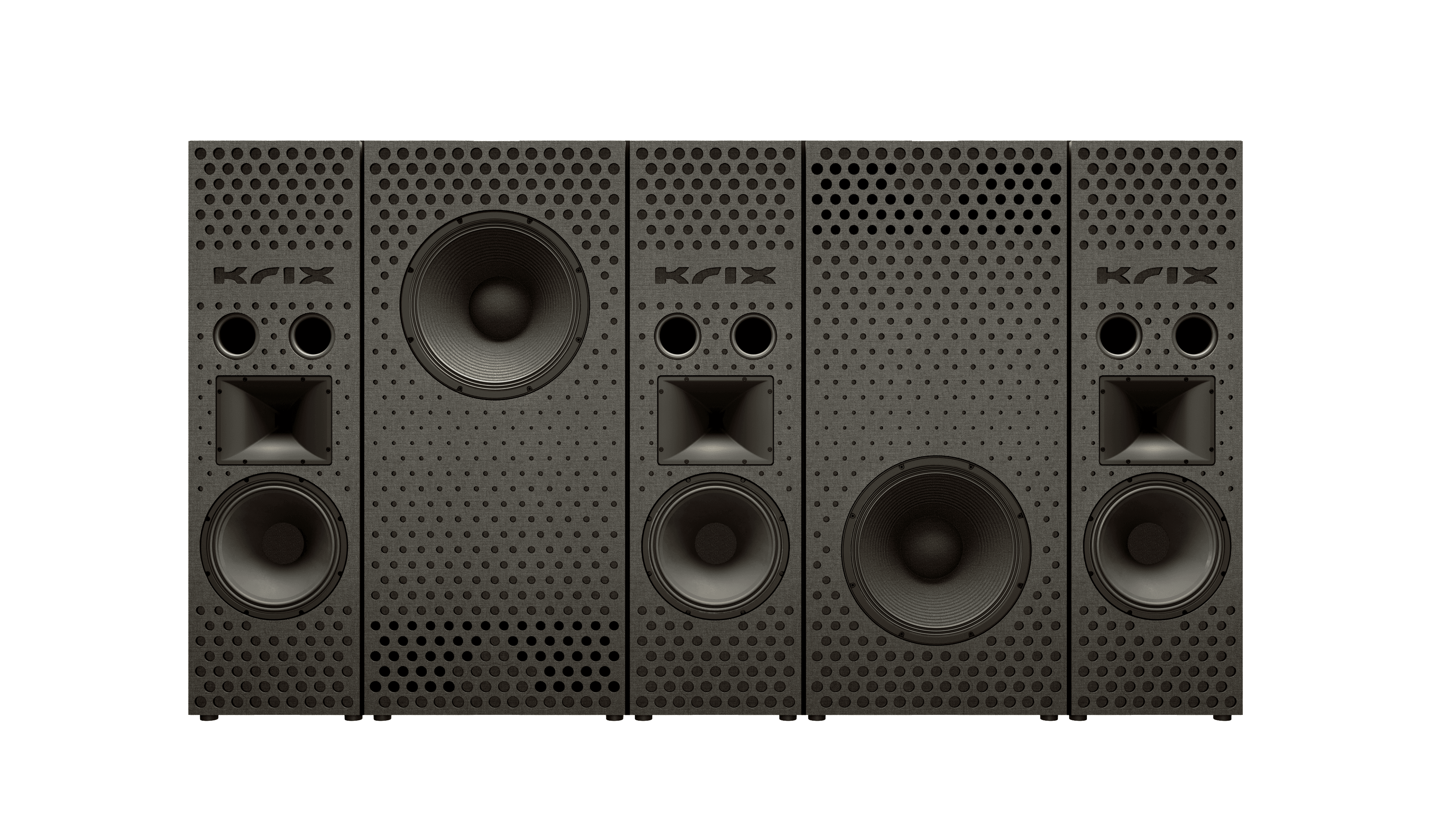

Krix speaker wall with multiple drivers.
Krix speaker wall with multiple drivers.

MX-20 Mk2

Modular cinema LCR system for compact dedicated theatres

Cinema

Audio

Modular cinema, refined for the mid-size theatre.

The MX-20 Mk2 brings even greater power, clarity and control to compact dedicated cinemas, with a new 12-inch mid-bass driver and a high-output compression driver behind Krix's patented constant-directivity horn. Five slim modules of matched height install behind acoustically transparent screens to give every seat the same dynamic, articulate presentation.

  • 2-way LCR modules with 95dB sensitivity and 100-700W RMS handling

  • 15-inch subwoofer modules with 96dB sensitivity and reversible cabinet orientation

  • Acoustic-absorbent front baffles reduce screen reflections and lift dialogue clarity

Designed for rooms 4-7 metres deep with 105" (16:9) or 130" (21:9) minimum screens.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

LCR frequency range

40Hz-20kHz (in-room)

LCR power handling

100-700W RMS

LCR sensitivity

95dB @ 2.83V / 1m

LCR LF driver

300mm (12") paper cone, 63.5mm voice coil

LCR HF driver

25mm throat compression, 35mm titanium diaphragm

LCR dimensions

1220mm H x 365mm W x 295mm D

LCR weight

31kg each

Subwoofer freq range

25Hz-200Hz

Subwoofer LF driver

380mm (15") paper cone, 100mm voice coil

Subwoofer dimensions

1220mm H x 550mm W x 295mm D

Subwoofer weight

40kg each

Recommended room depth

4-7m
