Specs
Specification | Value |
|---|---|

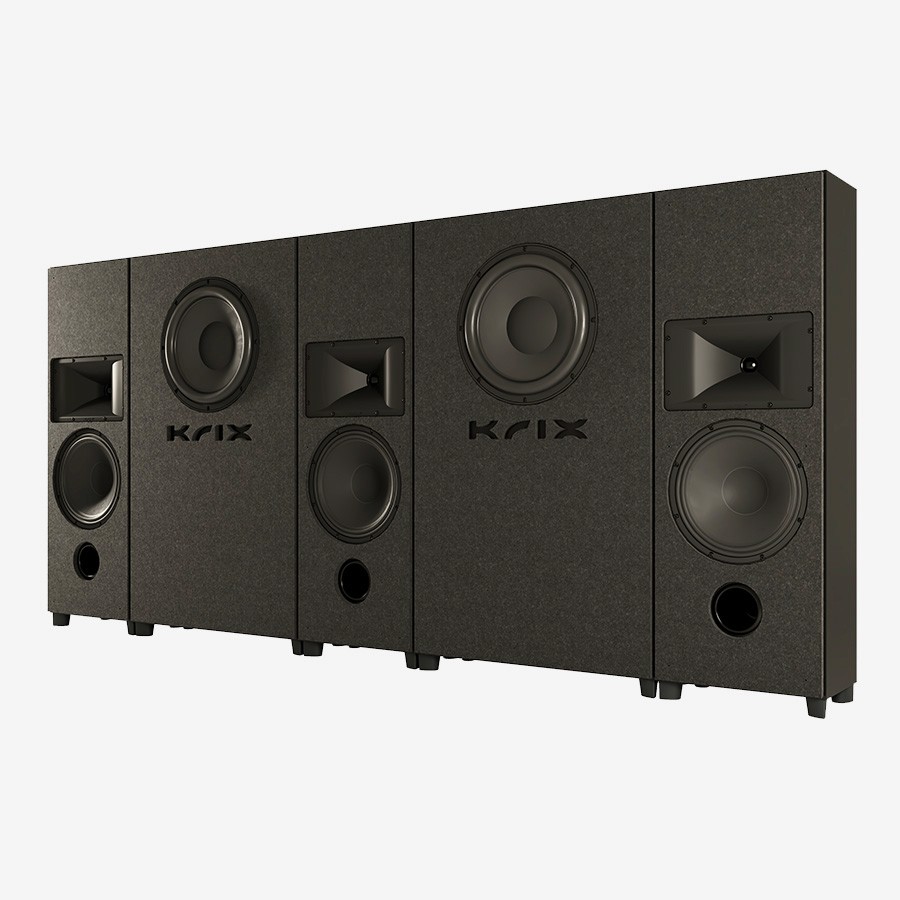

System Type | 5-module behind-screen modular system (3x LCR + 2x subwoofer) |
LCR Frequency Range | 40Hz-20kHz in-room response |
LCR Power Handling | 100-500W RMS recommended |
LCR Sensitivity | 97dB @ 2.83V, 1 metre |
LCR Impedance | 8 Ohms |
LCR Configuration | 2-way, bass reflex, front vented |
LCR Drivers | 255mm paper cone, 26mm doped fabric dome tweeter with waveguide |
LCR Dimensions | 940mm H x 315mm W x 205mm D |
LCR Weight | 15kg each |
Subwoofer Frequency Range | 25Hz-200Hz in-room response |
Subwoofer Power Handling | 200-500W RMS recommended |
Subwoofer Sensitivity | 92dB @ 2.83V, 1 metre |
Subwoofer Impedance | 4 Ohms |
Subwoofer Driver | 305mm paper cone, 50mm long throw voice coil |
Subwoofer Enclosure | Bass reflex, down-firing vent |
Subwoofer Dimensions | 940mm H x 540mm W x 205mm D |
Subwoofer Weight | 26kg each |
