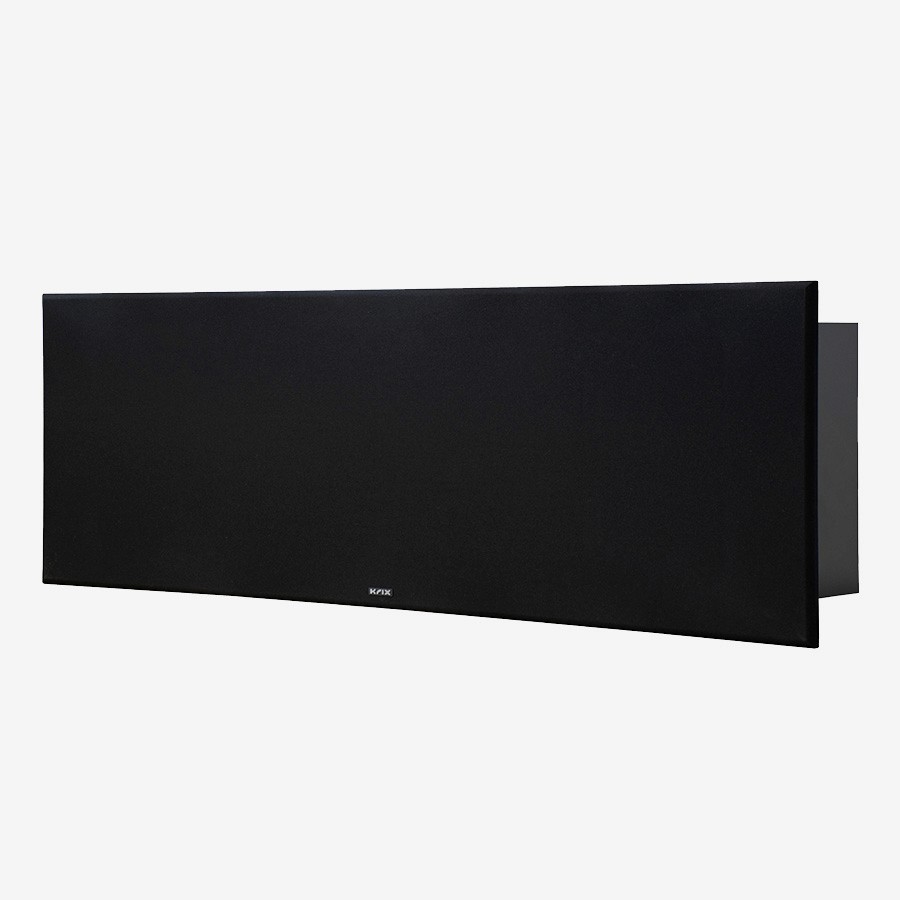

Black KAX speaker

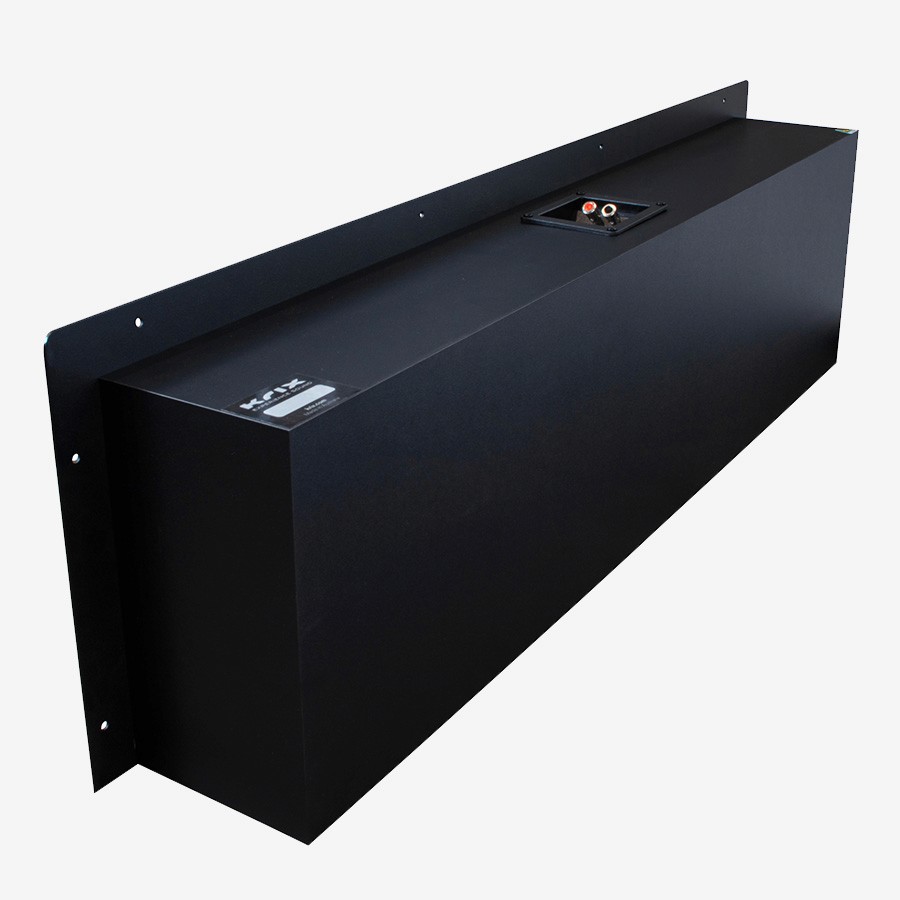

Black in-wall speaker enclosure
Black KAX speaker
Black in-wall speaker enclosure

MEGAPHONIX CENTRE IN-WALL

IN-WALL SPEAKER

Audio

Description

The Megaphonix In-Wall Centre is designed to be installed below televisions or non-acoustically transparent projector screens.

The Megaphonix In-Wall Centre is designed to be installed below televisions or non-acoustically transparent projector screens. Using high power handling and high sensitivity drivers, these speakers will deliver crystal clear dialogue and dynamic effects, for a real home cinema experience.

The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response. The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire working bandwidth.

The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.

Finished with a powder coated steel front baffle for easy installation, the Megaphonix In-Wall Centre is the perfect answer for a concealed, horizontal installation while maintaining exceptional performance.

For the ultimate cinema experience at home, play it through Krix.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Frequency Range

40Hz-20kHz in-room response

Power Handling

50-250W RMS recommended

Sensitivity

95dB @ 2.83V, 1 metre

Impedance

8 Ohms

Configuration

2-way

Enclosure

Bass reflex, front vented

Bass Driver

255mm paper cone, 50mm voice coil

Tweeter

26mm doped fabric dome, ferro fluid cooled

Crossover

1.8kHz

Terminals

Nickel-plated spring (up to 10AWG)

Cut-out Dimensions

295mm H x 1045mm W

Cabinet Dimensions

285mm H x 1035mm W x 150mm D

Weight

23kg each
