Subwoofer

Black smart home device with screen showing time and temp

Flat Panel Audio

LS212-BLK

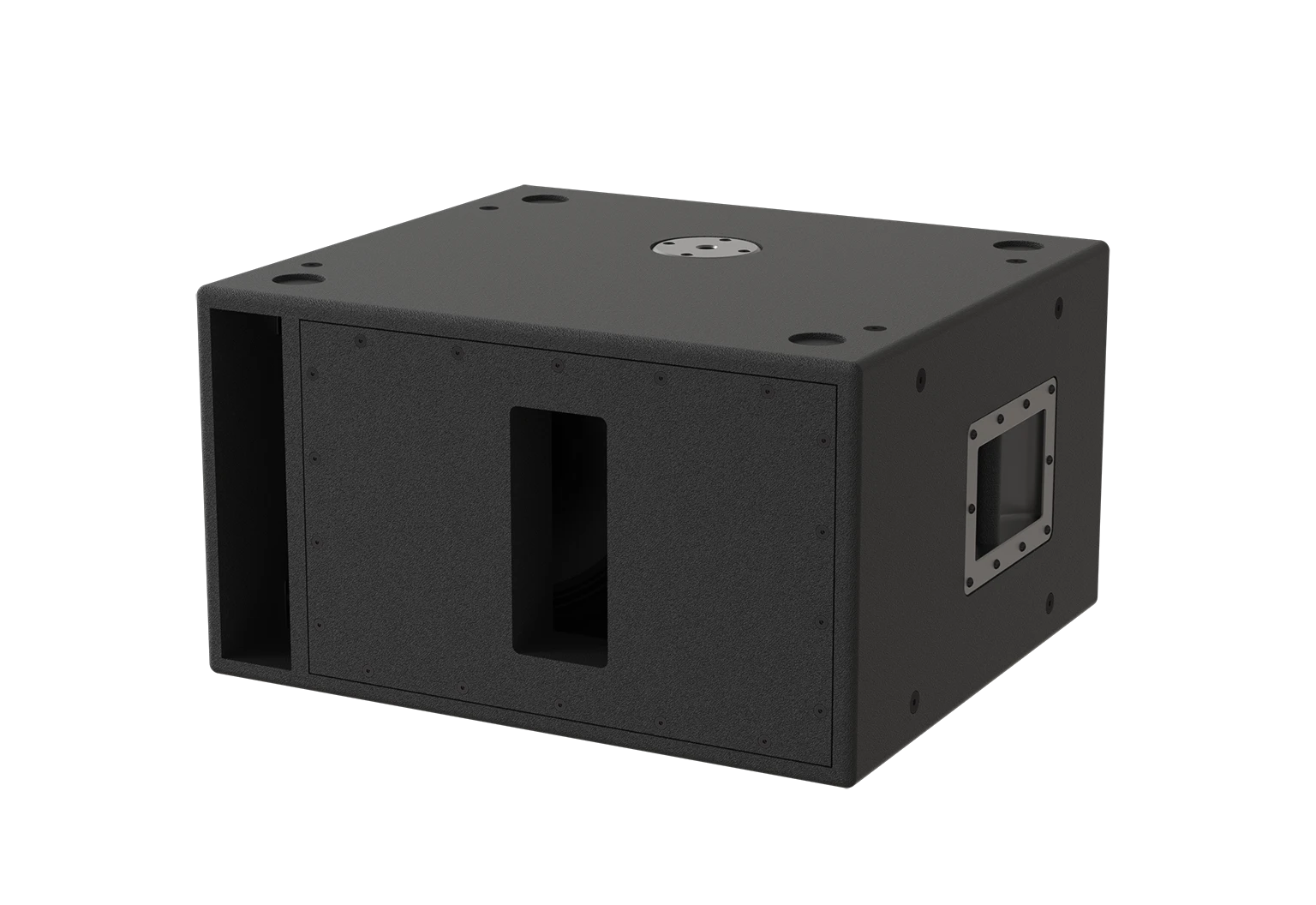

High output dual 12-inch bass reflex subwoofer

Audio

Get Price

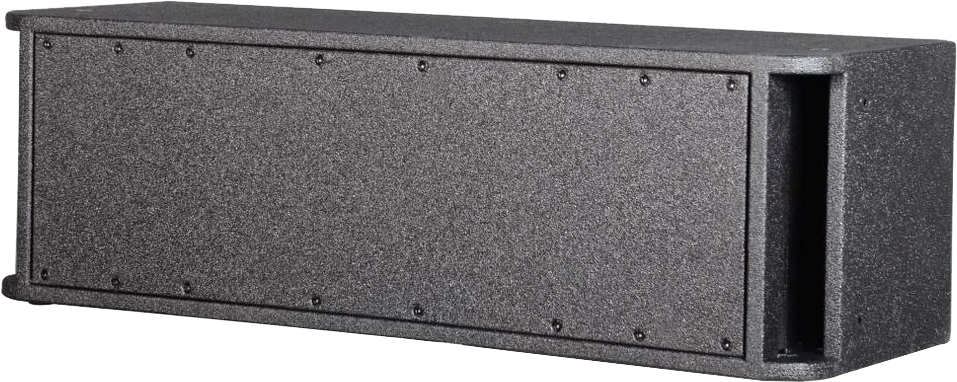

Low Profile Compact Passive Subwoofer

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

LS212 System Specifications

Specification	Details
Frequency range / -10dB	40Hz–300Hz
Frequency response / -6dB	45Hz–120Hz
System sensitivity	97dB
Rated maximum SPL	130dB
System nominal impedance	4 Ohms

Power Handling

Specification	Details
Power handling	Continuous: 800W Program: 1600W Peak: 2400W
Suggested high pass filter	40Hz Butterworth 4th order
Suggested low pass filter	110–130Hz / user-defined

Drivers

Specification	Details
Low frequency transducers	2 × 12-inch
Voice coil diameter	75mm
Voice coil winding wire	Copper-clad aluminum
Magnetic motor	Neodymium

Design

Specification	Details
Design principle	Asymmetrical dual-chamber band pass, 6th order
Hardware attachments	Internal M10 “L” brackets
Attachment locations	16 locations
Pole mount	Top mount M20

Physical

Specification	Details
Outer dimensions / H × W × D	15″ × 27″ × 24″
Outer dimensions / metric	378mm × 676mm × 605mm
Weight	87 lbs / 39.46kg
Shipping dimensions	20″ × 29″ × 32″
Shipping dimensions / metric	508mm × 737mm × 812mm
Shipping weight	96 lbs / 43.5kg
