Flat Panel Audio

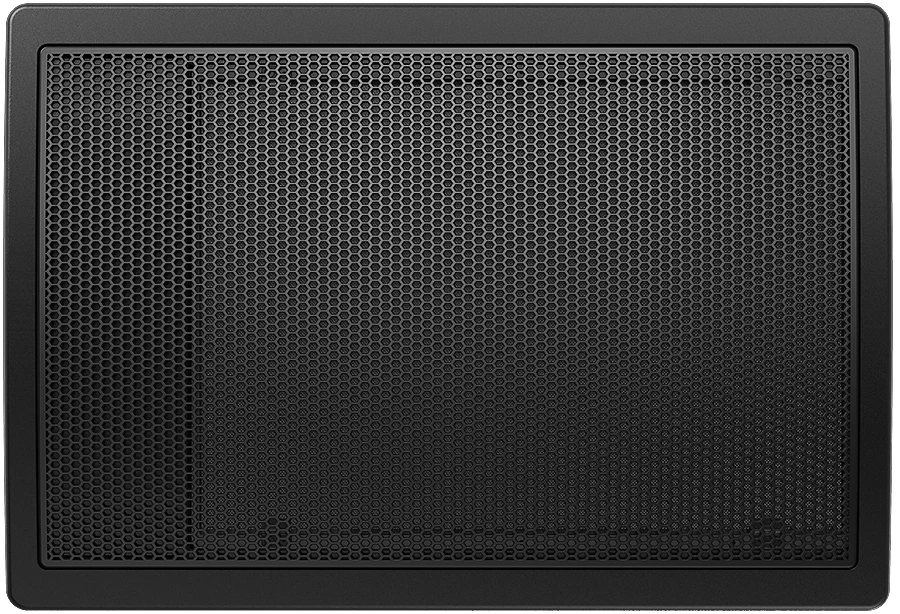

DML500W

Weatherized Distributed Mode Loudspeaker (DML)

Audio

Get Price

The breakthrough DML500 loudspeaker and it’s non-destructive boundary interaction have revolutionized hundreds of indoor spaces and now those same benefits can be had in our new all-weather version.

The DML500W has the same features as the DML500, including the thin form factor, easy mounting, and jaw-dropping sonic performance and it can be safely integrated into outdoor and into moisture-rich environments.

Making the DML500 weather-resistant for exterior installations was simple and straightforward because the DML500 is highly weather resistant by design. It’s main components—such as the carbon fiber diaphragm, and metal casing—are suitable for wet conditions.

The DML500W is a passive, non-powered loudspeaker. While it’s not intended to be submerged, water is less of an issue than with competitive loudspeakers, as there are no active electronics to be damaged. And with our water resistant grille cloth, we have even an added layer of protection. As a result, we are offering a generous 4 year warranty.

What makes the DML500W weather-resistant

Weather and UV resistant powder coating on the exterior surfaces
Water-resistent (yet sonically transparent) grille cloth in the front and rear grilles
Assembled with stainless steel exterior hardware
Neutrik protective cover for unused SpeakON jack
Other enhancements to help the DML500W withstand tough operating conditions

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Applications

Application Area	Details
Outdoor leisure	Patios and decks
Marine / wet environments	Cruise ships, natatoriums
Entertainment venues	Theme parks, sports arenas, outdoor venues
Transport hubs	Train, bus and ferry stations
Commercial / industrial	Industrial facilities
Public spaces	Zoos and gardens

Accessories

Accessory	Details
VESA adapter	Available separately
VESA pattern	200mm × 200mm
Other mounting options	Refer to Rigging Guide

Recommended Filtering / Crossover

Specification	Details
Required high pass filter	At or above 85Hz
Full-range warning	Driving the DML500W full range at higher power levels can cause over-excursion of the exciters
Possible issue	Noise, distortion or potential damage
Additional details	Refer to online KnowledgeBase for recommended filtering / crossover details

DML500A Specifications

Specification	Details
Frequency range / -10dB	75Hz–20kHz
Frequency response / ±6dB	85Hz–20kHz
Horizontal / vertical coverage	165°
System sensitivity	92dB SPL
Rated maximum SPL	123dB
System nominal impedance	8 Ohms
Power handling	Continuous: 200W Program: 300W Peak: 600W
Suggested high pass filter	90Hz Butterworth 2nd order

Drivers

Specification	Details
Transducer type	FlatPanel transducer
DML exciters	4 × DML exciter
Voice coil diameter	32mm
Voice coil winding wire	Copper-clad aluminum
Suspension design	Standard spider
Design principle	Bending wave modal
Radiator surface area	400 × 575mm
Material	Carbon fiber honeycomb

Input Connection

Specification	Details
Input connection	Pigtail 14 AWG

Physical

Specification	Details
Outer dimensions / H × W × D	21.6″ × 31.5″ × 3.5″
Outer dimensions / metric	550mm × 800mm × 90mm
Outer frame	4 × MB
Outer frame dimensions	15.5″ × 19.13″ / 395mm × 486.5mm
Rear grill	4 × MB
Rear grill dimensions	9.13″ × 7.95″ / 292mm × 202mm
Weight	44 lbs / 20.3kg
Shipping dimensions	27″ × 37″ × 8″
Shipping dimensions / metric	650mm × 800mm × 250mm
Shipping weight	51 lbs / 23.2kg
Ingress Protection / IP code	Pending
Warranty	4 years
