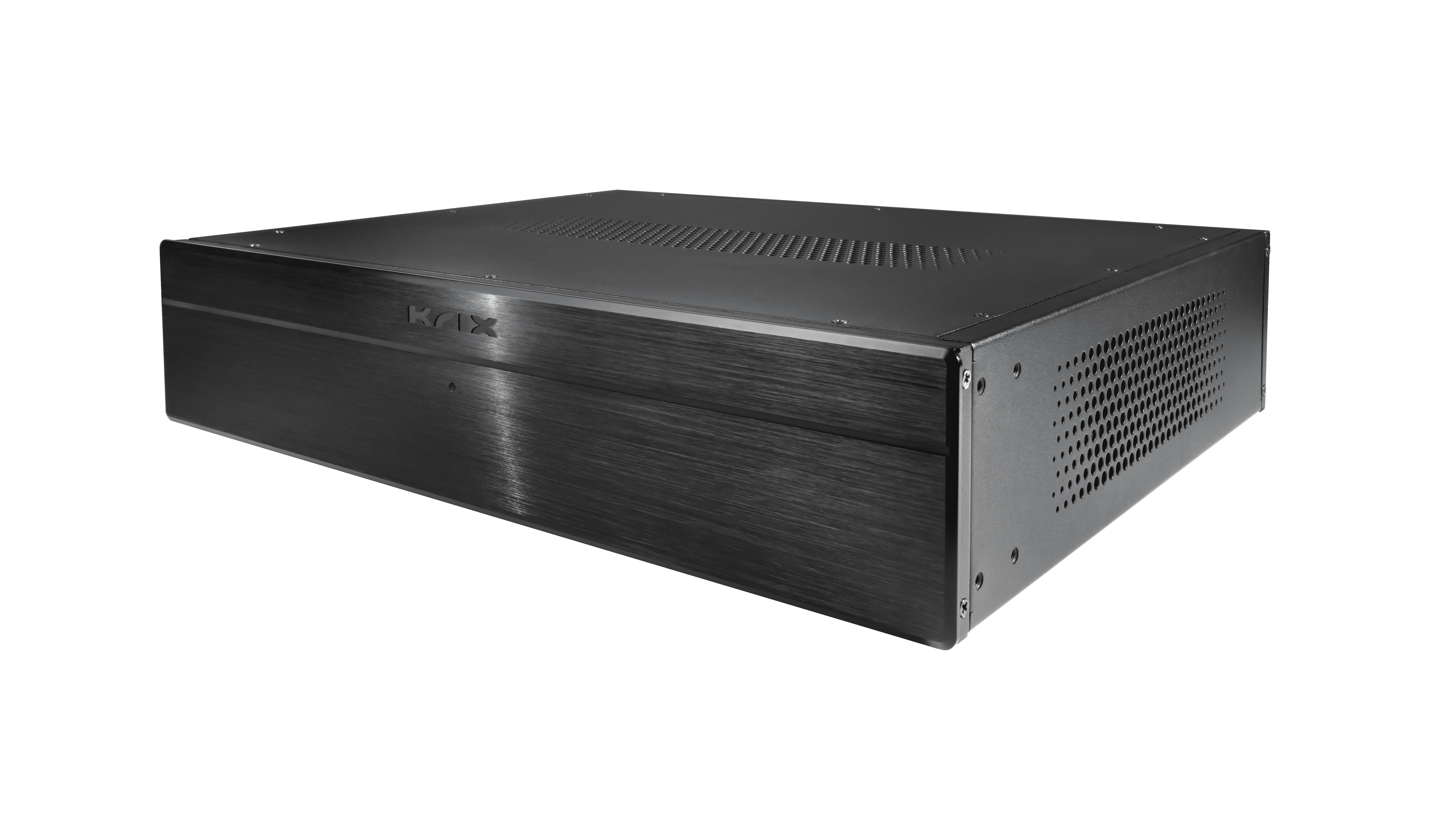

Black brushed metal electronics chassis

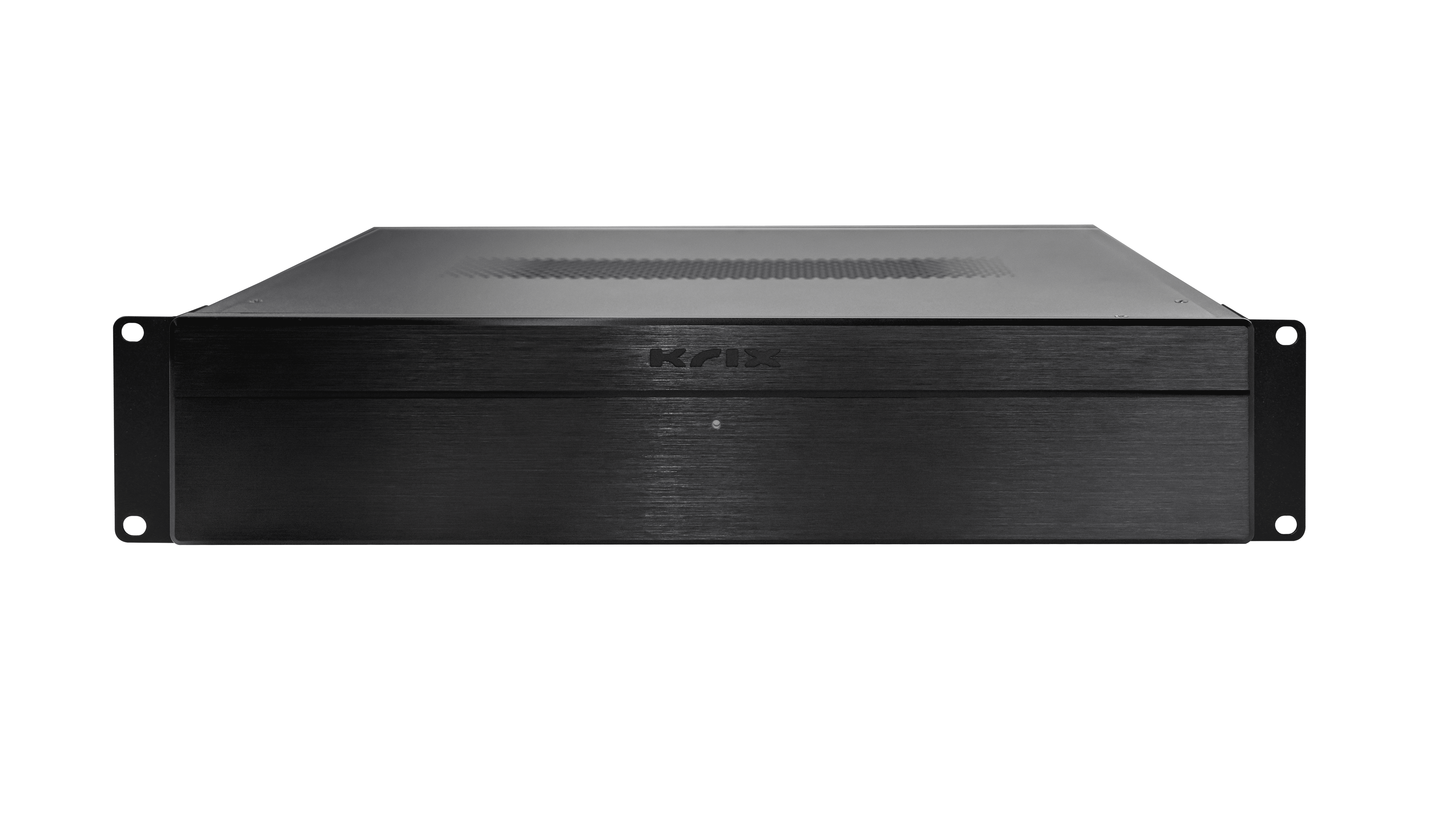

Black rackmount device with "KMAX" logo.
Black brushed metal electronics chassis
Black rackmount device with "KMAX" logo.

KRIX

/

KA-1100

KA-1100

Dual-mono Class-D subwoofer amplifier with DSP for Krix subs

Cinema

Audio

Silent, precision power for Krix subwoofers.

The KA-1100 is Krix's first dedicated subwoofer amplifier, built around ICEpower Class-D modules and a custom 24-bit DSP. It pairs perfectly with MX-5, MX-10, Cyclonix 11 and Cyclonix 12 subwoofers, delivering high output with vanishingly low distortion.

  • Three pre-configured DSP modes tuned for specific Krix subs, plus a general-purpose mode

  • Fan-less, silent operation with soft-limit protection for the drivers

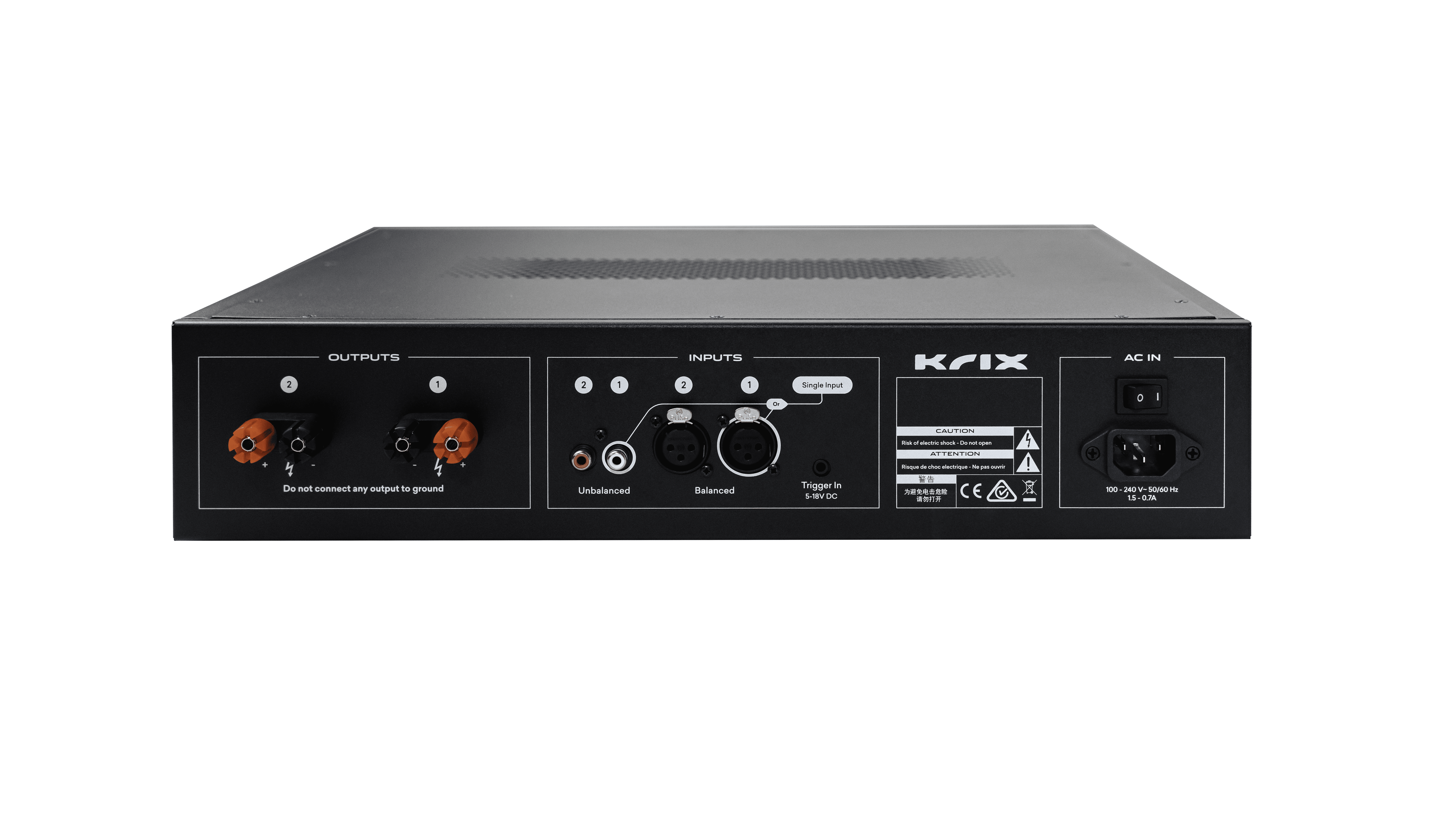

  • Balanced and unbalanced inputs, 12V trigger, and removable rack ears for clean integration

With a brushed aluminium fascia and slim chassis, the KA-1100 disappears into furniture or racks while taking full command of your subwoofer stage.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

Supported subwoofers

MX-5, MX-10, Cyclonix 11, Cyclonix 12

Output power (single ch.)

700W RMS @ 4Ohm, 1% THD

Output power (both ch.)

550W RMS @ 4Ohm, 1% THD

Distortion (THD+N)

0.001% @ 200W, 4Ohm, 100Hz

Low-pass filter

50-200Hz (Modes 1-2); Bypass (Mode 3)

Input power

100-240V AC, 50/60Hz

Dimensions

480mm x 360mm x 97mm

Weight

5.3kg
