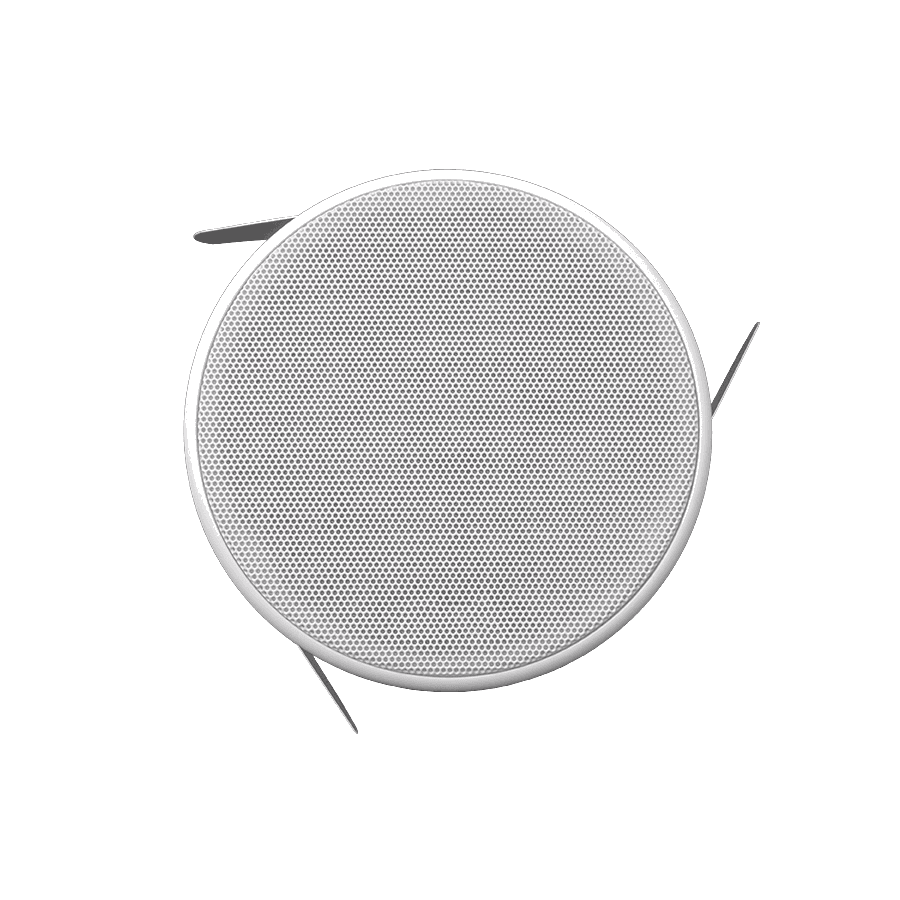

KRIX logo on a white, round speaker grill.

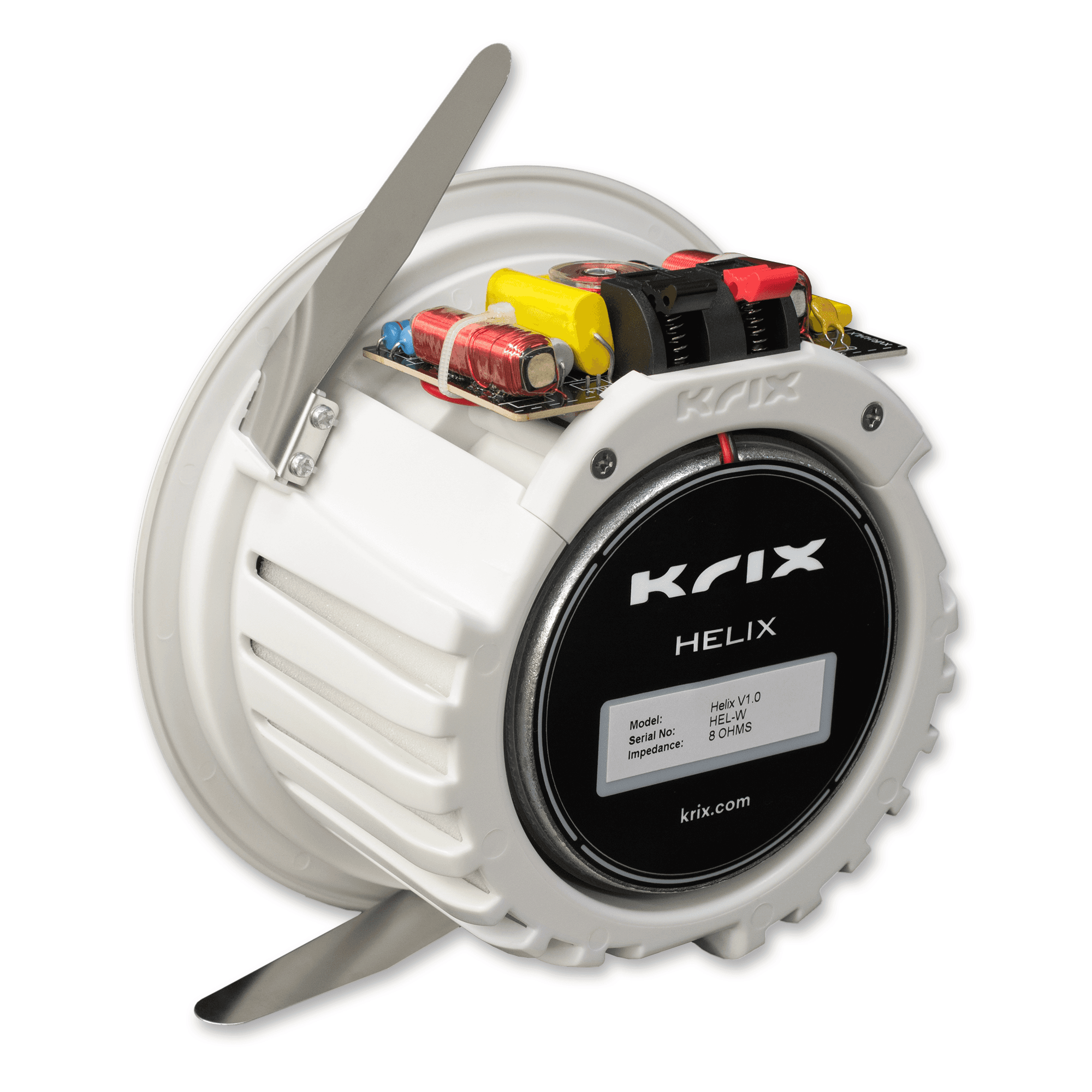

Krix Helix speaker with internal components and mounting bracket
Krix Helix speaker with internal components and mounting bracket

KRIX

/

IC-20

IC-20

Dual-concentric in-ceiling speaker for indoor and alfresco zones

Audio

One speaker, indoors or out.

The IC-20 is a versatile dual-concentric in-ceiling speaker built for both indoor and outdoor use. Weather-resistant materials and a rust-resistant stainless steel grille suit eaves and alfresco areas, while a shallow 86mm depth fits tight ceiling cavities.

  • 150mm bass driver with oversized magnet plus coaxial 20mm dome tweeter

  • Twist-and-lock mounting with fixed grille for fast installation

  • Semi-enclosed infinite baffle keeps bass extension consistent

Backed by a five-year warranty and built to deliver uniform coverage in all directions, the IC-20 is a workhorse for whole-home and outdoor background music.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

Frequency range

45Hz-20kHz (in-room)

Power handling

10-120W RMS

Sensitivity

86dB @ 2.83V / 1m

Impedance

8 Ohms nominal (min 6 Ohms)

LF driver

150mm curvilinear polypropylene

HF driver

20mm coaxial dome

Cut-out diameter

164mm

Ceiling thickness

3-18mm

Dimensions

180mm dia x 86mm depth

Weight

2kg each
