NETVIO 8x8 HDMI matrix switcher with 2 HDMI inputs.

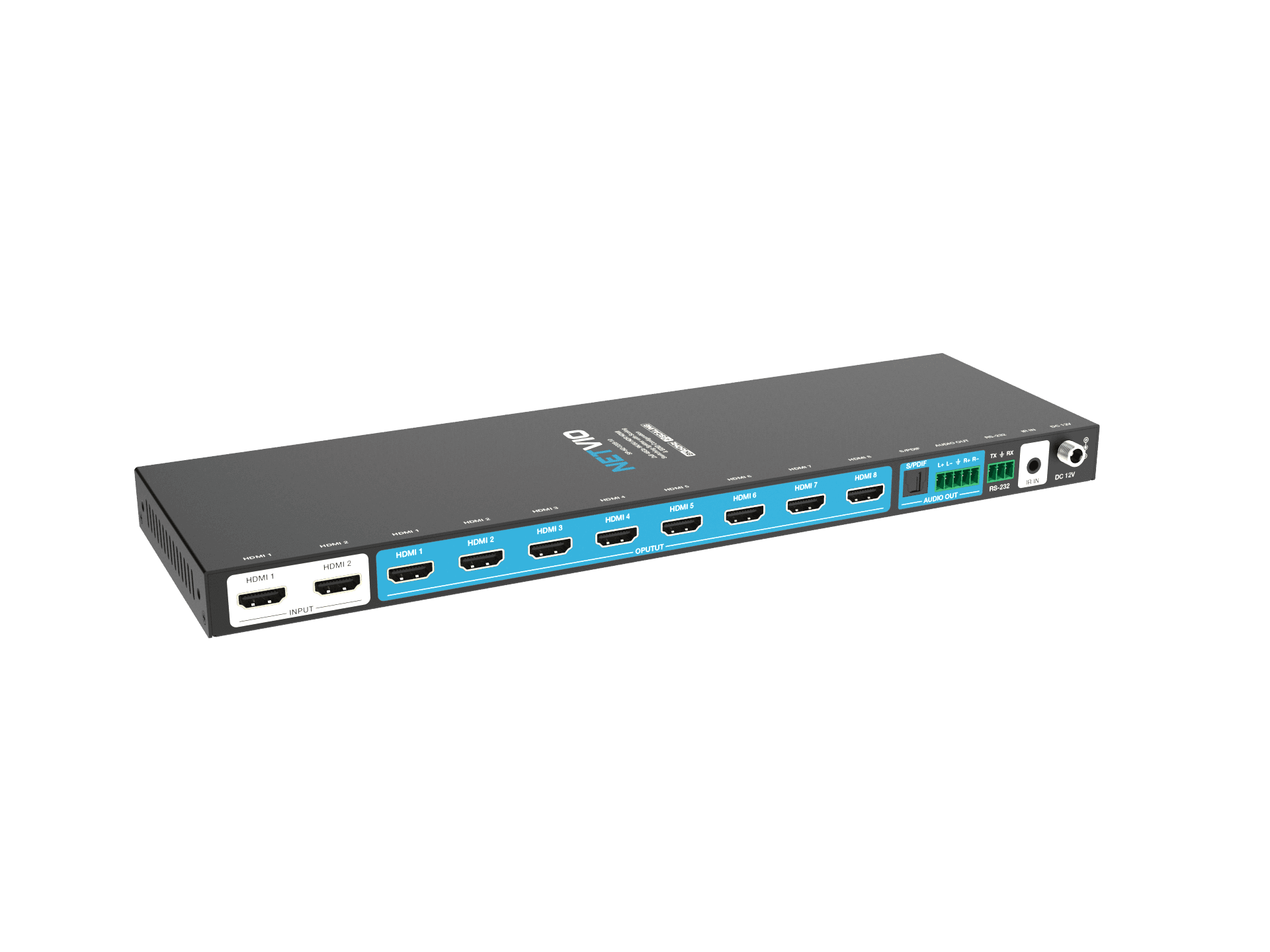

8-port HDMI distribution amplifier with audio and control ports

NETVIO

SP-H2-0208-10

2x8 HDMI 2.0 4K60 4:4:4 splitter

Video

Audio

Get Price

The Netvio SP-H2-0208-10 is a 2x8 HDMI 2.0 splitter with input selection that distributes a chosen 4K60 4:4:4 HDR source to eight displays. It supports HDR10, Dolby Vision and HLG, with per-output 4K to 1080p downscaling, audio breakout and full EDID management for digital-signage and multi-display rooms.

HDR support — HDR, HDR10, HDR10+, Dolby Vision, HLG, ALLM, VRR pass-through.
Independent downscaling — each output can downscale 8K → 4K/2K.
HDR to SDR conversion — ensures legacy displays remain compatible.
Audio de-embedding — digital optical (S/PDIF) and analog (balanced/unbalanced with gain control).
Control options — front-panel buttons, IR remote, RS-232, or API commands.
Advanced EDID management — via DIP switches and API.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Bandwidth	48Gbps
Resolution	up to 8K@60Hz (4:2:0 12-bit), 8K@30Hz (4:4:4 12-bit), 4K@120Hz (4:4:4 12-bit)
HDR formats	HDR, HDR10, HDR10+, Dolby Vision, HLG, VRR/ALLM
Color space	RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
Color depth	8 / 10 / 12-bit
Compliance	HDMI 2.1, HDCP 2.3
Supported	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS-HD, DTS:X, DSD
Inputs	2 × HDMI (Type-A)
Outputs	8 × HDMI (Type-A), 1 × Optical S/PDIF, 1 × L/R balanced/unbalanced (Phoenix)
Control	RS-232, IR, USB-C (service/firmware)
Dimensions	320 mm (W) × 100 mm (D) × 21.5 mm (H) \| 12.6″ × 3.9″ × 0.8″
Weight	810 g (1.8 lbs)
Enclosure	Metal, black finish
Power	DC 12V/2.5A (max 9.6W)
