IP-SW-48P-10 - Galtech Trading

Video Distribution

NETVIO

IP-SW-48P-10

48P 1Gb 1U Plug & Play AVoIP Network Switch - Upto 45 Endpoints (TX&RX)

Video

Get Price

Description

48Port 100/1000 Base-TX | Fully Configured for Netvio JP4 Series

Configuration via Netvio360 utility including ‘one touch’ network switch configuration.

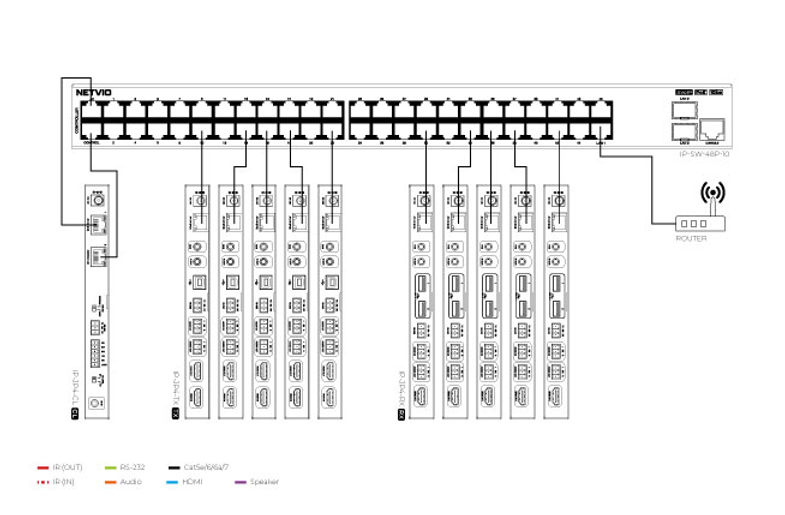

Supports upto 45 end-point devices (encoders or decoders)
3 Ports reserved for IP-JP4-CL-10 connection (2no.) & primary LAN or Router (1no.)
1440W PoE Capable across all 24 Ports
Max PoE per port: 30W (Netvio devices 10W each)

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Model	IP-SW-48P-10
Type	48-Port Managed Gigabit PoE+ Switch
Use Case	Netvio JP4 AV-over-IP deployments up to 45 endpoints
Switching Capacity	108 Gbps
Forwarding Rate	Wire-speed, non-blocking architecture
PoE Standard	IEEE 802.3af/at (PoE+)
PoE Budget	~900 W total (typical)
Form Factor	19” Rack Mount (1U)
Dimensions	440 mm (17.3″) wide, 350 mm (13.8″) deep, and 46 mm (1.8″) high
Weight	Approximately 4.5kg (9.lbs)
Enclosure	Metal, black finish
Operating Temperature	0°C to 40°C (32°F to 104°F)
