SP-H2-0104-10 - Galtech Trading

Splitter

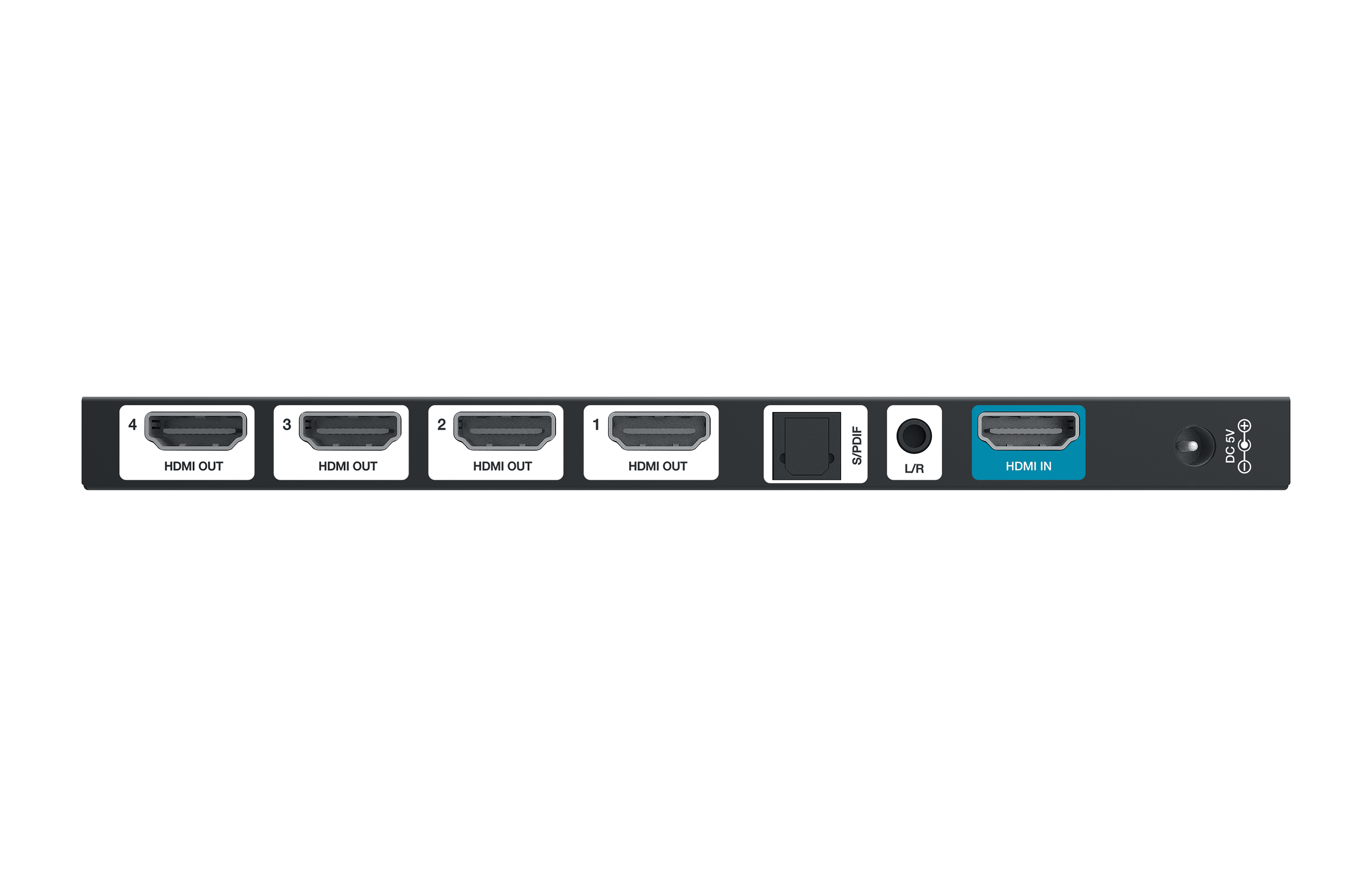

4 HDMI OUT, 3 HDMI OUT, 2 HDMI OUT, 1 HDMI OUT, S/PDIF, L/R, HDMI IN, DC 5V

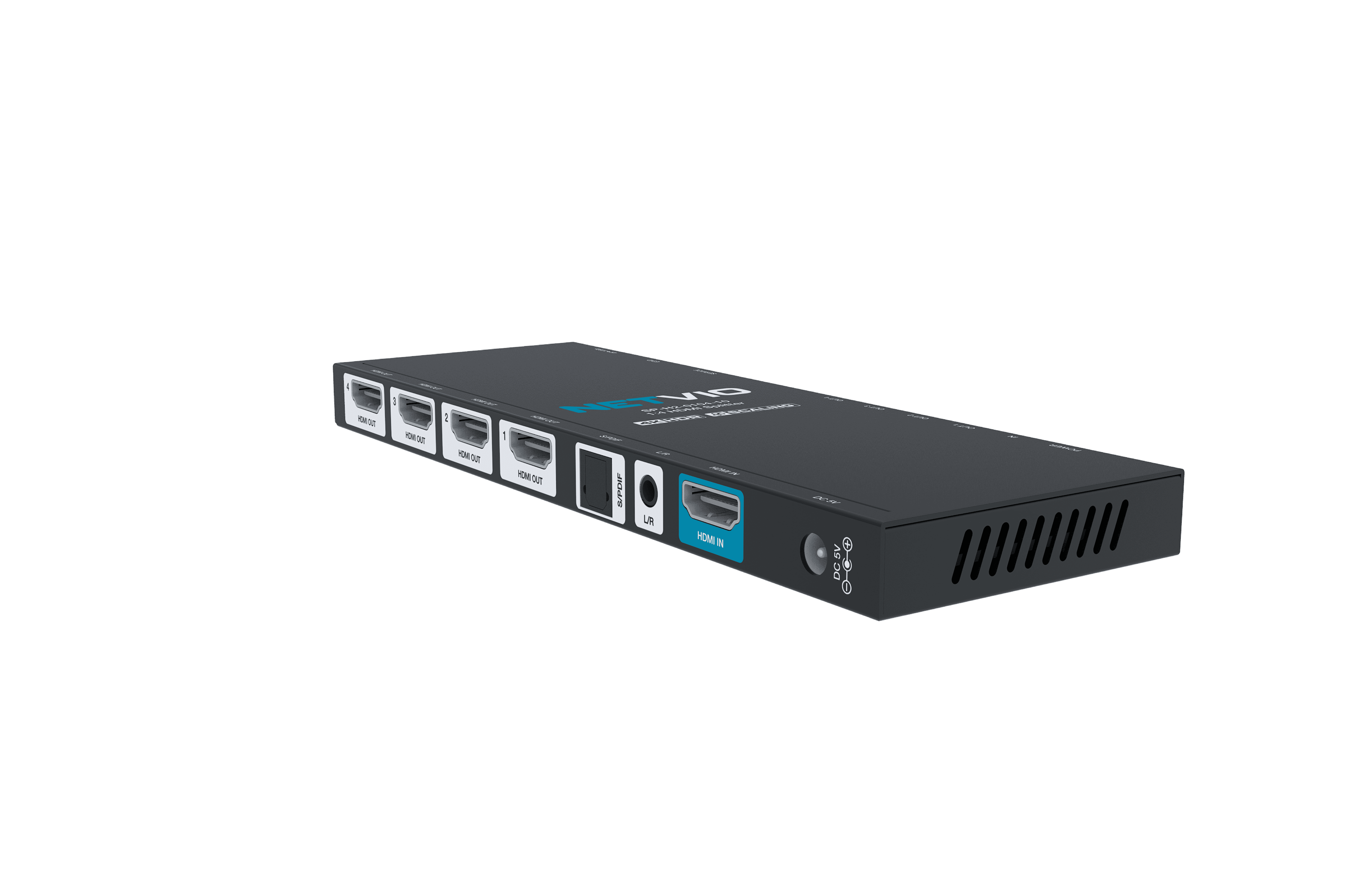

HDMI splitter with four output ports and one input port

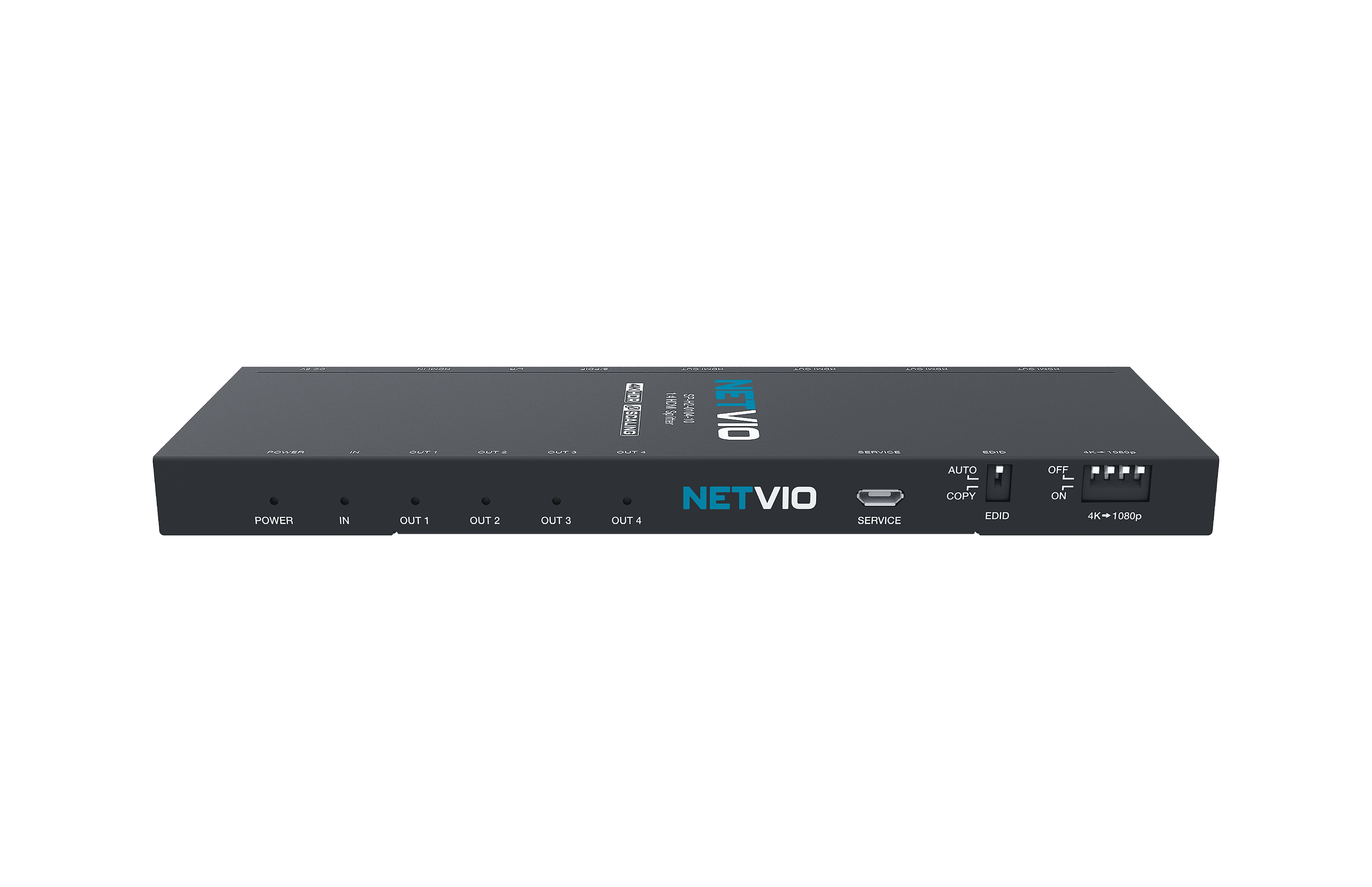

NETVIO 1x4 HDMI splitter with 4K HDR & Scaling

NETVIO

SP-H2-0104-10

1x4 HDMI 2.0 4K60 4:4:4 splitter

Video

Audio

Get Price

The Netvio SP-H2-0104-10 is a 1x4 HDMI 2.0 splitter that distributes a single 4K60 4:4:4 HDR source to four displays. It supports 18 Gbps HDMI 2.0b, HDR10, Dolby Vision and HLG, with per-output 4K to 1080p downscaling, audio breakout and full EDID management for mixed-display estates.

Ultra HD Performance – 18Gbps bandwidth, 4K60 4:4:4 video with HDR10, Dolby Vision, and HLG support.
Audio Extraction – Analog stereo (3.5mm) and optical S/PDIF outputs from HDMI source.
Flexible EDID Management – AUTO and COPY modes ensure reliable system performance.
Broad Audio Format Support – PCM, Dolby, DTS, and HD audio.
Professional Build – Compact, metal enclosure designed for reliability in AV installations.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Ultra HD Performance	18Gbps bandwidth, 4K60 4:4:4 video with HDR10, Dolby Vision, and HLG support.
Audio Extraction	Analog stereo (3.5mm) and optical S/PDIF outputs from HDMI source.
Flexible EDID Management	AUTO and COPY modes ensure reliable system performance.
Broad Audio Format Support	PCM, Dolby, DTS, and HD audio.
Professional Build	Compact, metal enclosure designed for reliability in AV installations.
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.4
Bandwidth	18Gbps
Resolutions	Up to 3840×2160 @60Hz 4:4:4, 1080p, 720p
Color Depth	8-bit (4K60), 12-bit (1080p)
Color Space	RGB, YCbCr 4:4:4, 4:2:2
HDR Support	HDR10, Dolby Vision, HLG
HDMI Audio	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS-HD Master Audio, DTS, DSD
Optical Output	LPCM 2.0, Dolby 5.1, DTS formats
Analog Output	Stereo PCM 2.0 (3.5mm mini-jack)
Inputs	1× HDMI (Type-A)
Outputs	4× HDMI (Type-A)
Audio Outputs	1× Optical (S/PDIF), 1× Analog Stereo (3.5mm)
EDID Control	AUTO / COPY (panel switch)
Video Scaling	4K→1080p selectable per output
Dimensions	180 × 62 × 14 mm (7.08″ × 2.44″ × 0.55″)
Weight	227g (0.50 lbs)
