Specs
Specification | Value |
|---|---|

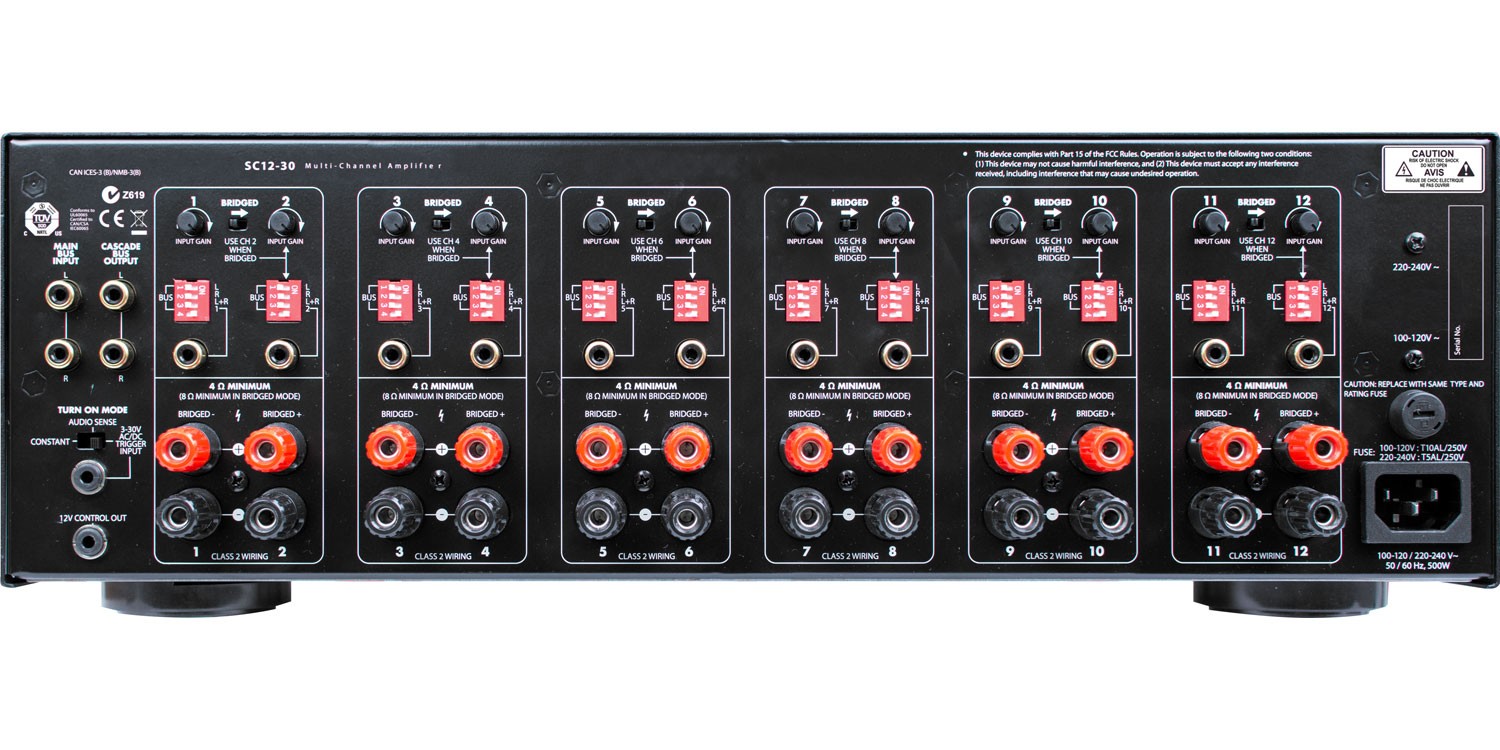

Type | 12-channel fully configurable systems integration power amplifier |
Power output | 30 W RMS/ch into 8 Ohm; 40 W RMS/ch into 4 Ohm (all channels driven) |
Bridged output | 80 W RMS into 8 Ohm per bridged pair (up to 6 bridged channels) |
THD | 0.2% from 20 Hz to 20 kHz |
Routing | BusMatrix selector: each channel assigns to L bus, R bus, summed L+R, or its own dedicated input |
Turn-on modes | Manual, audio sense, 3-24 V AC/DC voltage trigger |
Control output | 12 V trigger out |
Independent level controls | All 12 channels |
Power supply | Switchable 110/230 V |
Dimensions | 17.25" W x 5.75" H x 16.25" D (including feet) |
Weight | 35 lb / 15.8 kg |
Mounting | Rack mount ears included |
Warranty | 2 years |
