ELA-IPD-PRE-MSI

Multi Zone Preamp Audio Matrix

Audio

Get Price

Description

The EL-IPD-PRE-MSI Multi Zone PREAMP Audio Matrix can be used in a stand-alone configuration with standard amplifiers or AVRs or with other amplifiers and pre-amps within the ELAN IP audio distribution family of products by adding the optional Dante™ Audio Networking Card. In stand alone mode when paired with external amplifiers will support up to 22 input sources (6 digital, 16 mono / 8 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an ELAN System Controller). Each RCA analog input can be configured as left, right or as mono. 12 line level outputs can be configured as 12 mono or 6 stereo output zones or as subwoofer out. Each can be configured as left, right, mono, or sub out. Adding the optional Dante™ Networking card connects sources to other Dante™ enabled ELAN IP amplifiers using existing networks. ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralised multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Type	Multi-zone preamp audio matrix (ELA region SKU; equivalent to EL-IPD-PRE-MSI)

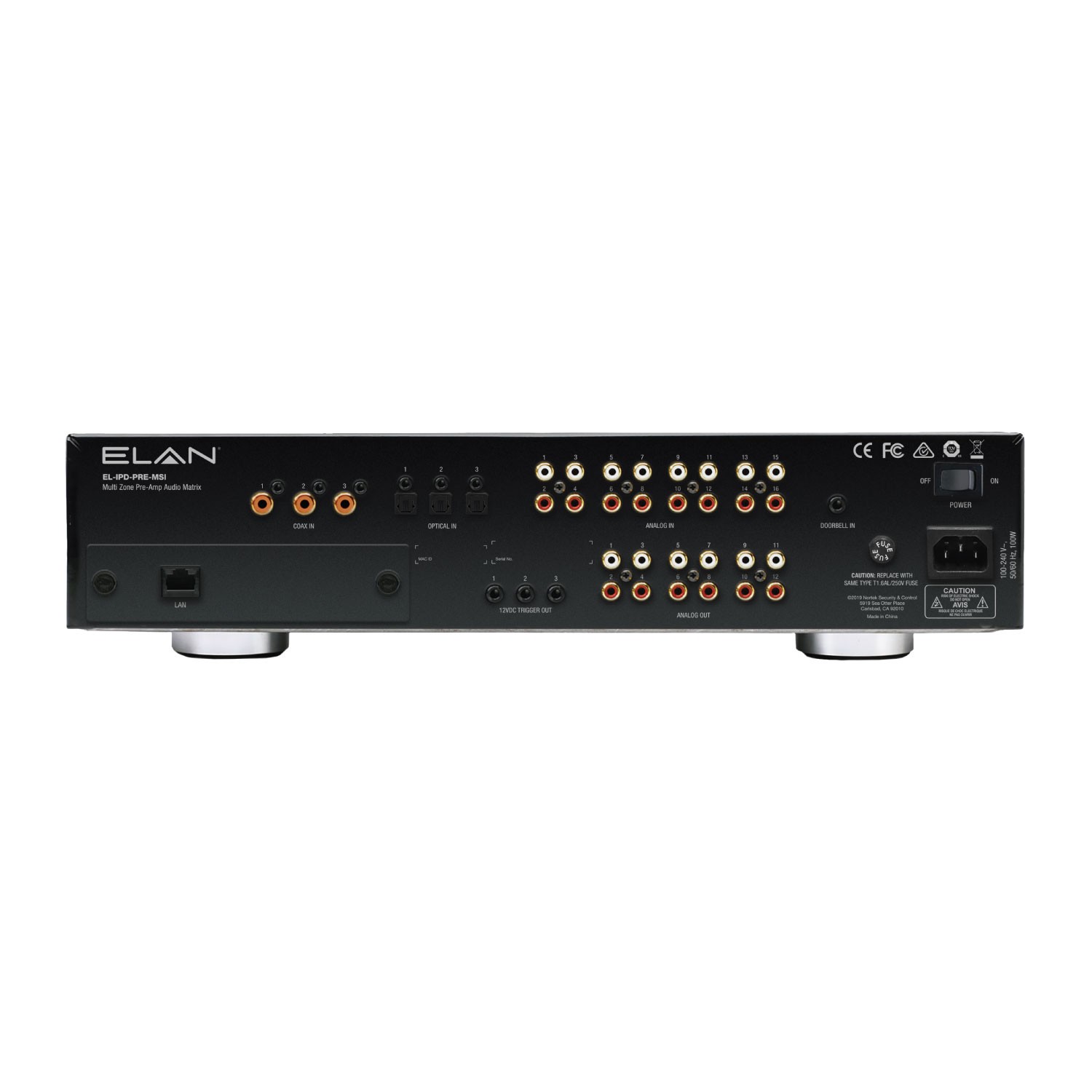

Inputs	Up to 23 (3 optical TOSLINK, 3 coaxial RCA, 8 stereo / 16 mono RCA line level, 1 doorbell 3.5 mm stereo)
Preamp outputs	6 stereo / 12 mono RCA, configurable L/R/Mono/Sub
Output gain	Fixed 0 dB or variable -50 to 0 dB in 0.5 dB steps
Output impedance	470 Ohm
Lip-sync delay	0-400 ms per zone in 10 ms steps
EQ	5-band per zone, loudness on/off, high/low pass
Network	1 RJ45 100/1000 Ethernet (Dante via optional EL-IPD-NAC-EXT)
Trigger outputs	3 x 3.5 mm mono, +12 VDC / 100 mA
Power	AC 100-240 V, 50/60 Hz, 1000 W
Dimensions	17" D x 17" W x 4" H (with feet)
Weight	15.55 lb / 7.05 kg
