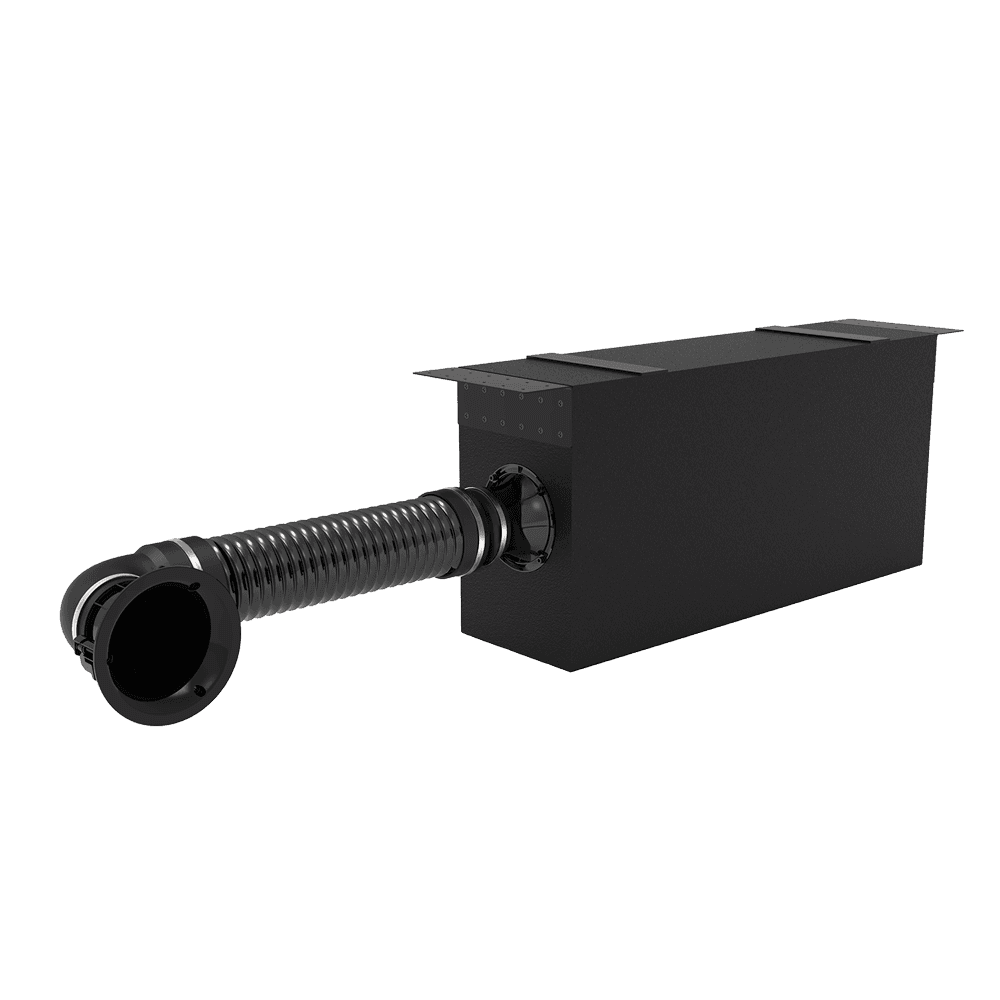

Black rectangle with flexible tube attachment.

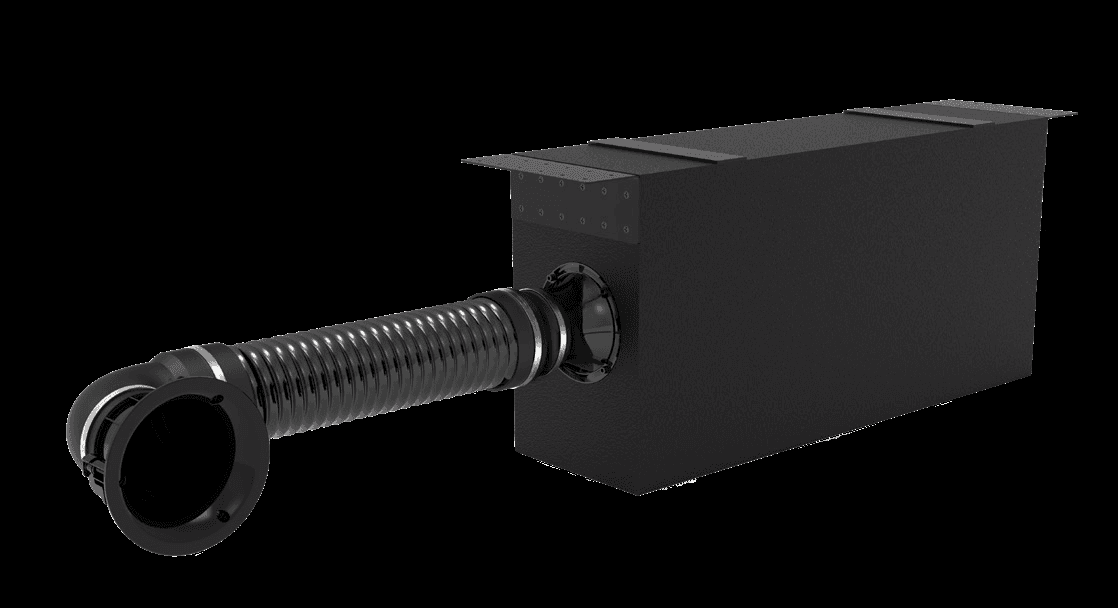

Black box with a flexible tube and round intake

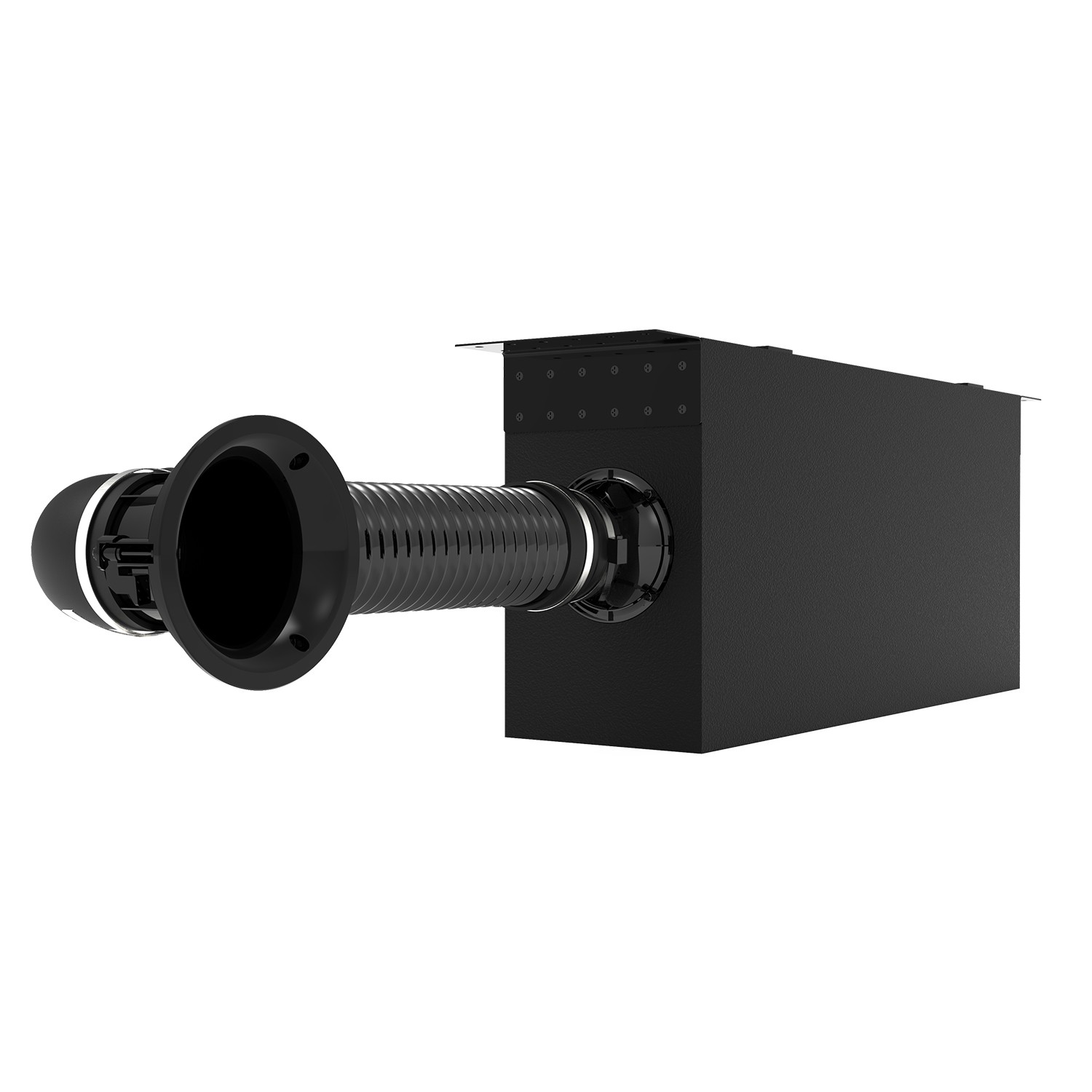

Black air vent with ribbed hose connected to vent box

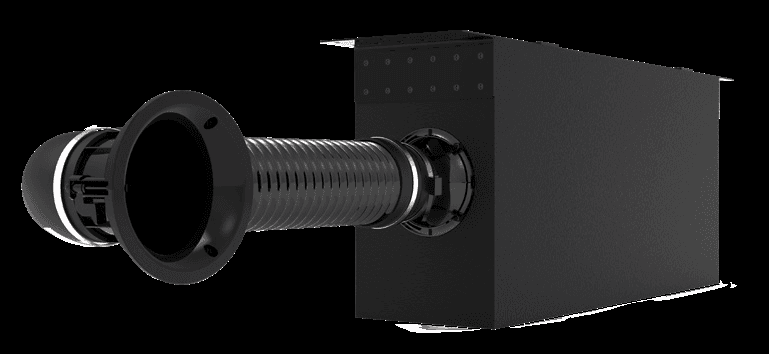

Black flexible tube with flange and housing

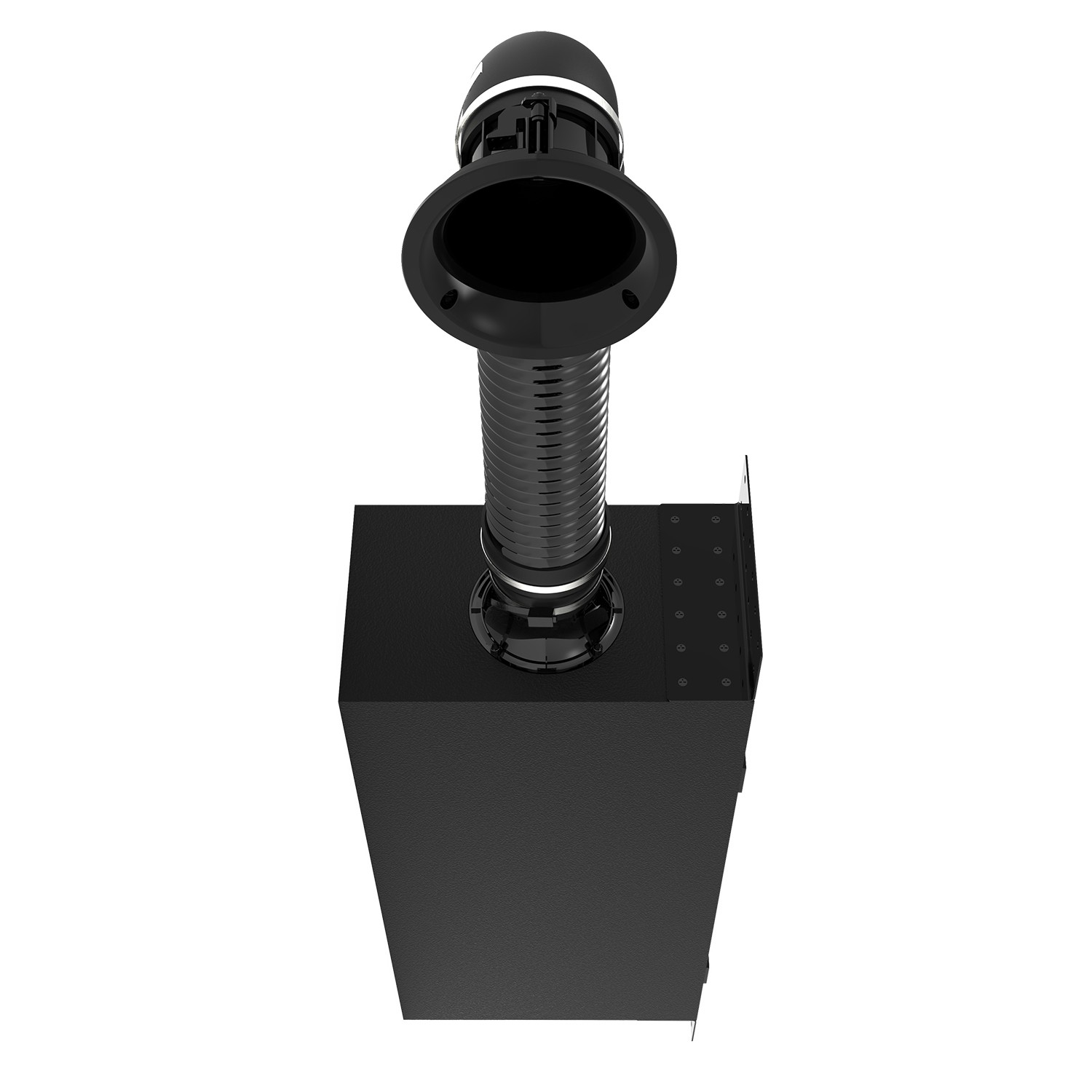

Black metal box with fluted pipe and bell-shaped spout

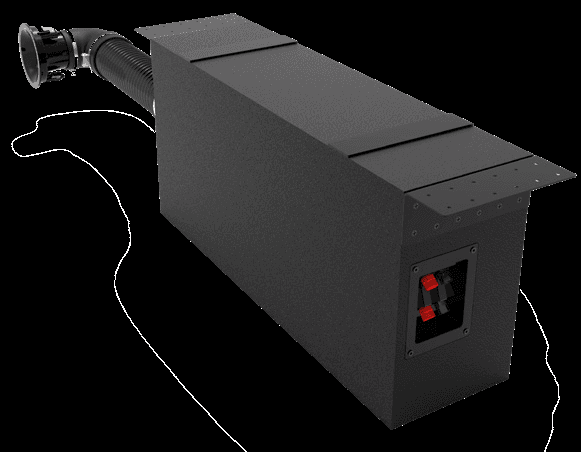

Black electronic component with hose and connectors

NICE

SC-IC-SUB8

High-performance 8.27-inch small-aperture in-ceiling subwoofer with 4.75-inch opening

Audio

Get Price

Best-in-class deep bass through a small, finished ceiling opening.

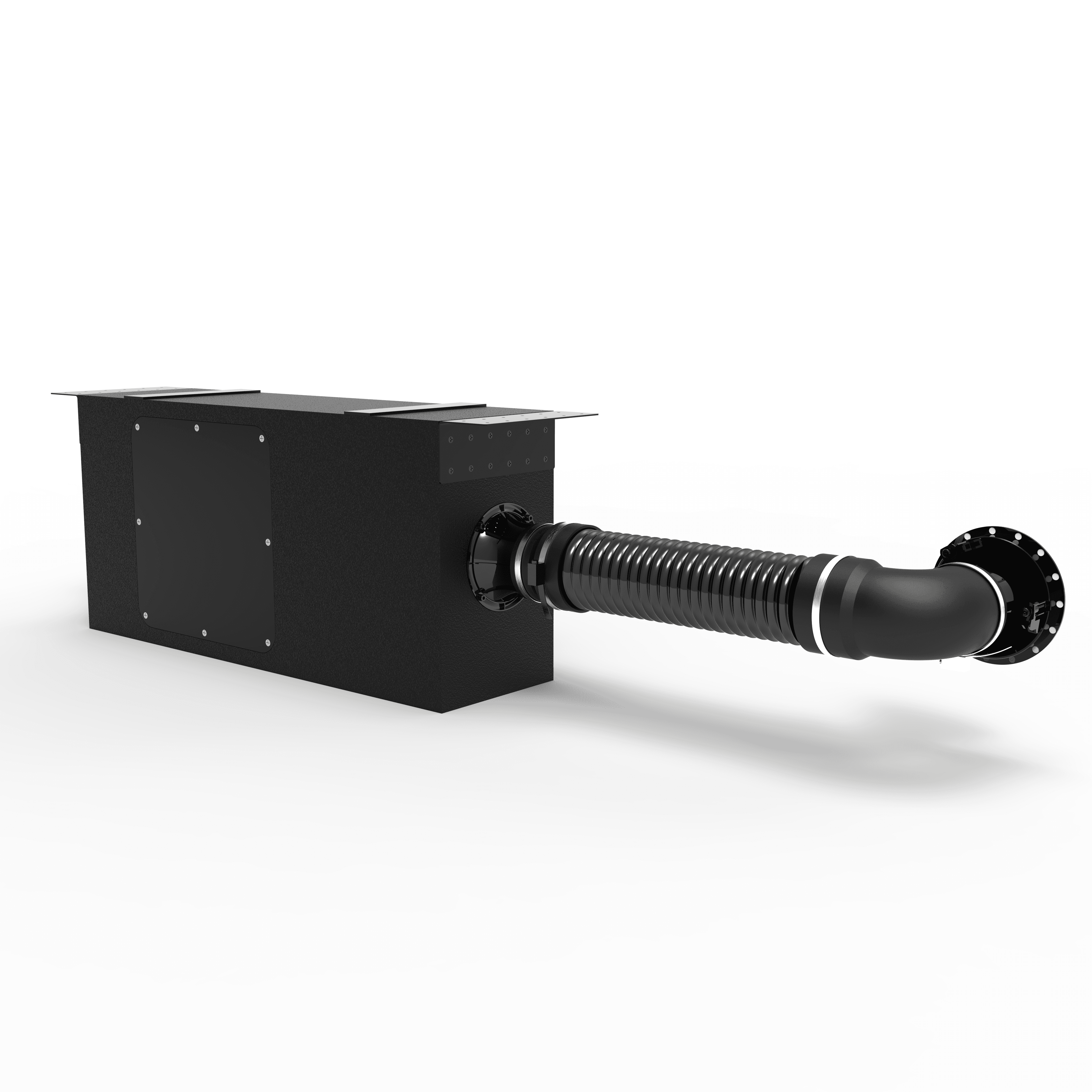

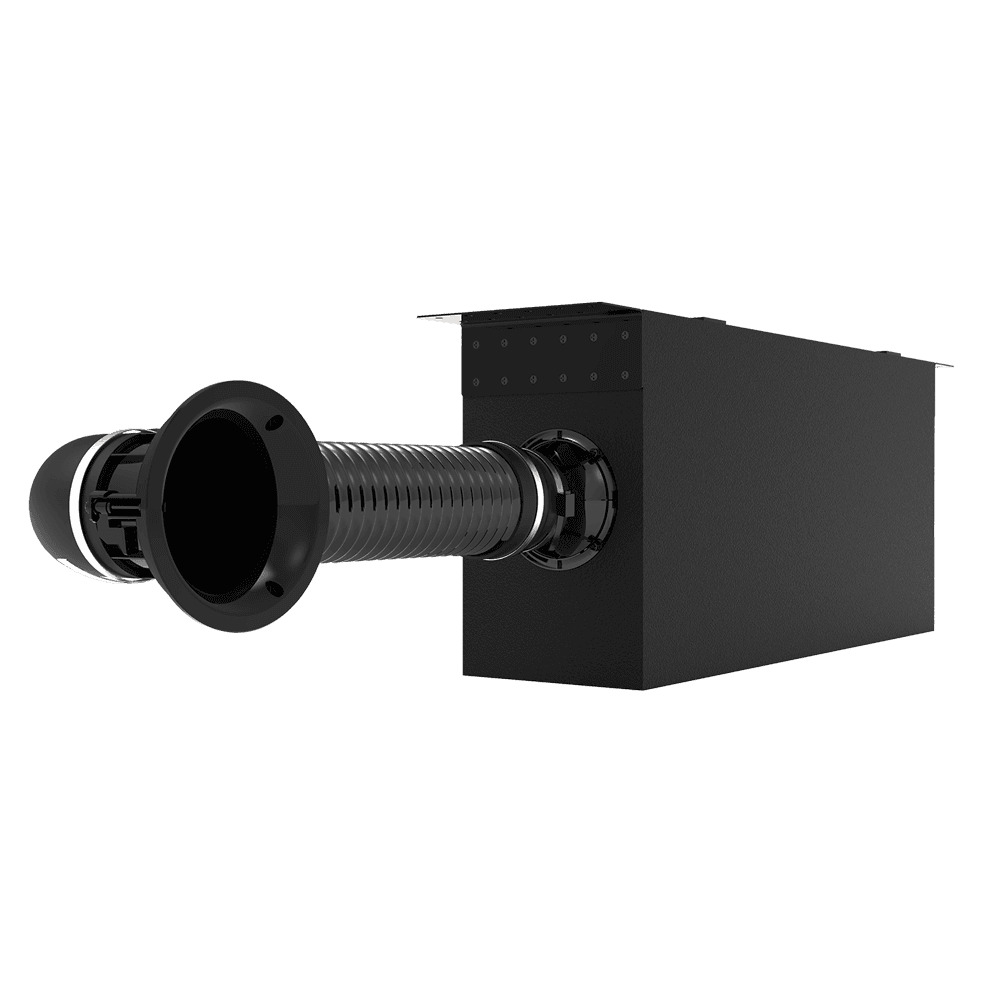

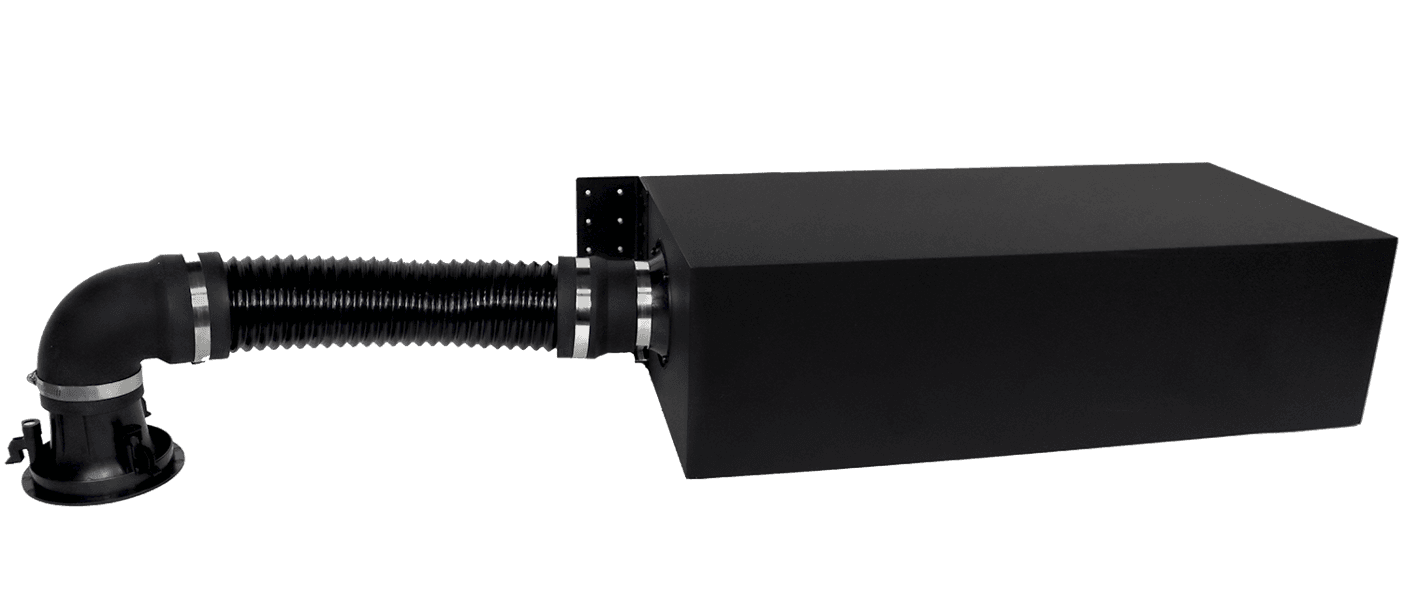

The SC-IC-SUB8 high-performance small-aperture in-ceiling subwoofer delivers best-in-class deep bass through a discreet 4.75" finished opening to meet the aesthetic needs of the modern home. The woofer cabinet hides between ceiling joists, porting low-frequency sound through the small opening. It features a custom 8.27" polypropylene woofer, dual 1.5" voice coils, a precision-tuned port tube, and a vinyl-wrapped MDF cabinet mounted to a single joist.

Custom 8.27" polypropylene cone maximized to the cabinet proportions
Dual voice coil for stereo wiring or single-channel use with included shorting bars
Analog filtering circuits with a 10 mH inductor per voice coil for deep, clear bass
4.75" cut-out installs with a standard hole saw

Designed as a system

Engineered in the USA in tandem with the SC-IC3 speaker and SC4-100 amplifier
Delivers three-way, full-range sound optimized for aesthetics and flexibility

Simple single-joist mounting with integrated absorption pads reduces kinetic transmission through the structure.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Woofer Size	8.27"
Woofer Configuration	Fixed, Dual Voice Coil
Woofer Material	Polypropylene
Hole Cutout Dimensions	4.75"
Power Handling (Watts)	50 - Minimum / 100 - Maximum
Frequency Range	20Hz~300Hz
Impedance	8+8 Ohms
Sensitivity	71 dB
Weight	32 lbs
Dimensions	Cabinet: 25.188" (640mm) L x 12" (305mm) W x 7.125" (181mm) D; Port Tube: 19" (483mm) L, 3.25" (83mm) Dia; Sub Speaker Diameter: 5.25" (with Grille)
Shipping Dimensions	12" x 36" x 15" (302 x 907 x 874 mm)
Shipping Weight	34.4 lbs
