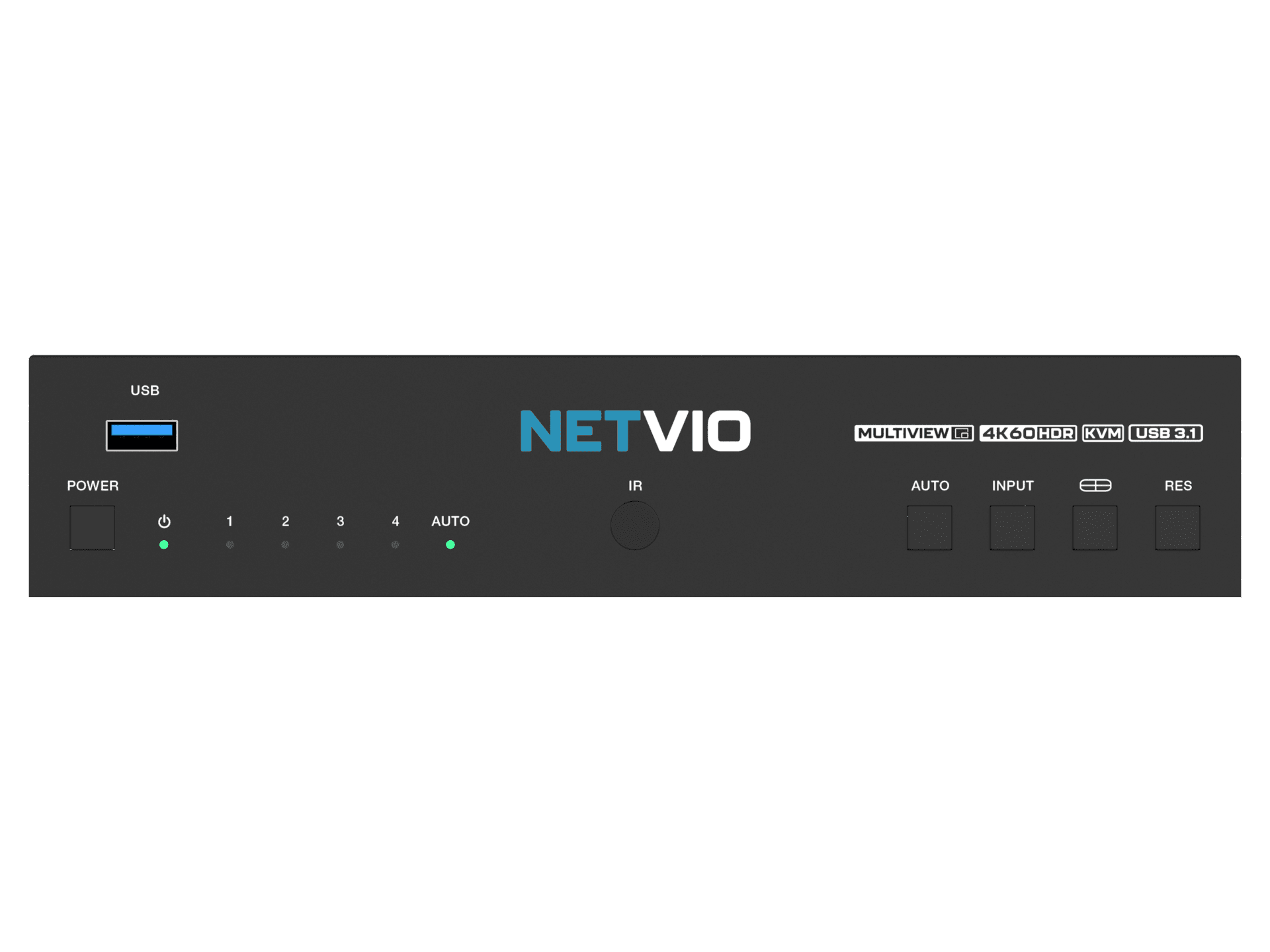

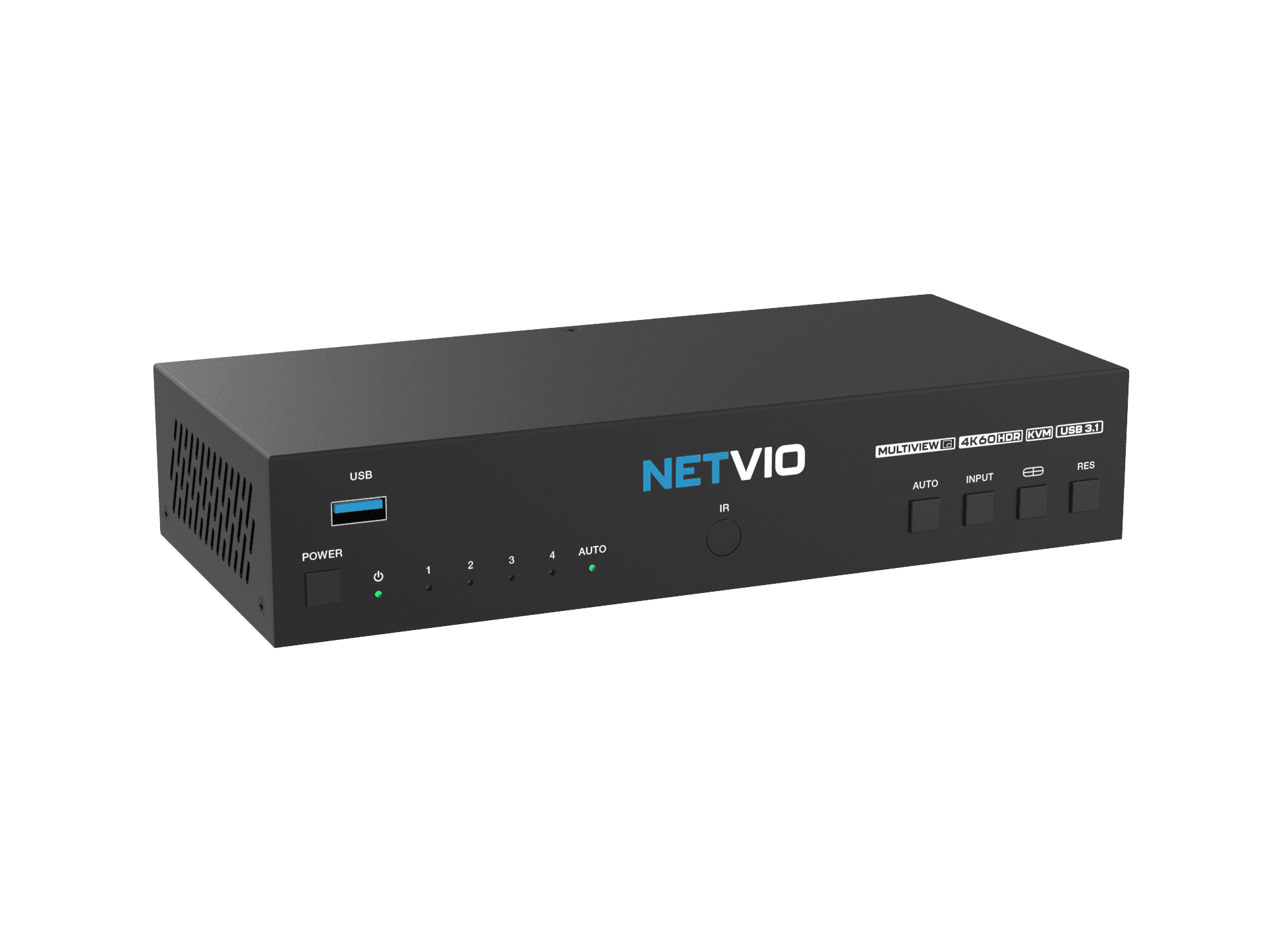

NETVIO device with USB, IR, and control buttons

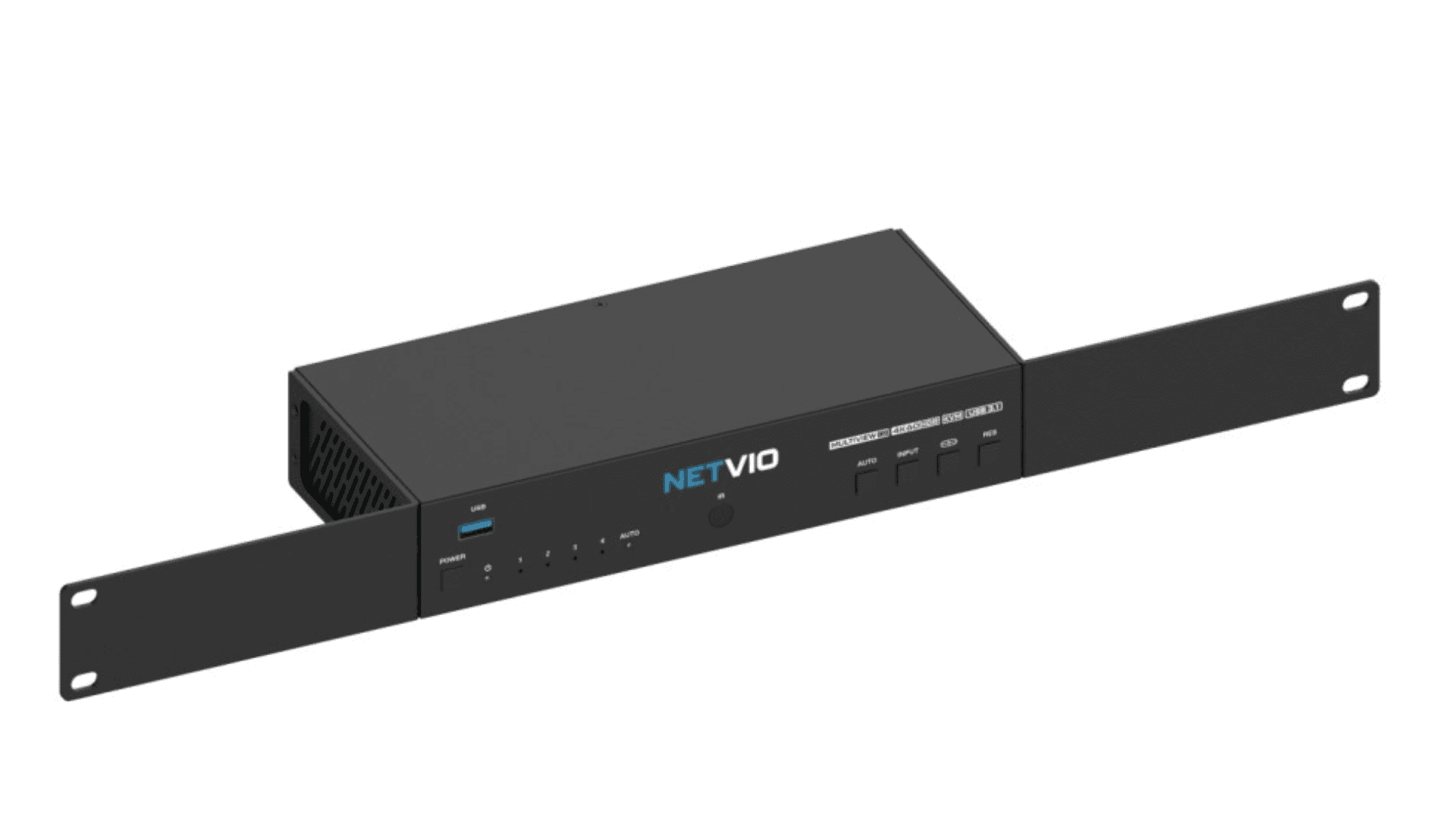

Black Netvio device with rack ears and front panel controls.

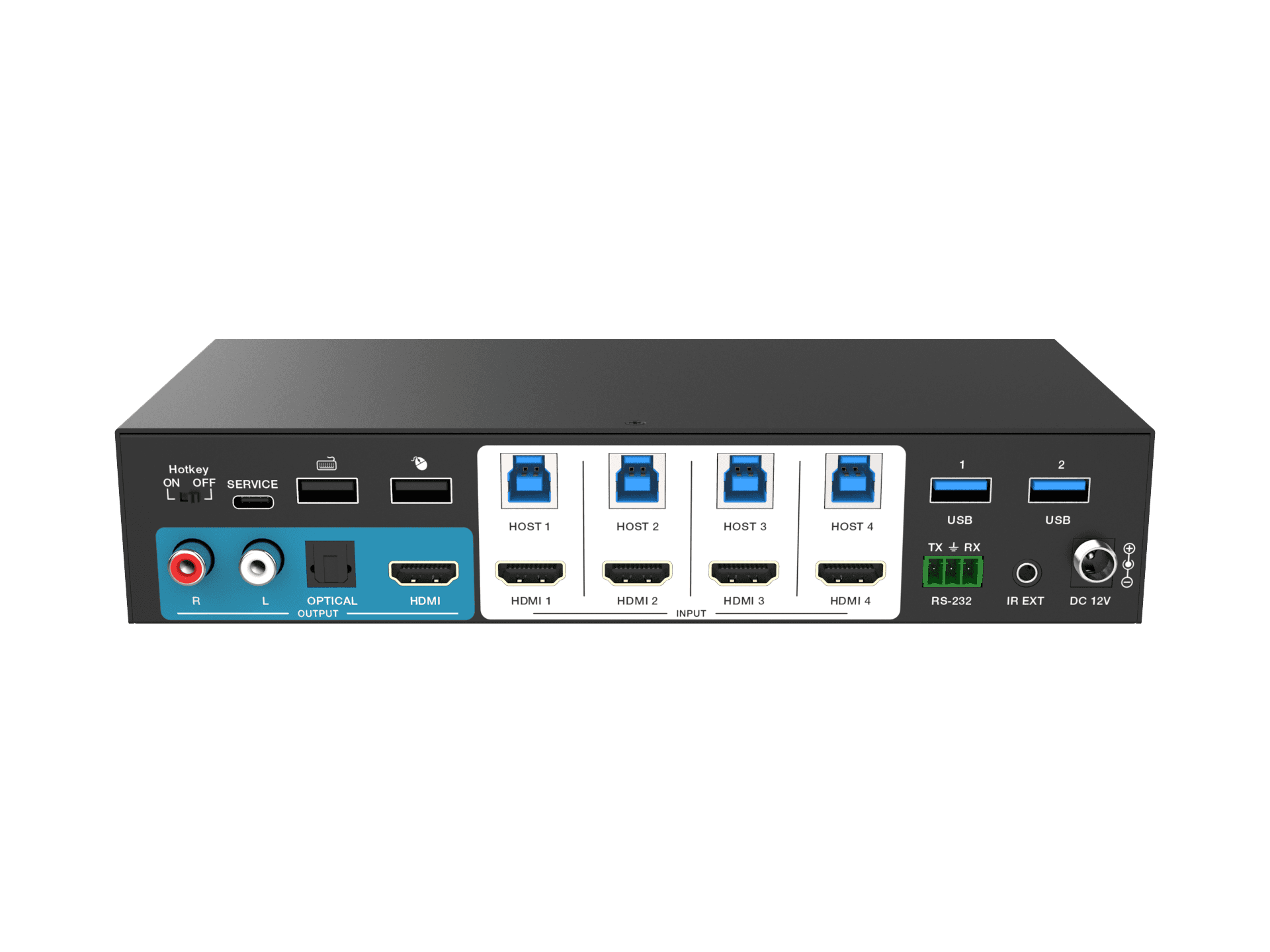

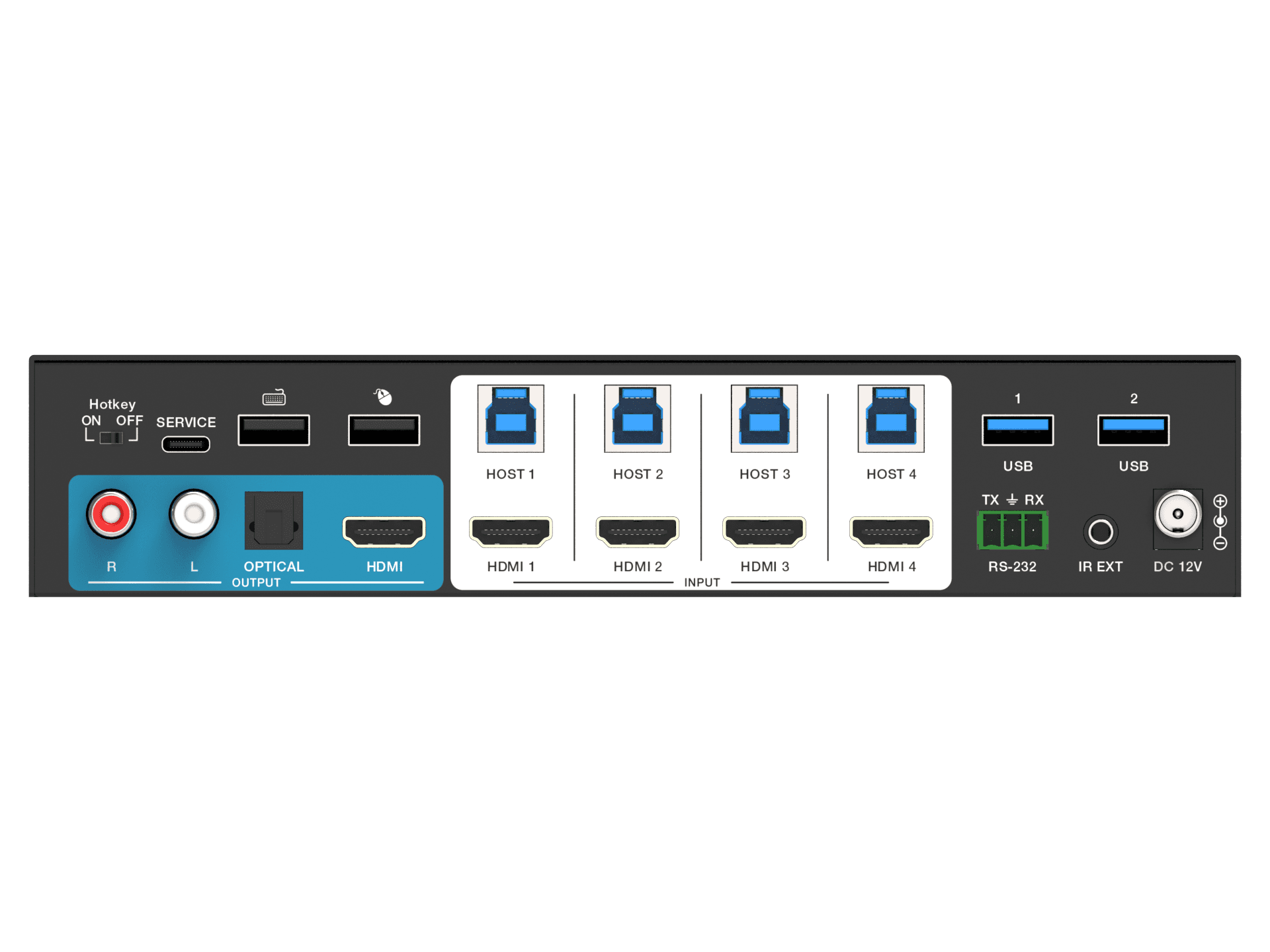

Rear view of a switch with 4 HDMI inputs, 2 USB ports, and audio/DC outputs.

NETVIO

MV-H2-0401-10

4x1 HDMI 2.0 presentation switcher with multiview

Video

Audio

Get Price

The Netvio MV-H2-0401-10 is a 4x1 HDMI 2.0 presentation switcher with built-in multiview. It accepts four 4K60 HDMI inputs, delivers them to one 4K HDMI display, and can simultaneously combine all four sources into a single quad-view, picture-in-picture or full-screen layout for boardrooms, classrooms and command-and-control walls.

Seamless 4K60 UHD Switching – HDMI 2.0b, 18Gbps bandwidth, HDR10, Dolby Vision, HLG.
Multiview Display Modes – 8 layouts including Single, PIP, PBP, Triple, Quad.
Network-Wide Multiview – Extends JP4 AVoIP systems with distributed multiview capability across the IP network.
Unified Control – Compatible with Netvio AppBuilder & NetvioGo, providing license-inclusive end-user access.
Pro AV Integration – Drivers available for Crestron and Q-Sys control ecosystems.
Flexible Audio Options – HDMI passthrough plus analog and optical de-embedding.
Multiple Control Paths – Front panel, IR, OSD, RS-232, AppBuilder, NetvioGo, Crestron, Q-SYS.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Seamless 4K60 UHD Switching	HDMI 2.0b, 18Gbps bandwidth, HDR10, Dolby Vision, HLG.
Multiview Display Modes	8 layouts including Single, PIP, PBP, Triple, Quad.
Network-Wide Multiview	Extends JP4 AVoIP systems with distributed multiview capability across the IP network.
Unified Control	Compatible with Netvio AppBuilder & NetvioGo, providing license-inclusive end-user access.
Pro AV Integration	Drivers available for Crestron and Q-Sys control ecosystems.
Flexible Audio Options	HDMI passthrough plus analog and optical de-embedding.
Multiple Control Paths	Front panel, IR, OSD, RS-232, AppBuilder, NetvioGo, Crestron, Q-SYS.
Rack Presentation	Dedicated 19″ rack mount kit included in the box.
Compliance	HDMI 2.0b, HDCP 2.2 / 1.x
Bandwidth	18Gbps uncompressed
Resolutions	Up to 3840×2160 @60Hz 4:4:4, 8/10/12-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Formats	HDR10, Dolby Vision, HLG
HDMI	LPCM 2.0 / 5.1 / 7.1, Dolby Digital, DTS
Analog	Stereo L/R (RCA) – PCM 2.0
Optical (S/PDIF)	Dolby Digital, DTS 5.1, PCM 2.0
Audio De-Embedding	Independent selection and volume control
Inputs	4× HDMI Type-A (female)
Output	1× HDMI Type-A (female)
Audio Outputs	1× L/R RCA, 1× Optical S/PDIF
USB	2× USB 2.0 Device, 3× USB 3.0 Device (shared with KVM)
Operating Temperature	0–40°C / 32–104°F
