Specs
CPU
Specification | Details |
|---|---|
Model | Rockchip RK3568B2 |
Cores | Quad-core ARM Cortex-A55 |
Frequency | 4 × Cortex-A55 up to 2.0GHz |
GPU / VPU / NPU
Specification | Details |
|---|---|
GPU | Mali-G52 1-Core-2EE |
GPU API support | OpenGL ES 1.1 / 2.0 / 3.2, Vulkan 1.0 / 1.1, OpenCL 2.0 Full Profile |
VPU decoding | 4K60 H.265 / H.264 / VP9 video decoder |
VPU encoding | 1080P60 H.264 / H.265 video encoder |
NPU | 0.8T support |
Memory & Storage
Specification | Details |
|---|---|
RAM | 2GB LPDDR4X |
MicroSD | 1 × MicroSD slot, supports UHS-I |
Flash storage | 32GB eMMC |

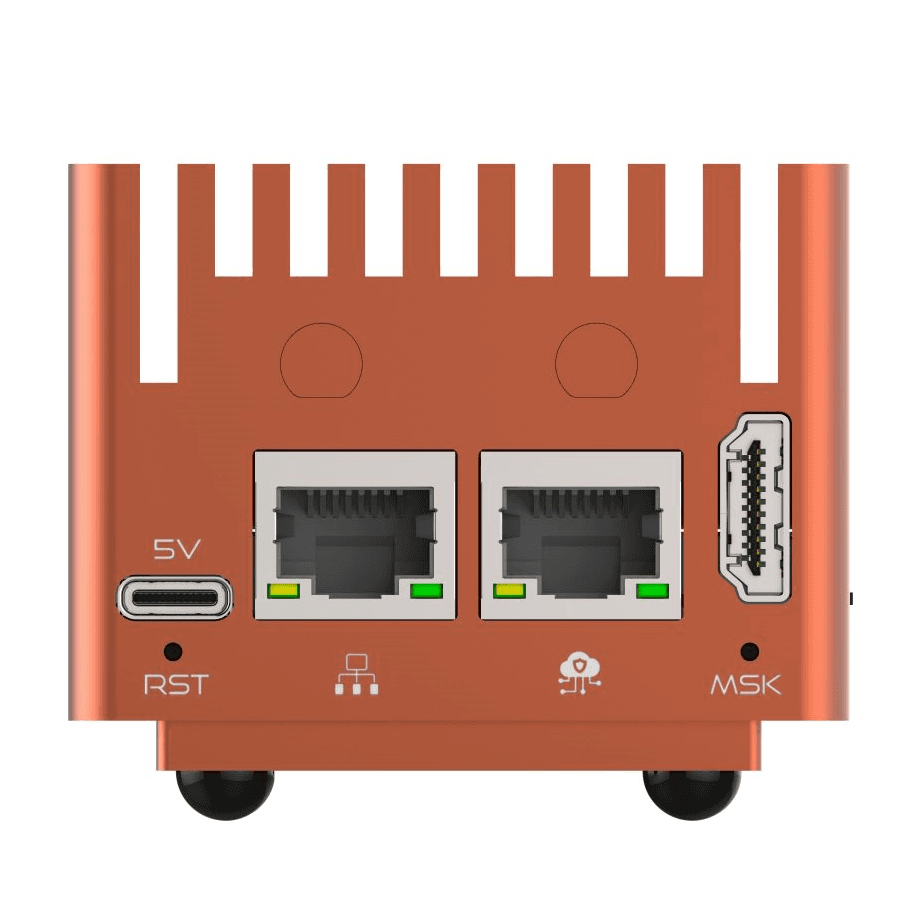

Connectivity
Specification | Details |
|---|---|
Ethernet | 2 × PCIe 2.5G Ethernet |
Ethernet chip | RTL8125BG |
M.2 E-Key | 1 × M.2 E-Key |
M.2 interface | PCIe 2.1 ×1, USB 2.0 ×1 |
Video Output
Specification | Details |
|---|---|
HDMI | Supports HDMI 1.4 and HDMI 2.0 operation |
Deep Color | Supports up to 10-bit Deep Color modes |
Maximum output | Up to 1080p @ 120Hz and 4096 × 2304 @ 60Hz |
3D video | Supported |
USB
Specification | Details |
|---|---|
USB 3.0 Host | 2 × USB 3.2 Gen 1 Type-A |
USB-C | 1 × USB-C, power only / 5V |
Pin Header
Specification | Details |
|---|---|
Debug UART | 1 × 3-pin 2.54mm header |
UART level | 3.3V |
UART speed | 1,500,000bps |
LEDs
LED | Details |
|---|---|
SYS LED | 1 × red |
WAN LED | 1 × green |
LAN1 LED | 1 × green |
LAN2 LED | 1 × green |
Button
Specification | Details |
|---|---|
MASK button | 1 × button |
Other
Specification | Details |
|---|---|
RTC battery connector | 2-pin 1.27 / 1.25mm RTC battery input connector |
RTC IC | HYM8563TS low-power RTC IC |
Working temperature | 0°C to 70°C |
Power
Specification | Details |
|---|---|
Power input | USB-C, 5V |
A unified control platform designed to simplify automation across devices and systems
