Specs

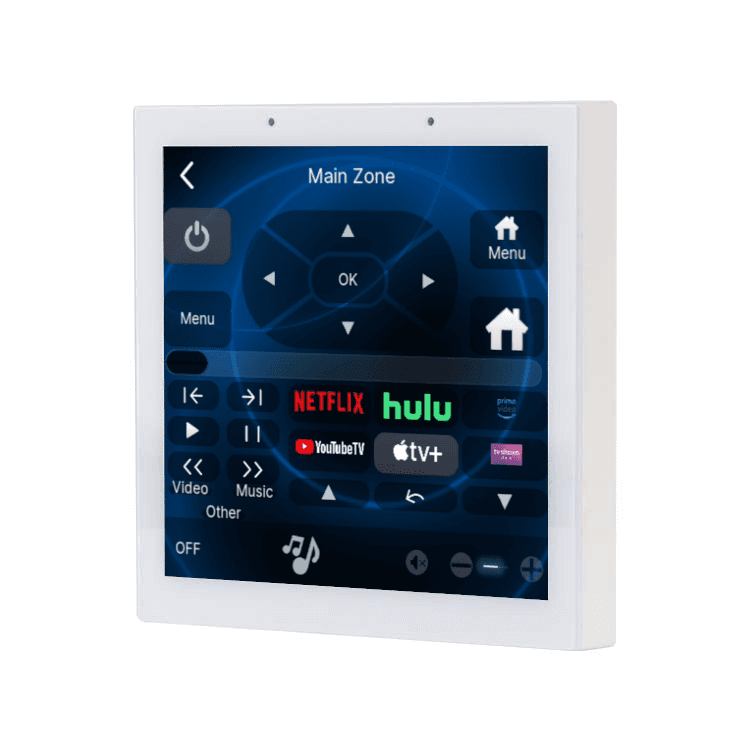

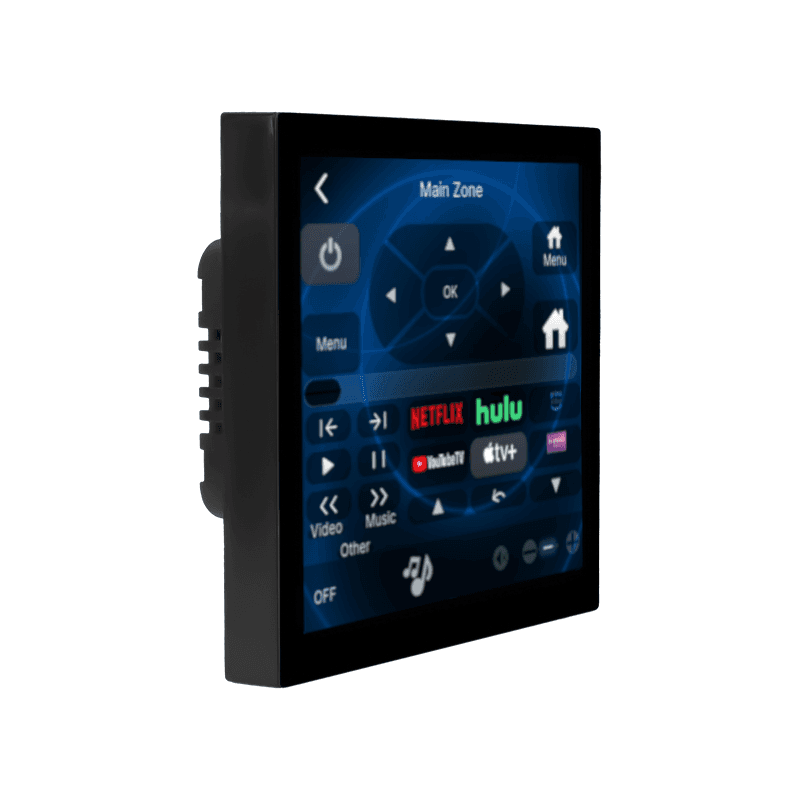

Say hello to the impressive new 4 Inch Touch Panel designed for Nice, Control 4, Lutron, or Rako systems. This touch panel seamlessly connects to the control systems controller and boasts support for most, if not all, app functionalities.
It’s not just elegant, but also highly responsive, designed by installers for installers. Whether you prefer power over Ethernet (POE) or AC, this panel has you covered, featuring a built-in dual microphone and speaker, along with an ambient light sensor. It’s even capable of functioning as an intercom, making it ideal for small areas, bedrooms, entrances, or any space that requires a compact screen.
Rest assured, this top-notch device is curated, customized, imported, sold, shipped, and fully supported by Innovo, offering a unique and specialized experience. It’s important to note that this exceptional product is not manufactured by the Nice, Control 4, Lutron or Rako corporation.
Dimensions | 86mm*86mm*37mm |
Display Size | 4 Inch |
CPU | Quad Core A55, 1.8Ghz |
Resolution | 480*480 |
Touch Panel | 5 Points Capacitive Touch Panel, IPS |
Network | |
WiFi | 802.11b/g/n |
Ethernet | 10M/100M with POE |
I/O Ports | |
RJ45 | 10M/100M with POE |
RS485 | 2 Pin |
Features | |
Microphone | Dual Mic Built In |
Speaker | Built in 1W |
Light Sensor | Yes |
Cooling | Fanless Air-Cooled |
Supported Media | |
Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
Audio | MP3 / WMA / WAV / AAC / FLAC / OGG |
Details | |
Camera | No |
Battery | No |

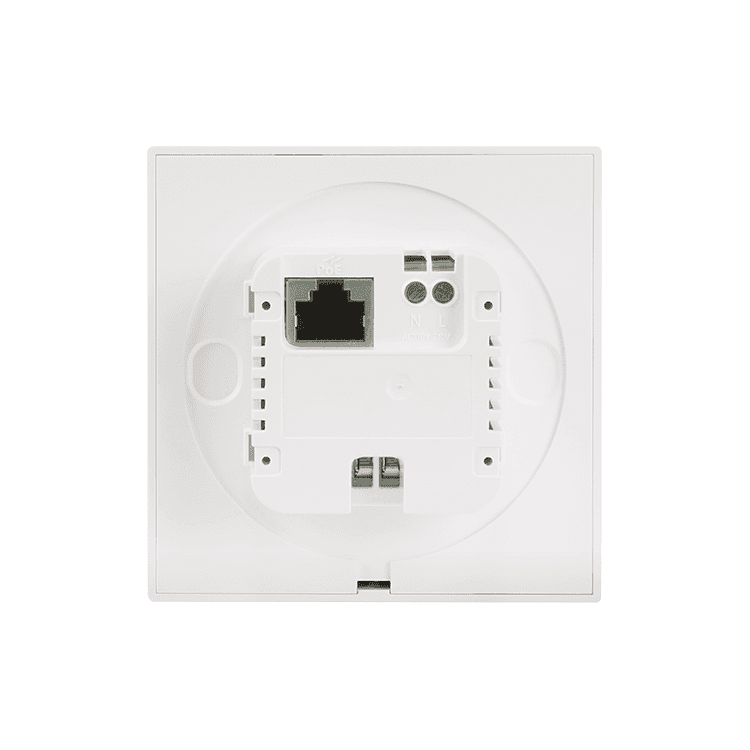

Mount | In Wall with T86 Box |
Power | POE IEEE 802.3af or Better |
Working Temp | 5 – 70 C |
Color | Black |
Supported Features | |
Intercom | Yes |
Video Conference | No |
Warranty | 1 Year |
Viewer Tabs | All Elan Tabs Supported (Viewer license required) |
