IP-SW-N1-24P-10 - Galtech Trading

Video Distribution

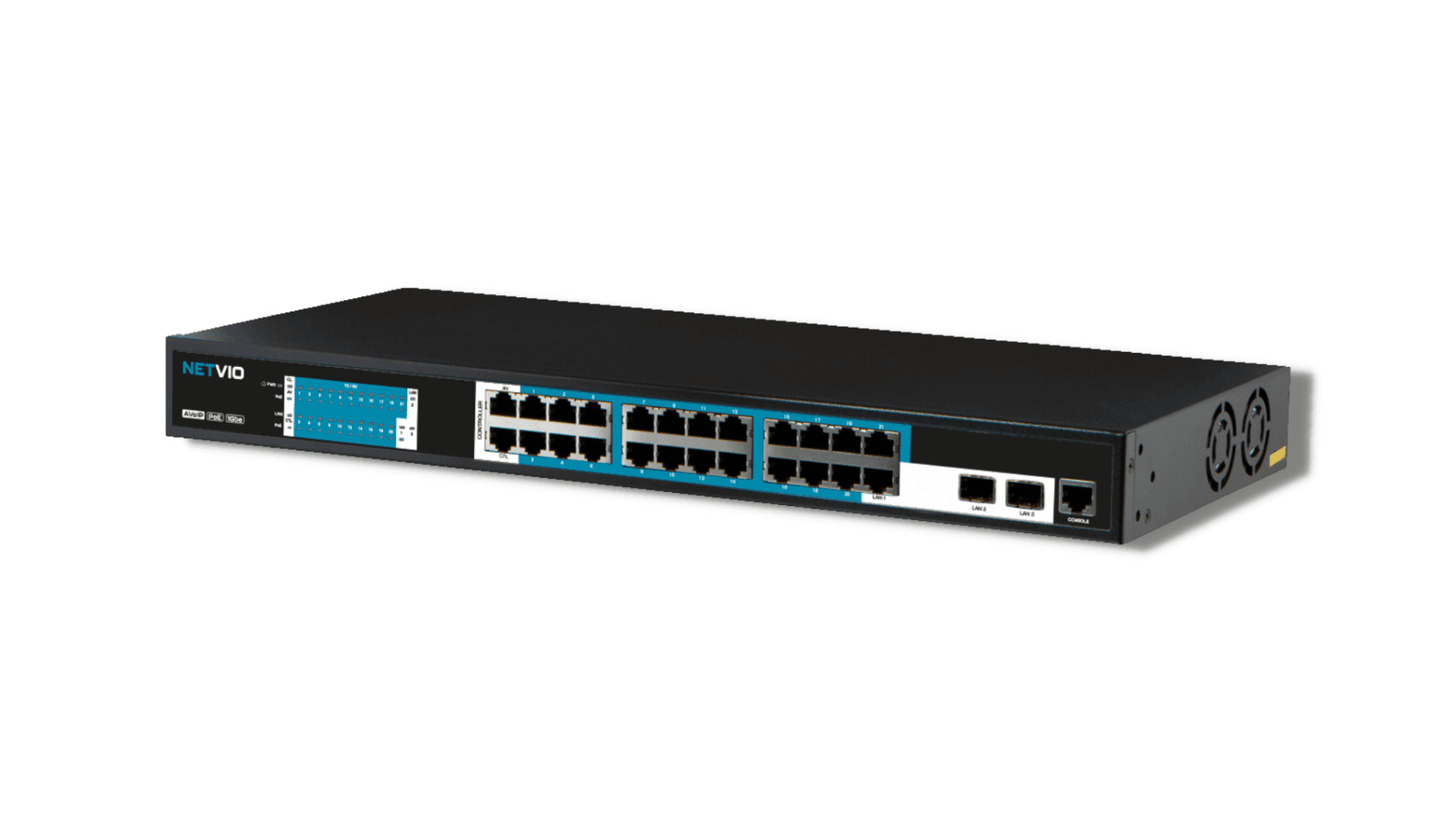

NETVIO rackmount device with LED indicators and console port

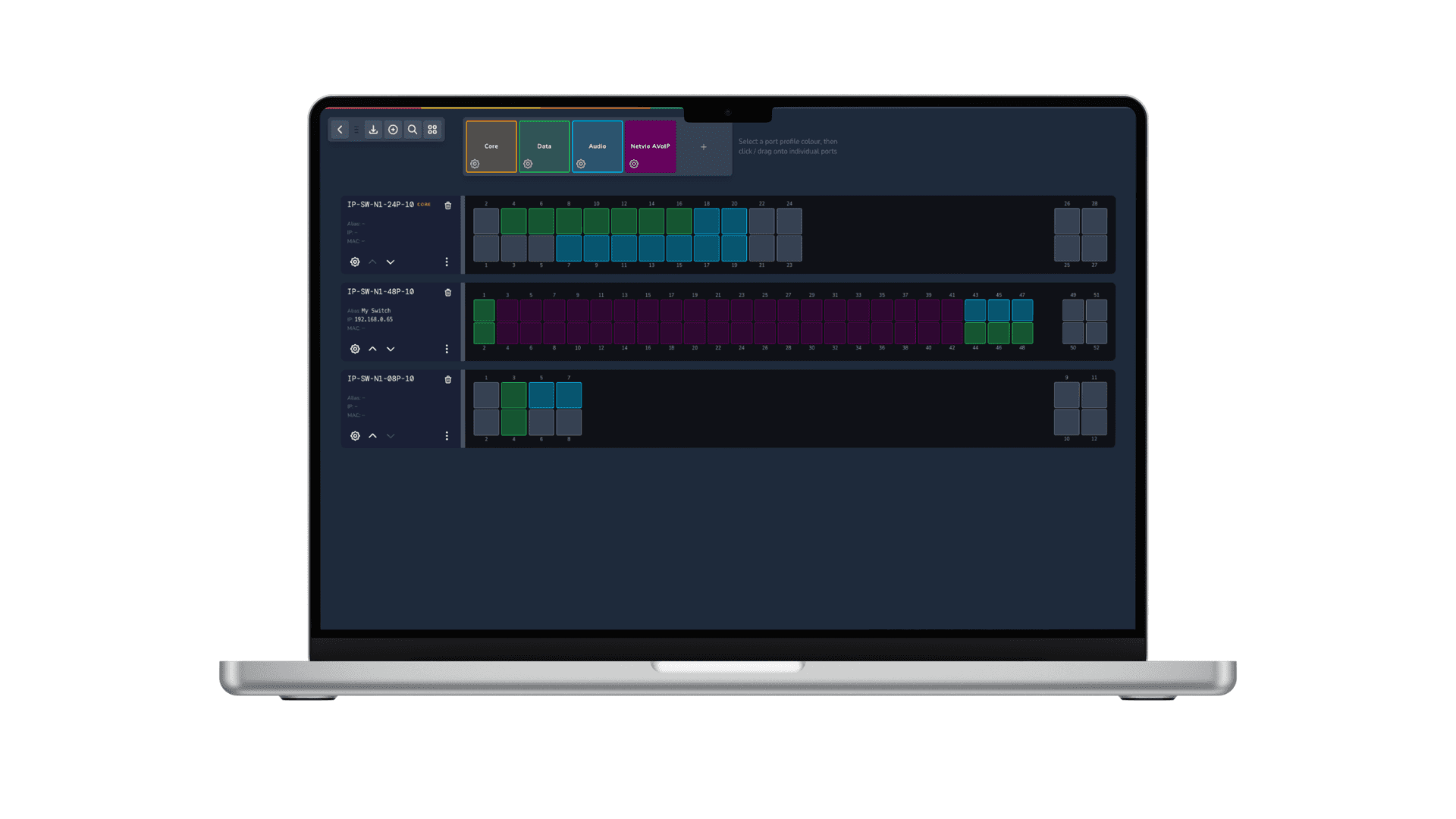

Network switch port assignment interface

NETVIO

IP-SW-N1-24P-10

24-port Netvio N1 managed AV PoE+ switch

Video

Get Price

The Netvio IP-SW-N1-24P-10 is a 24-port managed Gigabit PoE+ AV switch in the new N1 series. Like the rest of the Netvio range it is pre-configured for AV-over-IP traffic, supports JP4 encoders and decoders, and removes the need for IT-grade switch configuration from the installer's workflow.

Factory Pre-Configured — Ready for Netvio JP4 encoders, decoders, and controllers with zero IT programming.
High PoE Power — 450 W PoE budget sufficient for all connected JP4 devices.
Dedicated Controller Ports — Optimized for Netvio IP-JP4-CL-10 central controller integration.
Rackmount Form Factor — Professional 1U chassis designed for 24/7 reliability.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Model	IP-SW-24P-10
Type	24-Port Managed Gigabit PoE+ Switch
Use Case	Netvio JP4 AV-over-IP deployments up to 21 endpoints
Switching Capacity	≥56 Gbps
Forwarding Rate	Wire-speed, non-blocking architecture
PoE Standard	IEEE 802.3af/at (PoE+)
PoE Budget	~450W total (typical)
Certifications	CE, UKCA, FCC, RoHS
Form Factor	19” Rack Mount (1U)
