EX-USB3-100-10 - Galtech Trading

Extender

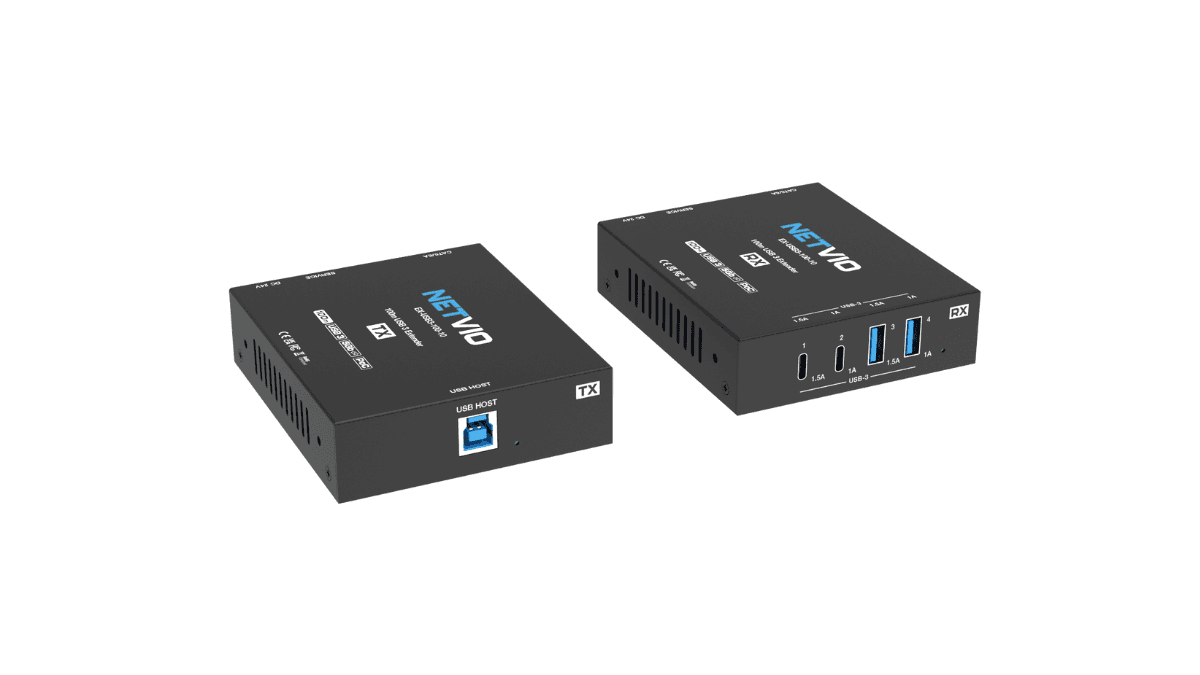

NETVIO USB 3.0 extender units (TX and RX)

NETVIO

EX-USB3-100-10

USB 3.2 Gen 1 (5 Gbps) extender over fibre (100m)

Video

Get Price

The Netvio EX-USB3-100-10 is a USB 3.2 Gen 1 (5 Gbps) extender that reaches up to 100 m over fibre. It is designed for high-bandwidth USB peripherals - 4K webcams, document cameras, capture devices, mass storage and KVM stations - where the host and the peripheral need to live on opposite sides of a building.

USB 3.2 Gen 1 SuperSpeed Extension – Delivers full 5 Gbps USB performance up to 100 m (331 ft) over Cat6, Cat6aA (70 m over Cat6).
Plug & Play Simplicity – No drivers or software required; hardware acceleration ensures stable performance across Windows, macOS, and Linux.
Flexible Power Options – Dual-mode PoC design allows power from either the transmitter (TX) or receiver (RX) with the included 24 V / 2 A PSU.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
USB 3.2 Gen 1 SuperSpeed Extension	Delivers full 5 Gbps USB performance up to 100 m (331 ft) over Cat6, Cat6aA (70 m over Cat6).
Plug & Play Simplicity	No drivers or software required; hardware acceleration ensures stable performance across Windows, macOS, and Linux.
Flexible Power Options	Dual-mode PoC design allows power from either the transmitter (TX) or receiver (RX) with the included 24 V / 2 A PSU.

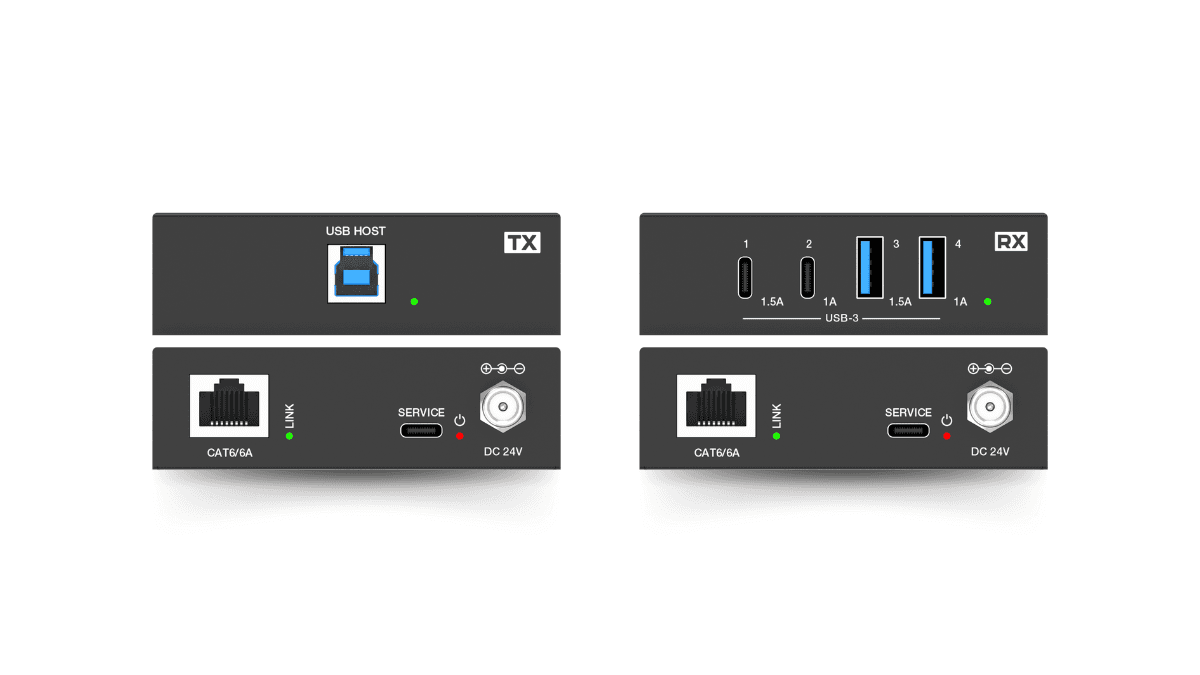

Versatile USB Connectivity	Receiver provides 2 × USB-A and 2 × USB-C ports, each with dedicated 1.0 A & 1.5 A power outputs for peripherals and charging.
Durable, Professional Design	Compact metal enclosure built for reliability in residential, commercial, and IT environments.
Universal Applications	Ideal for video conferencing, PTZ cameras, interactive classrooms, digital signage, storage expansion, and professional AV systems.
Broad Compatibility	Fully backwards compatible with USB 3.1, 3.0, 2.0, and 1.1 devices, supporting a wide range of peripherals.
Distance	up to 100 m (331 ft) over Cat6A
Input	100–240 V AC, 50/60 Hz
Output	24 V DC / 2 A (PSU included)
Dual-Mode PoC	power from either TX or RX
Power consumption	up to 40 W
