EX-TS-USB-70-10 - Galtech Trading

Extender

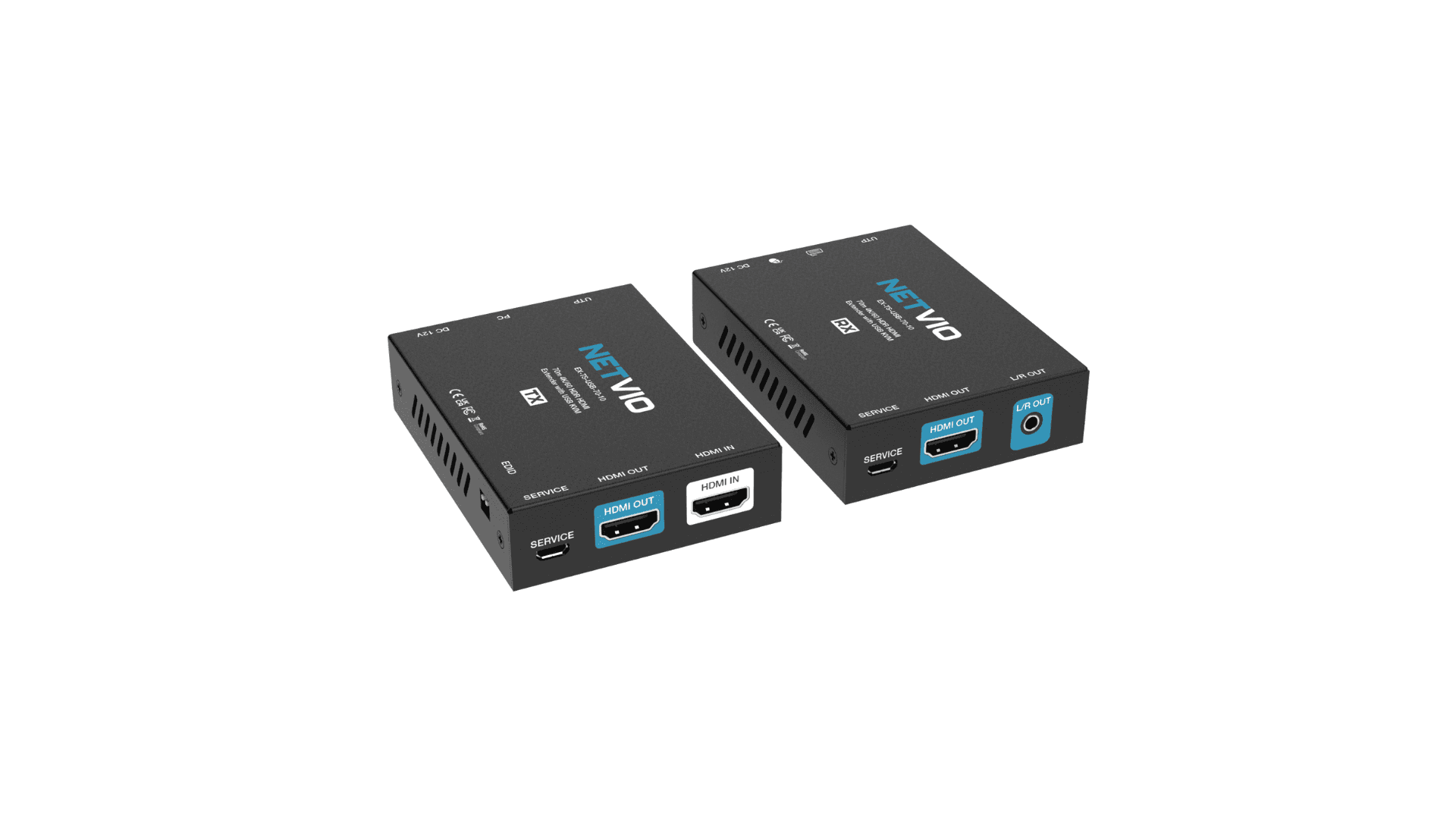

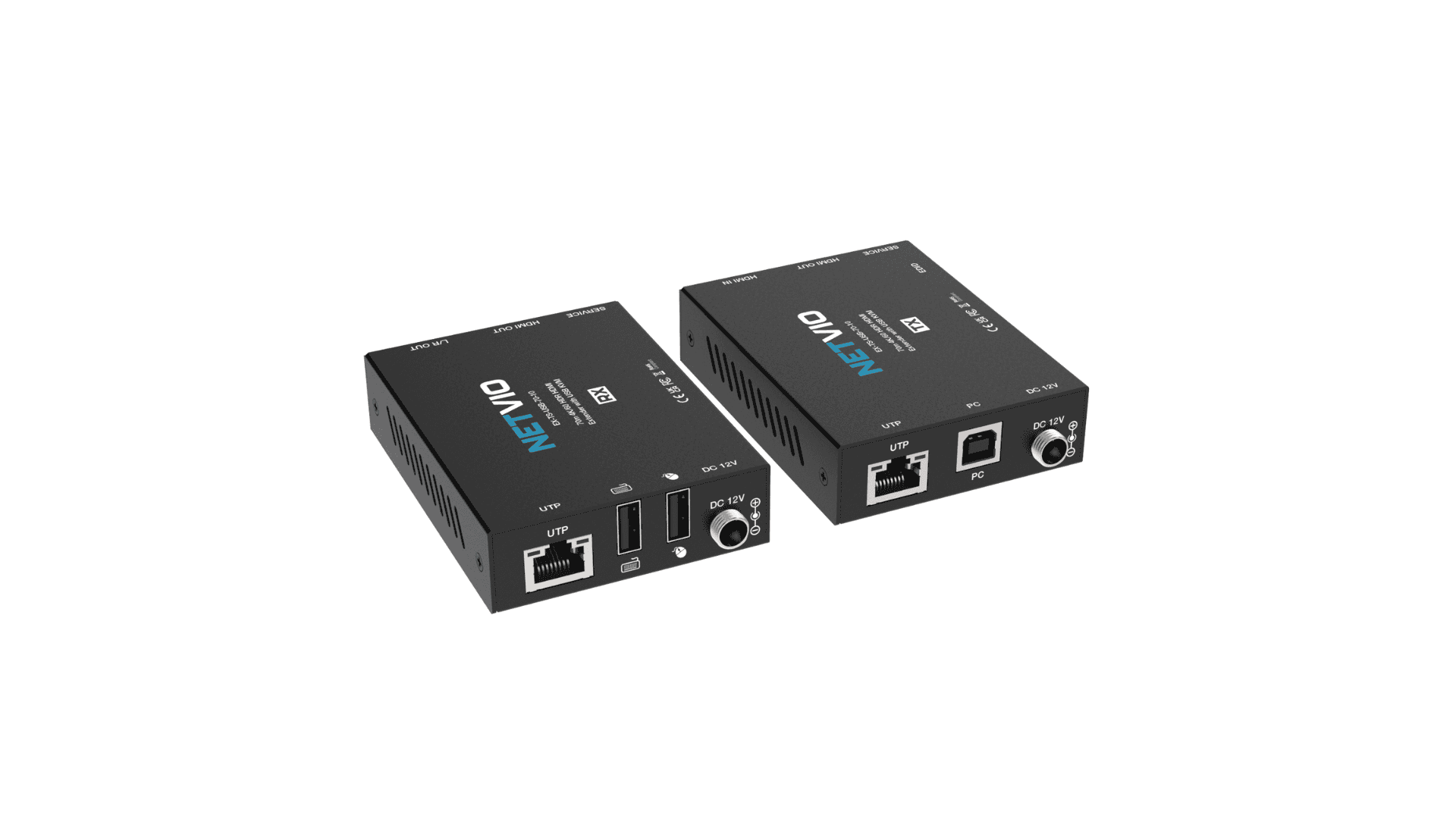

Two black NETVIO HDMI extenders with UTP and USB ports.

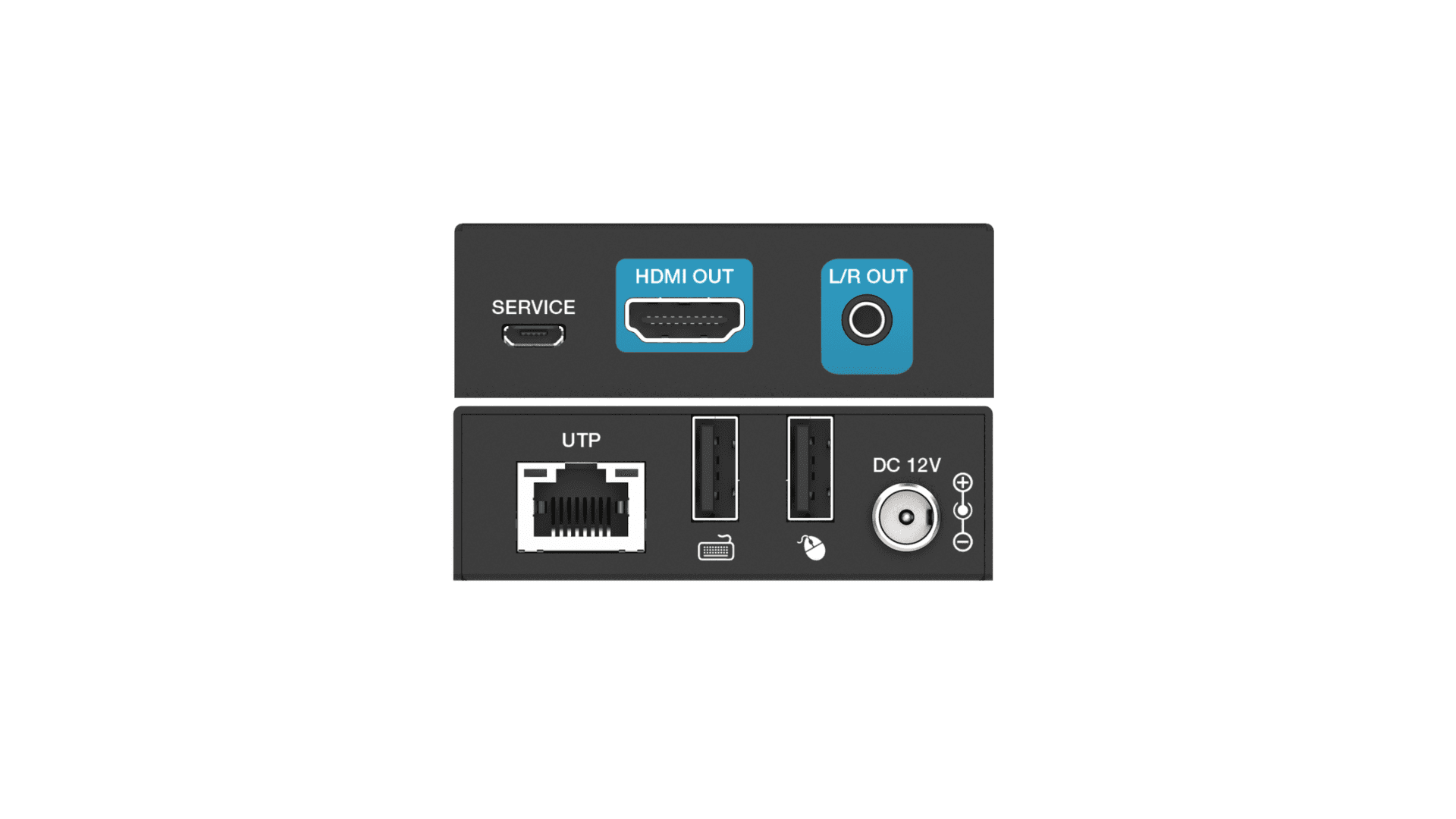

Rear panel of an extender: UTP, HDMI out, L/R out, DC 12V

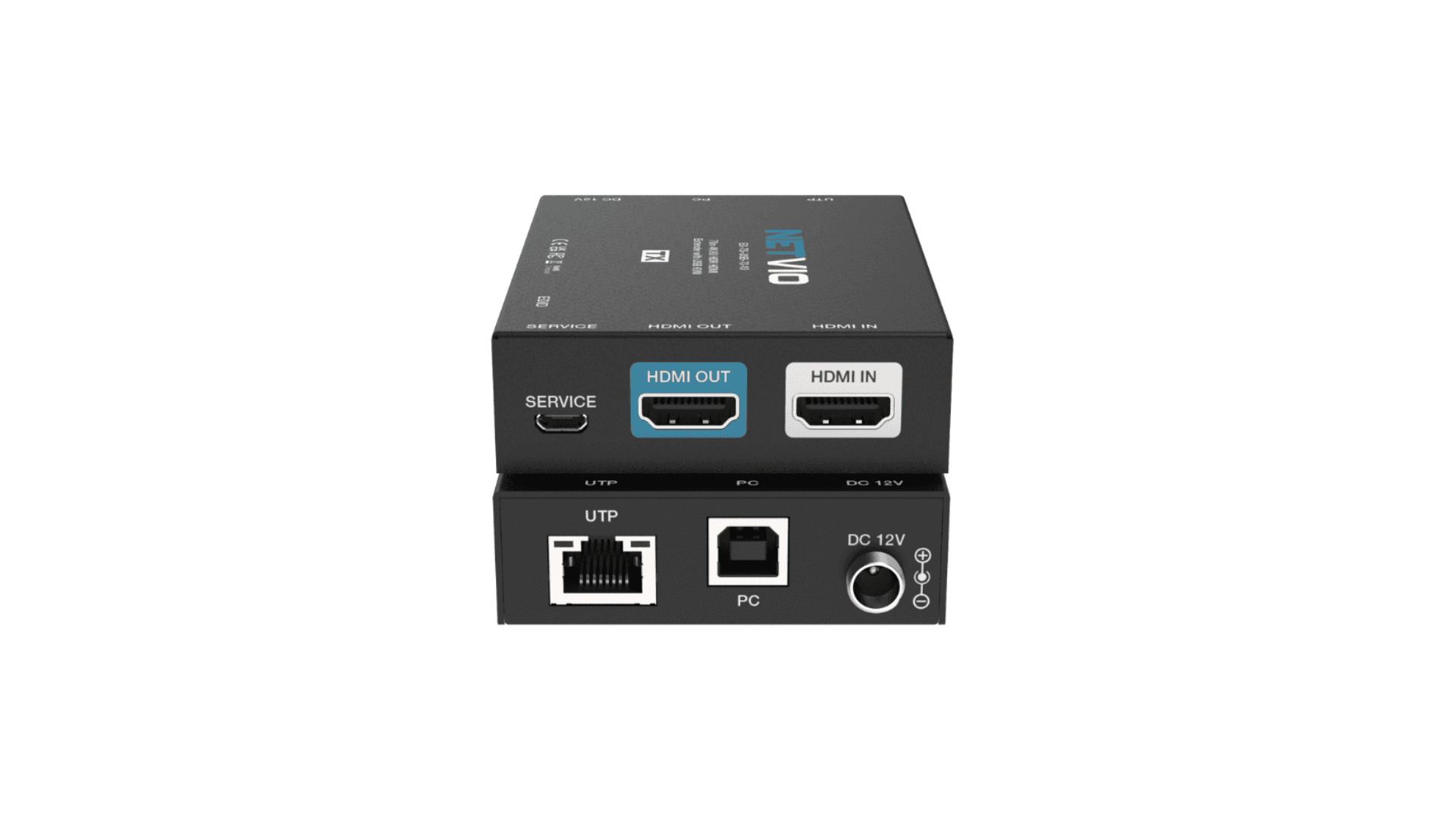

Two black AV signal converters with ports

NETVIO

EX-TS-USB-70-10

4K60 HDMI + USB extender (70m)

Video

Audio

Get Price

The Netvio EX-TS-USB-70-10 USB extender enables high-performance peripheral connectivity over long distances using CAT cabling. Ideal for professional AV installations, it supports USB devices like webcams, interactive displays and conferencing gear. Seamless, reliable and installation-ready.

True 4K performance – Up to 4K60 4:4:4 (18 Gbps) with HDR10/Dolby Vision/HLG pass-through.
USB KVM extension – USB 1.1 keyboard/mouse control at the display, host USB-B at the TX.
Local preview – HDMI loop-out on the transmitter for a secondary monitor.
Audio break-out – 3.5 mm L/R analog de-embed at the RX for amps or powered speakers.
PoC convenience – Bi-directional Power over Cable; power either end with the included 12 V PSU.
EDID made simple – DIP presets (4K60 2.0ch / 1080p 2.0ch) + copy modes for rock-solid handshakes.
Installer-friendly – Compact metal housings, status LEDs, plug-and-play—no drivers required.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
True 4K performance	Up to 4K60 4:4:4 (18 Gbps) with HDR10/Dolby Vision/HLG pass-through.
USB KVM extension	USB 1.1 keyboard/mouse control at the display, host USB-B at the TX.
Local preview	HDMI loop-out on the transmitter for a secondary monitor.
Audio break-out	3.5 mm L/R analog de-embed at the RX for amps or powered speakers.
PoC convenience	Bi-directional Power over Cable; power either end with the included 12 V PSU.
EDID made simple	DIP presets (4K60 2.0ch / 1080p 2.0ch) + copy modes for rock-solid handshakes.
Installer-friendly	Compact metal housings, status LEDs, plug-and-play—no drivers required.
Compliance	HDMI 2.0b
Max Bandwidth	18Gbps
Max Resolution	4K@60Hz (3840×2160) RGB/YCBCR 4:4:4
Supported Formats	4:4:4, 4:2:2, 4:2:0
Color Depth	8/10/12-bit
HDR Support	HDR, HDR10, HDR10+, Dolby Vision, HLG
HDCP Compliance	HDCP 2.2
Analog Audio Output	3.5mm stereo (Receiver unit, de-embedded).
Cable Type	CAT6/6a
Power-over-Cable	Bi-directional POC (only one unit requires power)
Dimensions (TX/RX)	90mm (W) × 68mm (D) × 22mm (H)
Weight	TX: 170g / RX: 169g
Housing	Metal, black finish
Operating Temp	0°C ~ 40°C (32°F ~ 104°F)
