EX-TS-400-10 - Galtech Trading

Extender

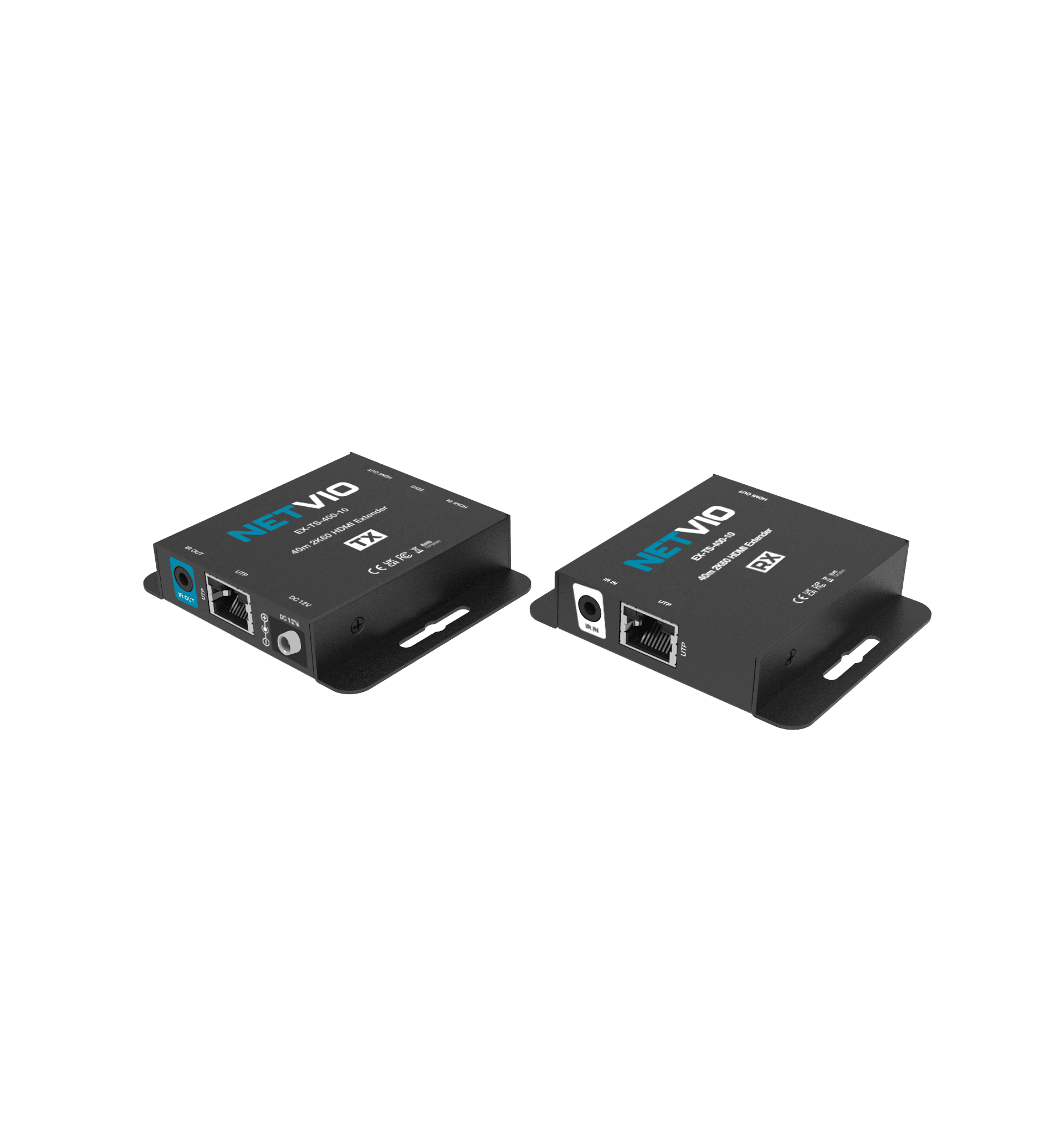

Two black Netvio HDMI extenders on white background.

NETVIO

EX-TS-400-10

4K60 HDMI over TPS extender set

Video

Get Price

The Netvio EX-TS-400-10 is a value-entry HDMI extender set designed for 1080p (2K/60 8b) transmission up to 40 m over Cat5e/6 cabling. Features loop-out HDMI, IR control and Power-over-Cable (PoC) for cost-effective professional AV deployments.

Long-Distance HDMI Extension – Extend 1080p60 up to 40m (131ft) over a single CAT6 cable.
HDMI Loop Output – Local monitoring or cascading to additional extender kits.
IR Control – One-way IR pass-through for remote source control.
EDID Copy Function – Local or remote EDID selection for compatibility.
PoC Powering – Single 12V supply powers both units for simplified installation.
Compact & Reliable – Slim metal enclosures built for long-term professional use.
Inputs / Outputs – Transmitter

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Long-Distance HDMI Extension	Extend 1080p60 up to 40m (131ft) over a single CAT6 cable.
HDMI Loop Output	Local monitoring or cascading to additional extender kits.
IR Control	One-way IR pass-through for remote source control.
EDID Copy Function	Local or remote EDID selection for compatibility.
PoC Powering	Single 12V supply powers both units for simplified installation.
Compact & Reliable	Slim metal enclosures built for long-term professional use.
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2Gbps
Supported Resolutions	Up to 1080p@60Hz
Transmission Distance	Up to 40m (131ft) at 1080p60 via CAT6
Audio Support	Up to 7.1CH HD audio, Dolby TrueHD, DTS-HD
Inputs / Outputs	Transmitter
Dimensions	79.5 × 69 × 16.5 mm (3.13″ × 2.71″ × 0.65″)
Weight	Transmitter 132g (0.29 lbs), Receiver 130g (0.28 lbs)
Enclosure	Metal, black finish
