Extender

HDBaseT IN, HDMI OUT, USB ports, IR IN/OUT, RS232, DC 24V

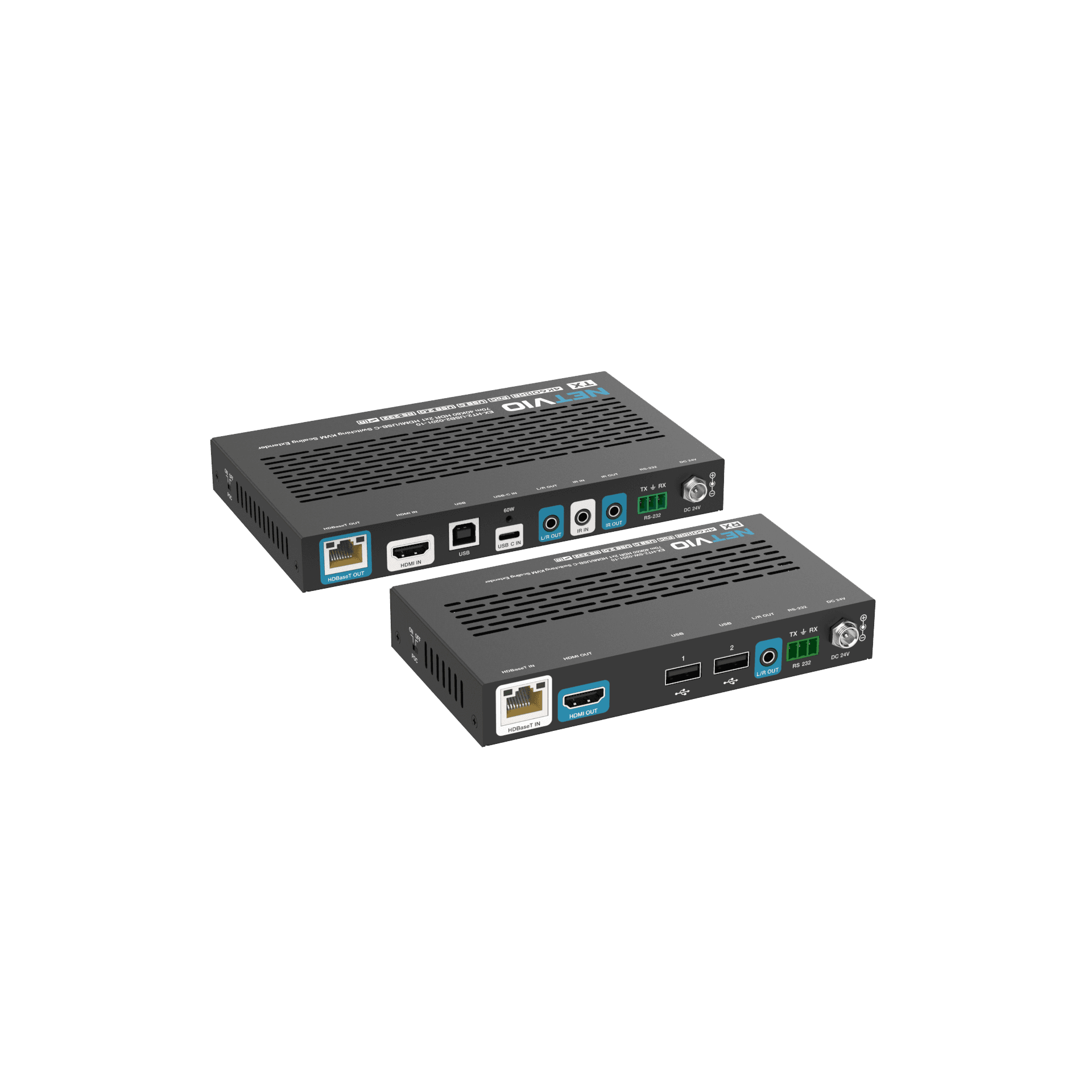

NETVIO 4K HDMI/USB-C KVM Extenders

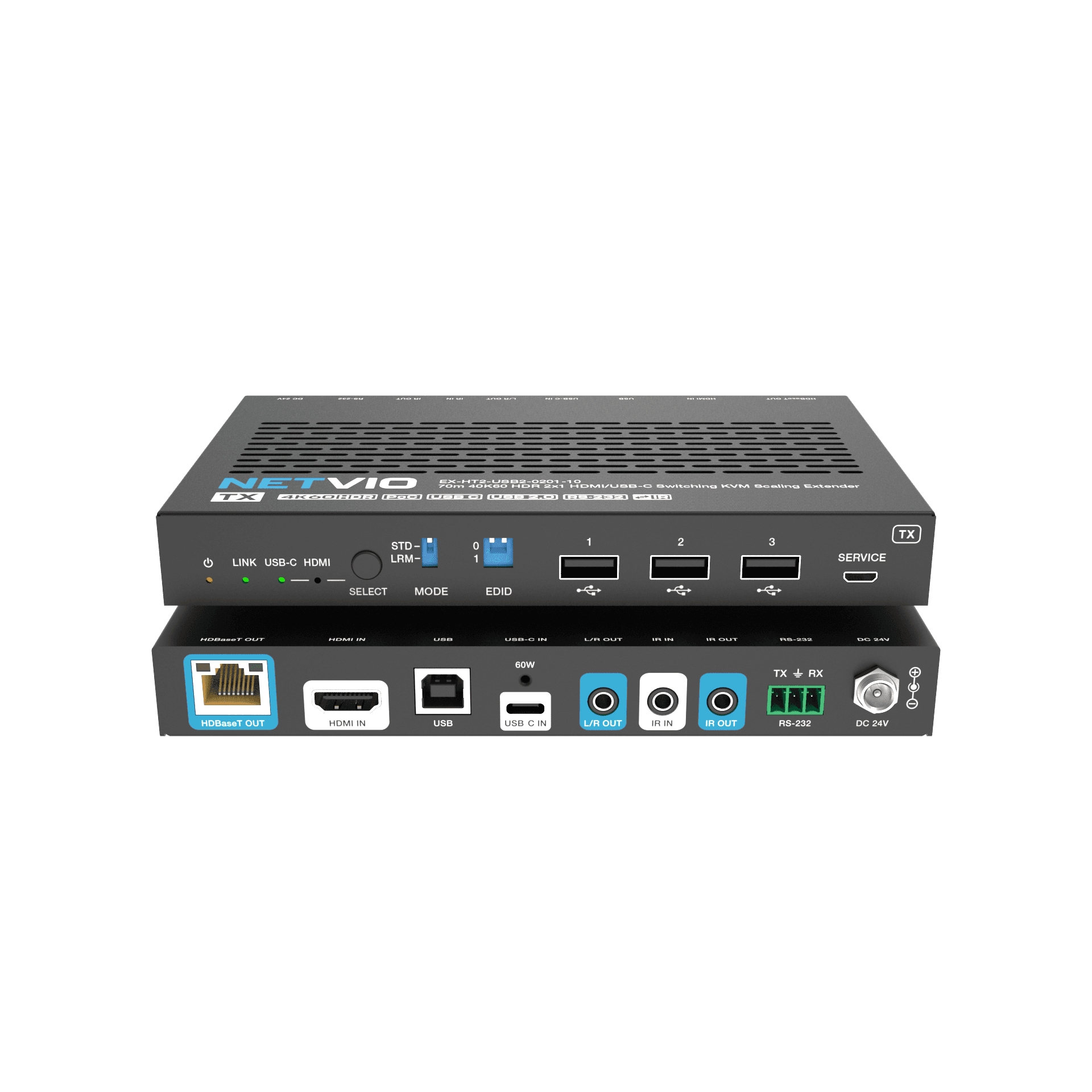

NETVIO TX 4K60HDR 2x1 HDMI/USB-C KVM extender
NETVIO 4K HDMI/USB-C KVM Extenders
NETVIO TX 4K60HDR 2x1 HDMI/USB-C KVM extender

EX-HT2-USB2-0201-10

2x1 4K60 HDBaseT KVM/USB extender

Video

Audio

The Netvio EX-HT2-USB-0201-10 is a compact HDMI/USB-C integrated switching extender delivering 4K60 video and USB peripheral connectivity over CAT cable. Designed for meeting rooms, boardrooms and modern AV setups, it simplifies AV content and device sharing with professional-grade control.

  • Flexible inputs – Switch between HDMI or USB-C at the transmitter for maximum BYOD compatibility.

  • Uncompressed 4K60 4:4:4 video – HDMI 2.0b with HDR10, Dolby Vision, and HLG pass-through.

  • USB 2.0 KVM extension – Supports webcams, touch panels, storage devices, keyboards, and mice.

  • Audio de-embedding – Analog L/R audio output for tie-in to amplifiers or PA systems.

  • Control pass-through – Bi-directional IR and RS-232 for integration with control systems.

  • PoC simplicity – Power from either transmitter or receiver using the included PSU.

  • Installer-friendly – Plug-and-play design with EDID management and compact metal housings.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Detail

Flexible inputs

Switch between HDMI or USB-C at the transmitter for maximum BYOD compatibility.

USB 2.0 KVM extension

Supports webcams, touch panels, storage devices, keyboards, and mice.

Audio de-embedding

Analog L/R audio output for tie-in to amplifiers or PA systems.

Control pass-through

Bi-directional IR and RS-232 for integration with control systems.

PoC simplicity

Power from either transmitter or receiver using the included PSU.

Installer-friendly

Plug-and-play design with EDID management and compact metal housings.

Max Resolution

4K@60Hz 4:4:4 (HDMI 2.0b, 18Gbps)

HDR Support

HDR10, HDR10+, Dolby Vision, HLG

Audio (HDMI/USB-C/HDBT)

LPCM 2/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DSD

Analog Audio Output

LPCM 2CH (3.5mm stereo)

Standard Mode

Up to 100m (328ft) — 4K60/4K30/1080p

Long Reach Mode

Up to 150m (492ft) — 1080p 8-bit

HDMI Cable Limits

4K60 — 12m (39ft), 4K24 — 15m (50ft)

TX

1x USB Host (Type-B), 3x USB Device (Type-A, 500mA each)

RX

2x USB Device (Type-A, 1000mA each).
