EX-HT2-701-10 - Galtech Trading

Extender

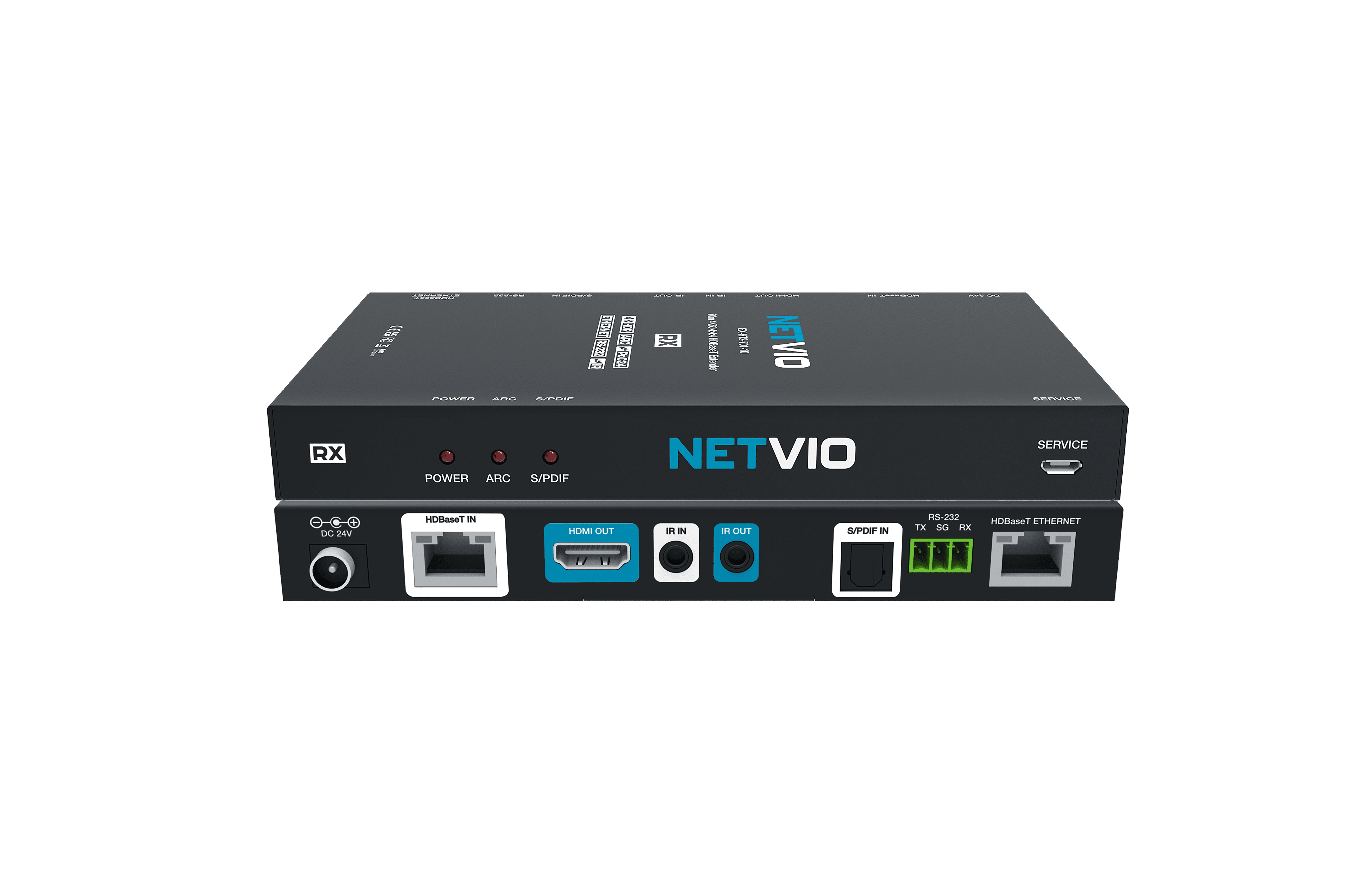

NETVIO HDBaseT RX extender with various ports

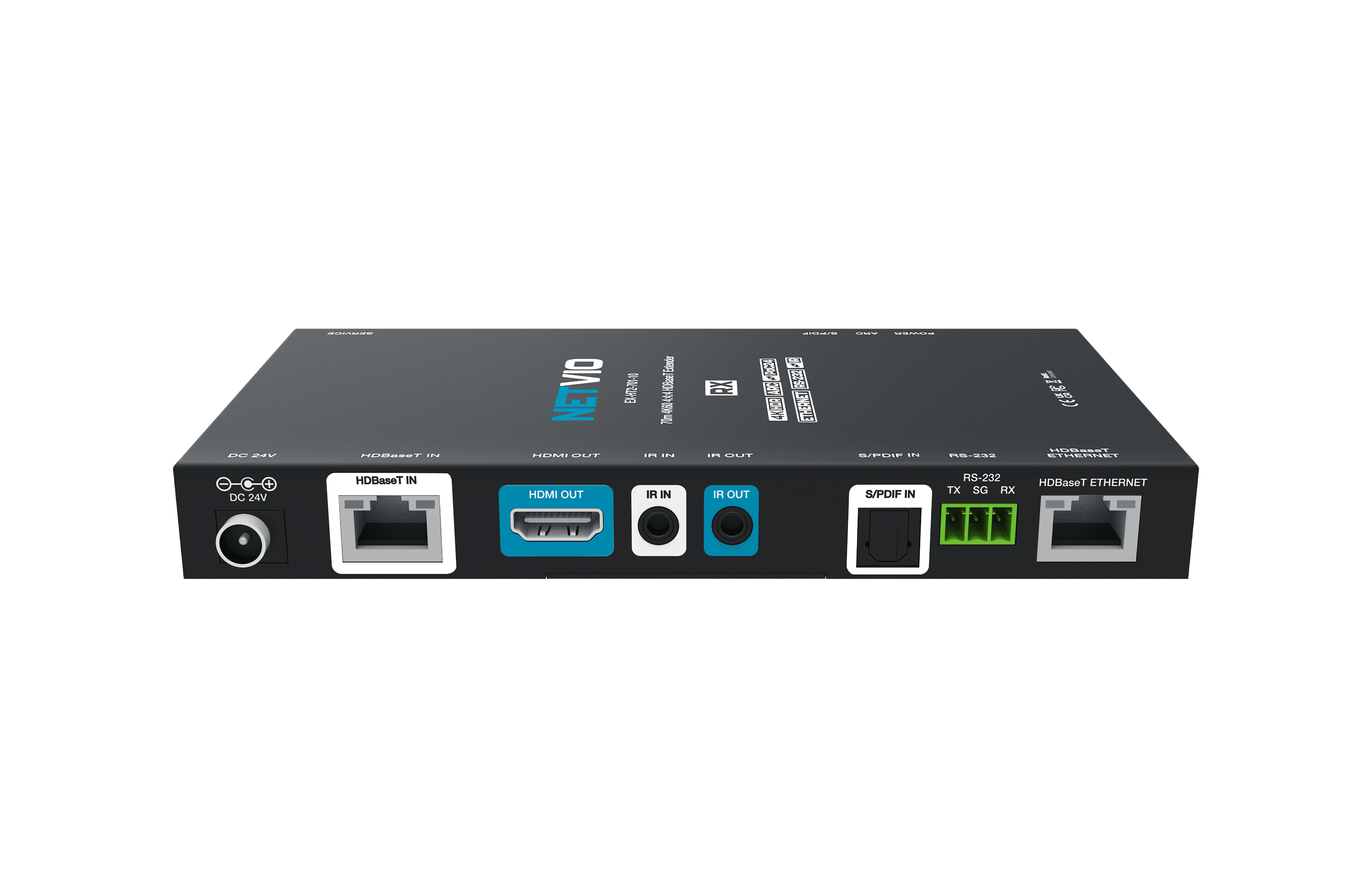

Black box device with HDMI, HDBaseT, IR, S/PDIF, RS-232 ports

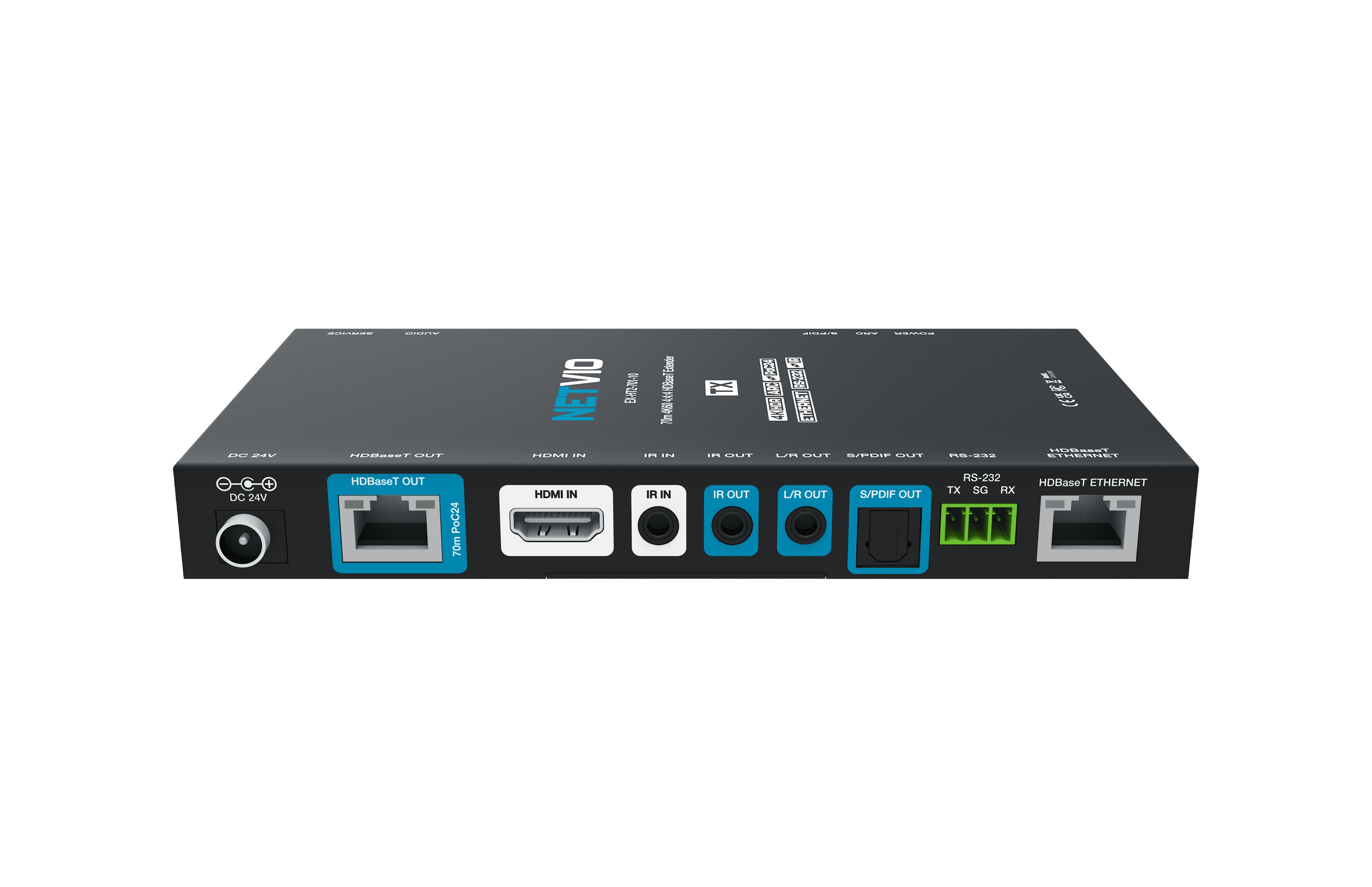

HDBaseT Extender with HDMI, IR, S/PDIF, Ethernet, RS-232 ports

NETVIO

EX-HT2-701-10

4K60 4:4:4 HDBaseT extender with ARC and Ethernet

Video

Audio

Get Price

The Netvio EX-HT2-701-10 is a long-reach HDBaseT extender set supporting 4K60 4:4:4 HDR over a single Cat6/6a cable, with Ethernet, ARC, PoC and bi-directional IR/RS-232 control. It is designed for residential and commercial AV runs where a full feature set and a single cable are critical.

PoC (Power over Cable) — one power supply for both units
Operating Temperature: 0–40°C / 32–104°F
Storage Temperature: –20–60°C / –4–140°F
Humidity: 20–90% RH (non-condensing)

18Gbps bandwidth, resolutions up to 4K@60Hz 4:4:4 with HDR10+, Dolby Vision & HLG

ARC (Audio Return Channel) with selectable SPDIF or L/R analog output

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Wide audio format support	LPCM, Dolby, DTS, DTS:X
Dimensions	(W×D×H): 163 × 90 × 16 mm (6.42" × 3.54" × 0.63")
Weight	TX 170 g (0.37 lbs), RX 165 g (0.36 lbs)
Operating Temperature	0–40°C / 32–104°F
Storage Temperature	–20–60°C / –4–140°F
Humidity	20–90% RH (non-condensing)
ESD Protection	±8kV air, ±4kV contact
