EX-EARC-100-10

Extender

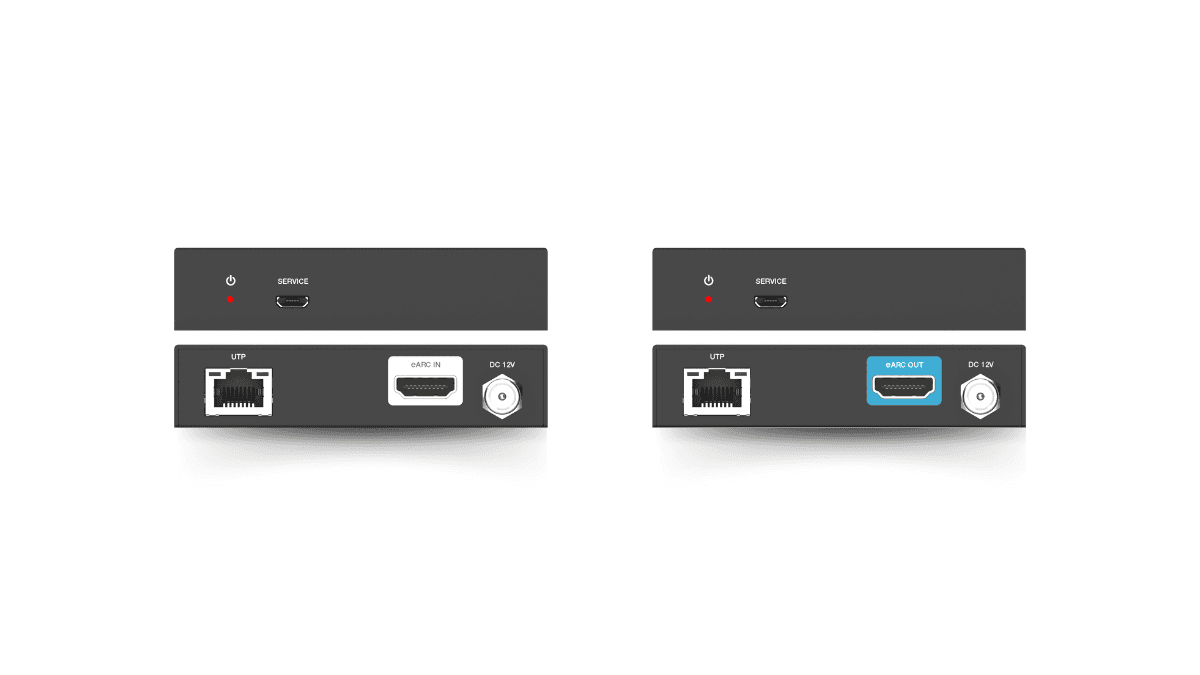

Two black boxes with ports: HDMI, UTP, Service, DC 12V

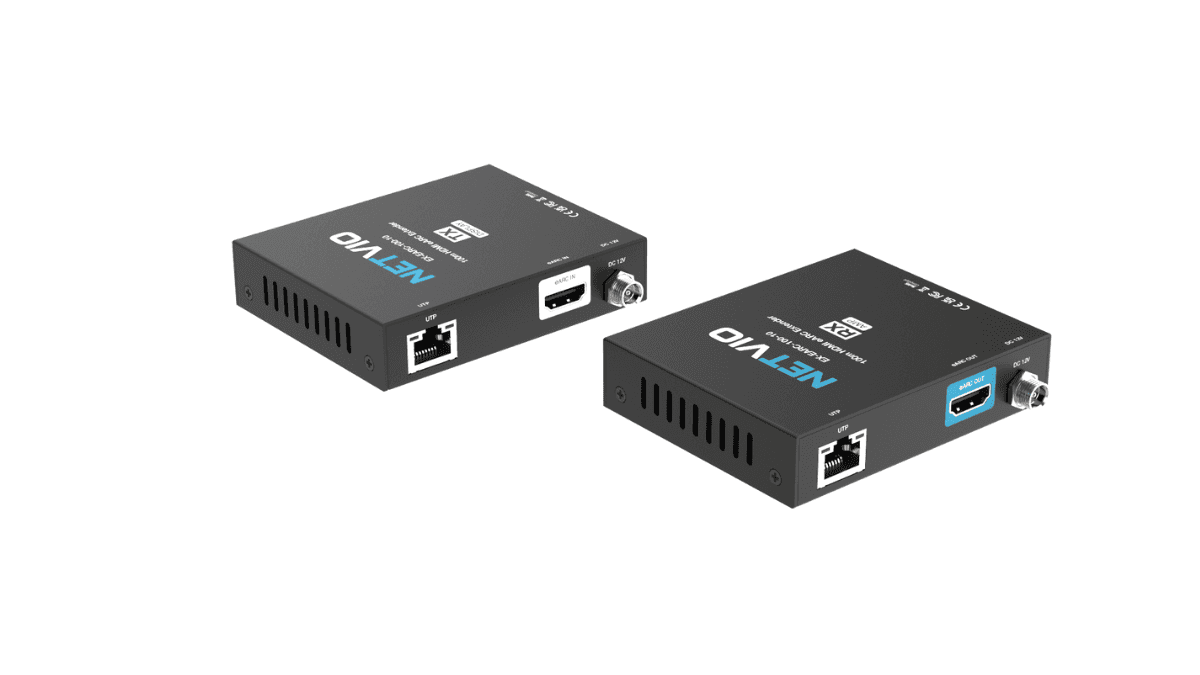

Two NETVIO HDMI extenders with UTP and HDMI ports.

NETVIO

EX-EARC-100-10

HDMI eARC audio extender (100m)

Audio

Get Price

The Netvio EX-eARC-100-10 allows uncompressed high-definition audio (Dolby Atmos, DTS:X, 7.1ch) over a single CAT 5e/6 cable up to 100 m (331 ft). Includes CEC passthrough, two-way PoC and error-correction for reliable commercial AV installations.

Versatile Integration — Works with both ARC/eARC-enabled TVs and legacy SPDIF sources.
High-Resolution Audio — Supports uncompressed and immersive audio formats including Dolby Atmos and DTS-HD MA.
ARC & eARC Support — Supports PCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital+, DTS, Dolby TrueHD, DTS-HD MA, and Dolby Atmos.
SPDIF Mode — Dedicated pass-through for TVs without ARC/eARC function.
CEC Pass-Through — Maintains control functionality in HDMI eARC mode.
PoC Powered — Bidirectional Power over Cable with 12V adapter included.
Compact & Durable — Metal housing ensures professional reliability.

Like the rest of the Netvio catalog the product is license-inclusive with the Netvio360 setup software, AppBuilder drag-and-drop GUI designer and the NetvioGo iOS / Android / Windows control app, and is designed for plug-and-play deployment by professional AV integrators.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Transmission Distance	Up to 100 m (328 ft)
ARC	PCM 2.0, Dolby 5.1, DTS 5.1
SPDIF	PCM 2.0, Dolby 5.1, DTS 5.1
Inputs (TX)	1 × SPDIF Optical, 1 × HDMI eARC (Type A), 1 × DC 12V
Outputs (RX)	1 × SPDIF Optical, 1 × HDMI eARC (Type A), 1 × DC 12V
Power Supply	DC 12V/1A (PoC supported, 1 adapter included)
Power Consumption	< 5.65 W
Housing	Metal, black finish
Weight	184 g (0.40 lbs) per unit
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Humidity	20–90 % RH non-condensing
