EX-ARC-150-10

Extender

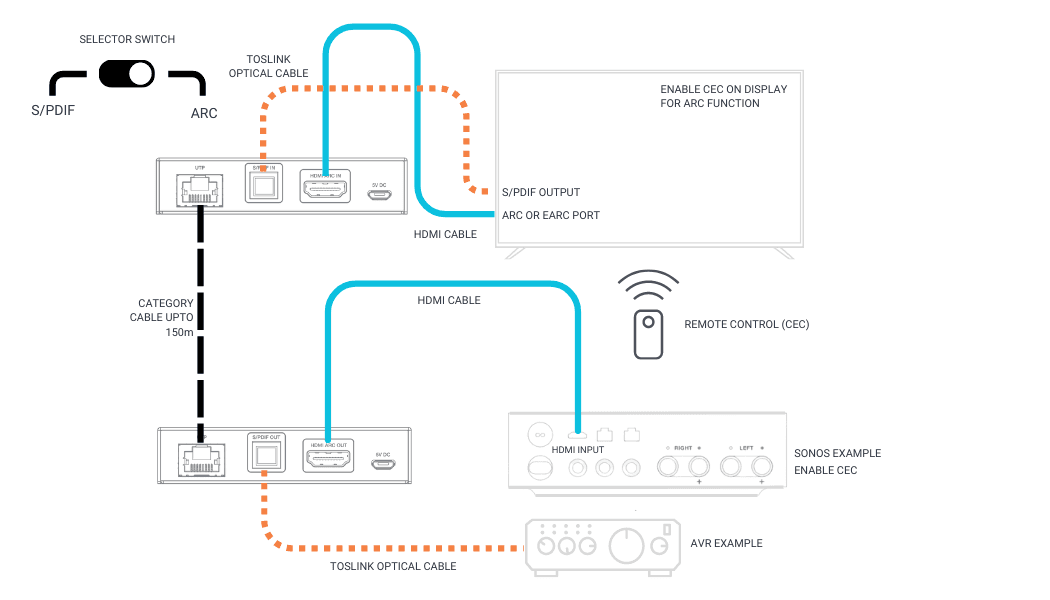

CEC diagram showing ARC and optical connections

NETVIO

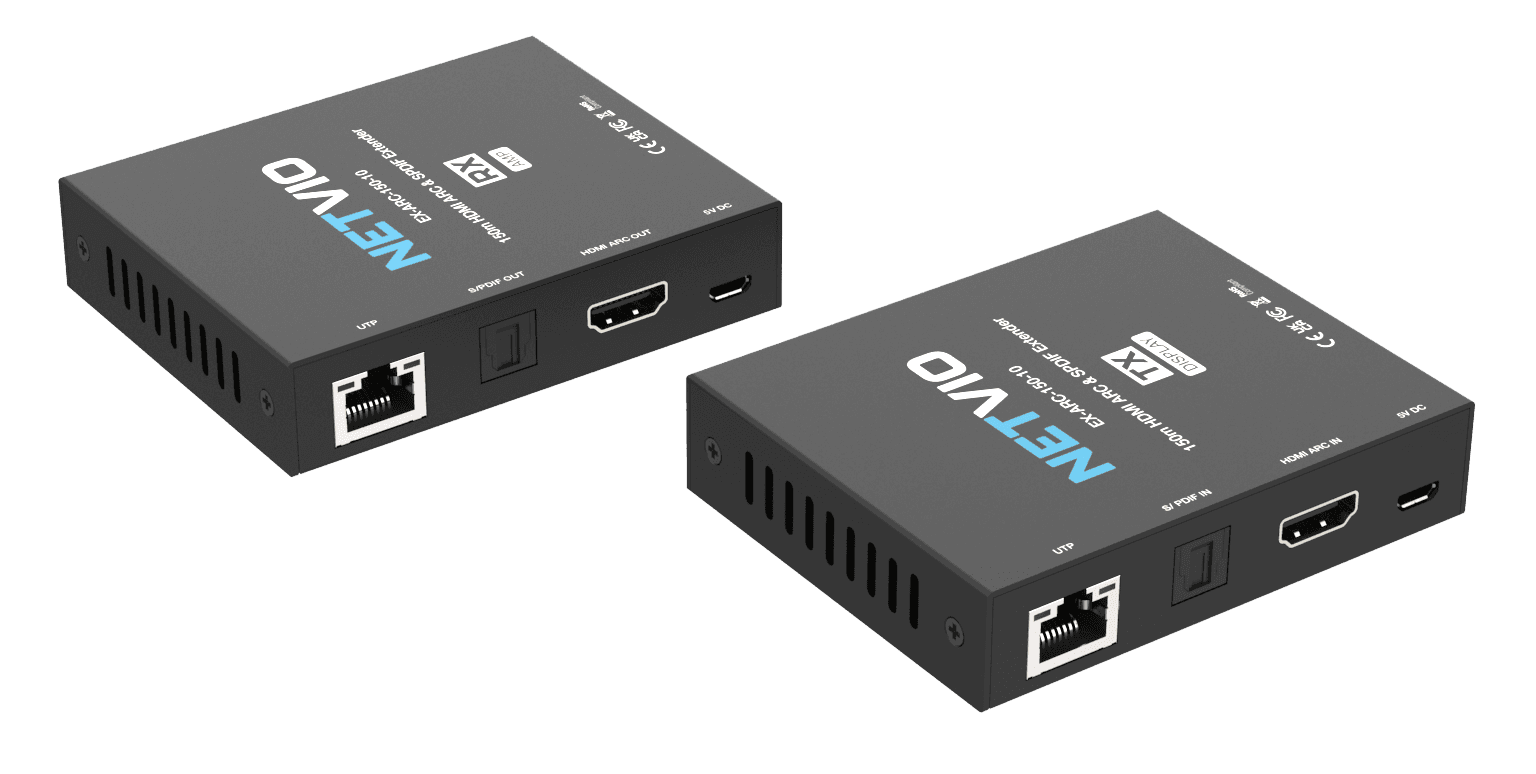

EX-ARC-150-10

150m ARC | SPDIF Extender over Category Cable

Audio

Get Price

Dedicate Audio Return Extender over Category cable.

96kHz upto 150m (495ft)
192kHz upto 90m (295ft)
Uses embedded HDMI or SPDIF connections
Supports CEC remote pass-thru allowing original equipment remote use.
W: 90m D: 72mm H: 20mm per device
Each device powered by PSU with R/A power connector.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Transmission Distance	150 m @ 96 kHz; 90 m @ 192 kHz
Audio Support	PCM 2.0, Dolby 5.1, DTS 5.1
Inputs (TX)	1 × SPDIF (Optical), 1 × HDMI ARC (Type A), 1 × Micro-USB
Outputs (RX)	1 × SPDIF (Optical), 1 × HDMI ARC (Type A), 1 × Micro-USB
Power	PoC bidirectional, 5V/2A Micro-USB (max 1 W)
Weight	175 g (0.38 lbs) per unit
Housing	Metal, black finish
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Humidity	20–90 % RH non-condensing
