Controller

RS-232, IR Outputs, Audio, Sense, OSD, USB, LAN/POE+, PWR IN

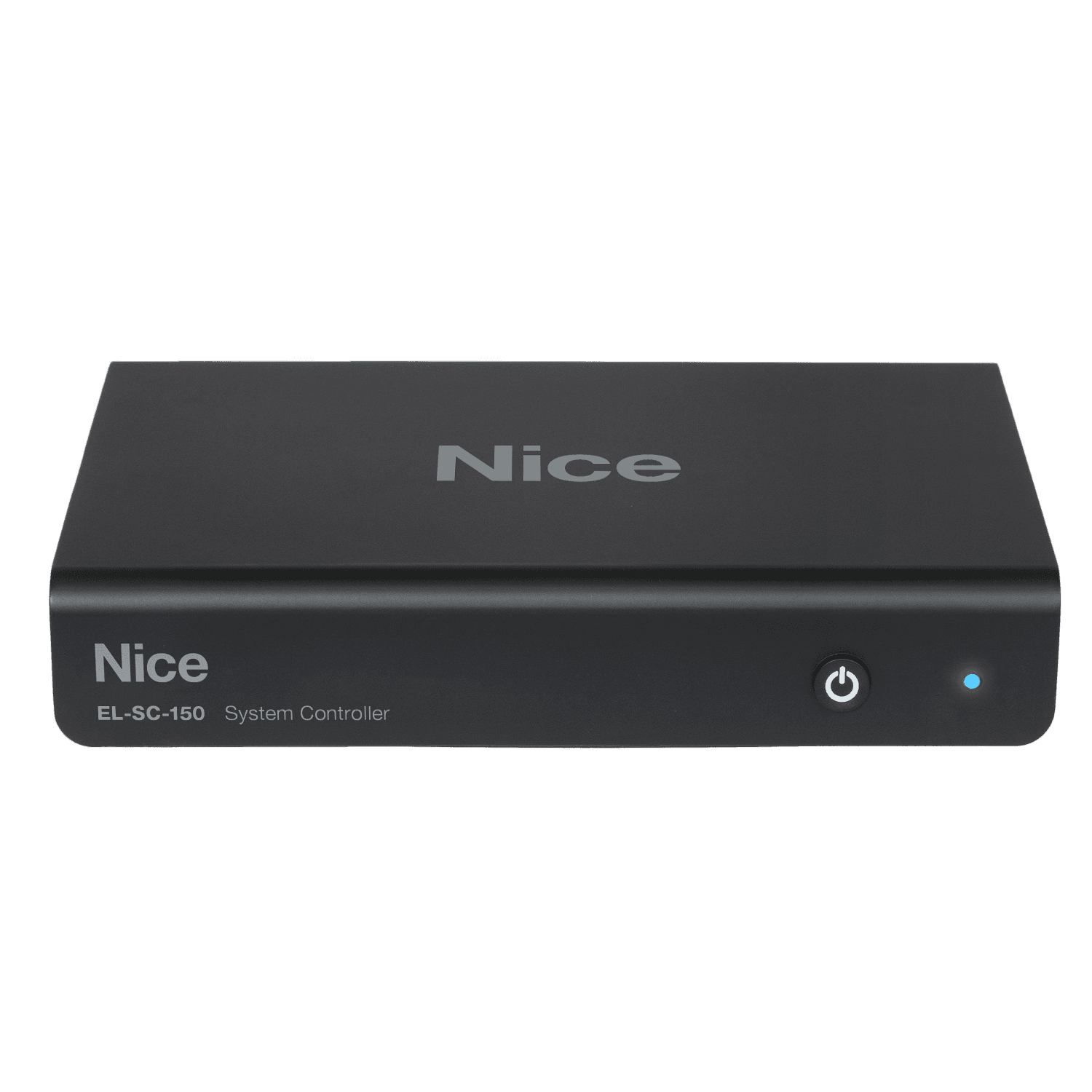

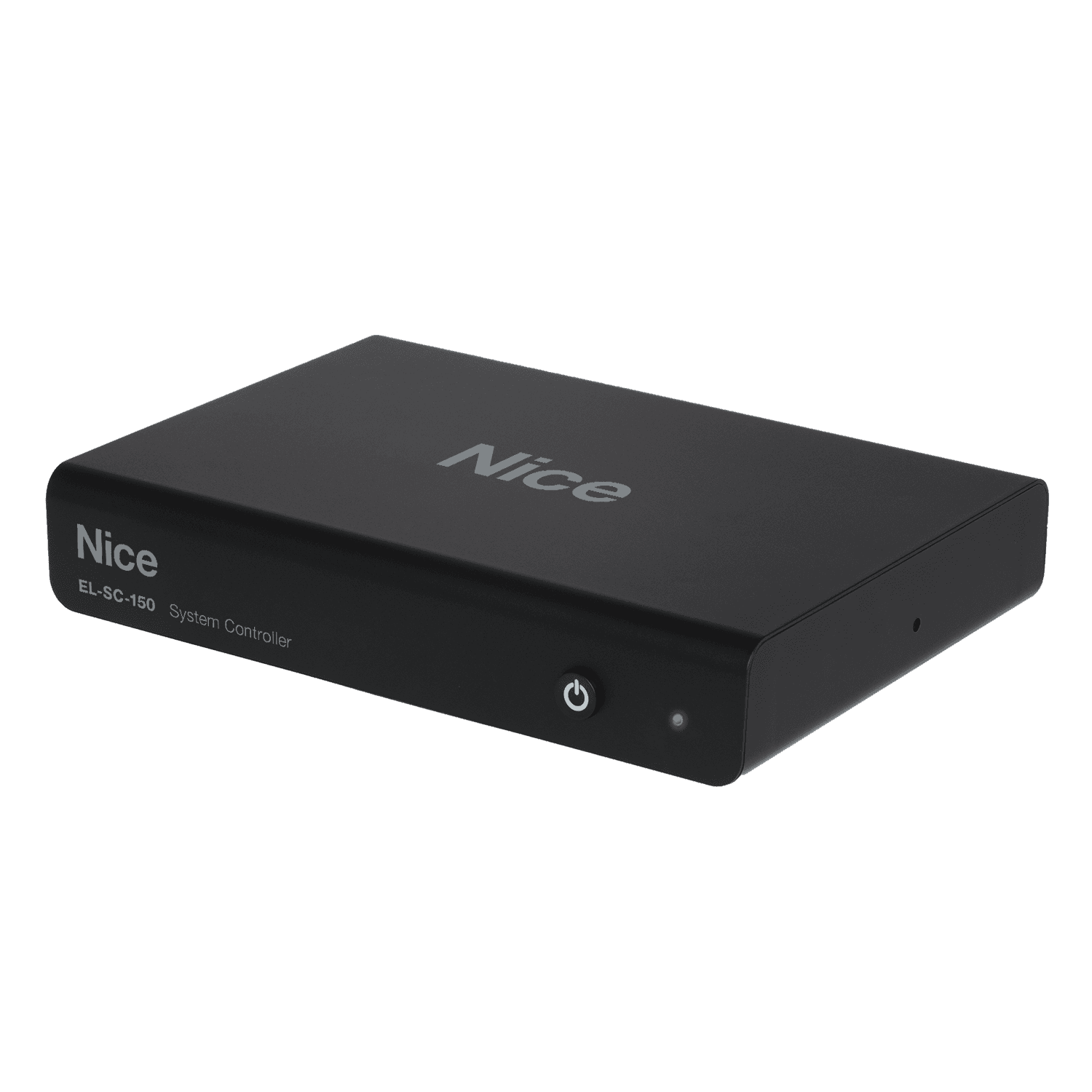

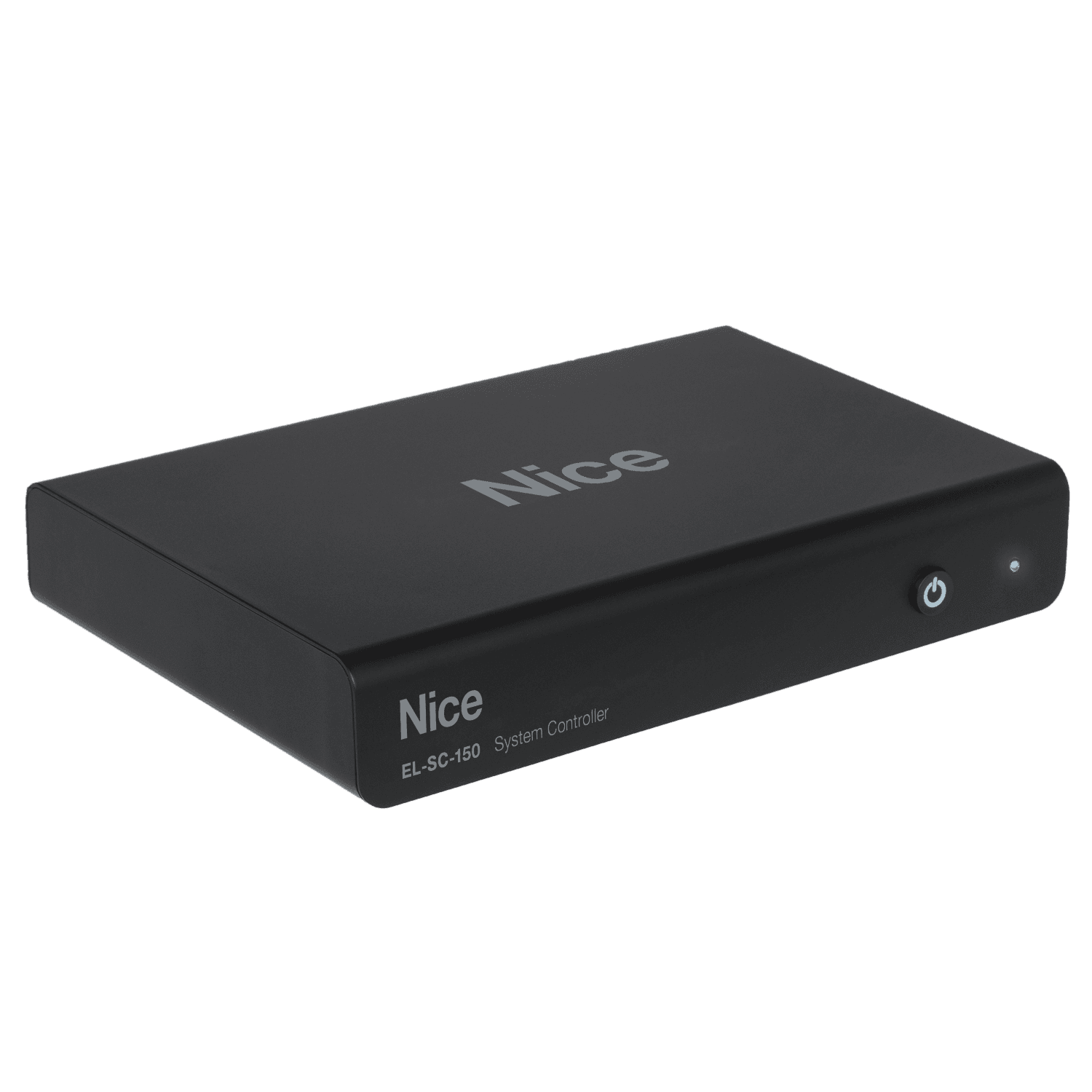

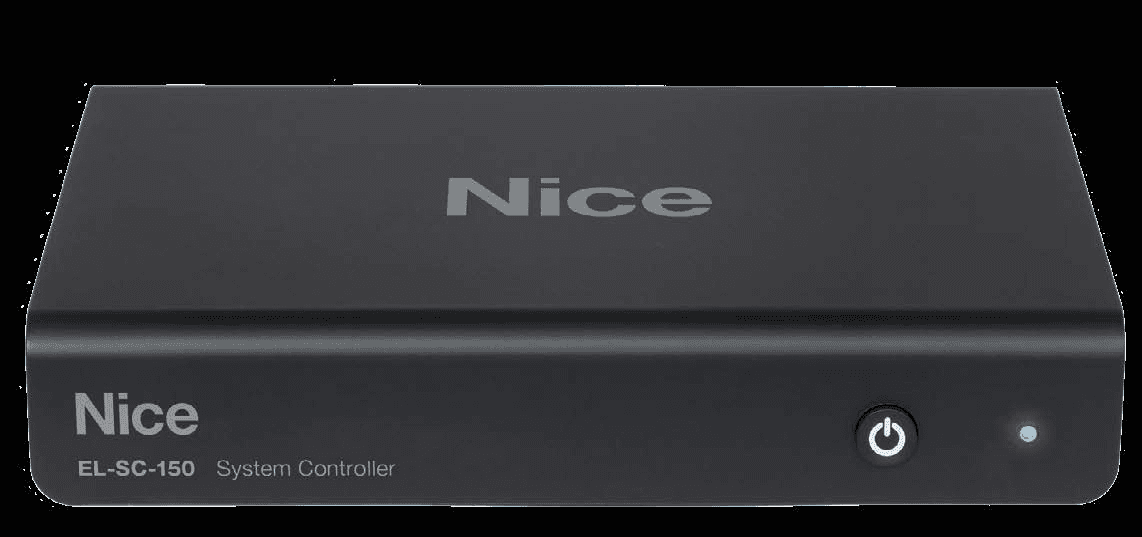

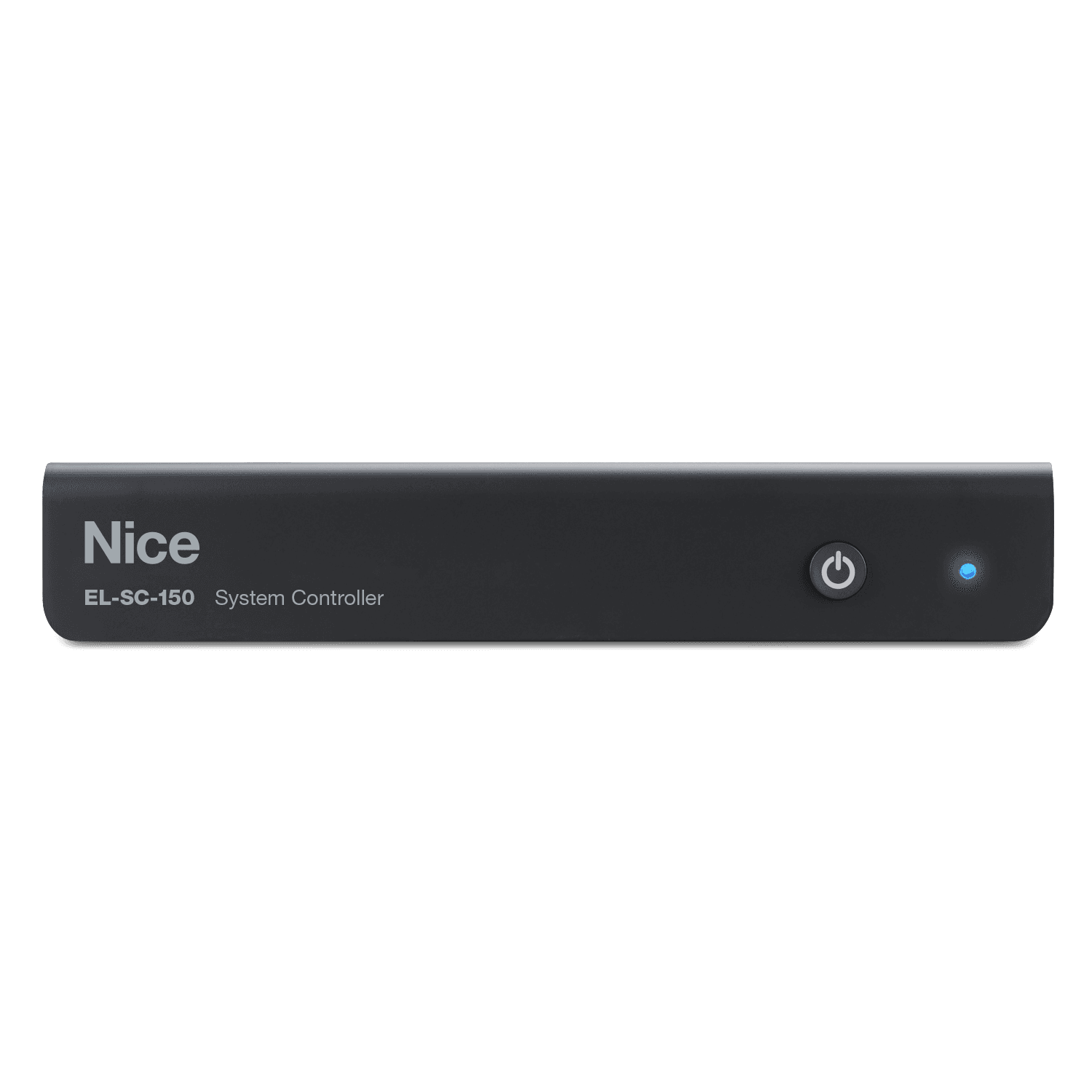

Nice EL-SC-150 System Controller
Nice EL-SC-150 System Controller
Nice EL-SC-150 System Controller
Nice EL-SC-150 System Controller

NICE

/

EL-SC-150

EL-SC-150

Compact system controller for small to moderate smart home installations

Control System

Robust whole-home control at a price point that opens new opportunities.

The Nice EL-SC-150 System Controller offers robust performance at a price point that creates new opportunities for smaller to moderate sized installations, providing a single point of control and automation for media, climate, lighting, security, surveillance, and more. All control is conducted via the award-winning Nice smart home management user interface for an exceptional experience.

  • ARM big.LITTLE architecture integrating dual-core and quad-core processors

  • HDMI 2.0 for 4K 60Hz output with HDCP 1.4/2.2 support

  • H.265 video decoding capability up to 4K resolution

Flexible, reliable design

  • Ultra-efficient, fanless design with no moving parts for long-lasting reliability

  • PoE or Wi-Fi connection for placement flexibility

  • Compact enclosure fits in cabinets, structured wiring cabinets, or behind a display

Pair with the Nice EL-IO-200 as a cost-effective way of adding control connections to another area.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Specification

Value

RS-232

(1) RJ-45 Connector

Sense Input

(1) 3.5mm Connector

IR Output

(3) 3.5mm connectors (Mono), -12V DC

Audio

(1) 3.5mm Connector (Studio)

On-Screen Display

(1) HDMI 2.0 for 4K 60Hz output with HDCP 1.4/2.2 support

USB

(1) USB A Connector

Ethernet

(1) RJ-45 PoE Connector

Wi-Fi

802.11 b/g/n, frequencies 5745-5825 and 2400-2483.5

Software Compatibility

Requires Core Module 8.9 or above

Updates

Managed by Management Cloud

Power

Included Power Supply, 120/240VAC input 12VDC 1A output

Operating Temperature

32°F to 131°F

Operating Humidity

90% Maximum (Non-Condensing)

Mounting

Free standing, Wall mount, Structured wiring cabinet

Product Dimensions

6.9375" W x 1.25" H x 5" D (176 x 31 x 126 mm)

Product Weight

0.8 lb / 0.36 Kg

Certifications

CE, FCC, C-Tick

Warranty

2 Year
