EL-IPD-PRE-MSI - Galtech Trading

Matrix

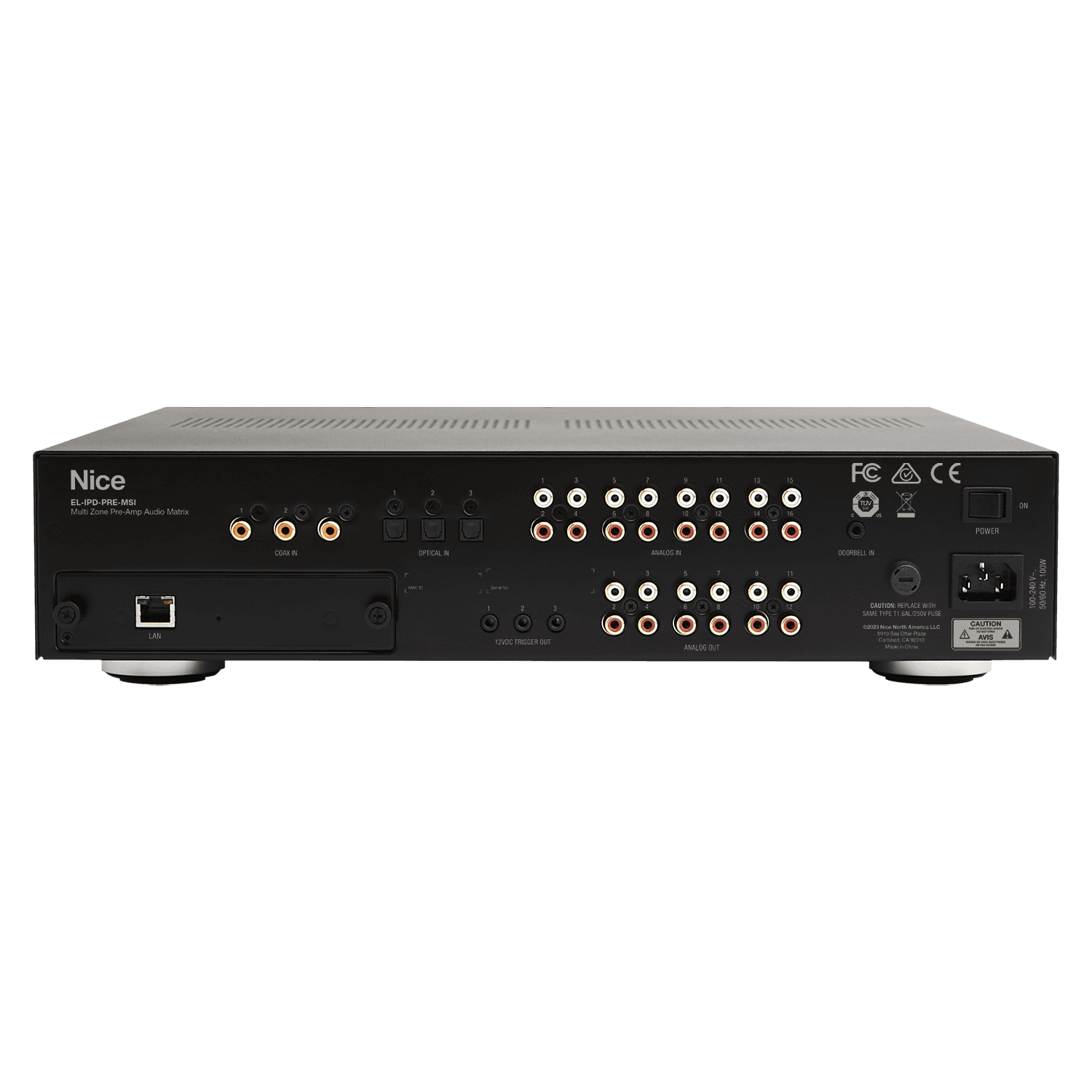

Nice EL-IPD-PRE-MSI audio matrix back panel.

NICE

EL-IPD-PRE-MSI

Multi-zone pre-amp audio matrix with optional Dante networking

Audio

Get Price

Add Nice multi-zone control to standard amplifiers and AVRs.

The Nice EL-IPD-PRE-MSI Multi Zone Preamp Audio Matrix can be used in a standalone configuration with standard amplifiers or AVRs, or with other amplifiers and pre-amps within the Nice IP audio distribution family by adding the optional Dante audio networking card. In standalone mode with external amplifiers it supports up to 22 input sources (6 digital, 16 mono / 8 stereo analog RCA, and 1 stereo 3.5mm doorbell input).

6 stereo / 12 mono pre-amp zones
Adds Nice zone control to any amplifier
3 optical, 3 coax, and 8 stereo / 16 mono analog inputs

DSP and expansion

DSP with 5-band EQ, lip-sync correction, and adjustable crossover for each zone
Optional Network Audio Card adds Dante audio networking

Nice IP-enabled audio distribution scales from a single chassis to a decentralized multi-chassis, multi-source implementation, meeting the needs of projects up to 64 individual zones.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Digital audio inputs	3 Optical TOSLINK, 3 Coaxial RCA; Stereo PCM 96kHz, 24-bit
Line-level inputs	8 stereo / 16 mono analog RCA, configurable to L/R/mono
Doorbell input	3.5mm stereo
Max input level	2.0 VRMS
Input sensitivity	0 dBV (1.0 VRMS)
Input impedance	47k - 49k ohm
Line-level outputs	6 stereo / 12 mono analog RCA pre-amp, configurable to L/R/mono/sub
Output level	Fixed 0dB; variable -50 to 0dB in 0.5dB steps, unbalanced
Output impedance	470 ohm
Lip-sync delay	0-400ms, 10ms increments, per zone
Tone control	Five-band EQ, loudness, high/low pass, adjustable crossover
Trigger outputs	3.5mm mono, +12Vdc, 100mA current limit
Network	1 RJ45, 100/1000 Ethernet, DHCP enabled by default; optional Dante card
Power	AC 100-120 / 220-240V~ 50/60Hz, 1000W
Operating temperature	+5C to +45C (+41F to +113F)
Dimensions	17D x 17W x 4H in (431.8 x 431.8 x 101.6 mm, with feet)
Weight	15.55 lbs / 7.05 kg
