Matrix

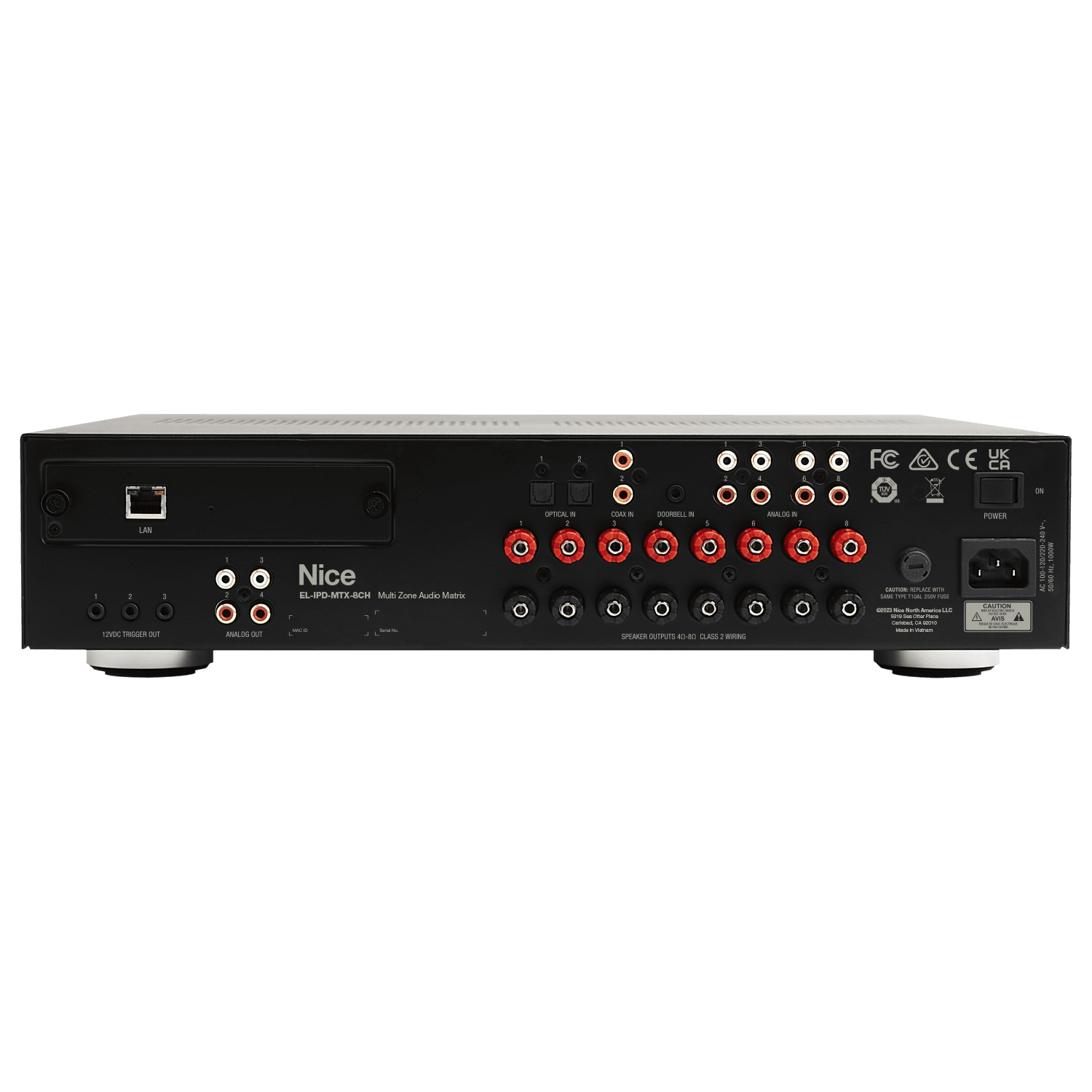

Nice EL-IPD-MTX-8CH audio matrix back panel

NICE

EL-IPD-MTX-8CH

8-channel multi-zone audio matrix amplifier with optional Dante

Audio

Get Price

A standalone matrix amplifier that scales to a networked multi-zone system.

The Nice EL-IPD-MTX-8CH amplifier can be used in standalone mode to support up to 13 input sources (4 digital, 8 mono / 4 stereo analog RCA, and 1 stereo 3.5mm doorbell input from a Nice System Controller). Eight speaker channels provide up to 4 stereo or 8 mono zones, and four line-level outputs configure as up to 4 mono or 2 stereo zones or subwoofer out. The MTX-8CH replaces the S86A.

4 stereo / 8 mono amplified zones plus 2 stereo / 4 mono pre-amp zones
2 optical, 2 coax, and 4 stereo / 8 mono analog inputs
80W per channel at 8 ohm, 100W per channel at 4 ohm

Expansion and DSP

Expandable with additional chassis and the optional EL-IPD-NAC-EXT Dante network audio card
DSP with 5-band EQ, lip-sync correction, and adjustable crossover per zone

Adding the optional Dante card connects sources to and from other Dante-enabled Nice IP amplifiers, scaling to projects of up to 64 individual zones.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Digital audio inputs	2 Optical TOSLINK, 2 Coaxial RCA; Stereo PCM 96kHz, 24-bit
Line-level inputs	4 stereo / 8 mono analog RCA, configurable to L/R/mono
Doorbell input	3.5mm stereo
Max input level	2.0 VRMS
Input sensitivity	0 dBV (1.0 VRMS)
Input impedance	47k - 49k ohm
Line-level outputs	2 stereo / 4 mono analog RCA pre-amp, fixed 0dB or variable -50 to 0dB
Pre-amp output impedance	470 ohm
Amplifier output	4 stereo / 8 mono outputs, configurable to L/R/mono
Output power	80W at 8 ohm, 100W at 4 ohm
THD	<0.05% @ 1kHz
Frequency response	20Hz to 20kHz, +0.5 / -0.5 dB
Crosstalk	>60dB @ 1kHz / 1W
Signal to noise	100dB
Lip-sync delay	0-400ms, 10ms increments, per zone
Tone control	Five-band EQ, loudness, high/low pass, adjustable crossover
Trigger outputs	3.5mm mono, +12Vdc, 100mA current limit
Network	1 RJ45, 100/1000 Ethernet, DHCP enabled by default; optional Dante card
Power	AC 100-120 / 220-240V~ 50/60Hz, 1000W
Operating temperature	+5C to +45C (+41F to +113F)
Dimensions	17D x 17W x 4H in (431.8 x 431.8 x 101.6 mm, with feet)
Weight	21.9 lbs / 9.93 kg
