Amplifier

Nice multi-zone audio extender with lights

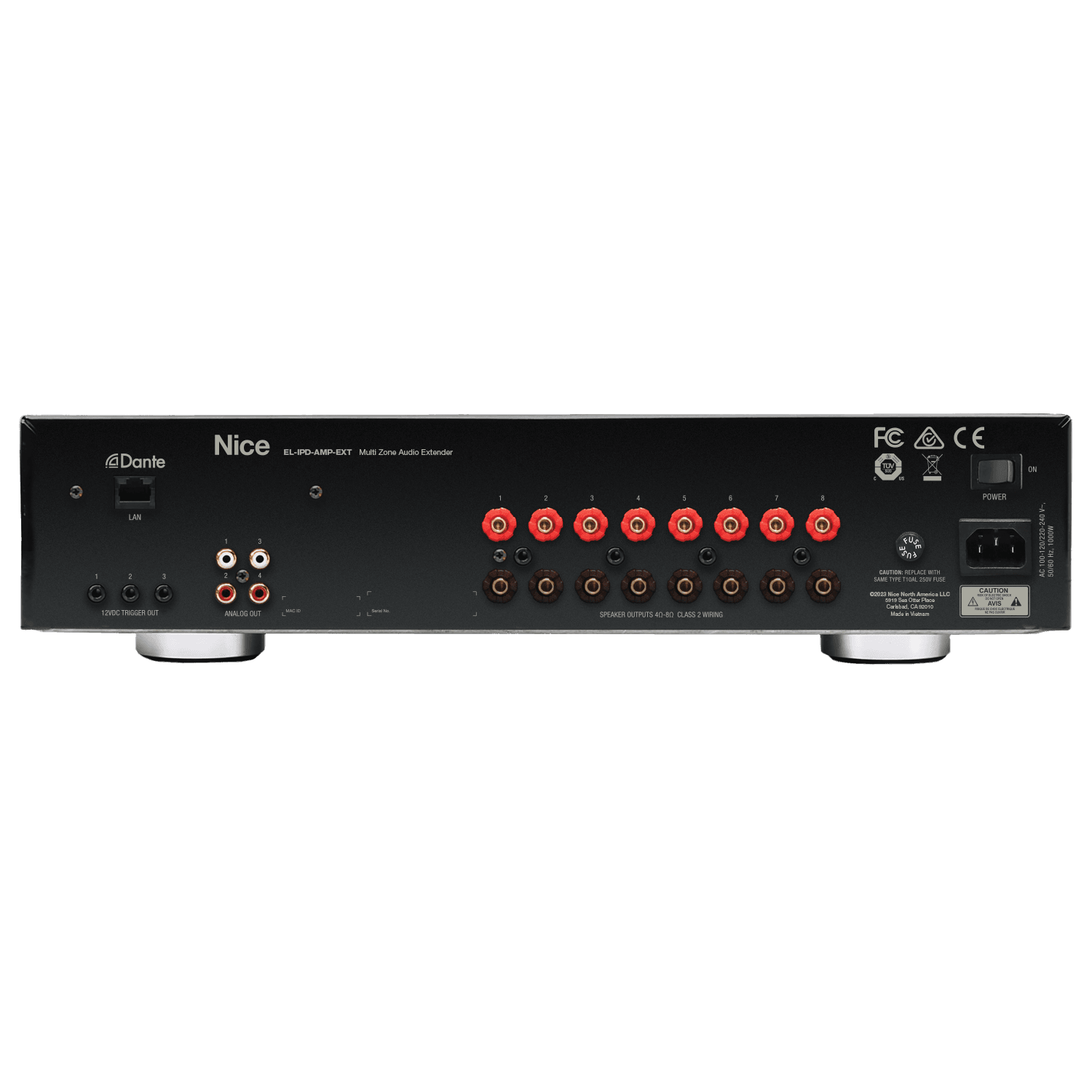

Nice EL-IPD-AMP-EXT Multi Zone Audio Extender rear panel

NICE

EL-IPD-AMP-EXT

Multi-zone amplified audio extender adding up to 8 zones

Audio

Get Price

Add up to eight zones of amplified and pre-amp audio over the network.

The Nice EL-IPD-AMP-EXT is used in conjunction with an amplifier or pre-amp in the Nice family of IP-enabled amps to add up to 8 zones of audio. Speaker outputs configure as left, right, or mono, and four line-level outputs configure as left, right, mono, or subwoofer out. Each output or combination of outputs can be set up as a separate zone with EQ and lip-sync delay applied individually.

4 stereo / 8 mono amplified zones plus 2 stereo / 4 mono pre-amp zones
80W per channel at 8 ohm, 100W per channel at 4 ohm
Dante audio networking with DSP and 5-band EQ for each zone

Configuration and integration

Three 3.5mm mono zone/system trigger outputs (+12Vdc, 100mA)
Individual lip-sync delay and tone control per speaker and pre-amp zone

Nice IP-enabled audio distribution scales to projects of up to 64 individual zones. Note: the EL-IPD-AMP-EXT cannot operate standalone; it requires another Dante-enabled Nice amplifier or pre-amp.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Line-level inputs	2 stereo / 4 mono analog RCA pre-amp outputs, configurable
Pre-amp output level	Fixed 0dB nominal; variable -50 to 0dB in 0.5dB steps, unbalanced
Pre-amp output impedance	470 ohm
Amplifier output	4 stereo / 8 mono outputs, configurable to L/R/mono
Output power	80W at 8 ohm, 100W at 4 ohm
THD	<0.05% @ 1kHz
Frequency response	20Hz to 20kHz, +0.5 / -0.5 dB
Crosstalk	>60dB @ 1kHz / 1W
Signal to noise	100dB
Lip-sync delay	0-400ms, 10ms increments, per zone
Tone control	Five-band EQ, loudness, high/low pass, adjustable crossover
Trigger outputs	3 x 3.5mm mono, +12Vdc, 100mA current limit
Network	1 RJ45, 100/1000 Ethernet, DHCP enabled by default
Power	AC 100-120 / 220-240V~ 50/60Hz, 1000W
Operating temperature	+5C to +45C (+41F to +113F)
Dimensions	17D x 17W x 4H in (431.8 x 431.8 x 101.6 mm, with feet)
Weight	21.35 lbs / 9.93 kg
