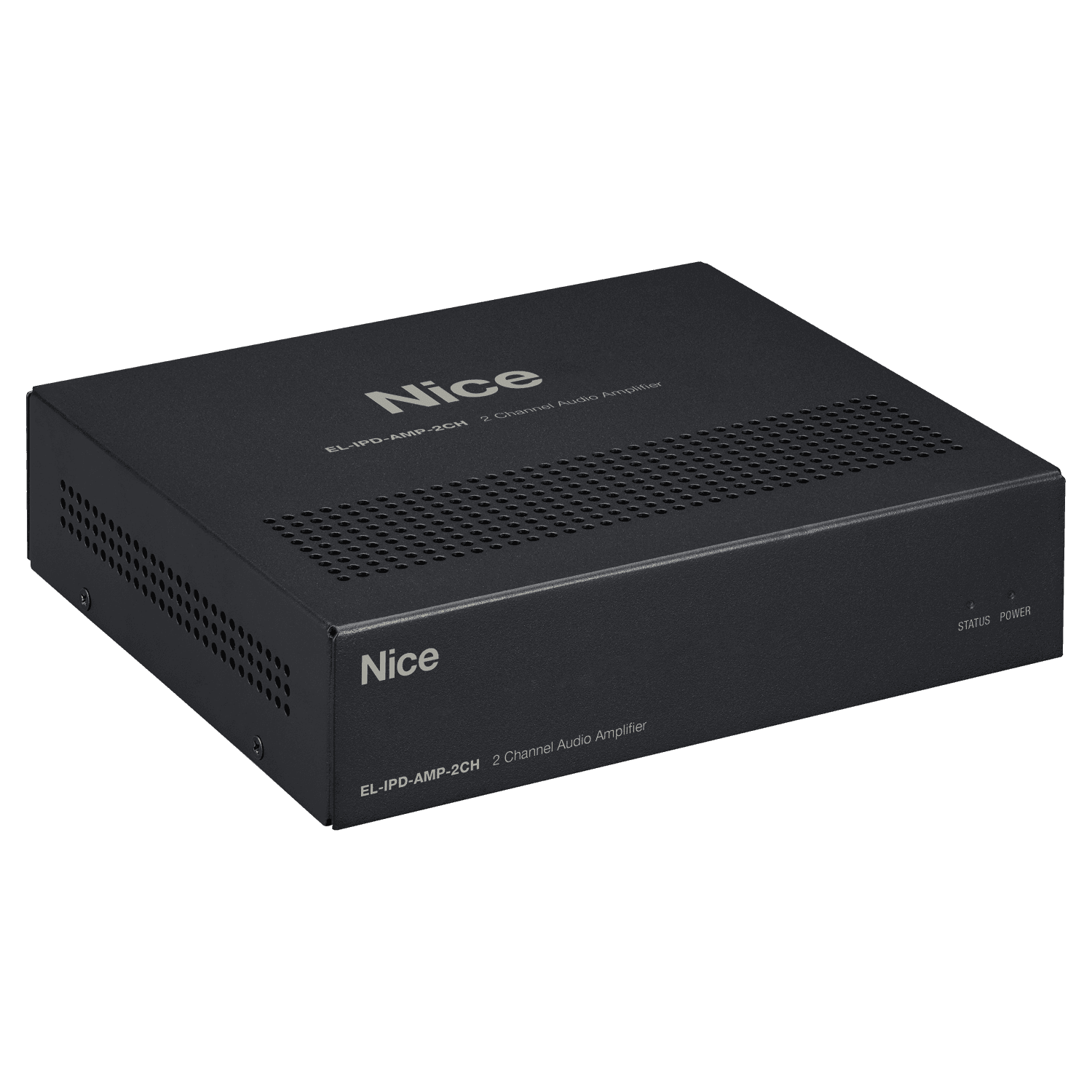

Amplifier
EL-IPD-AMP-2CH
2-channel networked audio amplifier with Dante audio networking
Audio
Manifacturer Warranty
Our brands provide full warranty coverage on all listed products.
Tech Support
We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.
Free Demo
Dealers and installers can book a demo to experience the products in our showroom and learn more.
Training
Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.
Specs
Specification | Value |
|---|---|

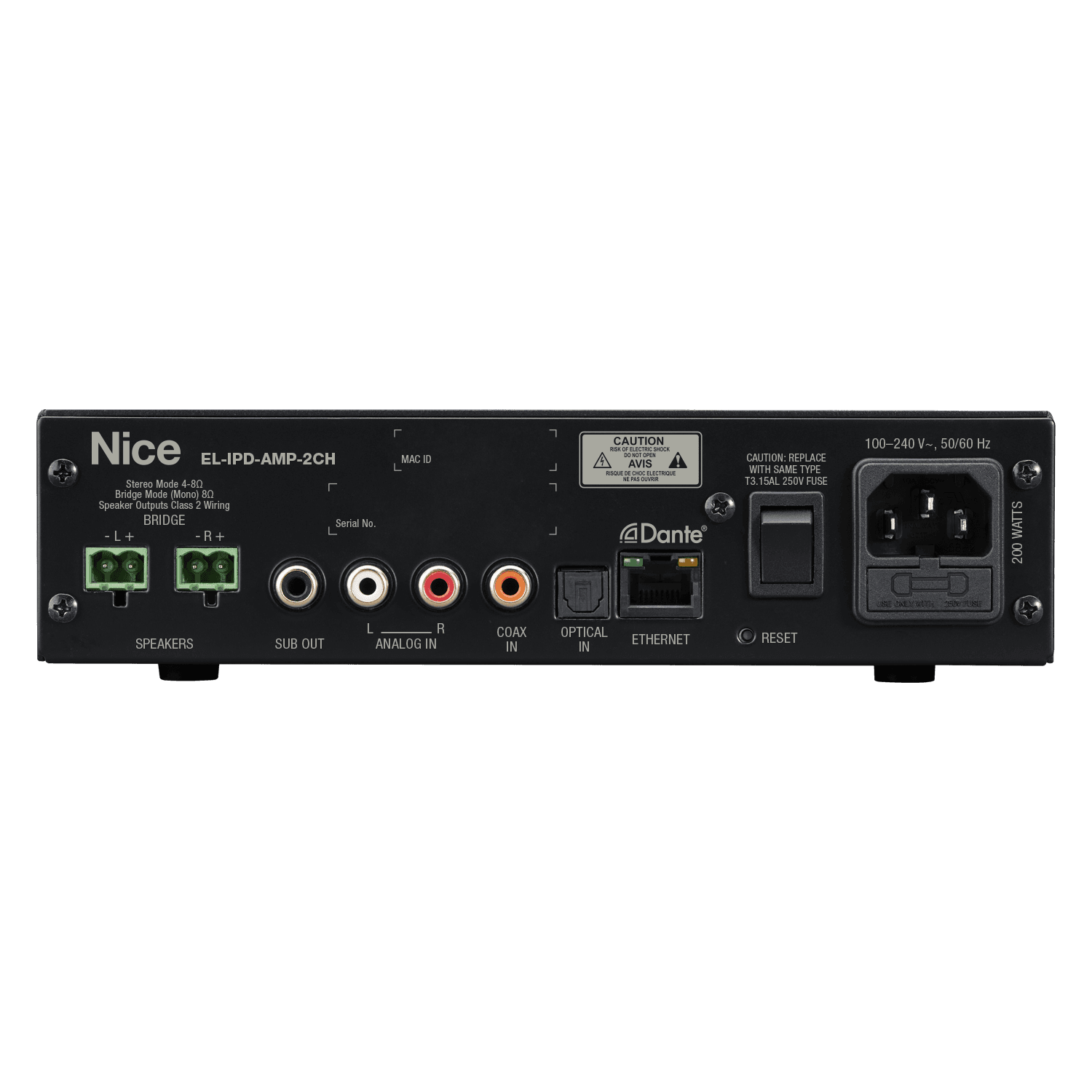

Digital audio inputs | 1 Optical TOSLINK, 1 Coaxial RCA; Stereo PCM 96kHz, 24-bit |
Analog input | Stereo analog RCA |
Max input level | 2.0 VRMS |
Input sensitivity | 0 dBV (1.0 VRMS) |
Input impedance | 47k - 49k ohm |
Subwoofer output | RCA, follows main volume; 470 ohm impedance |
Amplifier output | 2 stereo amplifier outputs, bridgeable |
Output power | 80W at 8 ohm, 100W at 4 ohm, 200W in bridge mode |
THD | <0.05% @ 1kHz |
Frequency response | 20Hz to 20kHz, +0.5 / -0.5 dB |
Crosstalk | >60dB @ 1kHz / 1W |
Signal to noise | 90dB |
Lip-sync delay | 0-400ms, adjustable in 10ms increments |
Tone control | Five-band EQ, loudness on/off, per zone |
Network | 100/1000 Ethernet, DHCP enabled by default, 1 RJ45 |
Dimensions | 7D x 7.9W x 1.97H in (178 x 201 x 50 mm) |
Weight | 4.10 lbs / 1.86 kg |
