Specs

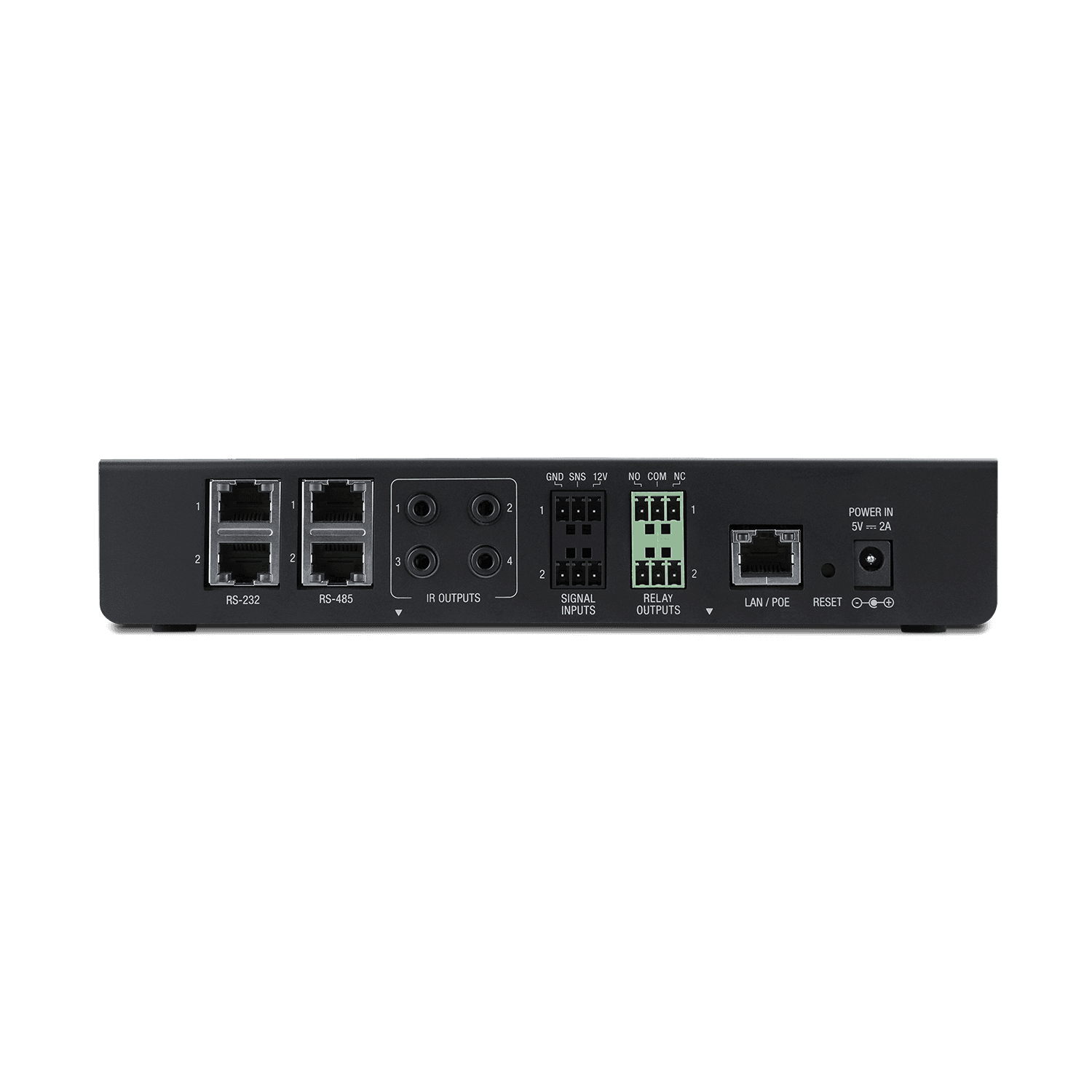

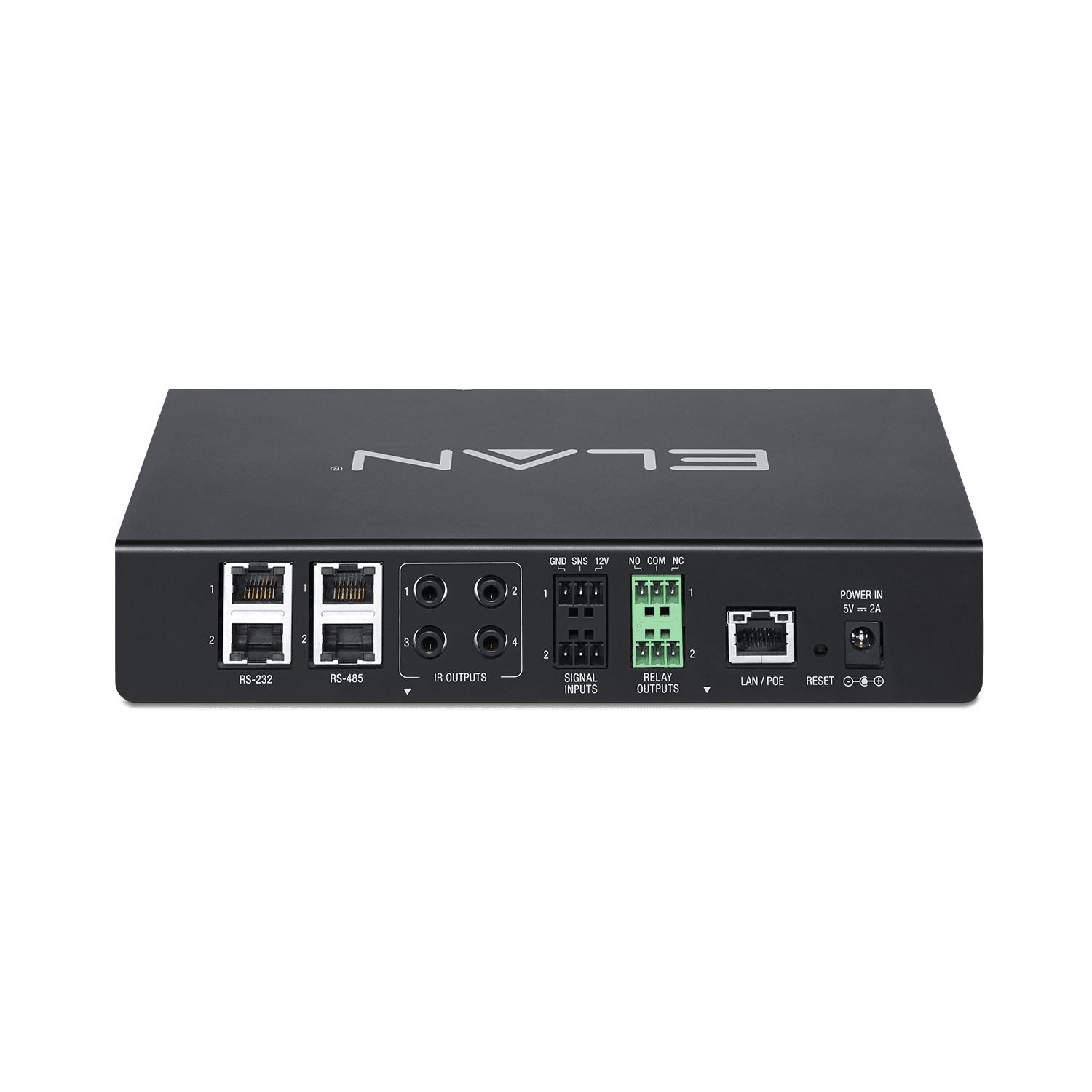

Connections
Specification | Details |
|---|---|
RS-232 | 2 × RJ-45 ports |
RS-232 configuration | Null modem configurable |
RS-485 | 2 × RJ-45 ports |
IR output | 4 × 3.5mm mono ports / -12V DC |
Signal input | 2 × 3-pin terminal block connectors |
Relay | 2 × 3-pin terminal block connectors |
Ethernet | 1 × RJ-45 port |
Wi-Fi | 2.4 / 5GHz 802.11 b/g/n/ac |
System
Specification | Details |
|---|---|
Software compatibility | Refer to the integration note for compatibility |
Updates | Managed by Core Module software |
General
Specification | Details |
|---|---|
Power input | 120 / 240VAC |
Power output | 12VDC 1A |
PoE | IEEE 802.3af / 802.3at Type 1 |
Operating temperature | 0° to 40°C |
Operating humidity | 90% maximum / non-condensing |
Mounting options | Free-standing, wall mount, structured wiring cabinet |
Product Dimensions & Weight
Specification | Details |
|---|---|
Dimensions / imperial | 8.46″ W × 1.63″ H × 5″ D |
Dimensions / metric | 215 W × 41.5 H × 127 D mm |
Product weight | 1.8 lbs, 11 oz / 3.95kg |
